In Stock
| System | ||
| Main Processor | Embedded high-performance processor | |
| Operating System | Embedded Linux OS | |
| Audio and Video | ||
| IP Camera Input | 20-channel IP camera access | |
| Display | ||
| Interface | 1× HDMI, 1× VGA simultaneous output | |
| Resolution | HDMI up to 3840×2160 (4K) @30Hz; VGA up to 1920×1080 @60Hz | |
| Decoding Capacity | • Preview: 8MP×2 / 6MP×2 / 5MP×3 / 4MP×4 / 3MP×5 / 1080P×8 / 720P×16 / 4CIF×20 • Playback: 8MP×2 / 6MP×2 / 5MP×3 / 4MP×4 / 3MP×5 / 1080P×8 / 720P×16 / 4CIF×16 |
|
| Multi-Screen Display | Up to 25 split-screen views via HDMI/VGA | |
| OSD | Camera title, time, recording status, alarm info | |
| Recording | ||
| Compression | S+265 / H.265 / S+264 / H.264 | |
| Resolution | Up to 8MP recording supported | |
| Record Rate | Up to 30fps per channel (resolution dependent) | |
| Bit Rate | Incoming 100Mbps / Outgoing 80Mbps | |
| Record Mode | Manual, Schedule, Alarm-triggered | |
| Record Interval | Configurable (continuous/event-based) | |
| Others | Dual-stream recording supported | |
| Video Detection And Alarm | ||
| Trigger Event | Motion detection, video loss, network disconnection, disk full, IP conflict, abnormal temperature, illegal access | |
| Video Detection | Motion detection, smart camera analytics (tripwire, perimeter, loitering, people counting, face detection, etc. — via camera) | |
| Alarm Input | Supported via IPC alarm linkage | |
| Playback And Backup | ||
| Sync Playback | 16-channel synchronous playback | |
| Search Mode | Time, event, intelligent search (VCA/AI by camera) | |
| Playback Function | Play, pause, stop, reverse, slow, fast, digital zoom, frame-by-frame, instant replay, video clip backup | |
| Backup Mode | USB storage device, network backup | |
| Third Party Support | ||
| Third Party Support | ONVIF (Profile S/T/G), RTSP, CGI, SDK | |
| Network | ||
| Interface | RJ-45 10/100 Mbps self-adaptive Ethernet port | |
| Ethernet Port | 1× RJ-45 | |
| Network Function | DHCP, DDNS, NTP, FTP, HTTP/HTTPS, SMTP, SNMP, UPnP, IPv4/IPv6, RTSP, RTP, PPPoE, QoS, SSL/TLS, SSH and more | |
| Maximum User Access | Multi-user remote access supported | |
| Smart Phone | EasyLive Plus (Android & iOS) | |
| Interoperability | ONVIF, RTSP compatible IP cameras | |
| Storage | ||
| HDD Mode | Single disk group | |
| Internal HDD | 1× SATA interface, up to 10TB | |
| Auxiliary Interface | ||
| USB | 2× USB 2.0 | |
| Power | ||
| Power Supply | DC 12V | |
| Power Consumption | <10W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C to +55°C, 10%–90% RH non-condensing | |
| Storage Conditions | -20°C to +60°C | |
| Construction | ||
| Dimensions | 250 × 229 × 45 mm | |
| Net Weight | 0.8 kg | |
| Gross Weight | 1.45 kg | |
| Warranty | ||
| Manufacturing Warranty | 1 year | |

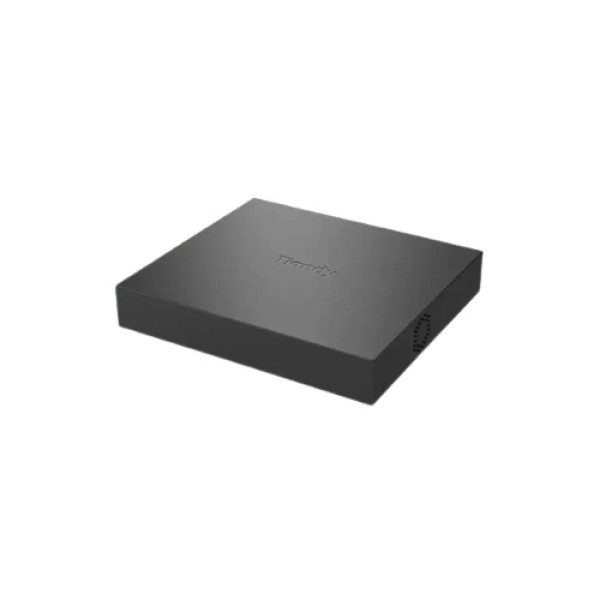

The Tiandy TC-R3120 20 Channel NVR is a compact yet powerful 20-channel NVR built to deliver reliable, high-quality IP surveillance recording for homes, offices, retail shops, and commercial security systems.
Professional IP CCTV recording, ultra-efficient video compression, and sharp 4K display performance — this Tiandy network video recorder combines smart monitoring, smooth playback, and storage-saving technology to create a dependable, future-ready security solution for modern surveillance needs.
The Tiandy TC-R3120 20 Channel NVR supports up to 20 IP camera channels, making it ideal for small to medium CCTV installations. Whether you are securing a business, warehouse, apartment building, or retail space, this 20 channel network video recorder ensures stable connections and consistent video performance. With 100Mbps incoming and 80Mbps outgoing bandwidth, it handles multiple HD video streams smoothly for live viewing, recording, and remote access without interruption.
This Tiandy TC-R3120 20 Channel NVR delivers impressive image clarity with support for 8MP cameras at 30fps (up to 2 channels) or 1080P cameras at 30fps (up to 8 channels). It allows security teams to monitor important areas such as entrances, cash counters, and storage zones with detailed, fluid video. The system also supports 16-channel synchronous playback, allowing users to review footage from multiple cameras at the same time, saving time during investigations and incident checks.
Equipped with S+265, H.265, S+264, and H.264 compression technologies, the Tiandy TC-R3120 20 Channel NVR significantly reduces bandwidth and storage consumption. Tiandy’s advanced S+265 compression can reduce storage usage by up to 75% compared to standard formats, helping you keep longer video history without increasing hard drive costs. The recorder supports 1 HDD with up to 10TB capacity, providing ample space for continuous recording in demanding security environments.
The Tiandy TC-R3120 20 Channel NVR features simultaneous HDMI and VGA outputs for flexible dual-monitor setups. The HDMI port supports up to 4K resolution, delivering crystal-clear video display for monitoring stations. A built-in RJ-45 10/100 Mbps self-adaptive Ethernet port ensures stable network communication for remote viewing and system management. With cloud upgrade support, the device can receive firmware updates easily, keeping your surveillance system secure and up to date.
When you purchase the Tiandy TC-R3120 20 Channel NVR from Touch IT, you are choosing genuine security products backed by trusted service and competitive pricing. Touch IT provides expert guidance, dependable after-sales support, and tailored CCTV solutions to match your exact surveillance requirements. We focus on quality, reliability, and long-term performance so you can build a smart, secure, and future-ready IP camera system with total confidence.
The latest price of Tiandy TC-R3120 20 Channel NVR in Bangladesh is 8,200৳. You can buy the Tiandy TC-R3120 20 Channel NVR at best price from our website or visit any of our showrooms.
