| Hardware | ||
| Display | 4.3-inch LCD Capacitive Touch Screen | |
| Camera | 2MP Wide-Angle Lens, Dual Lens | |
| Resolution | Camera: 2MP | |
| User & Storage Capacity | ||
| Face Capacity | 1,500 Faces | |
| Fingerprint Capacity | 3,000 Fingerprints | |
| Card Capacity | 3,000 Cards | |
| Authentication & Features | ||
| Verification Modes | Face, Fingerprint, EM Card | |
| Card Type | EM Card, 125kHz | |
| Multi-Factor Authentication | Supported | |
| Face Recognition Speed | < 0.2 Seconds per User | |
| Face Algorithm | Face Anti-Spoofing, Face Duplicate Check | |
| Face Recognition Accuracy | ≥ 99% | |
| Face Recognition Distance | 0.3 m to 1.5 m | |
| Liveness Detection | Supported | |
| Communication & Interface | ||
| Network | TCP/IP, Wired Network, Wi-Fi 2.4GHz IEEE 802.11b/g/n | |
| Interface | 1 × RJ-45 10/100M, 1 × RS-485, 1 × Wiegand, 1 × USB | |
| Optional Network Protocols | ISAPI, ISUP 5.0, SIP Server Support, Push SDK, Web Client Configuration | |
| Access Control | 1 × Lock Control, 1 × Exit Button, 1 × Door Contact Input, 1 × Tamper | |
| Software & Smart Features | ||
| Software Compatibility | Hik-ProConnect, HikCentral Professional, Client Software, Indoor Station, Main Station | |
| SDK | Push SDK Supported | |
| Mobile App Integration | Hik-ProConnect Supported | |
| Voice Prompt | Audio Prompt and Two-Way Audio Supported | |
| Physical Specifications | ||
| Power Supply | 12 VDC, 1A Power Adapter Included | |
| Installation | Wall Mounting, Base Mounting | |
| Operating Temperature | -10°C to 40°C | |
| Operating Humidity | 0% to 90% RH, Non-Condensing | |
| Dimensions | 118.4 × 118.4 × 21.8 mm | |
| Weight | Net: 0.23 kg; Gross: 0.71 kg | |
| Warranty | ||
| Warranty | 1 Year | |

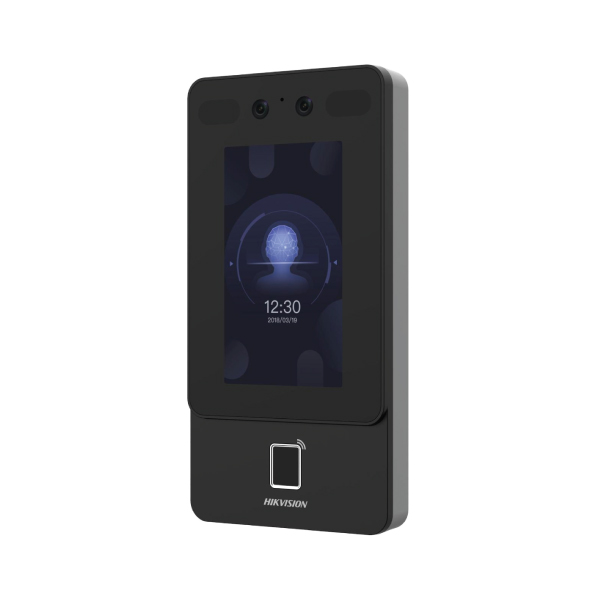

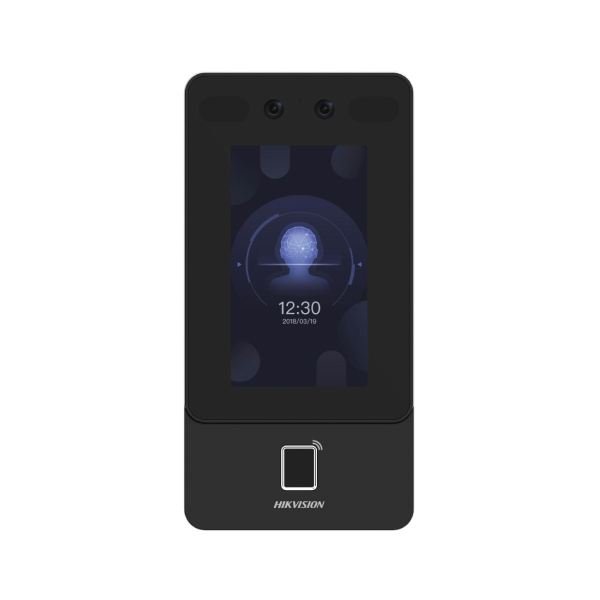

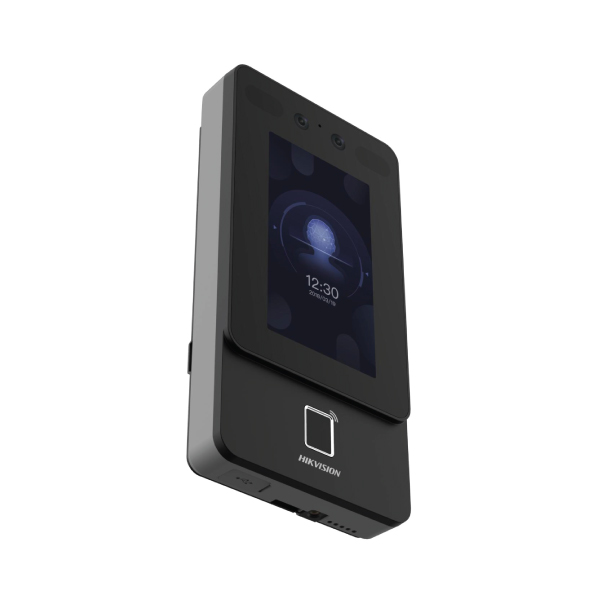

The Hikvision DS-K1T342EFWX Face Recognition Access Control Terminal is a multi-biometric device for offices, factories, schools, hospitals, warehouses and commercial buildings. It combines face, fingerprint, EM card and password authentication with a 4.3-inch touchscreen, dual 2MP cameras and professional door-control interfaces.
For organizations comparing the Hikvision DS-K1T342EFWX price in Bangladesh, this Value Series terminal provides 1,500-face capacity, 3,000-fingerprint capacity, 3,000-card capacity and storage for 150,000 events. The current Hikvision DS-K1T342EFWX price at Touch IT is ৳22,000. Confirm stock, installation accessories, compatible software and warranty coverage before ordering.
The DS-K1T342EFWX provides fast verification and controlled door access in one wall-mounted terminal. Users can authenticate by face from approximately 0.3 to 1.5 metres or use fingerprint, card or password credentials. Web configuration, Wi-Fi and two-way audio suit standalone and managed installations.
Hikvision specifies face matching under 0.2 second per user with at least 99% accuracy. Mask recognition supports contactless entry, while face anti-spoofing helps reduce attempts using presented images. Performance depends on enrollment, positioning and lighting.
Face, fingerprint, 125kHz EM card and password authentication provide flexible credentials. The database supports 1,500 faces, 3,000 fingerprints and 3,000 cards. Browse additional biometric terminals and accessories in the Access Control category.
The 272 × 480 capacitive touchscreen supports enrollment and operation. Two 2MP lenses capture facial data, while audio prompts provide authentication feedback. The compact 91.3 × 181.3 × 24.5mm enclosure fits reception areas and staff entrances.
The terminal supports 10/100Mbps Ethernet, Wi-Fi and web-client configuration. ISAPI and ISUP 5.0 support integration with compatible Hikvision platforms and approved applications. Explore the wider Hikvision Access Control collection when planning a multi-door or centrally managed project.
Lock output, exit-button input, door-contact input, tamper protection, RS-485, Wiegand and USB support common access-control installations. Two-way audio can work with compatible client software, indoor stations and master stations, helping security personnel communicate at managed entrances.
The IP65-rated body and published -30°C to 60°C operating range support demanding access points when professionally installed. Correct mounting, cable sealing and protection from conditions beyond the rating remain essential. For integrated access, surveillance and entrance management, visit Security System Solutions.
| Product Name | Hikvision Face Recognition Access Control Terminal |
|---|---|
| Model | DS-K1T342EFWX |
| Operating System | Linux |
| Authentication | Face, fingerprint, EM card and password |
| Display | 4.3-inch capacitive LCD touchscreen, 272 × 480 |
| Camera | Dual 2MP wide-angle lenses |
| Biometric Capacity | 1,500 faces and 3,000 fingerprints |
| Card and Event Capacity | 3,000 cards and 150,000 events |
| Face Recognition | <0.2 second; ≥99% accuracy; 0.3–1.5m |
| Card Type | 125kHz EM card |
| Communication | 10/100Mbps Ethernet and Wi-Fi |
| Interfaces | RS-485, Wiegand, USB, lock, exit button, door contact and tamper |
| Protocols | ISAPI and ISUP 5.0 |
| Power and Environment | 12V DC, 1A; -30°C to 60°C; 0% to 90% humidity |
| Dimensions and Protection | 91.3 × 181.3 × 24.5mm; IP65; wall mounting |
Verification note: This page covers the standard DS-K1T342EFWX. Some retailers mix it with the newer DS-K1T342EFWX-E1, which adds PoE and lock-power output; those E1-only features are not claimed here. Software functions, adapter inclusion, door hardware, accessories and warranty depend on firmware, platform and package.
This terminal is a practical choice for organizations needing four authentication methods, fast contactless recognition and professional door integration. Its touchscreen is easier to operate than compact non-touch models, while Wi-Fi, web configuration, 150,000-event storage and IP65 protection provide flexibility for growing security and attendance requirements.
| Model | Display | Best For |
|---|---|---|
| DS-K1T342EFWX | 4.3-inch touchscreen | Value multi-biometric access with 1,500 faces |
| Hikvision DS-K1T671MF | 7-inch touchscreen | Higher-capacity access with 6,000 faces |
| Hikvision DS-K1T670MFWX | 7-inch touchscreen | High-capacity Wi-Fi biometric projects |
| Hikvision DS-K1T642EFW | 4.3-inch IPS touchscreen | Pro Series access with 6,000 faces |
It supports face recognition, fingerprint verification, 125kHz EM cards and password authentication.
It stores up to 1,500 face profiles, 3,000 fingerprints, 3,000 cards and 150,000 access events.
Hikvision publishes a recognition duration below 0.2 second per user and an accuracy rate of at least 99% under suitable conditions.
Yes. It supports Wi-Fi and 10/100Mbps Ethernet for flexible network deployment.
Yes. Mask recognition is a verified feature, although enrollment quality, positioning and lighting affect performance.
Yes. It provides lock output, exit-button input, door-contact input and related interfaces for compatible access-control hardware.
PoE is not listed for the standard DS-K1T342EFWX. It uses 12V DC power; PoE is associated with the separately documented E1 version.
Touch IT supplies professional Hikvision access control products in Bangladesh with product consultation, installation planning, configuration assistance and after-sales technical support. The team can verify software, networking, lock, power and accessory requirements before deployment.
Upgrade your entrance with fast face recognition, fingerprint and card access, Wi-Fi connectivity and dependable event storage. Order the Hikvision DS-K1T342EFWX Face Recognition Access Control Terminal from Touch IT, visit 312 (3rd Floor), Multiplan Center, 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Hikvision DS-K1T342EFWX Access Control Terminal in Bangladesh is 22,000৳. You can buy the Hikvision DS-K1T342EFWX Access Control Terminal at best price from our website or visit any of our showrooms.
