| Hardware | ||
| Display | 2.4-inch LCD Screen | |
| Camera | 2 MP Built-in Camera | |
| Resolution | 720P Video Stream | |
| User & Storage Capacity | ||
| User Capacity | Up to 1,000 Users | |
| Face Capacity | 500 Faces | |
| Fingerprint Capacity | 1,000 Fingerprints | |
| Card Capacity | 1,000 Cards | |
| Transaction Capacity | 100,000 Records | |
| Authentication & Features | ||
| Verification Modes | Face / Fingerprint / Card / PIN | |
| Card Type | EM Card | |
| Multi-Factor Authentication | Supported | |
| Face Recognition Speed | < 0.2 sec per user | |
| Liveness Detection | Supported (Face Anti-Spoofing) | |
| Communication & Interface | ||
| Network | Wired Ethernet + Wi-Fi (2.4 GHz, IEEE 802.11 b/g/n) | |
| Interface | 1 × RJ-45 (10/100 Mbps), USB ×1, Tamper ×1 | |
| Optional Network Protocols | ISAPI, ISUP 5.0 | |
| Access Control | Lock Control ×1, Exit Button ×1, Door Contact ×1 | |
| Software & Smart Features | ||
| Software Compatibility | Web Client Configuration | |
| SDK | Supported | |
| Physical Specifications | ||
| Power Supply | 12 VDC | |
| Power Consumption | ≤ 6 W | |
| Installation | Wall Mount (Indoor Use) | |
| Operating Temperature | -10°C to +55°C | |
| Operating Humidity | 0% – 90% (Non-condensing) | |
| Warranty | ||
| Warranty | 1 year | |

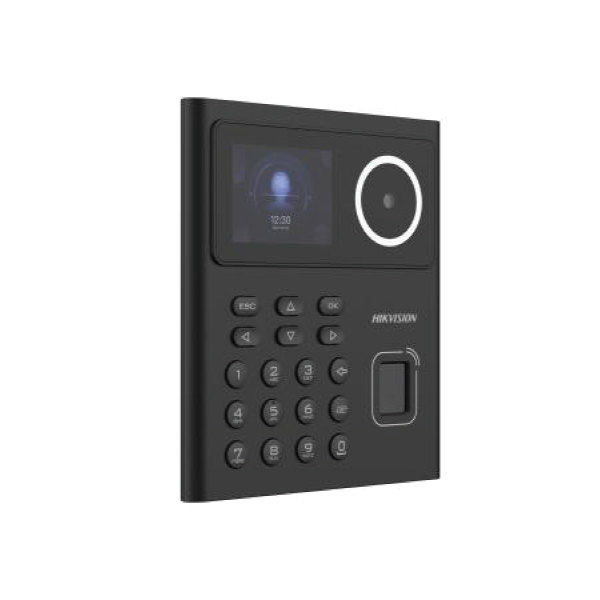

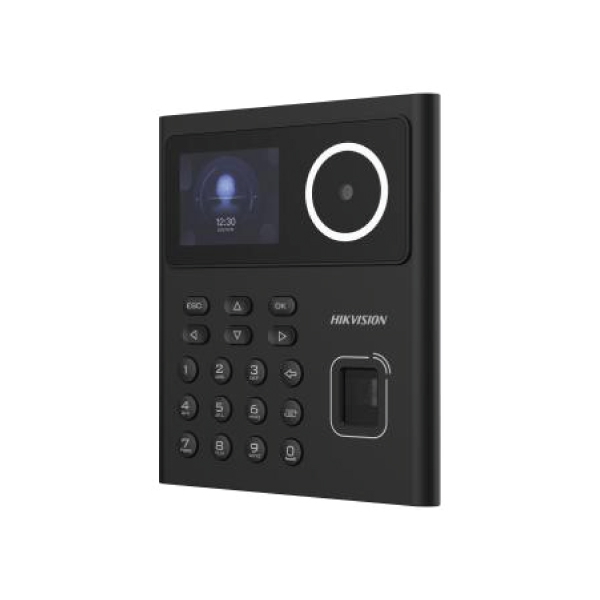

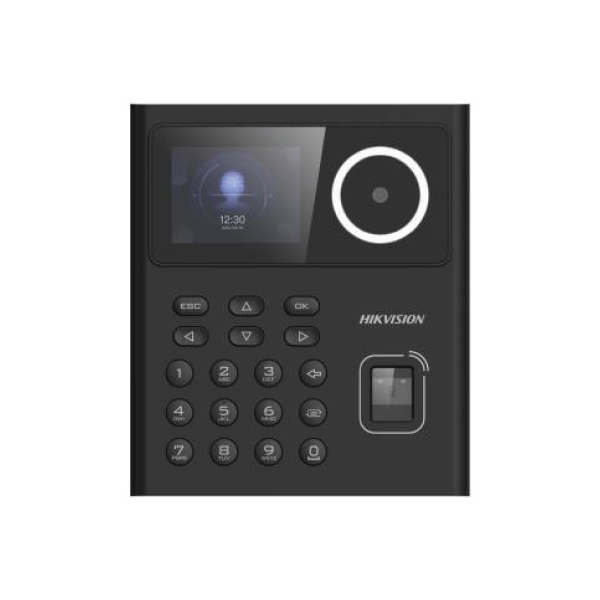

The Hikvision DS-K1T320EFWX is a compact biometric access control and time attendance terminal for offices, factories, schools, clinics, apartments and shops. It combines fast face recognition with fingerprint, EM card and PIN authentication for flexible identity verification.
For buyers searching for the Hikvision DS-K1T320EFWX price in Bangladesh, the current Touch IT price is ৳12,800. This Value Series face attendance machine provides a 2.4-inch display, 2MP camera, Wi-Fi and Ethernet connectivity, anti-spoofing support and storage for 100,000 events.
This face recognition terminal combines entry management and employee attendance in one wall-mounted unit. Individual or combined credentials suit organisations upgrading to a flexible access control and time attendance system. Ethernet, Wi-Fi, web configuration and USB simplify administration, while the controller connects to compatible single-door hardware.
Hikvision specifies face verification in under 0.2 second from approximately 0.3 to 1.5 metres, with published accuracy above 99% under suitable conditions. Fast contactless authentication can reduce queues during shift changes.
Users can verify by face, fingerprint, 125kHz EM card or PIN. Multi-factor authentication can combine credentials for stronger identity checking and gives users an alternative when one biometric method is inconvenient.
The database stores 500 faces, 1,000 fingerprints, 1,000 EM cards and 100,000 events. This capacity suits small and medium organisations seeking a biometric attendance machine with access control.
A 2MP lens, 720P stream and white light support facial capture. Anti-spoofing helps address common photograph-based presentation attempts. Results depend on enrollment, positioning, lighting and configuration.
The DS-K1T320EFWX supports 2.4GHz Wi-Fi, RJ45 10/100Mbps Ethernet and USB. Web-client configuration, ISAPI and ISUP 5.0 assist integration with compatible Hikvision environments. Browse the dedicated Hikvision access control range for larger capacities and additional interfaces.
Lock control, an exit-button input, door-contact input and tamper interface support a compatible single-door installation. Local attendance functions can generate attendance summaries, abnormal-attendance reports, attendance cards, attendance records and shift-schedule reports on supported firmware.
| Brand | Hikvision |
|---|---|
| Model and Series | DS-K1T320EFWX, Value Series |
| Device Type | Face recognition access control and time attendance terminal |
| Operating System | Linux |
| Display | 2.4-inch LCD, 320 × 240 |
| Camera | 2MP lens; 720P stream; white supplementary light |
| Authentication | Face, fingerprint, EM card and PIN |
| Face Capacity | 500 faces |
| Fingerprint Capacity | 1,000 fingerprints |
| Card Capacity | 1,000 EM cards; 0–5cm reading distance |
| Event Capacity | 100,000 events |
| Face Recognition | 0.3–1.5m; less than 0.2s per user; published accuracy above 99% |
| Network | RJ45 10/100Mbps; 2.4GHz Wi-Fi 802.11b/g/n |
| Interfaces | Lock, exit button, door contact, tamper and USB |
| Protocols | ISAPI and ISUP 5.0 |
| Power | 12V DC; maximum consumption 6W |
| Working Environment | -10°C to 55°C; 0–90% RH, non-condensing |
The DS-K1T320EFWX uses 125kHz EM cards. The separate DS-K1T320EFWX-B supports battery power through a compatible bracket. Hikvision publishes no IP rating for this model, so plan protected indoor installation. Confirm firmware, power, accessories and warranty.
Choose this model for compact indoor access and attendance requiring Wi-Fi, four authentication options and quick recognition. Explore more Hikvision products for a coordinated security project.
| Model | Main Difference | Recommended Use |
|---|---|---|
| DS-K1T320EFWX | Wi-Fi, 500 faces and 100,000 events | Compact indoor access and attendance |
| DS-K1T320EFWX-B | Similar functions with battery-bracket power support | Sites needing backup-power compatibility |
| DS-K1T321EFX | 3,000 fingerprints/cards, 150,000 events and RS-485 | Larger wired credential databases |
| DS-K1T342EFWX | 4.3-inch touchscreen, 1,500 faces and larger capacity | Higher-volume professional entrances |
The terminal supports face, fingerprint, 125kHz EM card and PIN authentication, including configurable multi-factor verification.
It stores 500 faces, 1,000 fingerprints, 1,000 EM cards and up to 100,000 events.
Hikvision specifies verification in less than 0.2 second per user from approximately 0.3 to 1.5 metres.
Yes. It supports 2.4GHz 802.11b/g/n Wi-Fi and wired 10/100Mbps Ethernet.
Yes. It has connections for compatible lock control, an exit button and a door contact. Additional hardware is normally required.
Supported firmware provides local attendance reports that can be handled through web interfaces or USB.
No verified IP rating is published for this model. Use it indoors or within a professionally designed protective installation.
Touch IT supplies genuine Hikvision biometric products in Bangladesh with installation planning, configuration and after-sales support. The team can match compatible locks, exit buttons, power supplies and attendance workflows for a complete security system.
Modernise employee attendance and secure entry with fast multi-biometric authentication. Order from Touch IT, visit Multiplan Center, Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
