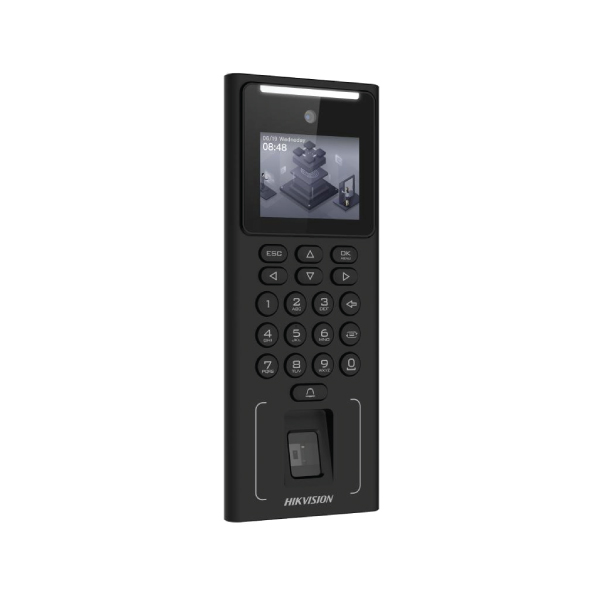

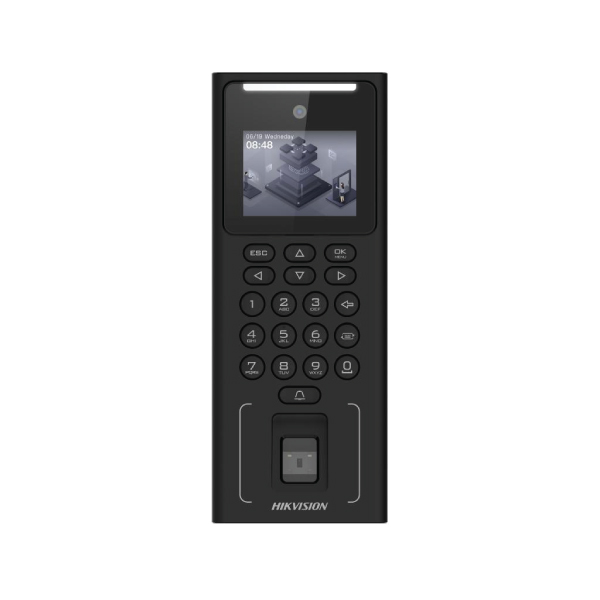

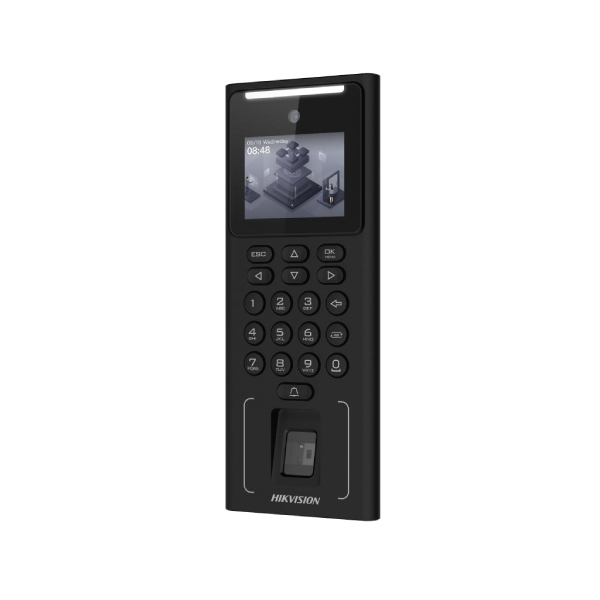

Hikvision DS-K1T321EFX Value Series Face Recognition Access Control Terminal

Hikvision DS-K1T321EFX Value Series Face Recognition Access Control Terminal

The Hikvision DS-K1T321EFX Value Series Face Recognition Access Control Terminal is a compact biometric entry and attendance solution for offices, factories, schools, hospitals, stores and commercial buildings. It combines face, fingerprint, EM card and PIN authentication with local attendance and single-door access control.

For organizations comparing the Hikvision DS-K1T321EFX price in Bangladesh, the current Touch IT price is ৳12,800. Its 2.4-inch LCD, 2MP camera, 500-face capacity, 3,000 fingerprints and 150,000-event storage balance biometric flexibility with compact installation. Confirm stock and warranty before ordering.

Quick Highlights

• Model: Hikvision DS-K1T321EFX
• Series: Hikvision Value Series
• Authentication: Face, fingerprint, EM card and PIN
• Display: 2.4-inch LCD
• Camera: Single 2MP lens with 720P video stream
• Capacity: 500 faces, 3,000 fingerprints and 3,000 cards
• Event Storage: Up to 150,000 records
• Recognition: Face matching in less than 0.2 second per user
• Communication: Ethernet, RS-485 and USB

Hikvision DS-K1T321EFX Overview Summary

The DS-K1T321EFX gives indoor sites several verification choices in a compact terminal. Hikvision’s deep-learning algorithm enables contactless recognition, while fingerprint, card and PIN credentials provide alternatives. Local attendance and the built-in controller support both records and authorized entry.

Key Features & Benefits

Four Authentication Options

Employees can authenticate by face, fingerprint, EM card or PIN. Multi-factor verification can combine credentials where stronger identity confirmation is needed. Browse compatible equipment in the Access Control and Time Attendance category.

Fast Face Recognition with Anti-Spoofing

The 2MP camera supports verification from approximately 0.3–1.5m. Recognition is below 0.2 second per user with accuracy above 99%. Face anti-spoofing helps reject attempted authentication using an image.

High Fingerprint, Card and Event Capacity

The terminal stores 500 faces, 3,000 fingerprints, 3,000 EM cards and 150,000 events. This suits organizations using fingerprint or card credentials while assigning face recognition to selected users.

Local Attendance Reporting

Hikvision firmware supports local attendance rules and five reports: summary, abnormal attendance, attendance card, attendance record and shift schedule. Reports can be exported through PC web, mobile web or USB.

Secure Door-Control Integration

Lock control, exit-button input, door contact and tamper detection support a compatible single-door installation. RS-485 can connect a supported secure door-control unit or card reader.

Wired Network and Web Management

A 10/100Mbps RJ45 interface provides wired networking. PC and mobile web configuration, ISAPI and ISUP 5.0 support setup and integration. Compare other options under Hikvision Access Control.

Business & Industry Applications

• Corporate offices and staff entrances
• Factories, garments and production floors
• Schools, colleges and training centres
• Hospitals, clinics and restricted rooms
• Warehouses, shops and service businesses
• Apartments and commercial properties

Technical Specifications

Verification note: The exact DS-K1T321EFX is the wired Ethernet model; Wi-Fi is associated with variants containing “W”, including DS-K1T321EFWX. Hikvision does not publish an IP protection rating for this exact model, so weather-resistant outdoor use is not claimed. Power adapter, attendance platform, lock hardware, installation service and warranty coverage should be confirmed for the supplied Touch IT package.

Why Choose the Hikvision DS-K1T321EFX?

This model offers higher fingerprint and card capacity than the DS-K1T320 range while retaining a compact screen. It combines fast recognition, four authentication methods, local reporting and RS-485 integration. For coordinated entry and surveillance projects, explore Security System Solutions.

Product Comparison

Frequently Asked Questions

Which authentication methods are supported?

The terminal supports face recognition, fingerprint verification, EM cards and PIN authentication, including multi-factor combinations.

How many biometric profiles can it store?

It stores up to 500 faces and 3,000 fingerprints, along with 3,000 EM cards and 150,000 event records.

How fast is facial verification?

Hikvision specifies recognition in less than 0.2 second per user at a distance of approximately 0.3–1.5 metres.

Does the DS-K1T321EFX support Wi-Fi?

No. This exact variant uses wired Ethernet. The DS-K1T321EFWX is the corresponding Wi-Fi-equipped version.

Can it control an electric door lock?

Yes. It provides lock, exit-button and door-contact connections for compatible access-control hardware.

Can attendance reports be exported?

Yes. Supported reports can be exported through PC web, mobile web or a USB drive after proper configuration.

Is it suitable for outdoor installation?

No IP rating is published for this exact terminal. It should be treated as an indoor device.
