| Hardware | ||
| Display | 2.4-inch TFT Display, Non-Touch | |
| Camera | 2MP Wide-Angle Lens × 1 | |
| Resolution | Display: 240 × 320; Video Stream: 540P | |
| Operating System | Linux | |
| User & Storage Capacity | ||
| User Capacity | 1,000 Users | |
| Face Capacity | 1,000 Faces | |
| Fingerprint Capacity | 3,000 Fingerprints | |
| Card Capacity | 3,000 Cards | |
| Transaction Capacity | 150,000 Events | |
| Authentication & Features | ||
| Verification Modes | Face, Fingerprint, EM Card | |
| Card Type | EM Card, 125kHz | |
| Multi-Factor Authentication | Supported | |
| Face Recognition Speed | < 0.33 Seconds | |
| Face Algorithm | Face Anti-Spoofing Supported | |
| Face Recognition Accuracy | > 99% | |
| Face Recognition Distance | 0.3 m to 1.5 m | |
| Liveness Detection | Supported | |
| Communication & Interface | ||
| Network | 10/100 Mbps Self-Adaptive Wired Network, Wi-Fi, Standard PoE | |
| Interface | 1 × Network Interface, 1 × Wiegand Input, 1 × Lock Control, 1 × Exit Button, 1 × Door Contact Input, 1 × Tamper | |
| Bluetooth | Supported | |
| Optional Network Protocols | AP Mode, Mobile Web Configuration, PC Web Configuration | |
| Access Control | Lock Control, Exit Button, Door Contact Input, Wiegand Input, Tamper Alarm, PoE Door Lock Power Output | |
| Software & Smart Features | ||
| Software Compatibility | Client Software, Indoor Station, Main Station, Mobile Web, PC Web | |
| Mobile App Integration | Mobile Web Configuration Supported | |
| Voice Prompt | Audio Prompt Supported Additional Features: Two-Way Audio, Time Synchronization, Physical Call Button, Face Anti-Spoofing |
|
| Physical Specifications | ||
| Power Supply | 12 VDC / 1A, Standard PoE | |
| Installation | Wall Mounting | |
| Operating Temperature | -30°C to 65°C (-22°F to 149°F) | |
| Operating Humidity | 0% to 90% RH, Non-Condensing | |
| Protection Level | IP65 | |
| Dimensions | 157 × 52 × 26 mm | |
| Weight | Net: 0.22 kg; Gross: 0.61 kg | |
| Warranty | ||
| Warranty | 1 Year | |

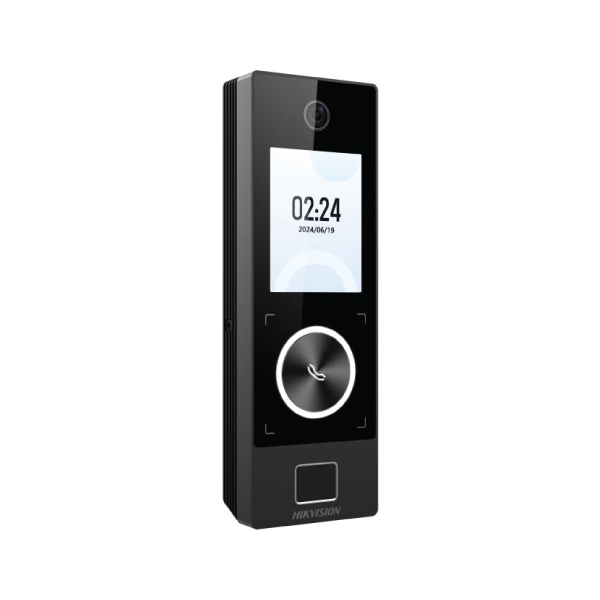

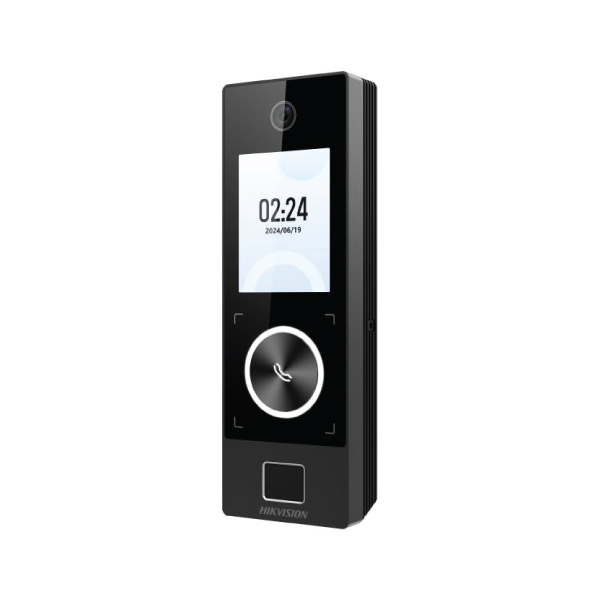

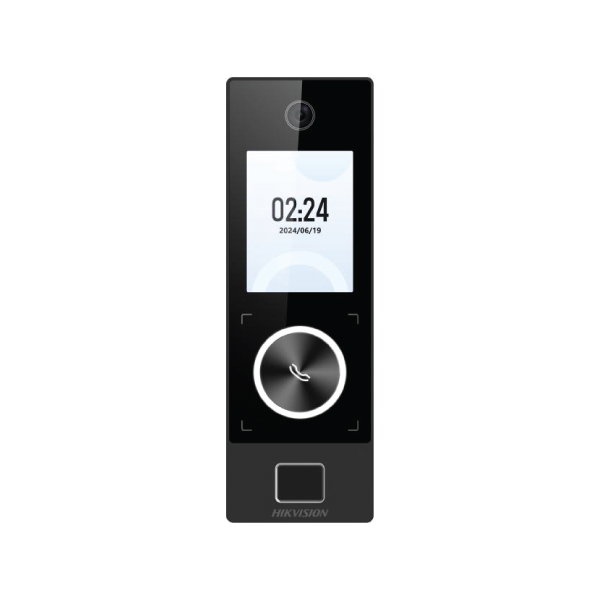

The Hikvision DS-K1T323EBFWX-E1 Face Recognition Access Control Terminal is a compact multi-biometric device for controlled entrances. It combines face, fingerprint and 125kHz EM card authentication with Wi-Fi, Bluetooth, Ethernet and PoE. Its IP65-rated enclosure and anti-spoofing technology suit planned indoor and outdoor access points.
For buyers comparing the Hikvision DS-K1T323EBFWX-E1 price in Bangladesh, this terminal offers 1,000 faces, 3,000 fingerprints, 3,000 cards and storage for 150,000 events. The current Hikvision DS-K1T323EBFWX-E1 price at Touch IT is ৳19,500. Confirm stock, accessories, software compatibility and warranty coverage before ordering.
The DS-K1T323EBFWX-E1 gives organizations three verification methods in one slim terminal. Users can authenticate by face, fingerprint or EM card, while the device records access events for review. A physical call button, two-way audio and door connections support communication and controlled unlocking.
Face, fingerprint and card authentication provide flexible credentials. The terminal stores 1,000 users and faces, plus 3,000 fingerprints and 3,000 EM cards. Face anti-spoofing helps detect presentation attempts, while a 0.3–1.5m recognition distance supports contactless verification.
IEEE 802.3at PoE carries network data and power through one cable. Hikvision states that the terminal can also power a compatible door lock. Lock, exit-button, door-contact, tamper and Wiegand connections support common requirements. Browse related products in the Access Control category.
The device supports Ethernet, Wi-Fi, Bluetooth and AP mode. Mobile or PC web configuration handles supported setup tasks without relying on the non-touch display. Platform functions vary by firmware and software; explore the Hikvision Access Control range for project planning.
The IP65-rated enclosure protects against dust and water jets when correctly installed. Its -30°C to 65°C operating range supports varied conditions. Outdoor placement still requires suitable mounting, cable sealing and drainage.
A loudspeaker and microphone enable two-way audio, voice prompts and verification feedback. The physical call button supports visitor communication within a compatible system, useful at offices, residential receptions and staff entrances.
Storage for 150,000 events provides an audit trail for access activity. Time synchronization and networking support managed deployment. For integrated access, surveillance and entrance protection, visit Security System Solutions.
| Product Name | Hikvision Face Recognition Access Control Terminal |
|---|---|
| Model | DS-K1T323EBFWX-E1 |
| Authentication | Face, fingerprint and EM card |
| Display | 2.4-inch TFT, 240 × 320, non-touch |
| Camera | 2MP wide-angle lens with WDR |
| User and Face Capacity | 1,000 users and 1,000 faces |
| Fingerprint and Card Capacity | 3,000 fingerprints and 3,000 cards |
| Event Capacity | 150,000 events |
| Face Recognition | <0.33 second; >99% accuracy; 0.3–1.5m distance |
| Card Type | 125kHz EM card |
| Communication | 10/100Mbps Ethernet, Wi-Fi and Bluetooth |
| Access Interfaces | Lock, exit button, door contact, tamper and Wiegand input |
| Power | 12V DC, 1A or IEEE 802.3at PoE |
| Operating Conditions | -30°C to 65°C; 0% to 90% humidity |
| Dimensions and Protection | 157 × 52 × 26mm; IP65; wall mounting |
Verification note: Hikvision’s summary publishes recognition under 0.2 second, while its detailed table lists under 0.33 second; the conservative figure is used above. The official datasheet identifies a non-touch screen and no QR-code authentication. Bluetooth functions, remote management, PoE lock powering, software, hardware, accessories and warranty depend on the completed system and package.
This model suits projects needing face, fingerprint and card verification without a large premium terminal. Event storage, wireless and wired networking, PoE, door interfaces, audio and IP65 protection create a practical balance of flexible credentials, managed records and installation versatility.
| Model | Best For | Main Difference |
|---|---|---|
| DS-K1T323EBFWX-E1 | Multi-biometric indoor or outdoor access | 1,000 faces, 3,000 fingerprints/cards, PoE and IP65 |
| Hikvision DS-K1T320EFWX | Smaller indoor installations | 500-face capacity with Wi-Fi connectivity |
| Hikvision DS-K1T321EFX | Wired multi-biometric access | 500 faces with 3,000 fingerprints and cards |
| Hikvision DS-K1T344EBFWX-E1 | Higher-capacity touchscreen projects | 4.5-inch touchscreen and 3,000-face capacity |
It supports face recognition, fingerprint verification and 125kHz EM cards. The official datasheet states that QR-code authentication is not supported.
It supports 1,000 users and faces, 3,000 fingerprints, 3,000 cards and 150,000 access events.
No. It uses a 2.4-inch non-touch TFT display. Supported configuration can be performed through mobile or PC web access.
Yes. It supports Wi-Fi, Ethernet, Bluetooth and AP mode. Management functions depend on compatible software and firmware.
Yes. It supports IEEE 802.3at PoE and 12V DC input. An installer should verify lock-power requirements.
Yes, subject to correct installation. It is IP65 rated with a -30°C to 65°C operating range.
Yes. The device provides two-way audio, voice prompts and a physical call button for use within a compatible access or intercom design.
Touch IT supplies professional access control products in Bangladesh with consultation, installation planning, configuration assistance and after-sales support. The team can verify lock compatibility, networking, power, software and accessories before deployment.
Protect your entrance with multi-biometric verification, PoE connectivity and dependable event storage. Order the Hikvision DS-K1T323EBFWX-E1 Face Recognition Access Control Terminal from Touch IT, visit the showroom at 312 (3rd Floor), Multiplan Center, 69–71 New Elephant Road, Dhaka-1205, or call 01711664030 for stock and installation guidance.
