| System & AI Capabilities | ||
| Processor | Industrial-grade processor | |
| Operating System | Embedded Linux | |
| User Interface / GUI Language | Web interface and Local GUI | |
| AI Analytics | WizSense AI analytics supported | |
| Smart Motion Detection | SMD Plus by Recorder on 4 channels with secondary filtering for human and vehicle detection, reducing false alarms from rain, leaves, and lighting changes | |
| Video & Audio Performance | ||
| Video Input Channels | 4-channel analog video input | |
| Supported Resolution | Up to 1080p (Full HD) | |
| Video Compression: | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 | |
| Decoding Performance: | Main Stream: 1080N / 720p / 960H / D1 / CIF @ 1–25/30 fps Sub Stream: CIF @ 1–15 fps |
|
| Analog Video Support | HDCVI / AHD / TVI / CVBS (auto-detect) | |
| IP Camera Support | Up to 5 IP channels (1 IP by default, up to 4 additional via analog-to-IP conversion) | |
| Video Output: | 1 × HDMI, 1 × VGA (up to 1920 × 1080) | |
| Audio Support: | 1-channel RCA input, 1-channel RCA output, Coaxial audio via BNC | |
| Multi-Screen Display: | 1/4 (without IP extension); 1/4/6 (with IP extension enabled) | |
| Third-Party Camera Integration | Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF | |
| Recording & Playback | ||
| Recording Modes | General, Motion Detection, Alarm | |
| Playback Mode: | Instant playback, General playback, Event playback, Tag playback, Smart playback | |
| Stream Type | Dual-stream | |
| Frame Rate: | Up to 25/30 fps depending on resolution | |
| Video Bit Rate | 32 kbps – 4096 kbps | |
| Audio Compression | G.711a, G.711u, PCM | |
| Backup Methods | USB device and Network backup | |
| Alarm Types: | Motion detection, PIR alarm, HDCVI alarm, Camera external alarm, Network alarm, SMD Plus, Anomaly alarms | |
| Storage & Interfaces | ||
| Internal Storage | 1 × SATA HDD | |
| Maximum Storage Capacity | Up to 6 TB | |
| USB Ports: | 2 × USB 2.0 (rear panel) | |
| Alarm I/O | IPC external alarm supported | |
| Network Interface | 1 × RJ-45 (10/100 Mbps Ethernet) | |
| Network & Remote Access | ||
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Alarm Server, Auto Registration | |
| Remote Access | Web browser, P2P, CMS software | |
| Mobile App Support | iOS and Android | |
| Bandwidth Management | Incoming / Recording / Outgoing bandwidth up to 20 Mbps | |
| Camera Access Protocos | ONVIF 22.12 (Profile T / S / G), CGI, SDK | |
| Physical Specifications | ||
| Power Supply: | 12 VDC, 1.5 A | |
| Power Consumption | Less than 7 W (without HDD) | |
| Operating Temperature | –10 °C to +45 °C | |
| Operating Humidity | 10%–90% RH (non-condensing) | |
| Cooling System | Passive cooling | |
| Surge & Lightning Protection | Basic protection via power regulation | |
| Material | Metal and industrial-grade components | |
| Dimensions | 197.0 × 203.1 × 41.5 mm (W × D × H) | |
| Net Weight: | 0.55 kg | |
| Mounting Type | Desktop installation | |
| Compliance & Warranty | ||
| Certifications: | CE-LVD (IEC 62368-1), CE-EMC standards compliant | |
| Warranty | 1 year | |

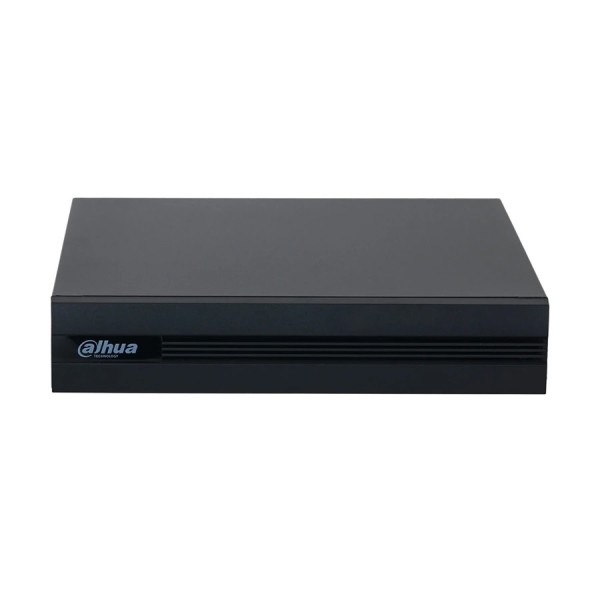

The Dahua DH-XVR1B04-I is a compact four-channel digital video recorder for homes, shops and offices. It combines Penta-brid compatibility, WizSense SMD Plus, four-channel AI Coding, mobile viewing and single-HDD recording in a Cooper 1U enclosure.
For buyers searching for the Dahua DH-XVR1B04-I price in Bangladesh, the current Touch IT price is ৳2,920. This 4 channel DVR supports HDCVI, AHD, TVI, CVBS and IP video, 1080N/720p encoding and one compatible HDD up to 6TB.
This entry-level DVR provides intelligent monitoring without requiring replacement of compatible coaxial cameras. Its industrial-grade processor, embedded Linux system and local or web interfaces suit new four-camera installations and CCTV upgrades.
Four BNC inputs automatically recognise HDCVI, AHD, TVI and CVBS signals. IP support completes the Penta-brid design, allowing one recorder to manage several common surveillance technologies. This flexibility helps when upgrading an analog system.
SMD Plus filters motion events across four analog channels for human and motor-vehicle targets, reducing alarms from leaves, rain or lighting changes. Results depend on camera position and configuration. Browse more Dahua DVR camera solutions for other capacities.
Four-channel AI Coding preserves target details while reducing bandwidth and storage demand. Smart H.265+, H.265, Smart H.264+ and H.264 provide more compression choices. Recording duration depends on resolution, bitrate, activity and schedule.
One 2MP IP channel is available by default. Analog-channel conversion raises the maximum to five IP cameras with 20Mbps bandwidth. Converted IP channels replace analog channels, and enabling IP extension disables recorder-side SMD.
One SATA interface supports a compatible surveillance HDD up to 6TB. General, alarm and motion recording modes manage retention. Instant, event, tag and smart playback simplify review, with backup through USB or network.
HDMI and VGA output reach 1920 × 1080. Browser, P2P and Android or iOS access enable remote viewing. RCA input/output, coaxial audio and channel-one two-way talk support compatible equipment. ONVIF Profiles S, G and T help integrate third-party IP cameras into a CCTV surveillance system.
| Brand and Model | Dahua DH-XVR1B04-I |
|---|---|
| Recorder Type | 4-channel Penta-brid 1080N/720p WizSense XVR |
| Operating System | Embedded Linux; web and local GUI |
| Analog Inputs | 4 BNC; HDCVI/AHD/TVI/CVBS auto-detect |
| IP Camera Support | 1 channel by default; maximum 5 through analog conversion; up to 2MP |
| Encoding | 1080N/720p/960H/D1/CIF at up to 25/30fps |
| AI Functions | 4-channel SMD Plus and 4-channel AI Coding |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 |
| Network Bandwidth | 20Mbps incoming, recording and outgoing |
| Storage | 1 SATA interface; compatible HDD up to 6TB |
| Video Output | 1 HDMI and 1 VGA; up to 1920 × 1080 |
| Audio | 1 RCA input, coaxial audio, 1 RCA output and two-way talk |
| Interfaces | RJ45 10/100Mbps Ethernet and 2 rear USB 2.0 ports |
| Power | 12V DC, 1.5A; below 7W without HDD |
| Dimensions and Weight | 197 × 203.1 × 41.5mm; 0.55kg net |
These specifications apply to XVR1B04-I V2 hardware. Dahua labels it EOL, although Touch IT lists stock. An HDD is normally excluded. Confirm revision, firmware, camera format, drive compatibility, adapter and warranty.
Choose this model when a small analog system needs human and vehicle filtering, efficient storage and limited IP migration. Low power use, compact design and broad camera-format support suit everyday surveillance.
| Model | Camera Capacity | Maximum HDD | Best For |
|---|---|---|---|
| DH-XVR1B04-I | 4 analog; up to 5 IP | 6TB | Affordable four-camera WizSense systems |
| Dahua DH-XVR1B08-I | 8 analog; up to 10 IP | 6TB | Larger Dahua systems needing eight BNC inputs |
| Uniview XVR301-04F | 4 analog; up to 6 IP | 6TB | Alternative 4-channel XVR with Ultra Motion Detection |
| Hikvision iDS-7104HQHI-M1/T | 4 analog; up to 6 IP | 10TB | Higher-resolution AcuSense recording and storage |
It provides four BNC inputs for compatible HDCVI, AHD, TVI and CVBS cameras.
Yes. It accepts compatible 1080p analog inputs and IP cameras up to 2MP; encoding includes 1080N and 720p.
One IP channel is available by default; analog conversion increases the maximum to five.
SMD Plus filters motion events for human and motor-vehicle targets, helping reduce ordinary environmental alerts.
The SATA bay supports one compatible HDD up to 6TB. An HDD is not automatically included.
Yes. Compatible iOS and Android access is supported after correct network, app and security configuration.
Yes. Two-way talk shares the audio input with channel one and requires compatible audio equipment.
Touch IT supplies original Dahua products and CCTV equipment in Bangladesh. The team can help verify camera formats, storage, remote access, accessories and installation compatibility.
Build or upgrade a compact four-camera system with Penta-brid compatibility and WizSense monitoring. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
