| Camera | ||
| Image Sensor | 5 MP CMOS | |
| Max Resolution | 2880 (H) × 1620 (V) | |
| Min. Illumination | Progressive |
|
| Signal System | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
|
| Shutter Speed | 0.001 [email protected] (Color, 30IRE) 0 lux (Illuminator on) |
|
| Day/Night | >65 dB | |
| Lens & Illuminator | ||
| Lens Type | Fixed-focal | |
| Field of View | M12 | |
| Aperture | 2.8 mm;3.6 mm | |
| Lens Mount | F1.0 | |
| Light Type | 2.8 mm: H: 111°; V: 57°; D: 131° 3.6 mm: H: 89°; V: 47°; D: 104° |
|
| IR Distance | Fixed | |
| White/Warm Light Distance | 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 2.2 m (7.22 ft) |
|
| Video & Audio | ||
| Video Output | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | |
| Max Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H Resolution 5M (2880 × 16 |
|
| Resolution Support | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| WDR | Color | |
| Audio | BLC; HLC; WDR; HLC-Pro | |
| Pickup Distance | Auto/Manual | |
| Audio Over Coax | 3D NR | |
| Interface | ||
| Audio Interface | One channel built-in Mic | |
| Video Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Physical Specification | ||
| Power Supply | Plastic | |
| Power Consumption | 92.9 (W) x 131 (H) x 91.3 mm | |
| Operating Temp | Net weight: 400 g Gross weight: 640 g |
|
| Material | Pan: 0°–355° Tilt: 0°–90° |
|
| Weatherproof | Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity <95% (RH), non-condensing |
|
| Installation | Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity <95% (RH), non-condensing |
|
| Dimensions | 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) | |
| Weight | Max 7.7 W (12 VDC, LED on) | |
| Warranty | ||
| Warranty | 1 year |
|

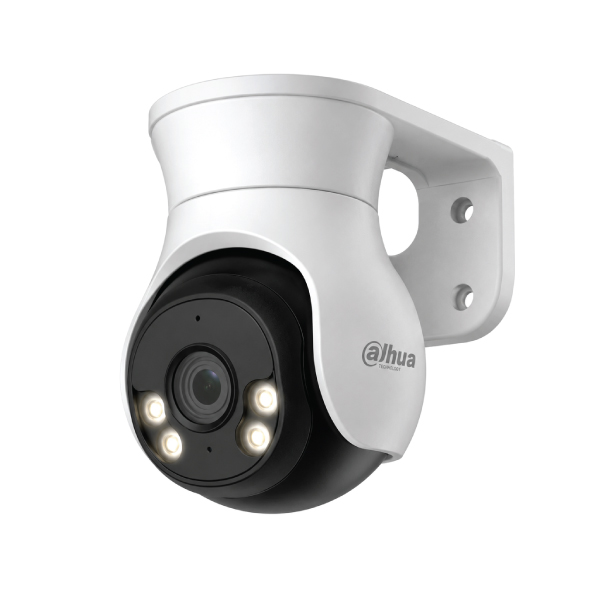

The Dahua DH-HAC-PT1509AP-A-LED is a 5MP full-colour HDCVI PT camera for residential and commercial surveillance. It combines motorized movement, 2880 × 1620 video, 40m warm light, true WDR and audio in an IP66 housing.
For buyers comparing the Dahua DH-HAC-PT1509AP-A-LED price in Bangladesh, the Touch IT price is ৳6,350. This PAL camera delivers 5MP video at 25fps, an F1.0 lens, colour imaging and four-format output. Confirm the lens and XVR compatibility before ordering.
This motorized CC camera adds directional control to a compatible coaxial system. Users can move the view across a wider area through supported Dahua HDCVI equipment. Its fixed lens provides digital, not optical, zoom.
The 5MP CMOS sensor outputs 2880 × 1620 video in 16:9 format at up to 25fps through HDCVI. It helps review people, vehicles and activity around entrances or yards. The camera also supports 4MP, 1080p and 960H, depending on format and recorder.
The PT mechanism covers 355° horizontally and 90° vertically, allowing operators to redirect the view without repositioning the camera. It suits locations with several inspection points. Movement requires compatible controls; this is not an automatic tracking camera.
An F1.0 aperture and 0.001-lux sensitivity help preserve colour in dim scenes. Four warm LEDs illuminate up to 40 metres. Unlike Smart Dual Light, this camera uses visible warm light and has no infrared.
The listed 2.8mm lens covers H 111°, V 57° and D 131°, suiting broad rooms, courtyards and entrances. Dahua also publishes a 3.6mm variant with an 89° horizontal view. Both lack autofocus. Browse more Dahua CC cameras for other coverage options.
True 120dB WDR balances bright and dark areas at daylight-facing doors or gates. Super Adapt adjusts image settings, while 3D noise reduction limits grain. BLC, HLC, HLC-Pro and electronic defog add control.
The integrated microphone adds synchronized sound to compatible HDCVI recordings. Audio provides context during retail, office and access-point playback. With no speaker, the camera records sound but does not support two-way talk.
One BNC port provides CVI, TVI, AHD or CVBS, although PT control, audio and resolution depend on the format and recorder. Its IP66 plastic casing, –40°C to +60°C range and wide-voltage input support a properly installed CCTV surveillance system.
| Brand | Dahua |
|---|---|
| Model | DH-HAC-PT1509AP-A-LED |
| Camera Type | 5MP full-colour HDCVI fixed-focal PT camera |
| Maximum Resolution | 2880 × 1620 at up to 25fps |
| Minimum Illumination | 0.001 lux at F1.0; 0 lux with illuminator on |
| Pan and Tilt Range | Pan 0°–355°; tilt 0°–90° |
| Lens and View | 2.8mm: H 111°, V 57°, D 131°; 3.6mm: H 89°, V 47°, D 104° |
| Illumination | Four warm lights; maximum 40m |
| Image Features | 120dB WDR, Super Adapt, 3D NR, BLC, HLC and electronic defog |
| Audio | One-channel built-in microphone |
| Video Output | CVI, TVI, AHD or CVBS through one BNC port |
| Power | 12V DC ±30%; maximum 7.7W |
| Protection | IP66 plastic casing; –40°C to +60°C operation |
| Dimensions and Weight | 92.9 × 91.3 × 130mm; net 0.40kg |
The “P” suffix identifies PAL. Touch IT highlights 2.8mm, while Dahua also lists 3.6mm; confirm the SKU. Dahua requires XVR firmware V4.001.0000001.0.R.200908 or later for 5MP 16:9 output. The camera has no infrared, optical zoom, autofocus, auto-tracking, speaker, Ethernet, Wi-Fi, PoE or memory-card storage.
Choose this model when one coaxial camera must cover changing directions with 5MP colour video, true WDR and audio. Explore original Dahua products for compatible XVRs and accessories.
| Model | Resolution | Key Difference | Recommended Use |
|---|---|---|---|
| DH-HAC-PT1509AP-A-LED | 5MP | PT movement, 40m warm light, 120dB WDR and microphone | High-detail full-colour directional monitoring |
| DH-HAC-PT1200H1P-IL-T | 2MP | Indoor PT model with 25m dual light and two-way talk | Interactive indoor monitoring |
| DH-HAC-HFW1509MHP-A-LED | 5MP | Fixed bullet view with 50m warm light and IP67 | Longer full-colour perimeter coverage |
| DH-HAC-HFW1509TMP-IL-A | 5MP | Fixed metal bullet with 40m IR/warm dual light | Flexible black-and-white or colour night viewing |
It outputs 2880 × 1620 HDCVI video at up to 25fps in PAL mode.
Yes. Supported equipment can control its 355° pan and 90° tilt movement.
Yes. Its F1.0 lens and warm-light illumination support full-colour night monitoring.
Dahua publishes a maximum illumination distance of 40 metres.
No. It records audio through a built-in microphone but has no speaker.
No. It is a fixed-focal PT camera with 4× digital zoom and manual directional control.
No. Verify 5MP support, firmware, PT control and audio compatibility before installation.
Touch IT supplies genuine Dahua security equipment in Bangladesh and can verify lens coverage, XVR firmware, PT control, power, cabling and mounting requirements.
Upgrade your coaxial security system with 5MP full-colour video, motorized directional coverage and audio. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Dahua DH-HAC-PT1509AP-A-LED 5MP PT CC Camera in Bangladesh is 6,350৳. You can buy the Dahua DH-HAC-PT1509AP-A-LED 5MP PT CC Camera at best price from our website or visit any of our showrooms.
