In Stock
| Camera System | ||
| Product Type | 5MP Full-Color Warm Light HDCVI / Analog Bullet Camera | |
| Image Sensor | 5MP CMOS | |
| Maximum Resolution | 2880 × 1620 | |
| Electronic Shutter Speed | PAL: 1/25s to 1/100,000s; NTSC: 1/30s to 1/100,000s | |
| Minimum Illumination | 0.0001 Lux @ F1.0; 0 Lux with Illuminator On | |
| Day / Night Mode | Color | |
| WDR | 130dB WDR | |
| Noise Reduction | 3D NR | |
| Lens & Illumination | ||
| Lens Type | Fixed-Focal Lens | |
| Focal Length & Field of View | 2.8mm: H 109.6°, V 57.5°, D 131°; 3.6mm: H 88.2°, V 47.6°, D 104.5° |
|
| Aperture | F1.0 | |
| DORI Distance | 2.8mm: Detect 66.0 m, Observe 26.4 m, Recognize 13.2 m, Identify 6.6 m; 3.6mm: Detect 78.0 m, Observe 31.2 m, Recognize 15.6 m, Identify 7.8 m | |
| Illumination Type | Warm Light | |
| IR / White Light Distance | Warm Light: Up to 50 m | |
| Smart Light / Smart IR | Smart Light Supported | |
| Video & Image | ||
| Frame Rate | CVI: 5MP @ 25fps / 12.5fps; AHD: 4MP @ 25/30fps; TVI: 5MP @ 20fps; CVBS: 960H | |
| Supported Resolution | 5MP 2880 × 1620; 4MP 2560 × 1440; 960H; TVI 5MP 16:9 2960 × 1665 | |
| Image Enhancement | 130dB WDR, 3D NR, Auto White Balance, Auto Gain Control, Smart Light | |
| Mirror / Flip / Rotation | Mirror Supported, Controlled through XVR | |
| Audio & Interface | ||
| Built-in Microphone | Built-in Dual Mic | |
| Audio / Alarm Input-Output | Camera Audio: CVI; Pickup Distance: 12 m | |
| Power & Physical Specification | ||
| Power Supply | 12V DC ±30% | |
| Power Consumption | Max. 5.8W, LED On | |
| Operating Temperature | -40°C to +60°C | |
| Operating Humidity | <95% RH, Non-Condensing | |
| Protection Rating | IP67 | |
| Material | Metal Front Cover + Plastic Rear Barrel + Metal Bracket | |
| Dimensions | 186.5 × 75 × 82.2 mm | |
| Net Weight | 0.35 kg | |
| Installation Type | Wall Mount, Ceiling Mount, Vertical Pole Mount | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032, EN 55035 | |
| Warranty | ||
| Manufacturer Warranty | 1 Year | |

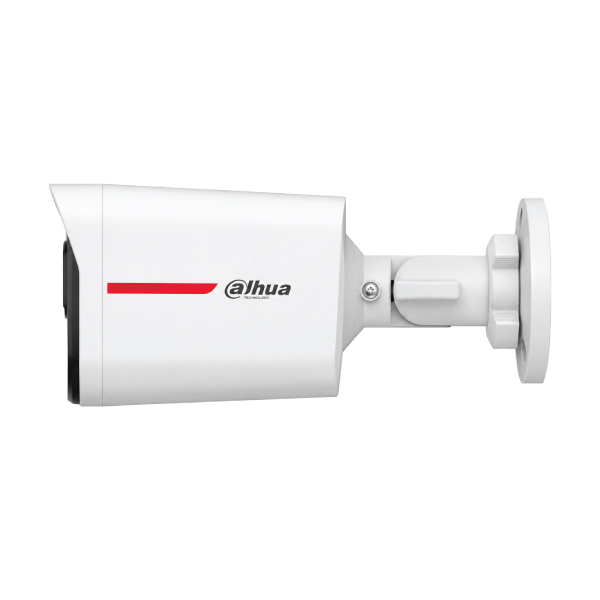

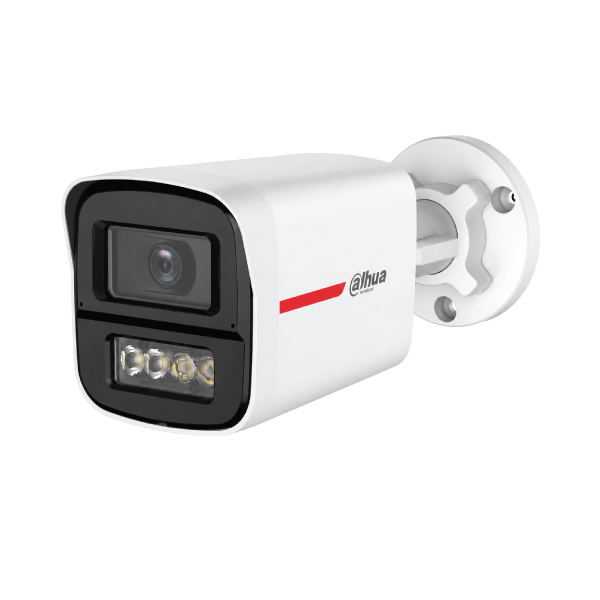

The Dahua DH-HAC-HFW1549XP-A-PRO is a 5MP WizColor HDCVI bullet CC camera for entrances, driveways and boundary walls. It combines 24/7 colour imaging, 50m warm light, dual microphones and an IP67 directional housing.
For buyers searching for the Dahua DH-HAC-HFW1549XP-A-PRO price in Bangladesh, the Touch IT price is ৳6,200. This PAL camera delivers 2880 × 1620 HDCVI video at up to 25fps, with 130dB true WDR, an F1.0 lens and four switchable video formats.
The 5MP CMOS sensor produces 2880 × 1620 video at up to 25fps through PAL HDCVI, providing more review detail than standard 1080p.
WizColor processing, the F1.0 aperture and a sensitive sensor retain colour in very dim scenes. Dahua rates minimum illumination at 0.0001 lux in colour and 0 lux with the illuminator on. The camera uses visible warm light rather than monochrome infrared imaging.

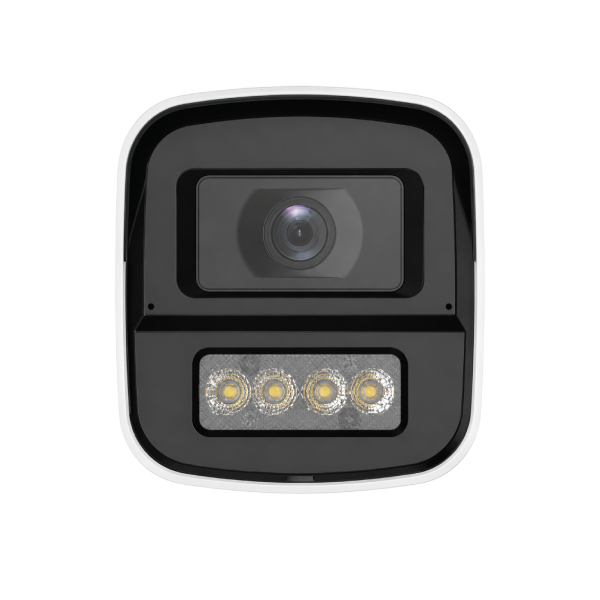

Four warm lights provide a published maximum illumination distance of 50 metres. Smart Light+ helps control brightness as subjects approach. Practical coverage varies with mounting height, weather, scene reflectivity and ambient light.
Two built-in microphones capture HDCVI audio from up to 12 metres without a separate audio cable. The camera has no speaker, so it records sound but does not provide two-way talk.
True 130dB WDR balances highlights and shadow. Super Adapt, 3D NR and distortion correction refine footage in a properly configured CCTV surveillance system.
The 2.8mm option covers 109.6° horizontally; the 3.6mm version narrows coverage to 88.2°. A DIP switch changes the BNC output between CVI, TVI, AHD and CVBS. Confirm lens and recorder support when browsing Dahua CC cameras.
The IP67 enclosure resists dust and water when connections are sealed. Its adjustable bracket supports wall, ceiling or compatible pole mounting.
| Brand | Dahua |
|---|---|
| Model | DH-HAC-HFW1549XP-A-PRO |
| Camera Type | 5MP WizColor HDCVI fixed-focal bullet camera |
| Image Sensor | 5MP progressive-scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| PAL Frame Rate | CVI: up to 25fps at 5MP |
| Lens | 2.8mm or 3.6mm fixed; F1.0 |
| Field of View | 2.8mm: H 109.6°; 3.6mm: H 88.2° |
| Minimum Illumination | 0.0001 lux at F1.0; 0 lux with illuminator on |
| Illumination | Four warm lights; maximum 50m |
| Wide Dynamic Range | 130dB true WDR |
| Audio | Built-in dual microphones; up to 12m pickup |
| Video Output | CVI, TVI, AHD or CVBS through BNC and DIP switch |
| Power | 12V DC ±30%; maximum 5.8W with LEDs on |
| Protection | IP67; -40°C to +60°C |
| Dimensions and Weight | 186.5 × 75 × 82.2mm; net 0.35kg |
The “P” suffix identifies the PAL version; Dahua publishes the family sheet as HAC-HFW1549X-A-PRO. Its 5MP 16:9 HDCVI output requires compatible XVR firmware V4.001.0000001.0.R.200908 or later. This coaxial camera has no Ethernet, Wi-Fi, PoE, microSD or speaker. Confirm the supplied 2.8mm or 3.6mm lens, recorder, power supply and warranty.
Choose this model for directional outdoor coverage with detailed colour footage and audio. WizColor, dual microphones, Smart Light+, 130dB WDR and four-format output make it a capable coaxial upgrade.
| Model | Resolution | Key Difference | Recommended Use |
|---|---|---|---|
| DH-HAC-HFW1549XP-A-PRO | 5MP | Bullet body, 50m warm light, dual microphones and 130dB WDR | Focused outdoor perimeter and approach monitoring |
| Dahua DH-HAC-HDW1549XP-A-PRO | 5MP | Comparable WizColor imaging in an eyeball housing | Ceilings, soffits and compact wall mounting |
| Dahua DH-HAC-HFW1509MHP-A-LED | 5MP | Full-colour bullet with 120dB WDR and single microphone | General 5MP colour surveillance |
| Dahua DH-HAC-HFW1219XP-A-PRO | 2MP | WizColor Lite bullet option | Budget Full HD installations |
It outputs up to 2880 × 1620, or 5MP, with the PAL HDCVI format supporting up to 25fps.
Yes. WizColor, the F1.0 lens and warm lights are designed for 24/7 colour monitoring, including scenes with no ambient light.
Dahua publishes a maximum distance of 50 metres. Practical coverage varies with the scene and installation.
Yes. Its dual microphones capture audio through HDCVI from up to 12 metres, but there is no speaker for two-way talk.
It supports CVI, TVI, AHD and CVBS output, but the recorder must support the selected resolution, format and required firmware.
Yes. It is IP67 rated, provided the connectors, power joint and mounting surface are correctly weather-sealed.
Touch IT supplies original Dahua products and surveillance equipment in Bangladesh. The team can help verify lens coverage, XVR compatibility, storage capacity, cabling, power and mounting accessories before deployment.
Build a clearer outdoor security system with 5MP WizColor video, long-range warm light and dual-mic audio. Order online from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Dahua DH-HAC-HFW1549XP-A-PRO 5MP Bullet CC Camera in Bangladesh is 6,200৳. You can buy the Dahua DH-HAC-HFW1549XP-A-PRO 5MP Bullet CC Camera at best price from our website or visit any of our showrooms.
