| Camera | ||
| Image Sensor | 5MP CMOS | |
| Max Resolution | 2880 × 1620 | |
| Min. Illumination | Color: 0.001 Lux @ F1.0; B/W: 0.0001 Lux @ F1.0; 0 Lux with Illuminator On | |
| Signal System | PAL / NTSC | |
| Shutter Speed | PAL: 1/3s to 1/100,000s; NTSC: 1/4s to 1/100,000s | |
| Day/Night | Auto ICR / Color / B/W | |
| Lens & Illuminator | ||
| Lens Type | Fixed-Focal Lens | |
| Field of View | 2.8mm: H 111°, V 57°, D 131°; 3.6mm: H 89°, V 47°, D 104° | |
| Aperture | F1.0 | |
| Lens Mount | Smart IR & Warm Light | |
| White/Warm Light Distance | Up to 40 m | |
| Video & Audio | ||
| Video Output | CVI / TVI / AHD / CVBS by 1 × BNC Port | |
| Max Frame Rate | CVI: 5MP @ 25fps, 4MP @ 25/30fps, 1080p @ 25/30fps; AHD: 4MP @ 25/30fps; TVI: 4MP @ 25/30fps; CVBS: 960H | |
| Resolution Support | 5MP 2880 × 1620; 4MP 2560 × 1440; 1080p 1920 × 1080; 960H 960 × 576 / 960 × 480 | |
| WDR | 120dB WDR | |
| Audio | Built-in Microphone | |
| Image & Smart Functions | ||
| Image Enhancement | BLC, HLC, WDR, HLC-Pro, 3D NR, Electronic Defog | |
| White Balance | Auto, Area White Balance | |
| AGC | Auto / Manual | |
| Image Control | Digital Zoom 4×, Privacy Masking 8 Areas | |
| Smart Light / Smart IR | Smart IR & WL, WL Mode, IR Mode | |
| Mirror / Image Adjustment | Mirror Supported | |
| Interface | ||
| Audio Interface | 1-Channel Built-in Microphone | |
| Video Interface | 1-Channel Built-in Microphone | |
| Physical Specification | ||
| Power Supply | 12V DC ±30% | |
| Power Consumption | Max. 5.7W, LED On | |
| Operating Temp | -40°C to +60°C | |
| Material | Metal | |
| Weatherproof | IP67 | |
| Installation | Wall Mount, Ceiling Mount, Vertical Pole Mount | |
| Dimensions | 240.7 × 90.7 × 90.7 mm | |
| Weight | Net: 0.7 kg; Gross: 0.89 kg | |
| Certifications | CE, FCC, UL | |
| Warranty | ||
| Warranty | 1 Year | |

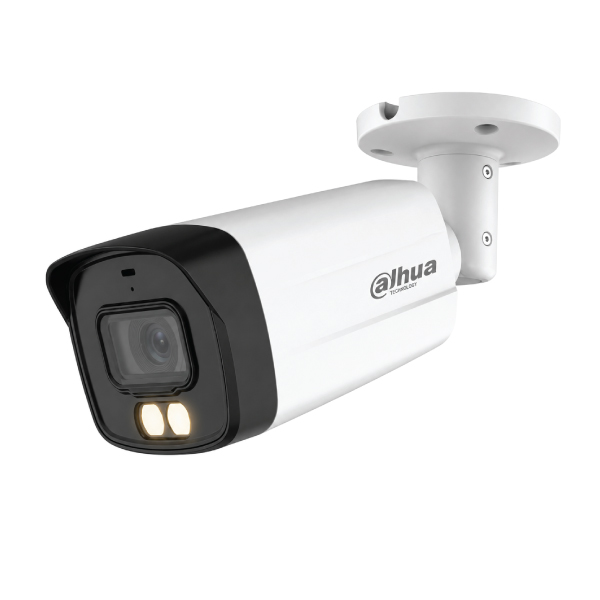

The Dahua DH-HAC-HFW1509TMP-IL-A is a 5MP HDCVI bullet camera for detailed residential and commercial surveillance. It combines 2880 × 1620 video, Smart Dual Light, true WDR, audio and a weather-resistant metal housing.
For buyers checking the Dahua DH-HAC-HFW1509TMP-IL-A price in Bangladesh, the current Touch IT price is ৳5,100. This PAL camera delivers 5MP video at up to 25fps, 40m dual illumination and switchable four-format output. Confirm the lens and XVR compatibility before ordering.
This Dahua CC camera upgrades suitable coaxial systems with higher-resolution monitoring. Its bullet shape suits defined outdoor views, while Smart Dual Light provides discreet infrared or colour-assisted warm-light video.
The 5MP CMOS sensor produces 2880 × 1620 video in 16:9 format at up to 25fps through HDCVI. This detail helps when reviewing people, vehicles and activity around entrances, parking areas or perimeter routes. Other resolutions depend on the selected format and recorder.
Two infrared and two warm-light illuminators reach up to 40 metres. IR mode provides discreet black-and-white monitoring, warm light supports colour-focused viewing, and Smart IR&WL coordinates both options without requiring continuous visible lighting.
The 2.8mm version offers a wide 111° horizontal view; the 3.6mm version provides a focused 89° view. Both use an F1.0 aperture. Choose 2.8mm for broad spaces or 3.6mm for longer approaches. Browse more Dahua CC cameras for other coverage options.
True 120dB WDR retains detail when highlights and shadows appear together, such as at daylight-facing gates. Super Adapt adjusts image parameters, while 3D noise reduction controls low-light grain. BLC, HLC, HLC-Pro and electronic defog provide further optimisation.
The integrated microphone adds synchronized sound to compatible recorder footage. Audio travels with video in a supported HDCVI setup, avoiding a separate microphone cable. The camera has no speaker and does not support two-way talk.
A single BNC port can output CVI, TVI, AHD or CVBS for compatible coaxial systems. Resolution, frame rate, audio and control features vary by format and recorder. Confirm channel capability when planning a CCTV surveillance solution.
The IP67 metal enclosure operates from –40°C to +60°C when properly installed. Its 12V DC input has ±30% tolerance for voltage fluctuation, and maximum consumption is 5.7W with the LED active.
| Brand | Dahua |
|---|---|
| Model | DH-HAC-HFW1509TMP-IL-A |
| Camera Type | 5MP Smart Dual Light HDCVI fixed-focal audio bullet camera |
| Maximum Resolution | 2880 × 1620 at up to 25fps |
| Minimum Illumination | 0.001 lux colour; 0.0001 lux B/W; 0 lux with illuminator on |
| Lens and View | 2.8mm: H 111°, V 57°, D 131°; 3.6mm: H 89°, V 47°, D 104° |
| Night Illumination | IR up to 40m; warm light up to 40m |
| Image Features | 120dB WDR, Super Adapt, 3D NR, BLC, HLC and electronic defog |
| Audio | One-channel built-in microphone |
| Video Output | CVI, TVI, AHD or CVBS through one BNC port |
| Power | 12V DC ±30%; maximum 5.7W |
| Protection | Metal casing; IP67; –40°C to +60°C operation |
| Dimensions and Weight | 240.7 × 90.7 × 90.7mm; net 0.7kg |
The “P” suffix identifies PAL, not PoC. Confirm whether the supplied lens is 2.8mm or 3.6mm. For 5MP 16:9 video and Smart Dual Light, Dahua specifies XVR firmware V4.001.0000004.1.R.220323 or later. The camera has no Ethernet, Wi-Fi, PoE, memory-card slot, speaker or built-in AI.
Choose this model for 5MP detail, true WDR, flexible dual illumination, audio and a durable metal body. It suits compatible coaxial upgrades that retain existing cabling. Explore original Dahua products for matching XVRs and accessories.
| Model | Resolution | Key Difference | Recommended Use |
|---|---|---|---|
| DH-HAC-HFW1509TMP-IL-A | 5MP | 40m IR/warm light, 120dB WDR, mic and metal body | Balanced premium day/night surveillance |
| DH-HAC-HFW1500CLP-IL-A | 5MP | 20m dual light, DWDR and compact plastic body | Budget indoor or short-range coverage |
| DH-HAC-HFW1509MHP-A-LED | 5MP | 50m warm light for continuous colour-focused viewing | Longer defined outdoor areas |
| DH-HAC-HFW1549XP-A-PRO | 5MP | WizColor, 130dB WDR, 50m light and dual microphones | Premium colour and audio monitoring |
It outputs 2880 × 1620 HDCVI video at up to 25fps in PAL mode.
It offers infrared, warm light and a coordinated smart mode for flexible night monitoring.
Both infrared and warm light have a published maximum range of 40 metres.
Yes. Its built-in microphone works with compatible HDCVI recorders; there is no speaker.
Choose 2.8mm for a wider scene or 3.6mm for a focused view. Confirm availability.
No. Verify 5MP support, audio compatibility and the required XVR firmware first.
Yes. Its metal enclosure is IP67-rated when the installation is correctly weather-sealed.
