| Camera System | ||
| Product Type | 5MP Full-Color Warm Light HDCVI / Analog Camera | |
| Image Sensor | 5MP CMOS | |
| Maximum Resolution | 2880 × 1620 | |
| Electronic Shutter Speed | 0.0001 Lux @ F1.0; 0 Lux with Illuminator On | |
| Minimum Illumination | PAL: 1/25s to 1/100,000s; NTSC: 1/30s to 1/100,000s | |
| Day / Night Mode | Color | |
| WDR | 130dB WDR | |
| Noise Reduction | 3D NR | |
| Lens & Illumination | ||
| Lens Type | Fixed-Focal Lens | |
| Focal Length & Field of View | 2.8mm: H 109.6°, V 57.5°, D 131°; 3.6mm: H 88.2°, V 47.6°, D 104.5° |
|
| Aperture | F1.0 | |
| DORI Distance | 2.8mm: Detect 66.0 m, Observe 26.4 m, Recognize 13.2 m, Identify 6.6 m; 3.6mm: Detect 78.0 m, Observe 31.2 m, Recognize 15.6 m, Identify 7.8 m |
|
| Illumination Type | Warm Light | |
| IR / White Light Distance | Warm Light: Up to 50 m | |
| Smart Light / Smart IR | Smart Light Supported | |
| Video & Image | ||
| Frame Rate | CVI: 5M @ 25fps / 12.5fps; AHD: 4M @ 25/30fps; TVI: 5M @ 20fps; CVBS: 960H | |
| Supported Resolution | 5M 2880 × 1620; 4M 2560 × 1440; 960H; TVI 5M 16:9 2960 × 1665 | |
| Image Enhancement | 130dB WDR, 3D NR, Auto White Balance, Auto Gain Control, Smart Light | |
| Mirror / Flip / Rotation | Mirror Supported, Controlled through XVR | |
| Audio & Interface | ||
| Built-in Microphone | Built-in Dual Mic | |
| Audio / Alarm Input-Output | Camera Audio: CVI; Pickup Distance: 12 m | |
| Power & Physical Specification | ||
| Power Supply | 12V DC ±30% | |
| Power Consumption | Max. 5.8W, LED On | |
| Operating Temperature | -40°C to +60°C | |
| Operating Humidity | <95% RH, Non-Condensing | |
| Protection Rating | IP67 | |
| Material | Dome: Metal + Plastic; Enclosure: Plastic | |
| Dimensions | Φ109.9 × 102.2 mm | |
| Net Weight | 0.33 kg | |
| Installation Type | Wall Mount, Ceiling Mount, Vertical Pole Mount | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032, EN 55035 | |
| Warranty | ||
| Manufacturer Warranty | 1 Year | |

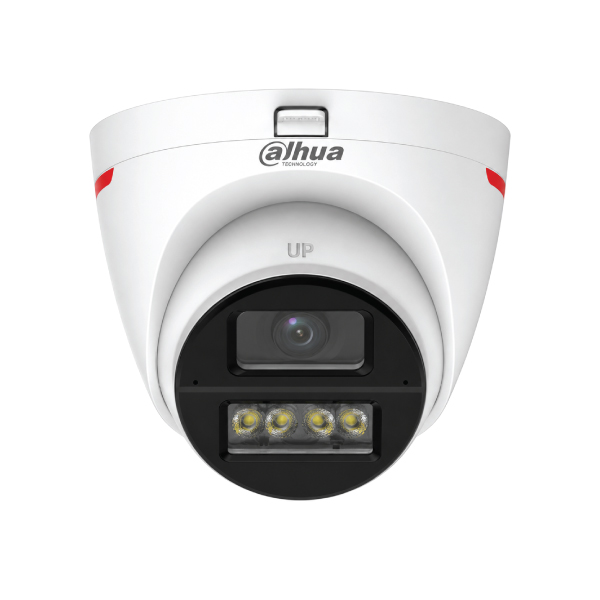

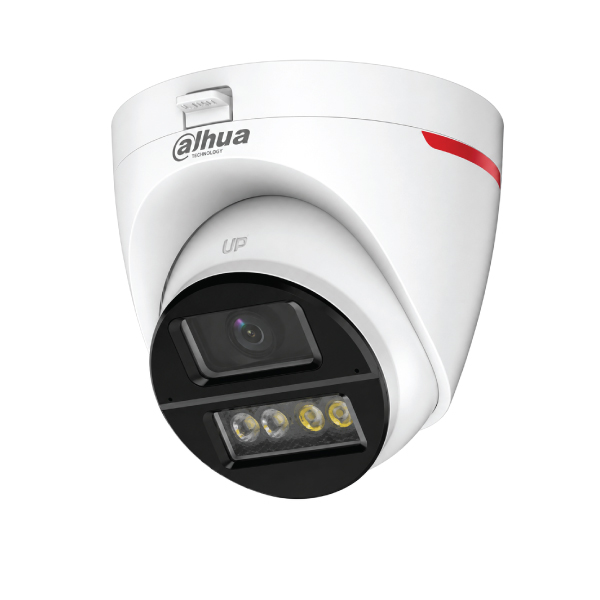

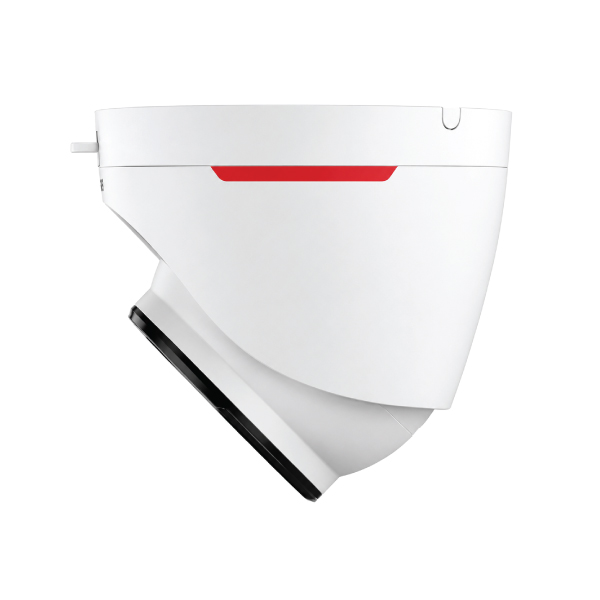

The Dahua DH-HAC-HDW1549XP-A-PRO is a 5MP WizColor HDCVI eyeball CC camera built for high-detail, full-colour monitoring. AI-ISP, an F1.0 lens, 50m warm light, 130dB true WDR and dual microphones suit demanding residential and commercial locations.
For customers comparing the Dahua DH-HAC-HDW1549XP-A-PRO price in Bangladesh, the current Touch IT price is ৳6,200. This PAL-model Dahua 5MP CC camera outputs 2880 × 1620 HDCVI video at up to 25fps and supports four switchable analogue formats, 12V DC power and IP67 protection.
The 5MP sensor produces 2880 × 1620 video in 16:9 format. HDCVI reaches 25fps for detailed playback. Full output requires a compatible XVR channel and firmware.
WizColor combines AI-ISP with an F1.0 aperture to gather more light. Its 0.0001-lux colour sensitivity improves detail around entrances, counters and outdoor approaches.
Distortion correction controls curved wide-angle views. The 2.8mm lens covers H 109.6°, V 57.5° and D 131°; the 3.6mm version provides H 88.2°, V 47.6° and D 104.5°. Confirm the lens when browsing Dahua CC cameras.
Four warm lights extend colour monitoring up to 50 metres. Smart Light+ maintains clearer detail and reduces harsh overexposure when a subject approaches.
True 130dB WDR balances bright and dark areas at gates and entrances. Super Adapt adjusts image parameters, while 3D noise reduction reduces grain.
Dual microphones capture audio up to 12 metres through compatible HDCVI equipment. With no speaker, the camera records sound but does not provide two-way talk.
A DIP switch selects HDCVI, TVI, AHD or CVBS output through one BNC port. Available resolution, frame rate, audio and camera-control functions depend on the chosen format and recorder. Verify compatibility before upgrading a CCTV surveillance installation.
The enclosure carries an IP67 rating and operates from –40°C to +60°C when correctly installed. It requires 12V DC power with ±30% tolerance and uses up to 5.8W with illumination active. The quick-install structure supports wall, ceiling and compatible pole mounting.
| Brand | Dahua |
|---|---|
| Model | DH-HAC-HDW1549XP-A-PRO |
| Camera Type | 5MP WizColor HDCVI fixed-focal dual-mic eyeball camera |
| Image Sensor | 5MP progressive-scan CMOS |
| Maximum Video | 2880 × 1620 at up to 25fps through HDCVI |
| Minimum Illumination | 0.0001 lux at F1.0; 0 lux with illuminator on |
| Lens and View | 2.8mm: H 109.6°, V 57.5°, D 131°; 3.6mm: H 88.2°, V 47.6°, D 104.5° |
| Night Illumination | Four warm lights; maximum 50m |
| Image Enhancement | AI-ISP, distortion correction, 130dB WDR, Super Adapt and 3D NR |
| Audio | Built-in dual microphones; CVI audio; up to 12m pickup |
| Video Output | CVI, TVI, AHD or CVBS via BNC and DIP switch |
| Power | 12V DC ±30%; maximum 5.8W |
| Protection | IP67; –40°C to +60°C operation |
| Dimensions and Weight | Φ109.9 × 102.2mm; net 0.33kg |
The “P” suffix identifies the PAL regional version; Dahua publishes the family sheet as HAC-HDW1549X-A-PRO. The official sheet lists 3.6mm as standard and 2.8mm as optional, while Bangladesh listings commonly advertise 2.8mm. Confirm the supplied lens. For 5MP 16:9 HDCVI output, Dahua requires compatible XVR firmware V4.001.0000001.0.R.200908 or later.
This is a coaxial camera with no Ethernet, Wi-Fi, PoE or onboard storage. It uses warm light rather than infrared and has no speaker or built-in intelligent detection. Motion detection and mirror control require a compatible XVR.
Choose this camera for detailed PAL-format colour video, wide-area warm illumination and improved audio evidence. It combines 5MP resolution, AI-ISP, 130dB WDR and dual microphones without requiring replacement of suitable coaxial cabling.
| Model | Resolution | Key Difference | Recommended Use |
|---|---|---|---|
| DH-HAC-HDW1549XP-A-PRO | 5MP | PAL WizColor eyeball, 50m light and dual microphones | Premium wide-view colour surveillance |
| HAC-HDW1219SLP-A-PRO | 2MP | WizColor Lite, 30m light and single microphone | Lower-cost Full HD colour monitoring |
| DH-HAC-HFW1509MHP-A-LED | 5MP | Focused bullet housing with 50m warm light | Long, defined outdoor viewing areas |
It identifies the PAL regional version, which supports 5MP HDCVI output at up to 25fps.
Yes. WizColor, the F1.0 lens and warm-light illumination support colour-focused monitoring in low light.
The four integrated warm lights have a published maximum illumination distance of 50 metres.
Yes. Dual microphones capture audio up to 12 metres through compatible HDCVI equipment.
No. It contains microphones but no speaker, so it records audio without two-way communication.
Not necessarily. Confirm 5MP channel support, HDCVI audio and the required Dahua XVR firmware before installation.
Yes. Its IP67 enclosure supports outdoor installation when the BNC and power connections are properly sealed.
Touch IT supplies original Dahua products and professional security equipment in Bangladesh. The team can help verify the lens, XVR firmware, recording resolution, power, cabling and mounting accessories.
Upgrade your coaxial security system with 5MP WizColor video, 50m illumination and dual-mic audio. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
