In Stock
| Camera System | ||
| Product Type | 5MP Full-Color Warm Light HDCVI / Analog Bullet Camera | |
| Image Sensor | 5MP CMOS | |
| Maximum Resolution | 2880 × 1620 | |
| Electronic Shutter Speed | PAL: 1/3s to 1/100,000s; NTSC: 1/4s to 1/100,000s | |
| Minimum Illumination | 0.0005 Lux @ F1.0; 0 Lux with Illuminator On | |
| Day / Night Mode | Color | |
| WDR | 120dB WDR | |
| Noise Reduction | 3D NR | |
| Lens & Illumination | ||
| Lens Type | Fixed-Focal Lens | |
| Focal Length & Field of View | 3.6mm: H 88°, V 46°, D 104°; 6mm: H 59°, V 32°, D 67° | |
| Aperture | F1.0 | |
| DORI Distance | 3.6mm: Detect 80.0 m, Observe 32.0 m, Recognize 16.0 m, Identify 8.0 m; 6mm: Detect 120.0 m, Observe 48.0 m, Recognize 24.0 m, Identify 12.0 m | |
| Illumination Type | Warm Light | |
| IR / White Light Distance | Warm Light: Up to 50 m | |
| Smart Light / Smart IR | Smart Light Supported | |
| Video & Image | ||
| Frame Rate | CVI: 5MP @ 25fps / 12.5fps, 4MP @ 25/30fps, 1080p @ 25/30fps; AHD: 4MP @ 25/30fps; TVI: 5MP 16:9 @ 20fps, 4MP @ 25/30fps; CVBS: 960H | |
| Supported Resolution | 5MP 2880 × 1620; TVI 5MP 16:9 2960 × 1665; 4MP 2560 × 1440; 1080p 1920 × 1080; 960H | |
| Image Enhancement | BLC, HLC, HLC-Pro, 120dB WDR, 3D NR, Electronic Defog, Smart Light | |
| Privacy Masking | 8 Rectangular Areas | |
| Mirror / Flip / Rotation | Mirror Supported | |
| Audio & Interface | ||
| Built-in Microphone | Built-in Mic | |
| Audio / Alarm Input-Output | Built-in Mic; Pickup Distance: 8 m | |
| Video Output | CVI / TVI / AHD / CVBS by 1 × BNC Port | |
| Power & Physical Specification | ||
| Power Supply | 12V DC ±30% | |
| Power Consumption | Max. 9W, LED On | |
| Operating Temperature | -40°C to +60°C | |
| Operating Humidity | <95% RH, Non-Condensing | |
| Protection Rating | IP67 | |
| Material | Metal Front Cover + Plastic Rear Barrel + Metal Bracket | |
| Dimensions | 304.0 × 108.4 × 90.8 mm | |
| Net Weight | 0.82 kg | |
| Installation Type | Wall Mount, Ceiling Mount, Vertical Pole Mount | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032, EN 55035 | |
| Warranty | ||
| Manufacturer Warranty | 1 Year | |

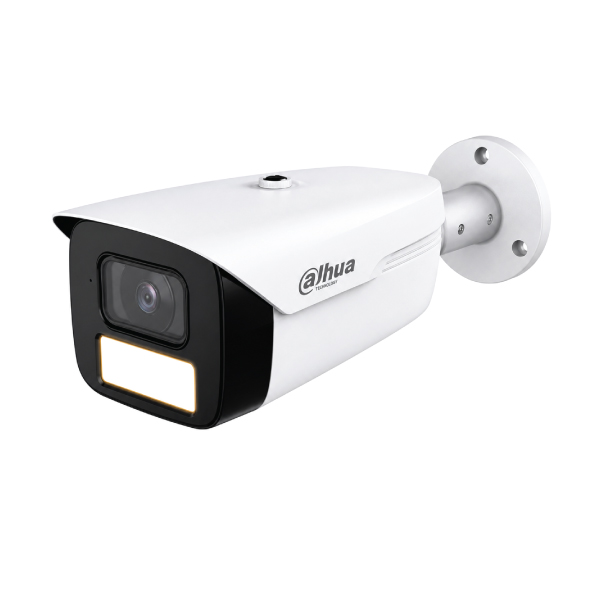

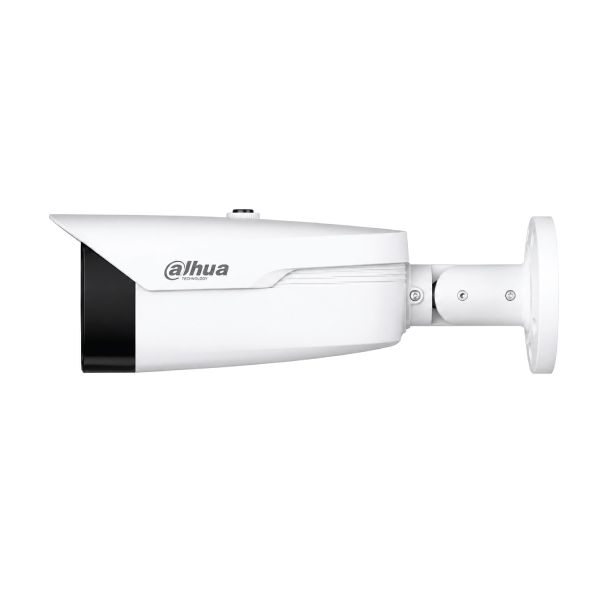

The Dahua DH-HAC-HFW1509MHP-A-LED is a 5MP full-colour HDCVI bullet CC camera for homes, shops, warehouses and perimeters. Its F1.0 lens, 50m warm light, 120dB WDR and microphone provide detailed colour video with audio day and night.
For buyers comparing the Dahua DH-HAC-HFW1509MHP-A-LED price in Bangladesh, the Touch IT price is ৳5,650. This PAL camera records 2880 × 1620 HDCVI video at up to 25fps and supports a fixed lens, 12V DC, four analogue formats and IP67 protection.
This Dahua 5MP CCTV camera suits coaxial systems needing colour evidence after dark. Its bullet body targets gates and boundaries. Browse Dahua CC cameras for other resolutions and WizColor models.
The sensor captures 2880 × 1620 in 16:9 format. PAL HDCVI reaches 25fps for reviewing people, vehicles and movement. Maximum quality requires a compatible 5MP XVR channel.
The F1.0 aperture and sensitive sensor collect more light. The S2 model is rated at 0.001 lux in colour, helping preserve clothing, vehicle and object colours in dim scenes.
Two warm LEDs illuminate up to 50 metres and maintain colour without ambient light. Smart control adjusts exposure and sensitivity to limit overexposure. Visible warm light does not switch the image to monochrome.
True 120dB WDR balances highlights and shadows. Super Adapt optimises settings as conditions change, while 3D NR limits grain. These controls improve a properly planned CCTV surveillance installation.
The microphone adds audio to compatible HDCVI recordings without a separate audio cable. With no speaker, the camera records sound but does not support two-way talk.
The common 3.6mm version provides an 88° horizontal view. The optional 6mm lens narrows coverage to 59° for longer, defined areas. Confirm the ordering code before purchase.
One BNC port outputs CVI, TVI, AHD or CVBS, although resolution and audio support vary by format. The IP67 enclosure and adjustable bracket support sealed wall, ceiling or pole installation.
| Brand | Dahua |
|---|---|
| Model | DH-HAC-HFW1509MHP-A-LED |
| Camera Type | 5MP full-colour HDCVI fixed-focal bullet camera |
| Image Sensor | 5MP progressive-scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| PAL Frame Rate | Up to 25fps at 5MP through HDCVI |
| Minimum Illumination | 0.001 lux at F1.0; 0 lux with warm light on |
| Lens and View | 3.6mm: H 88°, V 46°, D 104°; 6mm: H 59°, V 32°, D 67° |
| Illumination | Two warm LEDs; maximum 50m |
| Image Enhancement | 120dB WDR, Super Adapt, BLC, HLC and 3D NR |
| Audio | Built-in microphone |
| Video Output | CVI, TVI, AHD or CVBS through one BNC port |
| Power | 12V DC ±30%; maximum 6.4W for S2 |
| Protection | IP67; -40°C to +60°C |
| Dimensions and Weight | 304 × 108.4 × 90.8mm; net 0.82kg |
The “P” suffix identifies PAL. Bangladesh listings commonly describe S2; Dahua’s S3 revision lists 0.0005-lux sensitivity, four warm lights, 8m audio pickup and 9W consumption. Confirm the revision and lens. Its 5MP 16:9 output requires XVR firmware V4.001.0000001.0.R.200908 or later.
This coaxial camera has no Ethernet, Wi-Fi, PoE, microSD or speaker. Verify recorder format, audio support, power, junction box, cabling and warranty.
Choose this model for long-range colour surveillance with 5MP detail, true WDR and audio. It upgrades suitable coaxial systems without requiring IP infrastructure.
| Model | Resolution | Key Difference | Recommended Use |
|---|---|---|---|
| DH-HAC-HFW1509MHP-A-LED | 5MP | 120dB WDR, single mic and 50m warm light | Long-range full-colour coaxial monitoring |
| DH-HAC-HFW1549XP-A-PRO | 5MP | Newer WizColor, 130dB WDR and dual microphones | Premium compact bullet installations |
| DH-HAC-HDW1549XP-A-PRO | 5MP | WizColor features in an eyeball body | Ceiling, soffit and compact wall mounting |
| DH-HAC-HFW1219XP-A-PRO | 2MP | Lower-resolution WizColor Lite option | Budget Full HD colour monitoring |
It outputs 2880 × 1620, with PAL HDCVI supporting up to 25fps at 5MP.
Yes. Its F1.0 lens and warm LEDs maintain colour monitoring without ambient light.
Dahua publishes a 50-metre maximum; actual coverage depends on the scene and mounting.
Yes. It has a built-in microphone, but a compatible recorder is required and the camera has no speaker.
The 3.6mm lens is standard and 6mm is optional. Confirm the complete SKU because the lenses are fixed.
Possibly, but the recorder must support the selected signal, resolution, frame rate, audio and required firmware.
Yes. IP67 supports outdoor use when connections and the mounting surface are sealed.
Touch IT supplies original Dahua products and professional surveillance equipment in Bangladesh. The team can help confirm the revision, lens coverage, XVR compatibility, storage, cabling, power and mounting accessories.
Upgrade your coaxial security system with 5MP full-colour video, 50m warm light and audio recording. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
