| Main Features | ||
| System | Linux Operating System | |
| Face Capacity | 3,000 Face | |
| Fingerprint Capacity | 3,000 Finger | |
| ID Card Capacity | 3,000 Card | |
| Record / Log Capacity | 200,000 Log Data | |
| CPU | Dual-Core @ 1.0GHz | |
| Storage | 128MB RAM 256MB ROM |
|
| Display | 2.4-inch TFT Color LCD (240 × 320) | |
| Authentication Method | Fingerprint / Card / Password (physical keypad) | |
| Card | 125 kHz ID Card (Standard) 13.56 MHz IC Card (Optional) Optional Multi-Tech Module (ID + IC + DESFire EV1/EV2) |
|
| Fingerprint Sensor | ZK Optical Sensor | |
| Fingerprint Recognition | < 0.5 seconds (ZKFingerprint V10.0 / V13.0) | |
| Standard Functions | Webserver, ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch (T&A Mode), Multiple Verification Methods, AC Push & TA Push Protocol Switch, HTTPS/SSH Backend Access, T9 Keyboard Input, SRB |
|
| Communication | TCP/IP, Wi-Fi (Optional), Wiegand Input/Output, RS485, USB Host, Aux Inputs, Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell, 12V Output |
|
| Wired network | TCP/IP (RJ45) | |
| Wi-Fi | Optional (IEEE 802.11b/g/n/ax @ 2.4 GHz) | |
| Algorithms | ZKFingerprint V13.0 (Standard) ZKFingerprint V10.0 (Optional) |
|
| Wiegand Signal | Wiegand Input & Output supported | |
| Access Control Interface | RS485 (Card/Biometric Reader), Lock Relay Output, Exit Button, Door Sensor, Alarm Output, Doorbell, Aux Input | |
| Optional Functions | Wi-Fi (AP Mode), PoE (IEEE 802.3at), Wireless Doorbell | |
| Others | 17-Key Physical Keypad, 8Ω 1W Speaker, Supports 8-digit passwords, Supports SRB | |
| Physical Specification | ||
| Environment | Indoor use IP65 Weather & Dust Protection (suitable for semi-outdoor usage) |
|
| Power Supply | DC 12V 1.5A Optional PoE (IEEE 802.3at) |
|
| Working temperature | -5°C to 45°C | |
| Working humidity | 20% to 80% RH (Non-condensing) | |
| Built-in access controller | Yes (supports lock, sensor, alarm, exit button) | |
| Languages | Multi-language (ZKTeco standard UI) | |
| Platform/ Software | ZKBio CVAccess (AC Push) ZKBio Time (TA Push) ZKBio Zlink Cloud (Web Portal & Mobile App) |
|
| Dimension | 205.7 × 82.7 × 33 mm (L × W × H) | |
| Weight | Net Weight: 0.42 kg Gross Weight: 0.76 kg |
|
| Standard Firmware Functions | Webserver, ADMS, DST, T9 Input, Multiple Verify Methods, Access Levels, Groups, Holidays, Schedule Bell, Anti-Passback, Tamper Alarm, Automatic Status Switch, Push Protocol Support, HTTPS/SSH Access |
|
| SDK | Standard ZKTeco SDK Support | |
| Protection Rating | IP65 (Waterproof & Dustproof) | |
| Audio | Built-in Speaker: 8Ω ±20% @1W | |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS | |
| API Functionalities | AC Push / TA Push Protocol HTTPS / SSH Communication Support |
|
| Device & API Management Cloud Platform | ZKBio Zlink Cloud Platform | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

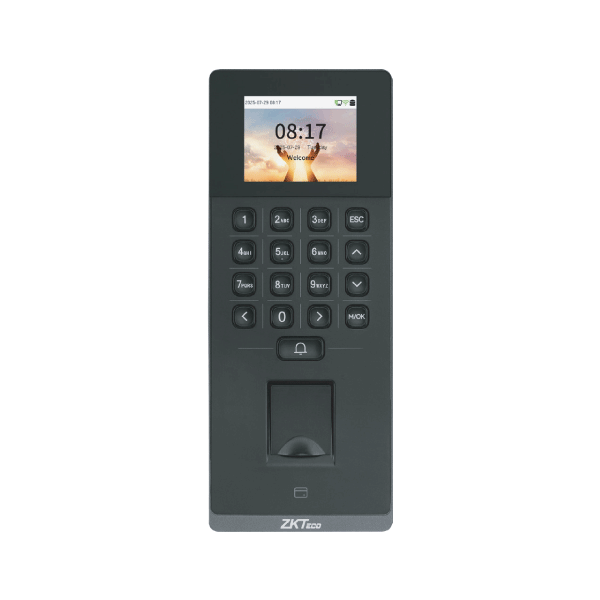

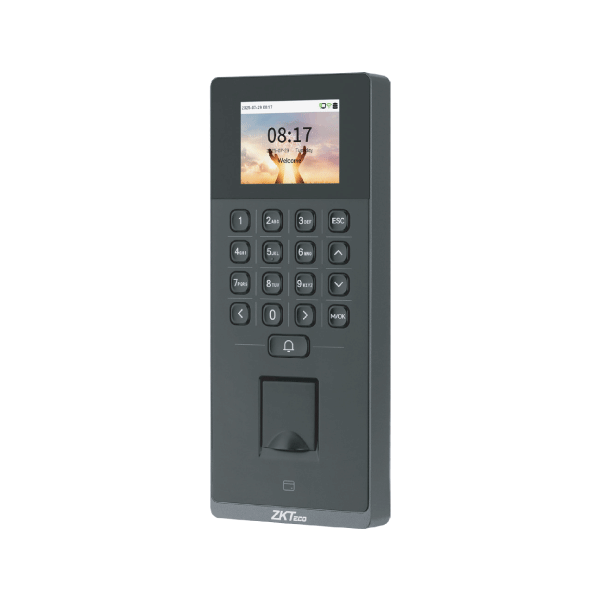

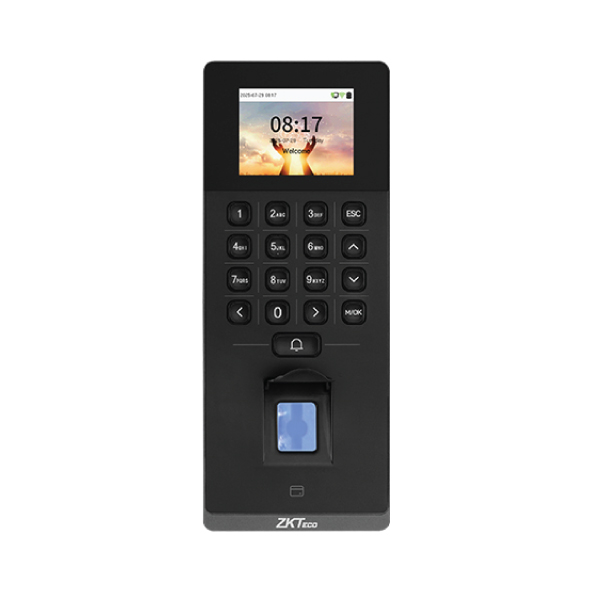

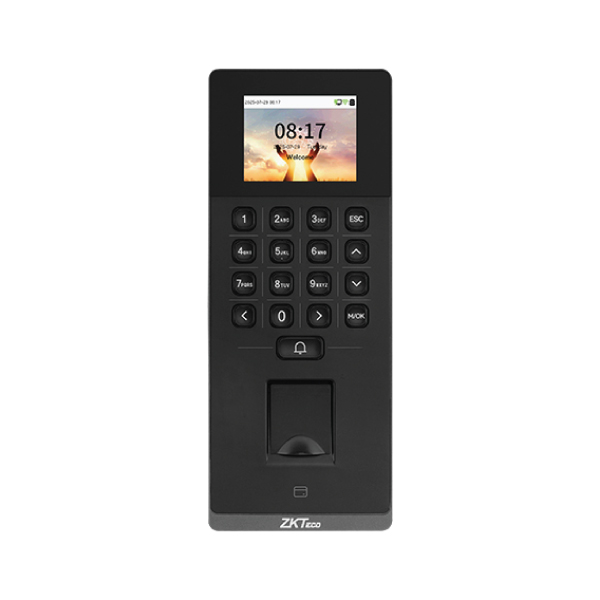

The ZKTeco F34 Lite Fingerprint Cloud Access Control Terminal is a next-generation, enterprise-grade access control solution designed for modern organizations that need secure, cloud-connected, and weather-resistant security management. Engineered with ZKTeco’s advanced ZKFingerprint V13.0 biometric algorithm, multiple card technology support, fast authentication, and seamless cloud integration via ZKBio Zlink, the F34 Lite ensures high-precision verification and centralized access management for offices, warehouses, factories, shops, and commercial buildings. With optional PoE support, IP65 weatherproof protection, and multi-protocol communication, the ZKTeco F34 Lite stands as one of the most reliable fingerprint cloud access control terminals in Bangladesh.
The ZKTeco F34 Lite offers powerful multi-verification options including fingerprint, ID/IC card, dual-frequency DESFire EV1/EV2 card modules, and password authentication. With support for 3,000 fingerprint templates and 3,000 card users, it delivers fast and accurate access verification with a biometric matching speed of less than 0.5 seconds. Thanks to FAR ≤ 0.0001% and FRR ≤ 0.01%, users get industry-leading authentication accuracy essential for high-security environments.
The F34 Lite is built for cloud-based access management and connects effortlessly with ZKBio Zlink via AC Push protocol. It supports both TCP/IP and optional Wi-Fi (2.4GHz) communication, offering flexible deployment across multi-site businesses. Administrators can remotely control doors, manage users, create schedules, and monitor activities in real time through the cloud portal and mobile app, enabling modern and scalable access control management.
With optional PoE (IEEE 802.3at) support, the ZKTeco F34 Lite can be powered directly through an Ethernet cable, eliminating the need for external adapters and reducing installation costs. This makes it perfect for new projects, renovations, and large-scale installations where cabling efficiency is essential.
The F34 Lite is engineered with a robust exterior and certified IP65 dustproof and waterproof protection, ensuring reliable operation in harsh indoor and semi-outdoor conditions. It works efficiently in temperatures from -5°C to 45°C and humidity levels up to 80%, making it ideal for industrial zones, logistics centers, outdoor gate systems, and high-traffic environments.
Powered by a 1.0GHz Dual-Core CPU, 128MB RAM, and 256MB ROM, the ZKTeco F34 Lite ensures smooth operation and fast response times. Its bright 2.4-inch TFT color LCD screen and durable 17-key keypad deliver a user-friendly interface for both administrators and employees. With a transaction capacity of 200,000 logs, the device maintains stable performance even in large organizations.
The device supports a full range of access control components, including electric lock output, exit button, door sensor, tamper alarm, RS485 reader support, Wiegand input/output, and optional wireless doorbell functionality. These features allow seamless integration into existing security ecosystems and provide reliable entry control for restricted areas.
The ZKTeco F34 Lite includes intelligent functions such as Access Levels, Groups, Holidays, Anti-Passback, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, ADMS, T9 input, 14-digit User ID support, and HTTPS/SSH backend access. With support for both AC Push and TA Push, the device can convert between access control and time attendance modes for flexible functionality.

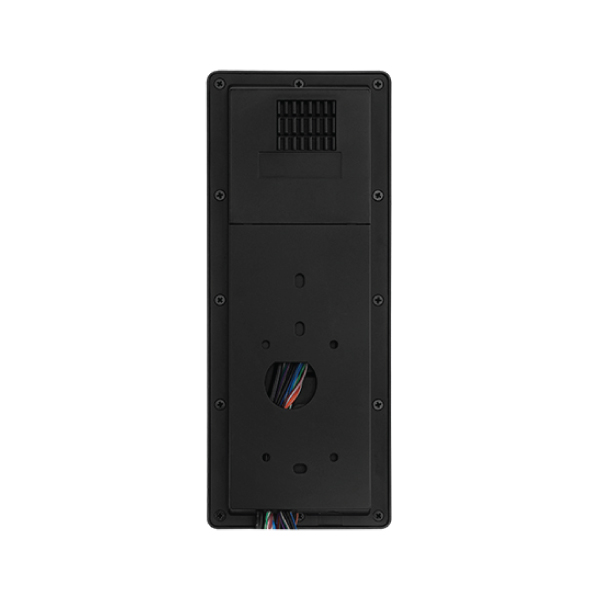

The device supports wall-mount installation and is compatible with Asian Gang Box / Single Gang Box, as well as Rot-3 Stand or Rots-02 Bracket mounts. Its compact 205.7 × 82.7 × 33 mm design makes it suitable for any entry point, reception area, or outdoor gate.
If you are looking to purchase the ZKTeco F34 Lite Fingerprint Access Control Terminal in Bangladesh, Touch IT offers 100% authentic ZKTeco devices, expert installation, professional configuration, and nationwide delivery. The ZKTeco F34 Lite price in Bangladesh is competitive, making it an ideal choice for businesses seeking a secure and cloud-enabled fingerprint access control solution. Our technical team ensures seamless deployment, software integration, and long-term support for all your security requirements.
For quotations, system design support, or installation services, contact Touch IT today. Upgrade your facility with the advanced, cloud-powered ZKTeco F34 Lite Fingerprint Cloud Access Control Terminal—your trusted solution for modern and secure access management.
The latest price of ZKTeco F34 Lite Fingerprint Access Control Terminal in Bangladesh is 0৳. You can buy the ZKTeco F34 Lite Fingerprint Access Control Terminal at best price from our website or visit any of our showrooms.
