In Stock
| Hardware | ||
| Display | 2.4-inch LCD Screen | |
| Resolution | 320 × 240 | |
| Processor | Linux | |
| User & Storage Capacity | ||
| User Capacity | 3,000 Users | |
| Fingerprint Capacity | 3,000 Fingerprints | |
| Card Capacity | 3,000 Cards | |
| Transaction Capacity | 100,000 Events | |
| Authentication & Features | ||
| Verification Modes | Fingerprint, EM Card, PIN | |
| Card Type | EM Card | |
| Multi-Factor Authentication | Supported | |
| Finger Sensor Type | Optical Fingerprint Module | |
| Communication & Interface | ||
| Network | Wired Network, Wi-Fi 2.4GHz 802.11b/g/n, AP Mode | |
| Interface | 1 × RJ-45 10/100M Self-Adaptive, 1 × USB | |
| Optional Network Protocols | ISAPI, ISUP 5.0, Web Client Configuration | |
| Access Control | 1 × Lock Control, 1 × Exit Button, 1 × Door Contact Input, 1 × Tamper | |
| Software & Smart Features | ||
| Software Compatibility | Web Client, ISAPI, ISUP 5.0 | |
| Voice Prompt | Built-in Buzzer | |
| Additional Features | Access Control Function, Local Time Attendance Function, Battery Power Supply via Bracket | |
| Physical Specifications | ||
| Power Supply | 12 VDC; Supports Battery Power Supply by Bracket | |
| Power Consumption | ≤ 6W | |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) | |
| Operating Humidity | 0% to 90% RH, Non-Condensing | |
| Warranty | ||
| Warranty | 1 Year | |

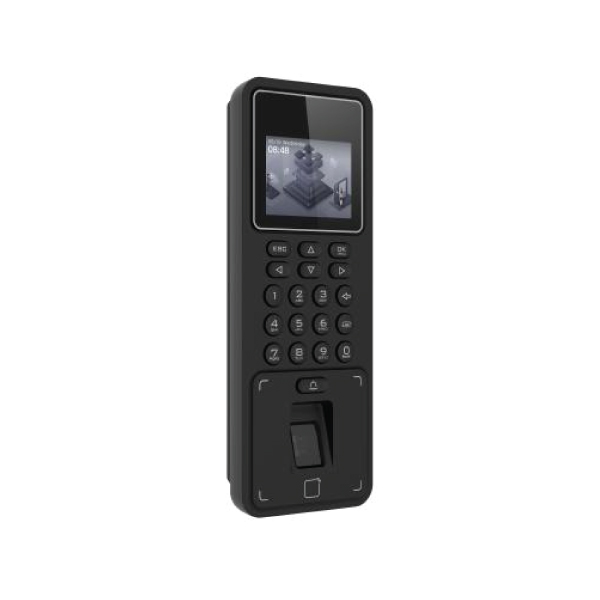

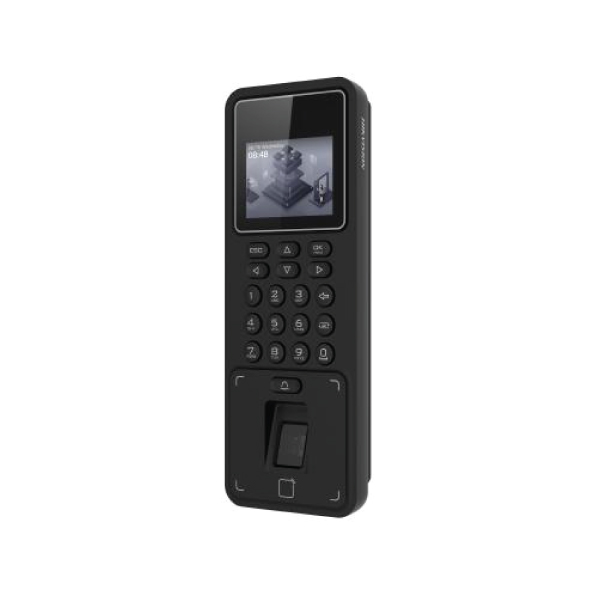

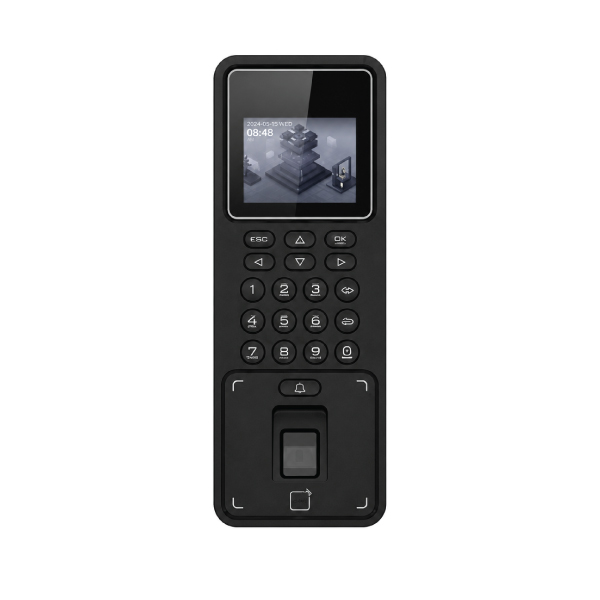

The Hikvision DS-K1T808EFWX Fingerprint Access Control Terminal is a professional biometric entry and attendance device for offices, factories, educational institutions, hospitals, warehouses, retail businesses and commercial buildings. It combines optical fingerprint identification, EM card reading and PIN authentication with wired or wireless networking and practical door-control interfaces.
For organizations comparing the Hikvision DS-K1T808EFWX price in Bangladesh, this Pro Series terminal offers a 2.4-inch LCD, 3,000-fingerprint capacity, 3,000-card capacity and storage for 100,000 events. The current Hikvision DS-K1T808EFWX price at Touch IT is ৳15,500. Confirm stock, exact model suffix, supplied power accessories, software requirements and installation scope before ordering.
The DS-K1T808EFWX combines a biometric reader and access controller in one terminal. It can identify users, operate compatible door hardware and retain access or attendance events. Wi-Fi, Ethernet and web configuration suit standalone entrances and managed security projects.
Users can verify their identity with a fingerprint, EM card or PIN. The optical fingerprint module supports both 1:1 and 1:N comparison modes, giving organizations flexible options for employee attendance, controlled entry and restricted-area access.
The terminal supports up to 3,000 fingerprints, 3,000 EM cards and 100,000 events. This capacity is practical for small and medium organizations that need dependable daily records without purchasing a large enterprise-grade biometric terminal.
A 10/100M self-adaptive RJ-45 port supports stable Ethernet communication. The Wi-Fi version also supports 2.4GHz 802.11b/g/n connectivity and AP mode, simplifying deployment where additional network cabling is inconvenient. Browse other models under Hikvision Access Control.
RS-485 can connect a supported secure door-control unit or card reader. Wiegand, lock control, exit-button input, door-contact input, tamper and USB connections provide flexibility for compatible entrance equipment. Explore related locks, buttons and terminals in the Access Control and Time Attendance category.
Administrators can configure supported settings through PC and mobile web clients. ISAPI and ISUP 5.0 support helps the device communicate within approved Hikvision or third-party projects, subject to software compatibility and system configuration.
Hikvision lists both access-control and local time-attendance functions for this series. The built-in buzzer gives audible feedback, while the 2.4-inch display and keypad help users follow prompts and enter PIN credentials.
| Product Name | Hikvision DS-K1T808EFWX Fingerprint Access Control Terminal |
|---|---|
| Operating System | Linux |
| Display | 2.4-inch LCD, 320 × 240 |
| Authentication | Fingerprint, EM card and PIN |
| Fingerprint Capacity | 3,000 templates |
| Card Capacity | 3,000 EM cards |
| Event Capacity | 100,000 events |
| Fingerprint Module | Optical; 1:1 and 1:N comparison |
| Network | RJ-45 10/100M; Wi-Fi 2.4GHz 802.11b/g/n, AP mode |
| Reader Interfaces | RS-485 and Wiegand W26/W34 |
| Door Interfaces | Lock control, exit button, door contact and tamper |
| Other Interface | USB |
| Protocols and Management | ISAPI, ISUP 5.0, PC and mobile web clients |
| Power | 12V DC, ≤6W; battery power supported through a compatible bracket |
| Operating Conditions | -10°C to 55°C; 0% to 90% RH, non-condensing |
Verification note: Regional Hikvision documentation may identify supplied versions as DS-K1T808EFWX, DS-K1T808EFWX-B or DS-K1T808EFWX-B/S. Battery operation requires a compatible battery bracket and does not confirm a battery inside every package. Exact dimensions, IP protection, adapter, battery bracket, software entitlement and warranty inclusion were not verified consistently for the Touch IT-listed configuration. Face recognition is not supported.
This terminal is well suited to organizations requiring fingerprint, card and PIN access with Ethernet, Wi-Fi and professional reader integration. Its local attendance function, web configuration and 100,000-event capacity add practical management value beyond a simple standalone fingerprint reader. Explore broader entrance, surveillance and workplace protection options under Security System Solutions.
| Model | Best For | Main Difference |
|---|---|---|
| DS-K1T808EFWX | Integrated fingerprint and door control | Wi-Fi, RS-485, Wiegand and web-client management |
| Hikvision DS-K1T8005EFWX-B | Compact fingerprint access | Similar capacity with a more limited verified interface set |
| Hikvision DS-K1T807EBFWX-E1 | Higher-volume fingerprint projects | 5,000 users, 150,000 events and PoE support |
| Hikvision DS-K1T321EFX | Multi-biometric access | Adds face recognition and anti-spoofing |
It supports optical fingerprint recognition, EM card authentication and PIN entry.
The DS-K1T808EFWX stores up to 3,000 fingerprints and 3,000 EM cards.
Yes. It supports 2.4GHz Wi-Fi and AP mode alongside wired Ethernet.
Yes. It provides lock, exit-button and door-contact connections for compatible access-control hardware.
Yes. Hikvision lists RS-485 support for connecting a compatible card reader or secure door-control unit.
Yes. Local time attendance is supported in addition to access control.
Battery power is supported through a compatible bracket, but bracket and battery inclusion must be confirmed for the supplied package.
Touch IT supplies professional attendance and security products in Bangladesh with product consultation, installation planning, configuration assistance and after-sales technical support. The team can help confirm the exact model suffix, compatible door hardware and required power or software package before deployment.
Upgrade workplace entry management with fingerprint, EM card and PIN verification, Wi-Fi connectivity and professional door integration. Order the Hikvision DS-K1T808EFWX Fingerprint Access Control Terminal from Touch IT, visit the showroom at 312 (3rd Floor), ECS Computer City Center, Multiplan Center, 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
