In Stock
| Camera System | ||
| Image Sensor | 1/2.9" Progressive Scan CMOS | |
| Maximum Resolution | 2 MP (1920 × 1080) | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | Auto / Manual, 1 ~ 1/100000 s | |
| Day / Night Mode | IR-cut filter with Auto Switch (ICR) | |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with Light On | |
| Signal-to-Noise Ratio (S/N) | 52 dB | |
| Wide Dynamic Range (WDR) | DWDR | |
| Digital Noise Reduction (2D/3D DNR) | 2D / 3D DNR Supported | |
| Digital Defog | Digital Defog Supported | |
| Pan / Tilt / Rotation | Pan: 0° to 360° | Tilt: 0° to 80° | Rotate: 0° to 360° | |
| Infrared & Illumination | ||
| IR Type | Dual Light (IR + Warm Light) | |
| IR Distance | Up to 30 m (98.4 ft) | |
| IR Control (Auto / Manual) | Auto / Manual | |
| IR Wavelength | 850 nm | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Fixed Lens | |
| Focal Length & Field of View (FOV) | 2.8 mm Horizontal: 101.1° | Vertical: 55.0° | Diagonal: 111.0° |
|
| Lens Mount | M12 | |
| Iris Type | Fixed Iris | |
| Aperture (F-number) | F1.6 | |
| DORI Distance | Detect: 45.0 m | Observe: 18.0 m | Recognize: 9.0 m | Identify: 4.5 m | |
| Video & Image Processing | ||
| Video Compression | Ultra 265, H.265, H.264 | |
| Smart Codec | U-code Supported (Main Stream) | |
| Main Stream / Sub Stream | Dual Streams Supported | |
| Frame Rate | Main Stream: 1080P / 720P @ 30 fps Sub Stream: 640×360 / 2CIF / CIF @ 30 fps |
|
| Supported Resolution | 1920×1080, 1280×720, 640×360, 704×288, 352×288 | |
| Bit Rate Control (CBR / VBR) | CBR / VBR | |
| Region of Interest (ROI) | Supported | |
| On-Screen Display (OSD) | Up to 4 OSDs | |
| Image Enhancement (BLC / HLC) | BLC / HLC Supported | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |
| Gain Control | Auto | |
| Privacy Masking | Up to 4 Areas | |
| Image Rotation / Flip | Normal, Vertical Flip, Horizontal Flip, 180° | |
| Smart & AI Features | ||
| Motion Detection | Supported | |
| Basic Event Detection | Human Body Detection, Motion Detection, Audio Detection | |
| Advanced AI Analytics (Human / Vehicle / Face – Model Dependent) | Human Body Detection (Model Dependent) | |
| Audio & I/O | ||
| Built-in Microphone | Supported | |
| Audio Compression | G.711U / G.711A | |
| Audio Sampling Rate | 8 kHz | |
| Alarm Events | Motion, Human Body, Audio Detection | |
| Network & Storage | ||
| Network Interface (RJ45) | 1 × RJ45 10/100 Mbps Ethernet | |
| Network Protocols | IPv4, TCP/IP, UDP, HTTP, HTTPS, RTSP, FTP, DHCP, DNS, DDNS, NTP, UPnP, QoS, SSL/TLS, SNMP | |
| ONVIF / Interoperability | ONVIF Profile S / G / T, API, SDK | |
| SDK & API Support | Supported | |
| Maximum User Access | Up to 32 Users (3 User Levels) | |
| Edge Storage (microSD) | microSD Card up to 512 GB | |
| Network Storage (NAS / NVR) | ANR Supported | |
| Software & Access | ||
| Web Browser Support | IE 10+, Chrome 45+, Firefox 52+, Edge 79+ (Plugin / Plugin-Free Supported) | |
| Management Software | EZStation | |
| Security Features | Strong Password, HTTPS Encryption, RTSP/HTTP Authentication, TLS 1.2, ONVIF Security, Operation Logs | |
| Power & Physical Specifications | ||
| Power Supply | DC 12 V ±25%, PoE (IEEE 802.3af) | |
| Power Consumption | Maximum 4.5 W | |
| Operating Temperature | -30°C to 60°C | |
| Operating Humidity | ≤ 95% RH (Non-condensing) | |
| Storage Temperature | -30°C to 60°C | |
| Ingress Protection (IP Rating) | IP67 | |
| Material | Metal + Plastic | |
| Dimensions (L × W × H) | Ø118 mm × 98 mm | |
| Net Weight | 0.29 kg | |
| Installation Type | Wall / Ceiling Mount | |
| Compliance & Warranty | ||
| Certifications | CE, FCC, UL, RoHS, WEEE | |
| Manufacturer Warranty | 1 Year Warranty | |

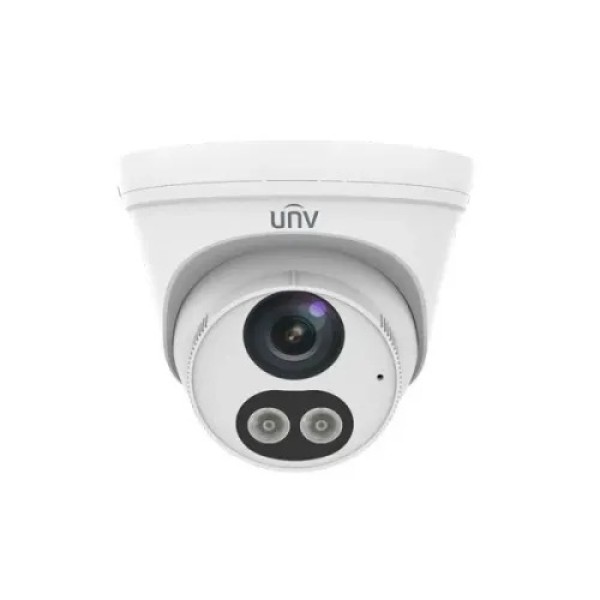

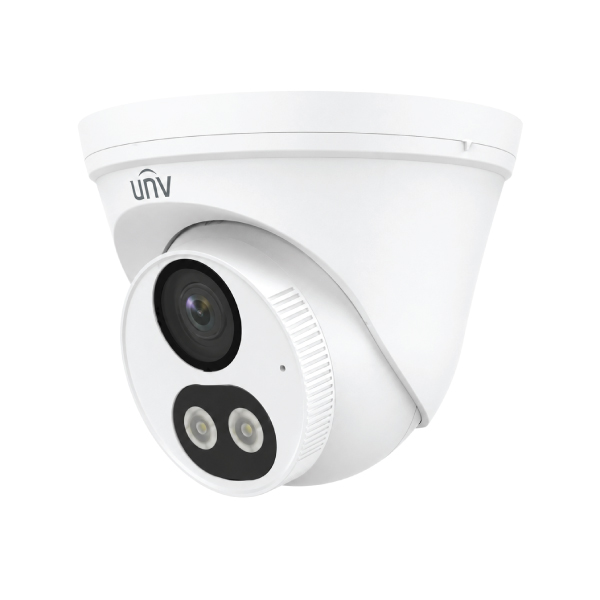

The Uniview IPC3612LB-AF28K-DL is a 2MP ColorHunter turret network camera for homes, shops, offices, apartment entrances and commercial sites. Its wide lens, dual illumination, microphone and weather-resistant housing support reliable indoor or outdoor CCTV monitoring.
For buyers checking the Uniview IPC3612LB-AF28K-DL price in Bangladesh, the current Touch IT price is ৳3,800. This Full HD PoE IP camera records at up to 30fps, supports human detection and accepts a microSD card up to 512GB.
This fixed turret IP camera offers broad coverage for entrances, reception areas, shop floors and building approaches. Infrared supports discreet monochrome monitoring, while warm light can retain useful colour detail. Audio, local storage and detection features make it a capable part of a home or business CCTV surveillance system.
The 1/2.9-inch CMOS sensor captures 1920 × 1080 video at up to 30fps. Full HD balances useful detail with manageable storage and bandwidth, while dual streams support separate recording and remote-viewing settings.
Smart IR and warm light each reach up to 30 metres. The F1.6 aperture and 0.005-lux minimum colour illumination support low-light imaging, while warm light can preserve colour information. An automatic IR-cut filter manages day/night operation.
The fixed 2.8mm lens provides a 101.1° horizontal view for rooms, storefronts and short approaches. DWDR, HLC, BLC, digital defog and 2D/3D noise reduction help improve difficult scenes.
Human-body detection can make alerts more relevant than basic motion alone. Motion and audio detection are also available. The microphone records sound, while a compatible microSD card up to 512GB supports edge storage. There is no speaker or two-way audio.
Ultra 265, H.265 and H.264 help manage storage and bandwidth. ONVIF Profiles S, G and T aid integration with compatible recorders. HTTPS, TLS 1.2 and authenticated streaming strengthen a properly configured network.
IEEE 802.3af PoE carries data and power through one cable; 12V DC is also supported. The IP67 enclosure, -30°C to 60°C operating range and 4kV surge protection suit demanding installations.
| Brand | Uniview |
|---|---|
| Model | IPC3612LB-AF28K-DL |
| Camera Type | 2MP ColorHunter fixed dual-light turret network camera |
| Image Sensor | 1/2.9-inch CMOS |
| Maximum Resolution | 1920 × 1080 at up to 30fps |
| Lens and View | 2.8mm F1.6; H 101.1°, V 55.0°, D 111.0° |
| Minimum Illumination | Colour: 0.005 lux; 0 lux with supplemental light |
| Supplemental Light | Smart IR up to 30m; warm light up to 30m |
| Compression | Ultra 265, H.265 and H.264 |
| Detection | Human-body, motion and audio detection |
| Audio | Built-in microphone; G.711U/G.711A |
| Storage | MicroSD card up to 512GB; ANR network storage |
| Network | RJ45 10/100M; ONVIF Profiles S, G and T |
| Power | 12V DC ±25% or IEEE 802.3af PoE; maximum 4.5W |
| Protection | IP67 and 4kV surge protection |
| Dimensions and Weight | Ø118 × 98mm; 0.29kg |
This 2.8mm version has a microphone, microSD storage, DC input and PoE, but no Wi-Fi, speaker, external audio/alarm I/O or reset button. Confirm the supplied revision, warranty and package contents.
Choose this model for wide coverage, colour-supporting warm light, audio and flexible edge storage. Explore more Uniview IP cameras for other lenses, formats and resolutions.
| Model | Resolution | Key Difference | Best For |
|---|---|---|---|
| IPC3612LB-AF28K-DL | 2MP | 101.1° wide view, 30m dual light and 512GB storage | Wide indoor or entrance coverage |
| IPC2122LB-AF40K-DL | 2MP | More focused 4mm bullet format with 30m dual light | Gates, corridors and shop fronts |
| IPC2312LB-AF40-DL-A1 | 2MP | 50m IR, 15m warm light and focused 4mm lens | Longer outdoor approaches |
| IPC2124LB-AF40K-DL | 4MP | Higher image resolution with dual-light bullet design | Projects needing additional detail |
It records Full HD 1920 × 1080 video at up to 30fps.
Its warm supplemental light can support colour detail after dark. Results depend on the selected light mode, ambient conditions, subject distance and camera settings.
Uniview lists up to 30 metres for infrared and up to 30 metres for warm light.
Yes. It has a built-in microphone. It has no speaker, so two-way audio is unavailable.
Yes. A compatible microSD card up to 512GB provides local recording; an NVR is useful for centralised multi-camera management.
No. It uses a wired RJ45 Ethernet connection and supports either PoE or separate 12V DC power.
ONVIF Profiles S, G and T improve interoperability, but model, firmware and feature compatibility should be confirmed before purchase.
Touch IT supplies genuine Uniview products and security solutions in Bangladesh. The team can help with lens coverage, NVR compatibility, PoE capacity, storage, cabling and installation accessories.
Upgrade your property with wide-angle Full HD monitoring, dual-light coverage, audio and flexible storage. Order online, visit Touch IT at Multiplan Center, Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Uniview IPC3612LB-AF28K-DL IP Camera in Bangladesh is 3,800৳. You can buy the Uniview IPC3612LB-AF28K-DL IP Camera at best price from our website or visit any of our showrooms.
