| Camera | ||
| Image Sensor | 1/2.9" CMOS Sensor | |
| Max. Resolution | 2 MP (1920 × 1080) | |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000s | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON) / 0 Lux with supplemental light | |
| S/N Ratio | 52 dB | |
| IR Type | Dual-light (IR + Warm Light) | |
| IR Distance | IR: 30 m Warm Light: 30 m |
|
| IR Control | Auto / Manual | |
| IR Wavelength | 850 nm | |
| Angle Adjustment | 3-axis adjustment | |
| Lens | ||
| Lens Type | Fixed Lens 4.0mm | |
| Focal Length / FOV | 4.0mm | |
| Iris Type | Fixed | |
| Aperture | F1.6 | |
| DORI Distance | 4.0mm: • Detect: 64.3 m • Observe: 25.7 m • Recognize: 12.9 m • Identify: 6.4 m | |
| Video & Image | ||
| Video Compression | Ultra 265, H.265, H.264 | |
| Smart Codec | U-code (Main Stream) | |
| Bit rate | 128 Kbps – 6144 Kbps | |
| H.265 Type | Standard H.265 | |
| H.264 Type | Baseline / Main / High profiles | |
| Main Stream | 1080P (1920 × 1080) @ 30fps / 720P (1280 × 720) @ 30fps | |
| Sub-Stream | 640 × 360 @ 30fps / 2CIF (704 × 288) @ 30fps / CIF (352 × 288) @ 30fps | |
| Video Stream | Dual Streams | |
| Image Enhancement | HLC, BLC, Defog (Digital) | |
| Resolution | 1080P / 720P / 360P / CIF | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |
| ROI | Up to 8 areas | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 4 areas | |
| Rotation/Flip | Normal, Vertical Flip, Horizontal Flip, 180° | |
| Basic Detection | Human body detection / Motion detection / Audio detection | |
| Audio & Interface | ||
| Built-in MIC | Yes | |
| Built-in Speaker | No | |
| Audio Compression | G.711U / G.711A | |
| Audio Bit rate | 64 Kbps | |
| Noise Filtering | Supported | |
| Sampling Rate | 8 kHz | |
| Network & Storage | ||
| Network Port | 1 × RJ45 10M/100M Ethernet | |
| Network Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP | |
| Interoperability | ONVIF Profile S / G / T | |
| User/Host | Up to 32 users Administrator / Operator / User |
|
| Storage | MicroSD up to 512GB | |
| Web Browser Support | IE 10+, Chrome 45+ (plug-in), Firefox 52+, Edge 79+, Plug-in free: Chrome 57+, Firefox 58+, Edge 16+ | |
| Management Software | EZStation | |
| Mobile App | EZApp | |
| Security | Password protection / HTTPS encryption / TLS 1.2 / Digest authentication / Strong password enforcement / Operation log export | |
| Physical Specification | ||
| Power Supply | DC 12V ± 25% PoE (IEEE 802.3af) |
|
| Power Consumption | Max. 4.5 W | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Operating Humidity | ≤ 95% RH (non-condensing) | |
| Storage Temperature | -30°C to 60°C | |
| Storage Humidity | ≤ 95% RH | |
| Language | English, Russian, Spanish, Vietnamese (Web Client) | |
| Protection | IP67 | |
| Material | Metal + Plastic | |
| Dimensions | 162 mm × 67 mm × 67 mm (L × W × H) | |
| Net Weight | 0.24 kg (0.53 lb) | |
| Installation | Wall / Ceiling Mount | |
| Certifications | CE-EMC, CE-LVD, FCC, UL/CUL, RoHS, WEEE | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

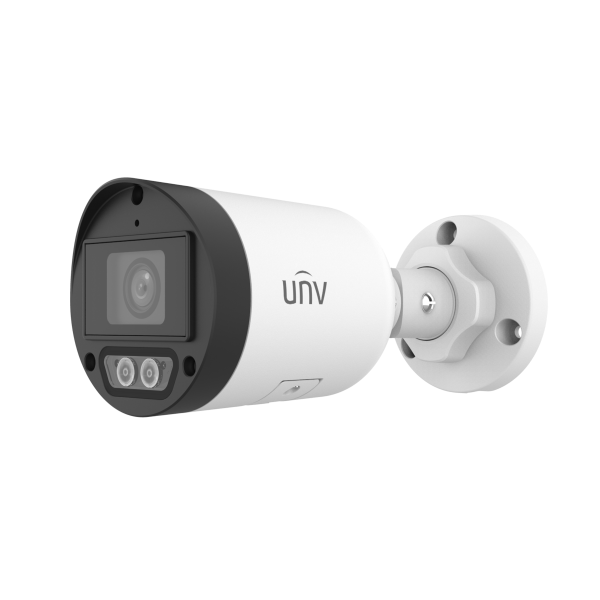

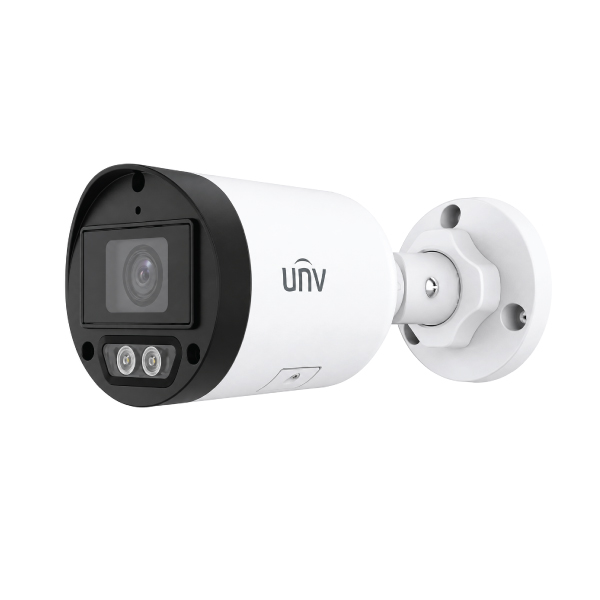

The Uniview IPC2122LB-AF40K-DL is a compact 2MP ColorHunter bullet network camera for day-and-night surveillance. Its 1/2.9-inch CMOS sensor records Full HD 1920 × 1080 video at up to 30fps, while a fixed 4mm F1.6 lens suits entrances, corridors, gates and shop fronts. Dual illumination, audio capture and weather-resistant construction make it practical for residential or commercial CCTV.
For customers comparing the Uniview IPC2122LB-AF40K-DL price in Bangladesh, the current Touch IT price is ৳3,800. The camera supports DC or PoE power, up to 512GB microSD storage and ONVIF integration. Confirm stock, NVR compatibility and installation requirements before ordering.
This ColorHunter camera is designed for fixed points where night detail matters. Its infrared and warm-light system adapts to low-light scenes, while the 4mm lens provides more focused coverage than a typical 2.8mm lens. It connects to a compatible NVR or platform through Ethernet. Explore the wider IP camera range for other resolutions and formats.
The 1/2.9-inch CMOS sensor captures 1920 × 1080 video at up to 30fps. Full HD balances useful detail with manageable bandwidth and storage. Dual streams support separate settings for recording and remote viewing.
Smart IR and warm light each reach up to 30 metres. Infrared supports monochrome monitoring, while warm illumination can preserve colour detail. Smart illumination manages output to limit excessive brightness. Minimum colour illumination is 0.005 lux with F1.6 and AGC enabled.
The 4mm F1.6 lens provides an 83.7° horizontal field of view. DWDR balances mixed lighting, while HLC, BLC, digital defog and 2D/3D noise reduction improve difficult scenes. Privacy masks and regions of interest add configuration control.
The built-in microphone adds audio to recorded video. Events include human-body, motion and audio detection, while the microSD slot supports cards up to 512GB. Two-way audio is unavailable because there is no speaker or external audio input/output.
Ultra 265, H.265 and H.264 help manage bandwidth and storage. ONVIF Profiles S, G and T, plus API and SDK support, aid integration with compatible recorders. Browse Uniview IP cameras for a consistent multi-camera system.
The IP67 metal-and-plastic housing suits indoor or outdoor positions when installed correctly. Use 12V DC or PoE; PoE carries power and data through one Ethernet cable. The operating range is -30°C to 60°C, with 4kV surge protection.
| Brand | Uniview |
|---|---|
| Model | IPC2122LB-AF40K-DL |
| Camera Type | ColorHunter mini fixed bullet network camera |
| Image Sensor | 1/2.9-inch, 2MP progressive-scan CMOS |
| Maximum Resolution | 1920 × 1080 at up to 30fps |
| Lens and View | 4mm F1.6; H 83.7°, V 44.6°, D 89.1° |
| Minimum Illumination | Colour: 0.005 lux; 0 lux with supplemental light |
| Supplemental Light | Smart IR up to 30m; warm light up to 30m |
| Compression | Ultra 265, H.265 and H.264 |
| Detection | Human body, motion and audio detection |
| Audio | Built-in microphone; G.711U/G.711A |
| Storage | MicroSD card up to 512GB |
| Network and Integration | RJ45 10/100; ONVIF Profiles S/G/T, API and SDK |
| Power | 12V DC ±25% or PoE IEEE 802.3af; maximum 4.7W |
| Protection and Build | IP67, 4kV surge protection, metal + plastic |
| Dimensions and Weight | 162 × 67 × 67mm; 0.24kg |
Verification note: specifications follow the official Uniview datasheet for the 4mm AF40K-DL variant. A microSD card, NVR and installation accessories are not confirmed as included.
This model combines Full HD video, dual light, microphone audio, human detection, edge storage and PoE. Its 4mm lens, open integration and IP67 protection suit an expanding CCTV surveillance system.
| Model | Best For | Key Difference |
|---|---|---|
| IPC2122LB-AF40K-DL | Colour-aware night monitoring | 30m IR + 30m warm light, mic, 512GB storage |
| Uniview IPC2122LB-SF40-A | Budget fixed surveillance | 2MP, 4mm lens and 30m Smart IR |
| Uniview IPC2122LB-CL-P | Longer infrared coverage | 2MP, 4mm lens and up to 40m Smart IR |
| Uniview IPC2122LB-ADF40KM-G | High-contrast entrances | 120dB true WDR, mic and 128GB microSD |
Its dual-light design uses warm illumination to support colour detail. Results depend on light mode, ambient light, placement and settings.
The official specification lists up to 30 metres for Smart IR and up to 30 metres for warm light.
Yes. It records audio through a built-in microphone, but has no speaker or two-way audio.
Yes. A compatible microSD card up to 512GB provides edge storage. An NVR remains useful for central management and multi-camera viewing.
Yes. It supports IEEE 802.3af PoE and 12V DC. Use compatible equipment and proper cable protection.
No. The official datasheet lists a wired RJ45 Ethernet connection and no Wi-Fi interface.
It supports ONVIF Profiles S, G and T, but functions vary by recorder and firmware. Confirm the exact NVR before purchase.
Touch IT supplies CCTV products in Bangladesh with product guidance and after-sales support. Explore the Uniview product range for compatible cameras and components. Confirm availability, warranty and package contents when ordering.
Upgrade a home, shop or office with Full HD video, dual-light imaging, audio and flexible storage. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030 for stock and installation assistance.
