In Stock
| Camera System | ||
| Product Type | 1/3" CMOS | |
| Image Sensor | 1/3" CMOS | |
| Maximum Resolution | 4MP, 2560 × 1440 @ 30fps | |
| Electronic Shutter Speed | 1s to 1/100,000s | |
| Minimum Illumination | Color: 0.002 Lux @ F1.6, AGC On; B/W: 0 Lux with IR | |
| Day / Night Mode | IR-Cut Filter with Auto Switch, ICR | |
| WDR | TWDR | |
| Noise Reduction | 3D DNR | |
| Lens & Illumination | ||
| Lens Type | Fixed Focal Lens | |
| Focal Length & Field of View | 2.8mm; H 100.3°, V 54.5°, D 116.1° | |
| Lens Mount | M12 | |
| Aperture | F1.6 | |
| DORI Distance | Detect: 56.00 m; Observe: 22.22 m; Recognize: 11.20 m; Identify: 5.60 m | |
| Illumination Type | Dual Light, IR + White Light | |
| IR Distance | Up to 30 m | |
| White / Warm Light Distance | 15 m | |
| Smart Light / Smart IR | Smart IR Supported | |
| Video & Image | ||
| Video Compression | S+265, H.265, H.264B, H.264M, H.264H | |
| Smart Codec | S+265 | |
| Main Stream | PAL: 25fps at 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720; NTSC: 30fps at 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720 | |
| Sub Stream | PAL: 25fps at 704 × 576, 704 × 288, 640 × 360, 352 × 288; NTSC: 30fps at 704 × 480, 704 × 240, 640 × 360, 352 × 240 | |
| Frame Rate | PAL: Up to 25fps; NTSC: Up to 30fps | |
| Video Bit Rate | 32Kbps to 6Mbps | |
| Supported Resolution | 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720, 704 × 576, 704 × 480, 704 × 288, 704 × 240, 640 × 360, 352 × 288, 352 × 240 | |
| OSD | 1 Region, 1 Line, Max 48 Characters or 16 Chinese Characters | |
| Privacy Masking | 4 Black Static Areas | |
| Image Enhancement | BLC, HLC, AGC, 3D DNR, Defog | |
| White Balance | Auto, Semi-Auto, Manual, Sunshine, Nature Light, Warm Light Lamp, Daylight Lamp, Filament Lamp, Lock White Balance | |
| Smart Features | ||
| Motion Detection | Smart Alarm with Human and Vehicle Detection | |
| Human / Vehicle Detection | Supported | |
| Smart Alarm | Human and Vehicle Detection | |
| Event Linkage | Trigger Recording, Trigger Capture, Notify Surveillance Center | |
| Audio & Interface | ||
| Built-in Microphone | 1 × Built-in Mic | |
| Audio Compression | G.711A, G.711U, ADPCM_D | |
| Audio Input / Output | Built-in Microphone | |
| Reset Button | Built-in Reset Button | |
| Network & Storage | ||
| Network Interface | 1 × RJ45 10/100 Base-T | |
| Network Protocols | RTSP, HTTP, TCP, UDP, UPnP, ICMP, SNMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, Unicast, ARP, FTP | |
| ONVIF Support | ONVIF Profile S / T / G | |
| API / SDK Support | SDK, CGI, Milestone | |
| User Access | Remote Connection: ≤2 | |
| Edge Storage | microSD / microSDHC / microSDXC Card, Up to 512GB | |
| Security Features | ANR Supported | |
| Software & Access | ||
| Web Browser Support | IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+ | |
| Management | Easy7 VMS | |
| Mobile App Support | EasyLive Plus | |
| Language Support | 20 Languages | |
| Power & Physical Specification | ||
| Certifications | DC 12V ±25% or PoE IEEE 802.3af | |
| Power Consumption | DC: Max. 6W; PoE: Max. 6.5W | |
| PoE Support | Supported | |
| Operating Temperature | -30°C to 60°C | |
| Operating Humidity | ≤95% RH | |
| Ingress Protection | IP67 | |
| Vandal Protection | IK08 | |
| Surge Protection | Surge 4000V; ESD 6000V | |
| Dimensions | 120 × 120 × 90 mm | |
| Net Weight | 0.5 kg | |
| Warranty | ||
| Manufacturer Warranty | 1 Year | |

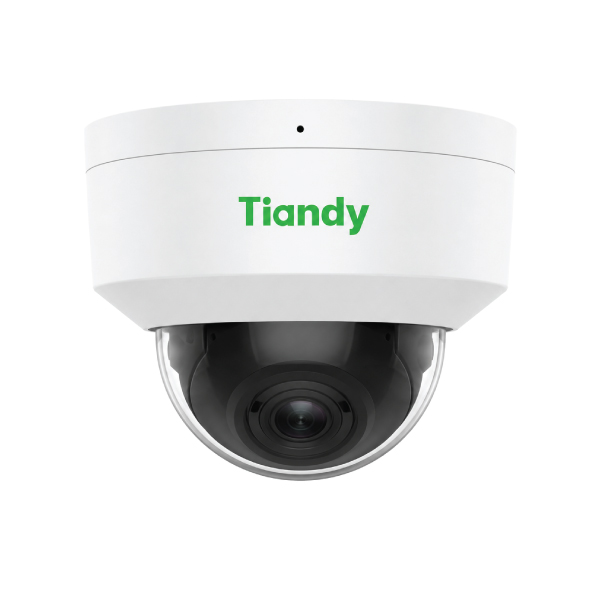

The Tiandy TC-C34KS 2ATA-28 is a robust 4MP dome network camera for homes, shops, offices and outdoor security. It combines detailed video, dual illumination, audio, edge storage and human or vehicle detection.
For buyers comparing the Tiandy TC-C34KS 2ATA-28 price in Bangladesh, the Touch IT price is ৳6,600. This 4MP IP camera delivers 2560 × 1440 video at up to 30fps with a 2.8mm F1.6 lens, 30m Smart IR, 15m white light, microphone, 512GB microSD support, PoE and IP67/IK08 protection. Confirm stock before ordering.
This dome IP camera adds 4MP detail and flexible night illumination to accessible locations. Its wide view, audio and edge storage help document important events.
The 1/3-inch CMOS sensor records up to 2560 × 1440. Its main stream reaches 25fps in PAL or 30fps in NTSC at 4MP, supporting smooth live video and playback.
The fixed lens provides a 100.3° horizontal, 54.5° vertical and 116.1° diagonal view. Published DORI distances are 56m detection, 22.22m observation, 11.2m recognition and 5.6m identification. Explore the Tiandy IP camera collection for other coverage options.
Eight 850nm infrared LEDs support discreet night monitoring up to 30 metres. Eight white LEDs illuminate up to 15 metres when visible light is preferred. Smart IR manages close-range brightness, helping reduce washed-out faces and objects.
Smart Alarm classifies human and vehicle targets, helping reduce unwanted alerts from rain, foliage or lighting changes. Event linkage supports recording, snapshots and control-centre notification.
The microphone records sound using G.711A, G.711U or ADPCM_D. A compatible microSD card up to 512GB enables local recording and can support ANR workflows.
S+265, H.265 and H.264 balance image quality, traffic and storage. True WDR, BLC, HLC, 3D noise reduction and defog improve difficult scenes. Eight ROI areas and four privacy masks add control within a CCTV surveillance system.
IEEE 802.3af PoE carries power and data over one cable, with 12V DC available. ONVIF Profiles S/T/G aid integration. IP67 sealing, IK08 impact resistance and -30°C to 60°C operation support demanding sites.
| Brand and Model | Tiandy TC-C34KS 2ATA-28 |
|---|---|
| Camera Type | 4MP dual-light audio dome network camera |
| Image Sensor | 1/3-inch CMOS |
| Maximum Resolution | 2560 × 1440 at up to 30fps |
| Lens and View | 2.8mm F1.6; H 100.3°, V 54.5°, D 116.1° |
| Minimum Illumination | Colour 0.002 lux; black and white 0 lux with IR |
| Illumination | Eight IR LEDs up to 30m; eight white LEDs up to 15m |
| Video Compression | S+265, H.265, H.264B, H.264M and H.264H |
| Smart Functions | Human/vehicle detection, event recording, capture and notification |
| Audio and Storage | Built-in microphone; microSD card support up to 512GB |
| Network | RJ45 10/100 Base-T; P2P and ONVIF Profiles S/T/G |
| Software | Easy7 VMS and EasyLive Plus |
| Power | 12V DC, maximum 6W; IEEE 802.3af PoE, maximum 6.5W |
| Protection | IP67, IK08, 4kV surge and 6kV ESD |
| Dimensions and Weight | 120 × 120 × 90mm; 0.5kg gross |
This content covers the TC-C34KS 2ATA-28 with a fixed 2.8mm lens. Tiandy does not list Wi-Fi, a built-in speaker or alarm I/O, so recorded audio is one-way. P2P and ONVIF Profile G are mutually exclusive. Confirm the camera revision, card compatibility, NVR firmware and mounting accessories.
Choose this model for wide 4MP coverage, dual-light monitoring, audio, local storage and smarter alerts. Its sealed, impact-resistant dome suits locations exposed to weather or accidental contact.
| Model | Resolution | Key Difference | Recommended Use |
|---|---|---|---|
| TC-C34KS 2ATA-28 | 4MP | Dual light, microphone, 512GB storage and IK08 dome | Detailed, resilient wide-area monitoring |
| Tiandy TC-C32KN | 2MP | 2.8–12mm motorized lens with 30m infrared | Adjustable zoom and viewing angle |
| Tiandy TC-C34XN | 4MP | Open-face turret housing with fixed wide lens | Ceilings and sheltered entrances |
| Tiandy TC-C34QN | 4MP | Directional bullet design for visible deterrence | Walls, perimeters and approach routes |
It records up to 2560 × 1440 at 30fps in NTSC mode or 25fps in PAL.
Infrared illumination reaches up to 30 metres, while visible white light reaches up to 15 metres.
Yes. Smart Alarm supports human and vehicle target classification for more relevant event alerts.
Yes. A built-in microphone records audio, but Tiandy does not specify a speaker for two-way talk.
Yes. A compatible microSD, microSDHC or microSDXC card up to 512GB can provide edge storage.
Yes. It supports IEEE 802.3af PoE and can alternatively use a compatible 12V DC supply.
ONVIF Profiles S/T/G aid interoperability, but the recorder model, features and firmware should be verified first.
Touch IT supplies genuine Tiandy products and security equipment in Bangladesh. The team can help verify lens coverage, NVR compatibility, PoE capacity, microSD storage, cabling and suitable installation accessories.
Upgrade security with detailed 4MP video, dual-light night monitoring, audio, edge storage and intelligent alerts. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
