In Stock
| Camera System | ||
| Image Sensor | 1/3" 4.0 Megapixel Progressive Scan CMOS Sensor | |
| Maximum Resolution | 4MP (2688 × 1520) | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | Auto / Manual, 1 ~ 1/100000s | |
| Day / Night Mode | IR-cut Filter with Auto Switch (ICR) | |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR On |
|
| Signal-to-Noise Ratio (S/N) | 56 dB | |
| Wide Dynamic Range (WDR) | True WDR 120 dB | |
| Digital Noise Reduction (2D/3D DNR) | Supported (2D / 3D DNR) | |
| Digital Defog | Supported | |
| Pan / Tilt / Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|
| Infrared & Illumination | ||
| IR Type | Smart IR LED | |
| IR Distance | Up to 30 m (98 ft) | |
| IR Control (Auto / Manual) | Auto / Manual | |
| IR Wavelength | 850 nm | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Fixed Lens | |
| Focal Length & Field of View (FOV) | 4.0 mm @ F2.0 • Horizontal: 82.0° • Vertical: 41.6° • Diagonal: 100.9° |
|
| Lens Mount | Fixed (Board Lens) | |
| Iris Type | Fixed Iris | |
| Aperture (F-number) | F2.0 | |
| DORI Distance | Detect 90 m / Observe 36 m / Recognize 18 m / Identify 9 m | |
| Video & Image Processing | ||
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG | |
| Smart Codec | Ultra 265 | |
| Main Stream / Sub Stream | Main Stream, Sub Stream, Third Stream Supported | |
| Frame Rate | Up to 30 fps (all supported resolutions) | |
| Supported Resolution | 4MP (2592×1520, 2560×1440), 3MP (2304×1296), 1080P (1920×1080), 4CIF, CIF |
|
| Bit Rate Control (CBR / VBR) | CBR / VBR Supported | |
| Region of Interest (ROI) | Up to 2 Areas | |
| On-Screen Display (OSD) | Up to 4 OSDs | |
| Image Enhancement (BLC / HLC) | BLC Supported / HLC Supported | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | |
| Gain Control | Auto | |
| Privacy Masking | Up to 4 Areas | |
| Image Rotation / Flip | Normal / Vertical / Horizontal / 180° | |
| Smart & AI Features | ||
| Motion Detection | Supported (Up to 4 Detection Areas) | |
| Basic Event Detection | Motion Detection | |
| Audio & I/O | ||
| Audio Interface | Integrated Audio | |
| Built-in Microphone | Supported | |
| Audio Compression | G.711 | |
| Audio Sampling Rate | 8 kHz | |
| Alarm Events | Motion Detection | |
| Network & Storage | ||
| Network Interface (RJ45) | 1 × RJ45 10M / 100M Base-TX Ethernet | |
| Network Protocols | IPv4, TCP, UDP, DHCP, RTP, RTSP, HTTP, HTTPS, FTP, SMTP, DNS, DDNS, NTP, UPnP, SSL, IGMP, ICMP, ARP | |
| ONVIF / Interoperability | ONVIF Profile S / G / T | |
| SDK & API Support | Supported | |
| Maximum User Access | Multiple Users (System Dependent) | |
| Edge Storage (microSD) | Micro SD Card up to 256 GB | |
| Network Storage (NAS / NVR) | ANR Supported | |
| Software & Access | ||
| Web Browser Support | E9+, Chrome, Firefox, Edge, Safari (Plugin & Plugin-free Supported) | |
| Management Software | EZStation | |
| Mobile App Support | EZView / EZLive | |
| Security Features | Password Protection, HTTPS Encryption | |
| Power & Physical Specifications | ||
| Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) | |
| Power Consumption | Maximum 6.4 W | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) | |
| Operating Humidity | ≤95% RH (Non-condensing) | |
| Storage Temperature | -30°C ~ 60°C | |
| Ingress Protection (IP Rating) | IP67 | |
| Material | Metal Body, Metal Bracket, Metal Front Cover, Plastic Sun Shield | |
| Dimensions (L × W × H) | 165 × 63.1 × 62.5 mm | |
| Net Weight | 0.45 kg (0.99 lb) | |
| Installation Type | Wall / Ceiling Mount | |
| Compliance & Warranty | ||
| Certifications | CE (EN 60950-1), UL (UL60950-1), FCC Part 15 | |
| Manufacturer Warranty | 1 Year Warranty | |

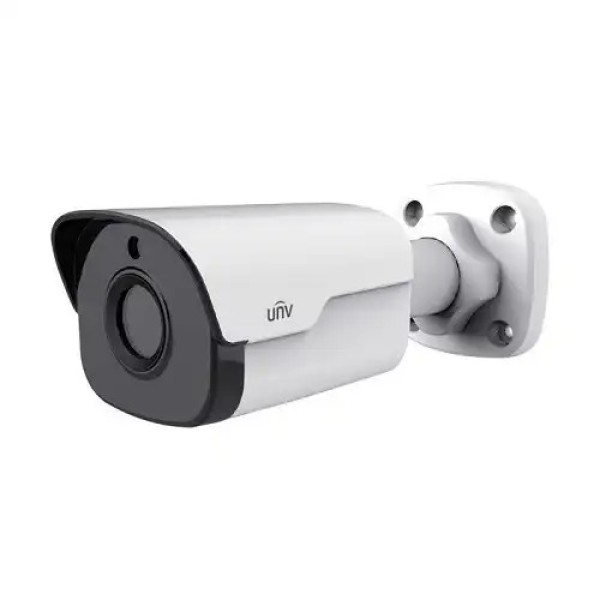

The Uniview IPC2124SR3-ADPF40M-F IP Camera is a compact yet powerful surveillance solution built for reliable indoor and outdoor security. Designed with a high-performance 4MP CMOS sensor, Smart IR night vision, and IP67-rated protection, this camera ensures clear monitoring around the clock. It is an excellent choice for homes, offices, shops, warehouses, and commercial premises looking for dependable IP security from Touch IT.
This Uniview IPC2124SR3-ADPF40M-F IP Camera delivers sharp and detailed video at a maximum resolution of 2688 × 1520 with up to 25 frames per second. The progressive scan CMOS sensor captures smooth, accurate footage, while Smart IR technology provides up to 30 meters of infrared night vision. Even in total darkness, the camera maintains visibility with 0 Lux illumination when IR is enabled, ensuring 24/7 protection.
Equipped with a fixed 4.0mm F2.0 lens, this Uniview IPC2124SR3-ADPF40M-F IP Camera offers a balanced field of view of 82.0° × 41.6° × 100.9°, making it ideal for monitoring entrances, corridors, parking areas, and perimeter zones. Flexible adjustment angles for pan, tilt, and rotation allow precise positioning for optimal surveillance coverage.
The Uniview IPC2124SR3-ADPF40M-F IP Camera supports modern video compression formats including Ultra 265, H.265, and H.264, reducing bandwidth usage and storage requirements without sacrificing image quality. A built-in microphone adds audio monitoring capability, enhancing overall situational awareness and security.
Built for demanding environments, the Uniview IPC2124SR3-ADPF40M-F IP Camera features IP67-rated water and dust resistance and operates reliably in temperatures ranging from -30°C to 60°C. It supports both DC 12V power and PoE (IEEE 802.3af), simplifying installation and minimizing cabling. With a compact body, low power consumption (maximum 6.4W), and robust construction, this camera is designed for long-term, stable operation.
Choosing Touch IT means choosing authenticity, expertise, and dependable service. When you buy the Uniview IPC2124SR3-ADPF40M-F IP Camera from Touch IT, you receive a 100% genuine Uniview product backed by a 1-year official warranty. Touch IT offers competitive pricing in Bangladesh, expert technical support, fast delivery, and reliable after-sales service—making it your trusted partner for professional security solutions.
The latest price of Uniview IPC2124SR3-ADPF40M-F IP Camera in Bangladesh is 7,500৳. You can buy the Uniview IPC2124SR3-ADPF40M-F IP Camera at best price from our website or visit any of our showrooms.
