Call for Price
| Main Features | ||
| Display | LED Digital Tube Display | |
| Display Information | People Count, Alarm Count, POST Result, Fault Indication/Error Code, Zone Alarm Position | |
| Physical Keypad | Button Control Supported | |
| Detection Zone | 6 Zones | |
| Sensitivity Level | 255 Adjustable Levels | |
| Smallest Metal Objects Detected | Coin-Sized Metal Object, Approx. 25mm Diameter | |
| Detection Sound Alert | Metal Alarm Supported | |
| Detection Visual Indicator | LED Positioning Light with Zone Display | |
| Self-diagnosis Program | Supported, Internal Fault Diagnostics with Error Code Display | |
| Detection Mode | Multi-Zone Metal Detection | |
| Number of IR Groups | Bilateral IR Sensor | |
| Detected Contrabands | Metal Objects / Illegal Metal Items | |
| Enclosure Material | PVC Exterior, Fireproof, Anti-Corrosive, Moisture-Proof, Collision-Resistant | |
| Number of Optional Frequency Band | Multiple Frequency Settings Supported | |
| Alarm Output | Metal Alarm Output / Zone Alarm Indicator | |
| Physical Specification | ||
| Power Supply | 100 VAC to 240 VAC, 50/60Hz | |
| Input Voltage | 100 VAC to 240 VAC | |
| Operating Power | <30W | |
| Operating Frequency | 50/60Hz | |
| Operating Temperature | -20°C to 70°C | |
| Storage Temperature | -37°C to 70°C | |
| Operating Humidity | 10% to 95% RH, Non-Condensing | |
| Ingress Protection Rating | IP41 | |
| Application Environment | Indoor and Outdoor Environment | |
| Dimensions (L*W*H) | 2150(H) × 850(W) × 400(D) mm | |
| Lane Size (L*W*H) | 2000(H) × 700(W) mm | |
| Dimensions of Product with Packaging (L*W*H) | Panel: 2310(H) × 550(W) × 265(D) mm; Case: 830(H) × 325(W) × 400(D) mm | |
| Net Weight | <45 kg | |
| Configuration Method | Button Control, Automatic and Manual Calibration | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

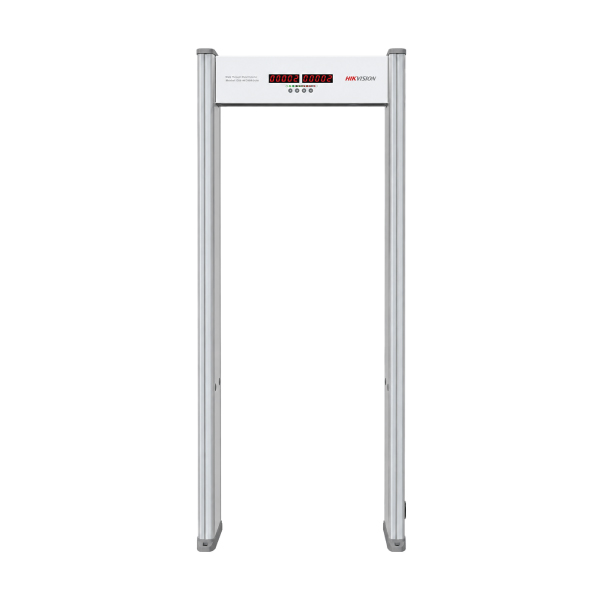

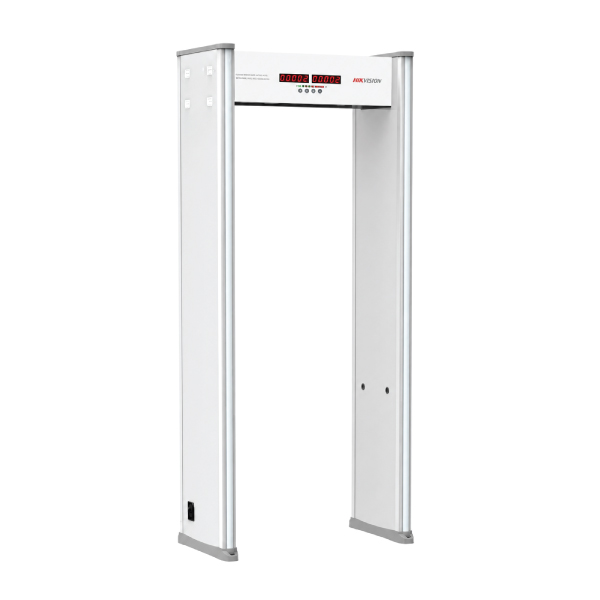

The Hikvision ISD-SMG106 6-Zone Walk-Through Metal Detector is an archway security screening system for identifying metal objects carried by people entering a controlled area. Designed for practical checkpoint operation, it combines six-zone positioning, adjustable sensitivity, passage counting and visible zone indication in a modular gate suitable for commercial, institutional and public-security environments.
For buyers searching for the Hikvision ISD-SMG106 price in Bangladesh, the current price at Touch IT is Call for price. The final quotation may depend on stock, delivery location, installation scope and project quantity. Contact Touch IT before ordering to confirm the supplied ISD-SMG106 variant, availability and service requirements.
The ISD-SMG106 supports pedestrian screening where staff need more location information than a single-zone detector provides. When metal is detected, door-post lights indicate the relevant area for a focused secondary check. For wider checkpoint planning, explore Touch IT's Security Inspection Solutions.
Six zones divide the screening area vertically and show where a detected object is located. The system can identify metal in different zones during one passage and illuminate the corresponding positions.
The detector provides 255 sensitivity levels for tuning to the site and screening policy. At maximum sensitivity, Hikvision specifies detection of a coin-sized metal object measuring approximately 25mm in diameter. Calibration and site testing remain important because nearby metal or electrical equipment can affect performance.
Bilateral infrared sensors count passages and alarm events, helping supervisors review checkpoint activity. The ISD-SMG106 detects metal; it does not authenticate a person by face, fingerprint or card.
An LED digital tube display presents operational information, while door-post lights indicate the affected zone. Button controls support adjustment, and a power-on self-test checks the system at startup. Browse the Metal Detector category for related screening equipment.
Modular construction supports transport and maintenance. Consumption is below 30W, and the 100–240VAC input suits common project environments with appropriate electrical protection. Explore compatible equipment on the Hikvision Access Control brand page.
| Brand | Hikvision |
|---|---|
| Model | ISD-SMG106-BA |
| Product Type | Walk-through metal detector |
| Detection Zones | 6 zones |
| Sensitivity Levels | 255 adjustable levels |
| Detection Reference | Approximately 25mm-diameter coin-sized metal at highest sensitivity |
| Display | LED digital tube display |
| Counting | Bilateral IR passage counting and alarm statistics |
| Power Supply | 100–240VAC, 50/60Hz |
| Power Consumption | Less than 30W |
| Operating Environment | -20°C to 70°C; 10%–95% RH, non-condensing |
| Protection Rating | IP41 (IEC 529) |
| Overall Dimensions | 2150 × 850 × 400mm (H × W × D) |
| Passageway Dimensions | 2000 × 700mm (H × W) |
| Weight | Less than 45kg |
Verification note: These specifications follow Hikvision's Bangladesh-only ISD-SMG106-BA datasheet. An older global ISD-SMG106 document lists different dimensions, weight and temperature limits; the ISD-SMG106C is a separate model. Confirm the supplied suffix before purchase. Accessories, calibration, warranty and weather protection are package-dependent; IP41 does not mean waterproof.
This model is a practical step up from a single-zone archway when operators need better alarm localization. Six-zone indication, adjustable sensitivity, counting, startup self-test and low power use support daily checkpoint work. It can form part of broader Security System Solutions with CCTV, access control or baggage inspection equipment.
| Model | Detection Zones | Best For |
|---|---|---|
| Hikvision ISD-SMG106 | 6 | General checkpoints needing multi-zone positioning |
| Hikvision ISD-SMG1118L | 18 | More detailed Hikvision zone localization |
| ZKTeco ZK-D1010L | 1 | Basic single-zone screening |
| ZKTeco ZK-D2180 | 18 | Multi-zone screening with finer location detail |
Comparison note: Also confirm passage size, site conditions, sensitivity, power protection and project support before selection.
It has six detection zones. LED positioning lights indicate the zone associated with a detected metal object.
Hikvision specifies an approximately 25mm-diameter coin-sized object at maximum sensitivity. Results depend on calibration, object properties and the environment.
Yes. The Bangladesh variant supports 255 sensitivity levels for tuning according to site requirements and screening policy.
Yes. Bilateral infrared sensors support passage counting and alarm statistics.
No. It screens people for metal objects but does not verify identity. A separate biometric terminal, card reader or access controller is required for authentication.
Yes. The official product description states that metal in different zones can be detected during the same screening event.
No waterproof claim is made. The Bangladesh datasheet lists IP41, so site planning should prevent exposure to rain, water and unsuitable environmental conditions.
Touch IT supplies professional security inspection and access-management products in Bangladesh with pre-sales consultation, project planning, installation coordination and after-sales technical support. The team can help verify the exact model suffix, site layout, power requirements and related checkpoint equipment before deployment.
Build a more organized entrance-screening point with six-zone metal detection, adjustable sensitivity and passage statistics. Order the Hikvision ISD-SMG106 6-Zone Walk-Through Metal Detector from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030 for stock, quotation and installation guidance.
