In Stock
| Technical Specifications | ||
| Technology Type | 4-Door Network Access Controller | |
| Access Method (Card, Fingerprint, Face Recognition, PIN) | Card Access via RS-485 / Wiegand Card Readers; Multi-Factor Authentication Supported | |
| Communication Interface | 10/100 Mbps Self-Adaptive Wired Network, 2 × RS-485, 4 × Wiegand Inputs, Web Browser Configuration | |
| Operating Voltage | 100 VAC to 240 VAC | |
| Power Consumption | ≤102W | |
| Backup Battery (Yes/No) | Yes, Battery Charge and Discharge Supported | |
| Operating Temperature | -10°C to 55°C | |
| Operating Humidity | 0% to 90% RH, Non-Condensing | |
| Installation & Integration | ||
| Mounting Type | Wall Mounting | |
| Installation Requirements | Supports 4 Doors, 4 Lock Controls, 4 Exit Buttons, 4 Door Contact Inputs, 8 Alarm Inputs, 4 Alarm Outputs | |
| Integration Support (e.g., Fire Alarm, CCTV) | Fire Interface Supported, Alarm Input/Output, Door Contact Input, Tamper Input | |
| Compatible Software | Web Browser Configuration | |
| Third-Party Integration | RS-485 Card Readers with OSDP Protocol, Wiegand 26/34 Input, Custom Wiegand Settings Supported | |
| Warranty Information | ||
| Warranty | 1 Year | |

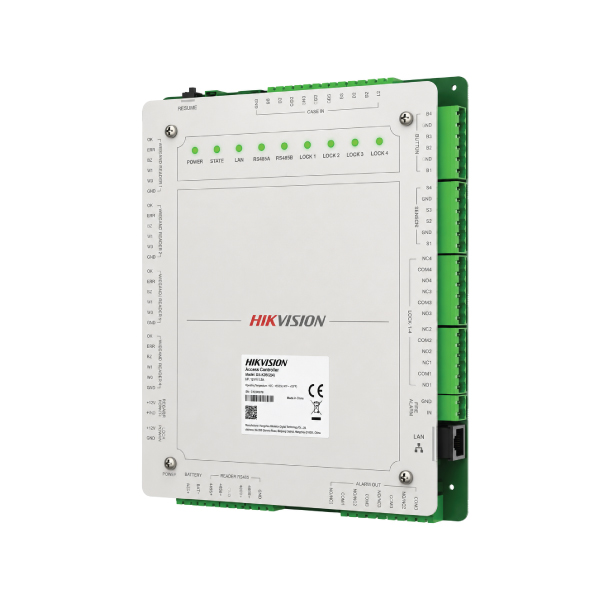

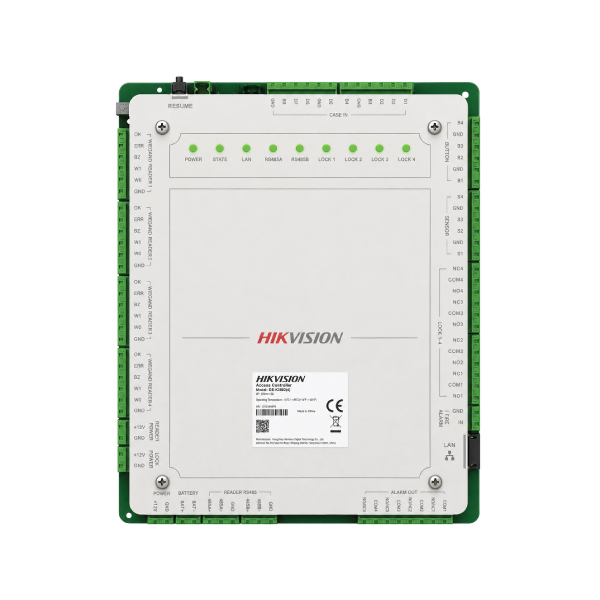

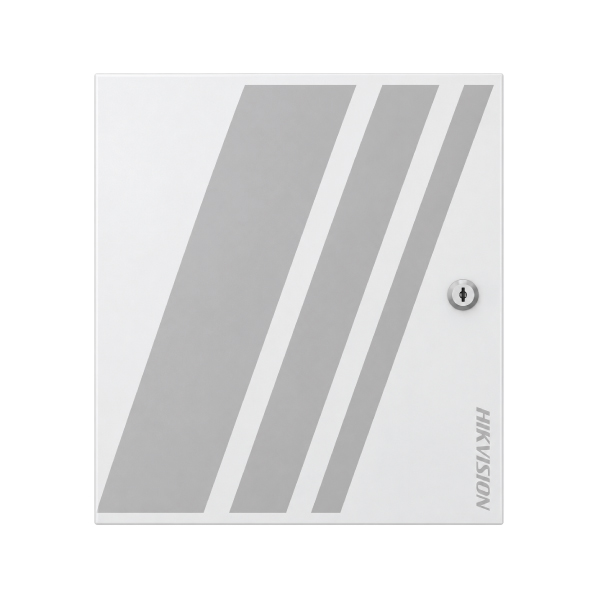

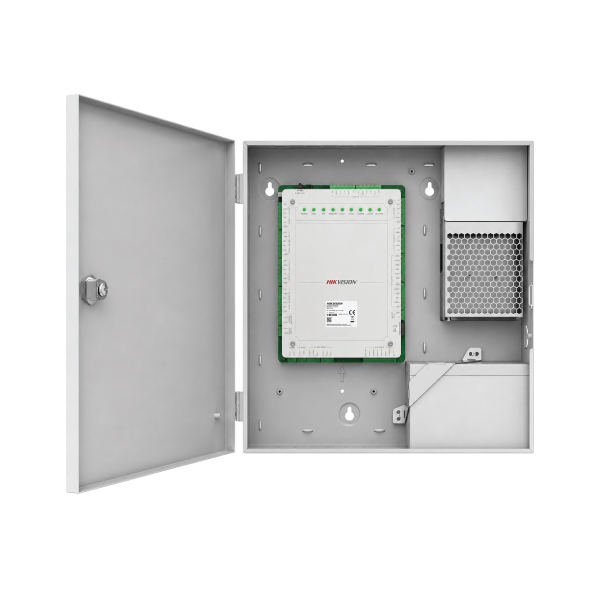

The Hikvision DS-K2624X Pro Series 4-Door Network Access Controller is a centralized security panel for offices, factories, hospitals, educational institutions, warehouses and commercial buildings. It connects compatible readers, electric locks, exit buttons, door contacts and alarm devices, allowing four doors to operate through one managed controller.
For organizations comparing the Hikvision DS-K2624X price in Bangladesh, the current price at Touch IT is ৳46,000. It supports Ethernet, browser configuration, OSDP and Wiegand readers, encrypted communication, anti-passback and multi-door interlocking. Confirm reader compatibility, backup power, locking hardware, software and installation requirements before ordering.
The DS-K2624X acts as the hub of a four-door access control system. Connected readers collect credentials, while the controller processes access rules and operates the relevant lock. Dedicated exit-button and door-contact inputs allow every doorway to be monitored and released within an integrated installation.
This is not a standalone fingerprint or card reader. Authentication methods depend on the connected compatible readers or terminals, making the controller suitable for centralized permissions and consistent administration across several entrances.
One controller provides four lock outputs, four exit-button inputs and four door-contact inputs. This reduces separate hardware and creates an organized foundation for a multi-door Access Control System covering reception entrances, restricted departments or staff-only zones.
The controller supports up to eight RS-485 readers using OSDP or four readers through Wiegand inputs. Standard Wiegand 26/34 and custom settings provide integration flexibility. Browse compatible devices in the Hikvision Access Control collection.
IPv4, IPv6 and DHCP support helps the controller fit modern networks. Hikvision specifies AES256, RSA2048 and TLS 1.2 encryption, while 10/100Mbps Ethernet provides network connectivity. Authorized installers can configure the panel through a web browser without a separate configuration application.
Anti-passback helps discourage improper credential reuse, while multi-door interlocking supports controlled movement through sensitive areas. These functions suit data rooms, laboratories and other restricted environments. Explore wider protection options under Security System Solutions.
Eight alarm inputs, four alarm outputs, a tamper input and a fire interface support coordinated security projects. Status indicators assist with equipment checks. Connected locks and alarms should be configured by a qualified professional.
| Brand | Hikvision |
|---|---|
| Model | DS-K2624X |
| Product Type | Pro Series four-door network access controller |
| Linked Door Capacity | 4 doors |
| Wired Network | 10/100Mbps self-adaptive Ethernet |
| Network Support | IPv4, IPv6 and DHCP |
| Lock, Exit and Door Inputs | 4 lock controls, 4 exit-button inputs and 4 door-contact inputs |
| Alarm Interfaces | 8 alarm inputs and 4 alarm outputs |
| Reader Interfaces | RS-485 and 4 Wiegand inputs |
| Linked Reader Capacity | 8 RS-485 OSDP readers or 4 Wiegand readers |
| Additional Interfaces | 1 tamper input and 1 fire interface |
| Security Protocols | AES256, RSA2048 and TLS 1.2 |
| Power Supply | 100–240V AC |
| Power Consumption | Maximum 102W |
| Working Environment | -10°C to 55°C; 0%–90% RH, non-condensing |
Verification note: Hikvision lists the DS-K2624X with 100–240V AC input, while the separate DS-K2624X(P) uses 12V DC. Confirm the supplied variant. Authentication depends on the connected reader. Readers, locks, sensors, backup battery and software are not claimed as included.
This controller suits installations needing coordinated four-door security. OSDP and Wiegand compatibility, browser management, encrypted networking, alarm connectivity and professional door logic provide a flexible platform for new projects or structured upgrades.
| Model | Door Capacity | Linked Reader Support | Best For |
|---|---|---|---|
| Hikvision DS-K2621X | 1 door | 2 RS-485 or 2 Wiegand readers | Single controlled entrance |
| Hikvision DS-K2622X | 2 doors | 4 RS-485 or 4 Wiegand readers | Small two-door projects |
| Hikvision DS-K2624X | 4 doors | 8 RS-485 or 4 Wiegand readers | Professional multi-door installations |
It supports centralized control of four doors, with four lock outputs, four exit-button inputs and four door-contact inputs.
No. It is a network access controller. Authentication is provided by separately connected compatible readers or access terminals.
Hikvision lists support for eight RS-485 readers using OSDP or four readers through Wiegand inputs.
Yes. Web-browser configuration is supported, allowing authorized installers to configure the controller without a separate configuration application.
Yes. Anti-passback and multi-door interlocking are among the professional access-control functions listed by Hikvision.
It provides alarm inputs and outputs plus a fire interface. Final integration and emergency-door behaviour must follow the approved site design and local safety requirements.
Hikvision lists backup-battery charging and discharging support. Confirm the required battery and whether it is supplied separately.
Touch IT supplies professional access control equipment in Bangladesh with consultation, installation planning, configuration assistance and after-sales support. The team can verify reader, lock, backup-power and management requirements before deployment.
Build a centralized four-door security system with encrypted networking, flexible reader integration and professional access logic. Order the Hikvision DS-K2624X Pro Series 4-Door Network Access Controller from Touch IT, visit the showroom at 312 (3rd Floor), Multiplan Center, 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Hikvision DS-K2624X Pro Series Access Controller in Bangladesh is 46,000৳. You can buy the Hikvision DS-K2624X Pro Series Access Controller at best price from our website or visit any of our showrooms.
