In Stock
| Main Features | ||
| Rising/Falling Speed | 3.4m-6m telescopic pole : Rising Speed: 6 S Falling Speed: 6 S |
|
| Boom Pole Direction | Left/Right | |
| Motor Type | DC brushless motor | |
| Matched Boom Pole Type | Octagonal boom pole | |
| Boom Pole Falling Delay | 1 to 99 s | |
| Number of Cycles | 2,500,000 | |
| RS-485 | Optional | |
| Rising to Limit | 1 group | |
| Falling to Limit | 1 group | |
| Open | 1 group | |
| Close | 1 group | |
| Stop | 1 group | |
| IR/Vehicle Detector/Radar | 1 group | |
| Traffic Signal Light | 1 group | |
| Housing | ||
| Barrier Housing Material | Cold-rolled sheet | |
| Barrier Housing Thickness | 1.2 mm | |
| Barrier Housing Door Thickness | 1.0 mm | |
| Barrier Housing Color | Black background with silver pattern | |
| Barrier Housing Door Color | Black background with silver pattern | |
| Boom Pole Installation Height | 880 mm | |
| Body Indicators | None | |
| Physical Specification | ||
| Consumption | 100 W | |
| Temperature and Humidity | Humidity: ≤ 90%,Temperature: -30 °C to 80 °C (-22 °F to 176 °F) | |
| Rising Boom Pole for Power Off | Optional | |
| Boom Pole Color | White background with red bar | |
| Boom Pole Weight | 4.5 m telescopic boom pole: 4.8 ± 0.2 kg 6 m telescopic boom pole: 6.5 ± 0.2 kg |
|
| Boom Pole Dimensions (with Package) | 4.5 m telescopic boom pole: 115 × 47 × 2530 mm (H×W×L) 6 m telescopic boom pole: 115 × 47 × 3435 mm (H×W×L) |
|
| Boom Pole Weight (with Package) | 4.5 m telescopic boom pole: 5.4 ± 0.2 kg 6 m telescopic boom pole: 7.1 ± 0.2 kg |
|
| Boom Pole Dimensions | X × 44 × 110 mm (H×W×L) | |
| Boom Pole Material | 6063 | |
| Protection | IP54 | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

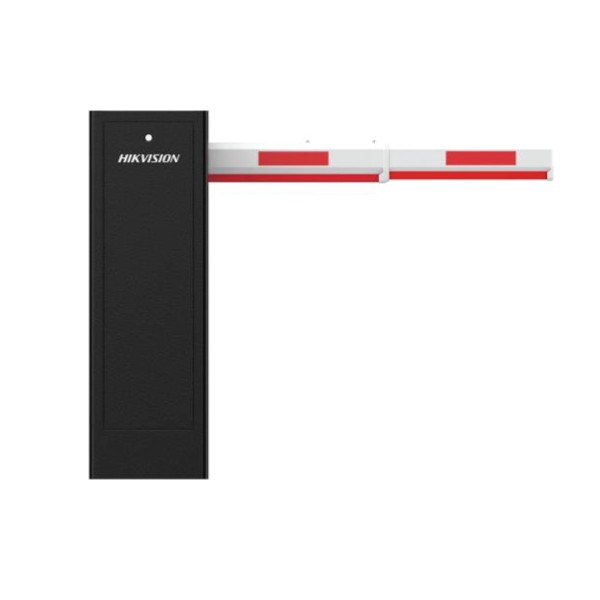

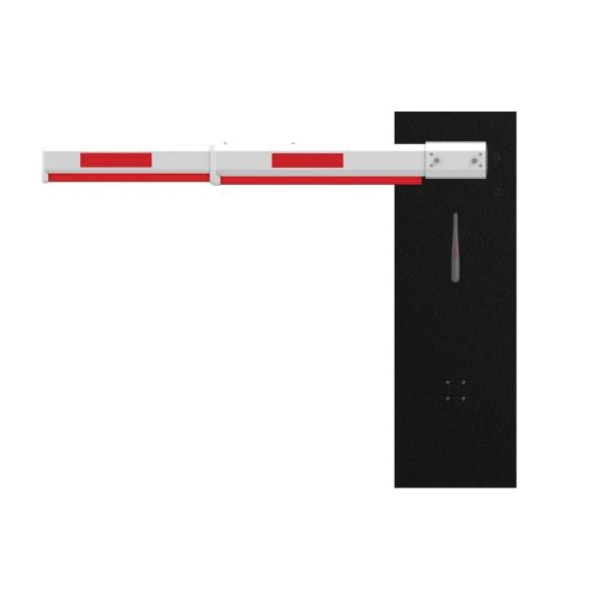

The Hikvision DS-TMG300-DL (3.4-6 m) Straight Pole Barrier Gate is a high-performance parking barrier solution designed for busy entrances, commercial car parks, and residential facilities. Built for reliability, precision, and durability, this barrier gate features a telescopic boom span of 3.4-6 meters, making it ideal for wide-vehicular lanes. Its compact housing utilizes a brushless DC motor for low-noise operation and intelligent control — the unit supports multiple anti-fall protection modes, including IR sensors, vehicle detectors, and radar, and includes adjustable boom-pole closing delay from 1 to 99 seconds.
The Hikvision DS-TMG300-DL (3.4-6 m) Straight Pole Barrier Gate offers exceptional performance, durability, and safety for modern vehicle access control systems. It features a telescopic boom span of 3.4 to 6 meters, allowing wide-lane coverage without compromising on smooth or stable operation. Powered by a brushless DC motor, it delivers low-noise, high-torque performance for precise boom pole movement and a long operational life. To ensure safety in busy parking or entry areas, the DS-TMG300-DL integrates multiple anti-fall protection modes with support for infrared sensors, vehicle detectors, and radar, effectively preventing accidental closures. The programmable boom-pole closing delay (1–99 seconds) helps optimize traffic flow and avoid premature gate closure during peak hours. Designed for heavy-duty, continuous operation, it is rated for a 100% duty cycle and exceeds 2.5 million cycles in lifespan. Built from robust cold-rolled steel housing and a durable telescopic boom, it provides excellent resilience in outdoor environments. Additionally, its flexible installation and control interface supports left or right boom direction and optional RS-485 connectivity, while its compact design (325 × 220 × 1000 mm) ensures convenient installation in diverse parking and access scenarios.
This barrier gate is perfect for a wide range of vehicular access environments — commercial parking lots in high-rise buildings, industrial site entrances with heavy and frequent traffic flows, gated communities and residential estates needing wide-span boom control, and any facility where reliable and safe vehicle entry/exit management is required.
At Touch IT, we are dedicated to providing authentic Hikvision hardware along with fully supported installation services across Bangladesh. When you choose the DS-TMG300-DL (3.4-6 m) Straight Pole Barrier Gate, you benefit from genuine Hikvision quality, including full warranty coverage and original-brand components. Our professional team offers complete integration services—covering installation, wiring, configuration, and commissioning—ensuring the barrier gate operates optimally from day one. We also provide tailored system design to match your site’s traffic volume, lane width, and access control requirements, while offering competitive pricing and nationwide delivery with reliable local support. Ready to enhance your parking access control? Touch IT will guide you through stock availability, site assessment, and professional installation, ensuring seamless integration with your existing security infrastructure. Secure your vehicle access, streamline traffic flow, and partner with Touch IT for a trusted Hikvision parking barrier solution in Bangladesh.
The latest price of Hikvision DS-TMG300-DL Parking Barrier Gate in Bangladesh is 55,000৳. You can buy the Hikvision DS-TMG300-DL Parking Barrier Gate at best price from our website or visit any of our showrooms.
