| Hardware | ||
| Display | 2.4-inch LCD Screen | |
| Resolution | 320 × 240 | |
| Operating System | Linux | |
| User & Storage Capacity | ||
| User Capacity | 5,000 Users | |
| Fingerprint Capacity | 5,000 Fingerprints | |
| Card Capacity | 5,000 Cards | |
| Transaction Capacity | 150,000 Events | |
| Authentication & Features | ||
| Verification Modes | Fingerprint, EM Card, PIN | |
| Card Type | EM Card | |
| Multi-Factor Authentication | Supported | |
| Finger Sensor Type | Optical Fingerprint Module | |
| Communication & Interface | ||
| Network | Wired Network, Wi-Fi 2.4GHz 802.11b/g/n, AP Mode, PoE | |
| Interface | 1 × RJ-45 10/100M Self-Adaptive, 1 × RS-485, 1 × Wiegand, 1 × USB | |
| Optional Network Protocols | ISAPI, ISUP 5.0, Wiegand W26/W34, Web Client Configuration | |
| Access Control | 1 × Lock Control, 1 × Exit Button, 1 × Door Contact Input, 2 × Alarm Inputs, 1 × Alarm Output, 1 × Tamper; Supports Secure Door Control Unit or Card Reader via RS-485 | |
| Software & Smart Features | ||
| Software Compatibility | Web Client, ISAPI, ISUP 5.0 | |
| Voice Prompt | Audio Output Supported | |
| Additional Features | Access Control Function, Local Time Attendance Function, AP Mode, Web Client Configuration | |
| Physical Specifications | ||
| Power Supply | 12 VDC; PoE Supported | |
| Power Consumption | ≤ 6W | |
| Installation | Wall Mounting | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Operating Humidity | 0% to 90% RH, Non-Condensing | |
| Dimensions | 172 × 76 × 27.5 mm | |
| Weight | Net: 0.377 kg; Gross: 0.562 kg | |
| Warranty | ||
| Warranty | 1 Year | |

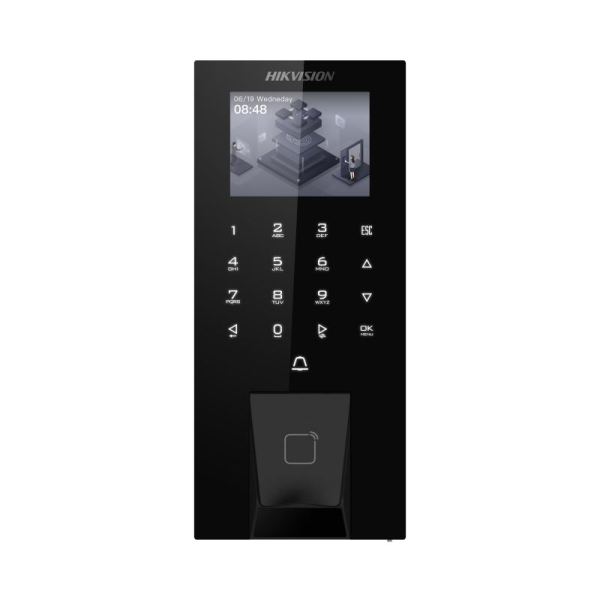

The Hikvision DS-K1T807EBFWX-E1 Fingerprint Access Control is a professional biometric access control and time attendance terminal designed for offices, factories, schools, warehouses, banks, retail stores, corporate buildings, apartments, and restricted workplace areas. It supports fingerprint verification, EM card authentication, Bluetooth, and PIN access, making it a secure and flexible solution for employee entry, attendance tracking, and door access management.
For businesses looking for a reliable Hikvision fingerprint access control terminal in Bangladesh, the DS-K1T807EBFWX-E1 offers a 2.4-inch LCD screen, 5,000 fingerprint capacity, 5,000 card capacity, 150,000 event storage, Wi-Fi AP mode, PoE support, IP65 protection, RS-485, Wiegand, USB, ISAPI, and ISUP 5.0. Touch IT currently lists this model as Call for Price. Please confirm the latest price, stock, adapter, PoE requirement, and installation support before ordering.
Hikvision DS-K1T807EBFWX-E1 is a compact but powerful fingerprint access control terminal for modern business security. It supports 5,000 fingerprints, 5,000 EM cards, 150,000 events, web client configuration, Bluetooth authentication, Wi-Fi AP mode, RS-485 connection, Wiegand interface, local access control, and time attendance management.
The DS-K1T807EBFWX-E1 supports multiple authentication methods, including fingerprint, EM card, Bluetooth, and PIN. This allows businesses to manage employee entry based on role, department, access level, or user preference. Fingerprint verification helps reduce card sharing, unauthorized access, and proxy attendance.
With 5,000 fingerprint templates, 5,000 EM cards, and 150,000 event records, this Hikvision fingerprint terminal is suitable for small, medium, and growing organizations. It helps HR, admin, and security teams maintain reliable access logs and attendance data.
The 2.4-inch LCD screen with 320 × 240 resolution provides a clear interface for daily operation. The touch-button design gives the device a modern appearance while keeping it simple for users who need quick attendance punching or secure door access.
The terminal supports wired network and 2.4GHz Wi-Fi AP mode. Configuration through the web client makes setup easier for installers and administrators, while ISAPI and ISUP 5.0 protocol support helps with professional access control integration.
The DS-K1T807EBFWX-E1 can be powered by 12VDC or PoE. The official datasheet also mentions support for powering the device and door lock, which can simplify installation in suitable project environments. For complete door security, explore Touch IT’s Access Control solutions.
With IP65 protection and an operating temperature range from -30°C to 60°C, this device is suitable for challenging indoor or semi-outdoor access points when properly installed. It is a stronger choice than basic indoor-only fingerprint attendance devices.
| Product Name | Hikvision DS-K1T807EBFWX-E1 Fingerprint Access Control |
|---|---|
| Model | DS-K1T807EBFWX-E1 |
| Operating System | Linux; 64MB ROM, 64MB RAM, 640MHz CPU |
| Display | 2.4-inch LCD, 320 × 240 |
| Authentication | Fingerprint, EM Card, Bluetooth, PIN |
| Capacity | 5,000 fingerprints, 5,000 EM cards, 150,000 events |
| Fingerprint Module | Optical Fingerprint Module; 1:1 and 1:N Comparing Mode |
| Recognition | Fingerprint Recognition < 1s; FAR ≤0.001%, FRR ≤0.01% |
| Network | RJ45 10/100M, Wi-Fi 2.4GHz 802.11b/g/n, Bluetooth |
| Interface | RS-485, Wiegand W26/W34, USB, Lock Control, Exit Button, Door Contact, Alarm I/O, Tamper |
| Protocol | ISAPI, ISUP 5.0 |
| Power Supply | 12V DC or PoE; Power Consumption ≤6W |
| Operating Condition | -30°C to 60°C; 0% to 90% RH, non-condensing |
| Protection & Size | IP65; 172 × 76 × 27.5mm; Wall Mounting |
| Warranty | 1 Year |
Verification note: The official datasheet confirms EM card support, Bluetooth, Wi-Fi AP mode, PoE, IP65, RS-485, Wiegand, alarm input/output, web client configuration, and 150,000 event capacity. Please confirm the exact supplied package, adapter, PoE setup, mounting accessories, and software requirement before purchase.
The DS-K1T807EBFWX-E1 is ideal for businesses that need a higher-capacity fingerprint access control terminal with modern connectivity and stronger installation flexibility. Compared to basic fingerprint attendance machines, it adds IP65 protection, PoE support, Bluetooth authentication, 5,000 fingerprint capacity, 150,000 event records, RS-485, Wiegand, alarm I/O, and professional web-based configuration. For genuine Hikvision Access Control products and complete Security System solutions, Touch IT provides expert consultation and installation support.
| Model | Best For | Main Difference |
|---|---|---|
| Hikvision DS-K1T807EBFWX-E1 | High-capacity fingerprint access control | 5,000 fingerprints/cards, 150,000 events, IP65, PoE, Bluetooth, RS-485 and Wiegand |
| Hikvision DS-K1T808EFWX | Fingerprint, EM card and PIN access | Pro fingerprint terminal with 3,000 fingerprints and 100,000 events |
| Hikvision DS-K1T8005EFWX-B | Compact fingerprint attendance and access | Budget-friendly Pro fingerprint model with Wi-Fi AP mode and EM card support |
| Hikvision DS-K1T321EFX | Face and fingerprint access control | Adds face recognition with compact 2.4-inch display |
Touch IT currently lists the Hikvision DS-K1T807EBFWX-E1 as Call for Price. Please contact Touch IT for the latest price, stock status, and installation cost.
The official datasheet confirms up to 5,000 fingerprint templates.
Yes, it supports up to 5,000 EM cards with a listed reading distance of 0 to 5cm.
Yes, it supports 2.4GHz Wi-Fi 802.11b/g/n AP mode along with RJ45 wired network.
Yes, it supports lock control, exit button, door contact input, RS-485, Wiegand, alarm input/output, USB, and tamper input.
Yes, the official datasheet confirms PoE support along with 12VDC power supply.
The device is IP65 rated, but final installation should consider rain exposure, mounting position, power protection, and project environment.
