In Stock
| Hardware | ||
| Display | 2.4-inch LCD Screen | |
| Resolution | 320 × 240 | |
| Processor | Linux | |
| User & Storage Capacity | ||
| User Capacity | 3,000 Users | |
| Fingerprint Capacity | 3,000 Fingerprints | |
| Card Capacity | 3,000 Cards | |
| Transaction Capacity | 100,000 Events | |
| Authentication & Features | ||
| Verification Modes | Fingerprint, EM Card, PIN | |
| Card Type | EM Card | |
| Multi-Factor Authentication | Supported | |
| Finger Sensor Type | Optical Fingerprint Module | |
| Communication & Interface | ||
| Network | Wired Network, Wi-Fi 2.4GHz 802.11b/g/n, AP Mode | |
| Interface | 1 × RJ-45 10/100M Self-Adaptive, 1 × USB | |
| Optional Network Protocols | ISAPI, ISUP 5.0, Web Client Configuration | |
| Access Control | 1 × Lock Control, 1 × Exit Button, 1 × Door Contact Input, 1 × Tamper | |
| Software & Smart Features | ||
| Software Compatibility | Web Client, ISAPI, ISUP 5.0 | |
| Voice Prompt | Built-in Buzzer | |
| Additional Features | Access Control Function, Local Time Attendance Function, Battery Power Supply via Bracket | |
| Physical Specifications | ||
| Power Supply | 12 VDC; Supports Battery Power Supply by Bracket | |
| Power Consumption | ≤ 6W | |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) | |
| Operating Humidity | 0% to 90% RH, Non-Condensing | |
| Warranty | ||
| Warranty | 1 Year | |

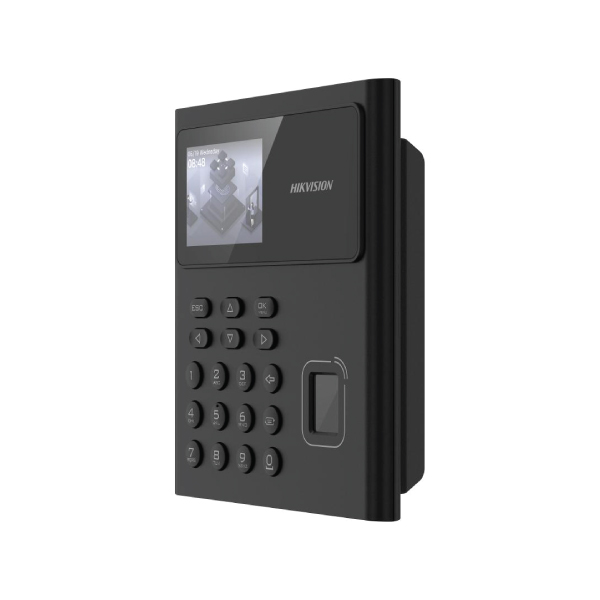

The Hikvision DS-K1T8005EFWX-B Pro Fingerprint Access Control Terminals is a professional biometric access control and local time attendance device designed for offices, factories, schools, banks, warehouses, retail stores, corporate buildings, financial institutions, and restricted workplace areas. It supports fingerprint verification, EM card authentication, and PIN access, making it a reliable solution for secure employee entry, attendance tracking, and door access management.
For businesses looking for a professional Hikvision fingerprint access control terminal in Bangladesh, the DS-K1T8005EFWX-B offers a 2.4-inch LCD screen, optical fingerprint module, wired network, Wi-Fi AP mode, web client configuration, ISAPI, ISUP 5.0, local time attendance, and door access control support. Touch IT’s indexed listing shows this model around ৳9,000. Please confirm the latest price, stock, adapter inclusion, battery bracket availability, and installation support before ordering.
Hikvision DS-K1T8005EFWX-B is a compact Pro Series fingerprint access control terminal for secure workplace entry and attendance management. It supports 3,000 fingerprints, 3,000 EM cards, 100,000 event records, fingerprint/card/PIN authentication, web client configuration, wired network, Wi-Fi AP mode, optical fingerprint verification, and access control with local time attendance function.
The DS-K1T8005EFWX-B supports multiple authentication methods, including fingerprint, EM card, and PIN. This gives businesses flexible access options for employees, visitors, departments, and restricted rooms. Fingerprint verification helps reduce card sharing, proxy attendance, and unauthorized entry.
The built-in optical fingerprint module supports 1:1 and 1:N fingerprint comparison modes. This makes the terminal suitable for daily office entry, factory attendance, warehouse access, admin rooms, and staff-only areas where dependable identity verification is required.
With 3,000 fingerprint capacity, 3,000 EM card capacity, and 100,000 event records, the Hikvision DS-K1T8005EFWX-B is suitable for small and medium organizations that need organized attendance logs and secure access records without using a complex enterprise system.

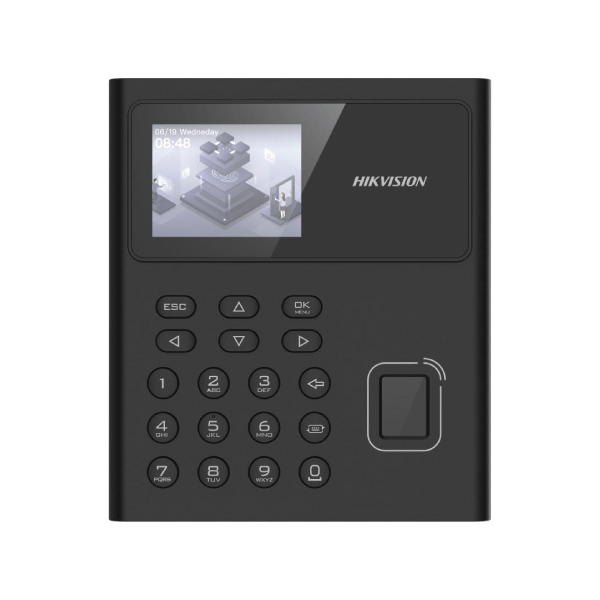

The 2.4-inch LCD screen with 320 × 240 resolution provides a clear interface for device operation and verification. The keypad supports PIN input, while the built-in buzzer gives audio feedback during successful or failed authentication.
The terminal supports RJ45 10/100M self-adaptive wired network and 2.4GHz Wi-Fi AP mode. Admins can configure the device through the web client, making it convenient for installation, setup, and local attendance management.
The DS-K1T8005EFWX-B supports lock control, exit button, door contact input, tamper input, and USB. It is suitable for both door access control and local time attendance. For complete door security projects, explore Touch IT’s Access Control solutions.
| Product Name | Hikvision DS-K1T8005EFWX-B Pro Fingerprint Access Control Terminals |
|---|---|
| Model | DS-K1T8005EFWX-B |
| Operating System | Linux |
| Display | 2.4-inch LCD, 320 × 240 |
| Authentication | Fingerprint, EM Card, PIN |
| Capacity | 3,000 fingerprints, 3,000 EM cards, 100,000 events |
| Fingerprint Module | Optical Fingerprint Module; 1:1 and 1:N Comparing Mode |
| Network | RJ45 10/100M Self-Adaptive, Wi-Fi 2.4GHz 802.11b/g/n AP Mode |
| Interface | Lock Control, Exit Button, Door Contact Input, Tamper, USB |
| Protocol | ISAPI, ISUP 5.0 |
| Configuration | Web Client Configuration |
| Power Supply | 12V DC; Supports Battery Power via Bracket |
| Power Consumption | ≤ 6W |
| Operating Condition | -10°C to 55°C; 0% to 90% RH, non-condensing |
| Warranty | 1 Year |
Verification note: The official datasheet confirms EM card support, Wi-Fi AP mode, web client configuration, access control, and local time attendance function. RS-485 and Wiegand are not confirmed for this specific DS-K1T8005EFWX-B official datasheet, so they are not included in the specification table. Please confirm exact supplied version, adapter inclusion, battery bracket availability, and software requirement before purchase.
The DS-K1T8005EFWX-B is ideal for businesses that need a dependable fingerprint access control and attendance terminal with EM card and PIN support. Compared to basic attendance machines, it adds door lock control, tamper input, web client configuration, ISAPI, ISUP 5.0, Wi-Fi AP mode, large event storage, and professional access management features. For genuine Hikvision Access Control products and complete Security System solutions, Touch IT provides expert consultation and installation support.
| Model | Best For | Main Difference |
|---|---|---|
| Hikvision DS-K1T8005EFWX-B | Fingerprint, EM card and PIN access control | Compact Pro terminal with Wi-Fi AP mode, web client and 100,000 events |
| Hikvision DS-K1T808EFWX | Fingerprint, EM card and PIN access | Similar Pro fingerprint terminal with local attendance and web configuration |
| Hikvision DS-K1T808MFWX | Fingerprint, M1 card and PIN access | Similar model with M1 card support instead of EM card |
| Hikvision DS-K1T321EFX | Compact face and fingerprint access | Adds face recognition with 500 face capacity |
Touch IT’s indexed listing shows the Hikvision DS-K1T8005EFWX-B around ৳9,000. Price and stock may change, so please confirm before ordering.
The official specification confirms up to 3,000 fingerprints for access control and attendance use.
Yes, it supports up to 3,000 EM cards along with fingerprint and PIN authentication.
Yes, it supports lock control, exit button, door contact input, tamper input, and USB.
Yes, the official datasheet lists 2.4GHz Wi-Fi AP mode along with wired RJ45 network support.
Yes, the terminal supports access control and local time attendance functions.
It supports ISAPI and ISUP 5.0 protocols for professional access control system integration.
Touch IT Solutions provides genuine Hikvision biometric time attendance, access control, CCTV surveillance, and security system products in Bangladesh with competitive pricing, expert consultation, professional installation support, nationwide delivery, and dependable after-sales service.
Upgrade your workplace security with the Hikvision DS-K1T8005EFWX-B Pro Fingerprint Access Control Terminals. Order from Touch IT for the latest price, stock confirmation, installation support, and project consultation. Visit Touch IT Solutions at ECS Computer City Center, Multiplan Center, New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Hikvision DS-K1T8005EFWX-B Access Control Terminals in Bangladesh is 9,000৳. You can buy the Hikvision DS-K1T8005EFWX-B Access Control Terminals at best price from our website or visit any of our showrooms.
