| Hardware | ||
| Display | 2.4-inch LCD Screen | |
| Operating System | Linux | |
| User & Storage Capacity | ||
| User Capacity | 3,000 User | |
| Fingerprint Capacity | 3,000 Fingerprints | |
| Card Capacity | 3,000 Cards | |
| Transaction Capacity | 100,000 Events | |
| Authentication & Features | ||
| Verification Modes | Fingerprint, M1 Card, PIN, Face | |
| Card Type | M1 Card | |
| Multi-Factor Authentication | Supported | |
| Finger Sensor Type | Optical Fingerprint Module | |
| Communication & Interface | ||
| Network | Wired Network, Wi-Fi 2.4GHz 802.11b/g/n, AP Mode | |
| Interface | 1 × RJ-45 10/100M, 1 × RS-485, 1 × Wiegand, 1 × USB | |
| Optional Network Protocols | ISAPI, ISUP 5.0, PC Web Client, Mobile Web Client | |
| Access Control | 1 × Lock Control, 1 × Exit Button, 1 × Door Contact Input, 1 × Tamper; Supports Secure Door Control Unit or Card Reader via RS-485 | |
| Software & Smart Features | ||
| Software Compatibility | PC Web Client, Mobile Web Client, ISAPI, ISUP 5.0 | |
| Mobile App Integration | Mobile Web Client Supported | |
| Additional Features | Access Control Function, Local Time Attendance Function, Web Configuration | |
| Physical Specifications | ||
| Power Supply | 12 VDC | |
| Power Consumption | ≤ 6W | |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) | |
| Operating Humidity | 0% to 90% RH, Non-Condensing | |
| Warranty | ||
| Warranty | 1 Year | |

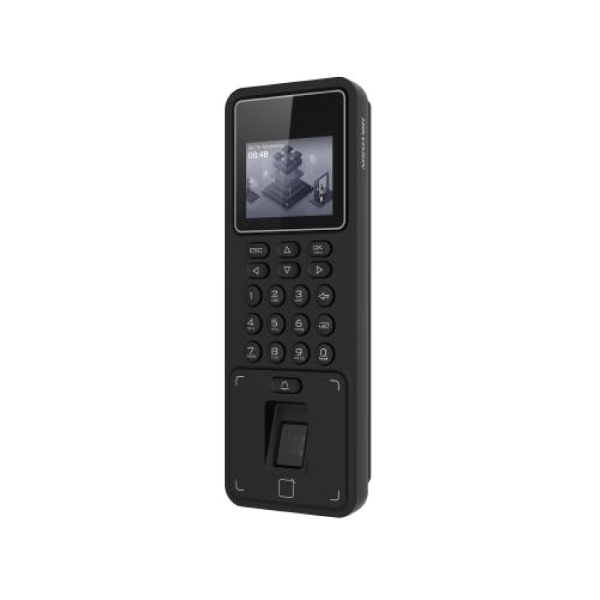

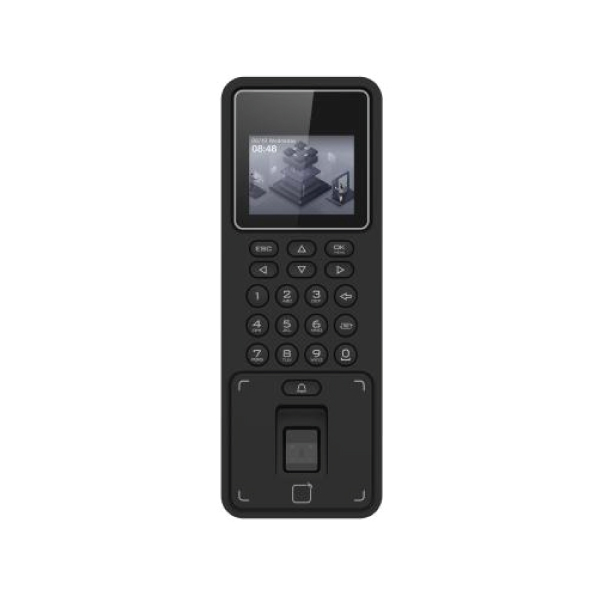

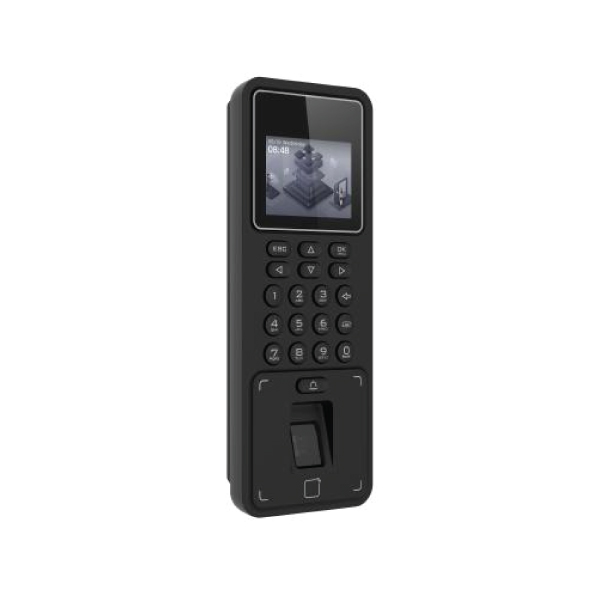

The Hikvision DS-K1T808MFWX Pro Fingerprint Access Control Terminal is a professional biometric access control and time attendance device designed for offices, factories, schools, banks, warehouses, retail stores, corporate buildings, financial institutions, and restricted workplace areas. It supports fingerprint verification, M1 card authentication, and PIN access, making it a reliable solution for secure door access and employee attendance management.
For businesses looking for a professional Hikvision fingerprint access control terminal in Bangladesh, the DS-K1T808MFWX offers a 2.4-inch LCD screen, optical fingerprint module, Wi-Fi AP mode, wired network, RS-485, Wiegand, USB, ISAPI, ISUP 5.0, and web client configuration. Touch IT currently lists this model as Call for Price. Please confirm price, stock, exact supplied version, adapter availability, and installation support before ordering.
Hikvision DS-K1T808MFWX is a Pro Series fingerprint access control and local time attendance terminal for secure workplace entry management. It supports 3,000 fingerprints, 3,000 M1 cards, 100,000 event records, fingerprint/card/PIN authentication, optical fingerprint recognition, ISAPI, ISUP 5.0, PC web client, mobile web client, Wi-Fi AP mode, and professional door access control integration.
The DS-K1T808MFWX supports fingerprint, M1 card, and PIN authentication. This gives businesses flexible access options for employees, visitors, departments, and restricted rooms. Fingerprint verification helps reduce card sharing, proxy attendance, and unauthorized entry.
The built-in optical fingerprint module supports 1:1 and 1:N fingerprint comparing modes. This makes the terminal suitable for daily office entry, factory attendance, staff-only areas, storage rooms, and business locations where accurate identity verification is required.
With 3,000 fingerprint capacity, 3,000 card capacity, and 100,000 event records, the Hikvision DS-K1T808MFWX is suitable for small and medium organizations that need organized attendance logs and secure access records.
The 2.4-inch LCD screen with 320 × 240 resolution provides a simple interface for device operation and user verification. The built-in buzzer gives audio feedback, helping users understand verification status quickly during attendance punching or door access.
The terminal supports wired network and Wi-Fi AP mode, allowing admins to configure and manage the device through PC web client and mobile web client. It also supports ISAPI and ISUP 5.0 protocols for professional system integration.
The DS-K1T808MFWX supports lock control, exit button, door contact input, tamper input, RS-485, Wiegand, and USB. It can be wired with a secure door control unit or card reader through RS-485. For complete door security, explore Touch IT’s Access Control solutions.
| Product Name | Hikvision DS-K1T808MFWX Pro Fingerprint Access Control Terminal |
|---|---|
| Model | DS-K1T808MFWX |
| Operating System | Linux |
| Display | 2.4-inch LCD, 320 × 240 |
| Authentication | Fingerprint, M1 Card, PIN |
| Capacity | 3,000 fingerprints, 3,000 M1 cards, 100,000 events |
| Fingerprint Module | Optical Fingerprint Module; 1:1 and 1:N Comparing Mode |
| Network | RJ45 10/100M Self-Adaptive, Wi-Fi 2.4GHz 802.11b/g/n AP Mode |
| Interface | RS-485, Wiegand W26/W34, USB, Lock Control, Exit Button, Door Contact, Tamper |
| Protocol | ISAPI, ISUP 5.0 |
| Power Supply | 12V DC; Supports Battery Power via Bracket |
| Power Consumption | ≤ 6W |
| Operating Condition | -10°C to 55°C; 0% to 90% RH, non-condensing |
| Configuration | PC Web Client and Mobile Web Client |
| Warranty | 1 Year |
Verification note: Touch IT’s product page includes some fields such as face recognition, QR code, Bluetooth, PoE, IP65, and 150,000 events, but Hikvision’s Pro Fingerprint Terminal datasheet confirms the 2.4-inch LCD fingerprint/card/PIN version with 100,000 events. Please confirm the exact supplied variant before purchase.
The DS-K1T808MFWX is ideal for businesses that need a dependable fingerprint access control and time attendance terminal with M1 card and PIN support. Compared to basic attendance machines, it adds professional door control interfaces, RS-485 wiring support, Wiegand integration, web client configuration, ISAPI, ISUP 5.0, tamper input, and Wi-Fi AP mode. For genuine Hikvision Access Control products and complete Security System solutions, Touch IT provides expert consultation and installation support.
| Model | Best For | Main Difference |
|---|---|---|
| Hikvision DS-K1T808MFWX | Fingerprint, M1 card and PIN access control | Pro fingerprint terminal with Wi-Fi AP mode, RS-485, Wiegand and 100,000 events |
| Hikvision DS-K1T8005EFX | Fingerprint, EM card and PIN access | Similar Pro fingerprint model with EM card support |
| Hikvision DS-K1T321EFX | Compact face, fingerprint, card and PIN access | Adds face recognition with 500 face capacity |
| Hikvision DS-K1T343EFWX | Face, fingerprint and EM card access control | 4.3-inch touch screen with 1,500 face capacity |
Touch IT currently lists the Hikvision DS-K1T808MFWX as Call for Price. Please contact Touch IT for the latest price, stock status, and installation cost.
The official Pro Fingerprint Terminal specification confirms up to 3,000 fingerprints.
Yes, it supports up to 3,000 M1 cards along with fingerprint and PIN authentication.
Yes, it supports lock control, exit button, door contact input, tamper input, RS-485, Wiegand, and USB.
Yes, the official specification lists Wi-Fi 2.4GHz 802.11b/g/n AP mode along with wired network support.
Yes, the device supports access control and local time attendance functions.
It supports ISAPI and ISUP 5.0 protocols for professional access control system integration.
