| System & AI Capabilities | ||
| Privacy Protection | Privacy masking supported | |
| Processor | Industrial-grade processor | |
| Operating System | Embedded Linux | |
| User Interface | Web interface & Local GUI | |
| AI Analytics | Face detection, Face recognition, Perimeter protection, SMD Plus, AcuPick, Video Quality Analytics, Scene Changing Detection | |
| Smart Motion Detection (SMD+) | 32 channels (Recorder-based human & vehicle filtering) + 48 channels via camera | |
| Perimeter Protection: | 8 channels (10 IVS rules per channel) | |
| Face Detection & Recognition | 2 channels (Face detection & recognition with up to 10,000 face images database) | |
| Video & Audio Performance | ||

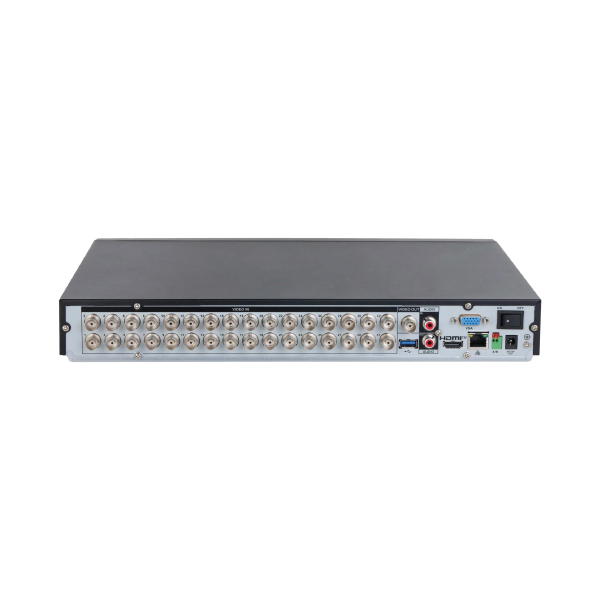

| Video Input Channels | 32 Analog Channels (BNC) + Up to 48 IP Channels | |
| Supported Resolution | 5MP, 4MP, 1080p, 720p, 960H, D1, CIF | |
| Video Compression: | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 | |
| Decoding Performance: | Supports multi-channel real-time encoding/decoding with AI enhancement modes | |
| Analog Video Support | 32 BNC ports (HDCVI / AHD / TVI / CVBS auto-detect) | |
| IP Camera Support | Up to 48 IP channels | |
| Video Output: | 1 HDMI (up to 4K), 1 VGA, 1 CVBS | |
| Audio Support: | G.711a; G.711u; PCM | |
| Multi-Screen Display: | Main: 1 / 4 / 8 / 9 / 16 / 25 / 36 Sub: 1 / 4 / 8 / 9 / 16 |
|
| Third-Party Camera Integration | ONVIF; Panasonic; Sony; Hanwha; Axis; Arecont | |
| Recording & Playback | ||
| Recording Modes | General, Motion Detection, Alarm, Intelligent | |
| Playback Mode: | Instant playback, General playback, Event playback, Tag playback, Smart playback | |
| Stream Type | Dual Stream Supported | |
| Frame Rate: | Up to 30 fps | |
| Video Bit Rate | 32 kbps – 6144 kbps | |
| Backup Methods | USB device & Network backup | |
| Alarm Types: | Motion detection, Video loss, Tampering, PIR alarm, Network alarm, External alarm, AI intelligent alarms | |
| Storage & Interfaces | ||
| Internal Storage | 2 × SATA HDD | |
| Maximum Storage Capacity | Up to 16 TB per HDD | |
| USB Ports: | 2 (1 × USB 2.0 front, 1 × USB 3.0 rear) | |
| Alarm I/O | Supported (via alarm box & external integration) | |
| Serial Communication | RS-485 | |
| Network Interface | 1 × RJ-45 (10/100/1000 Mbps) | |
| Network & Remote Access | ||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; FTP; SNMP; DDNS; P2P | |
| Remote Access | Web Browser (Chrome, Edge, Safari, Firefox, IE) | |
| Mobile App Support | iOS & Android | |
| Bandwidth Management | 192 Mbps (incoming/recording/outgoing for IP channels) | |
| Camera Access Protocos | ONVIF (Profile T/S/G); CGI; SDK | |
| Physical Specifications | ||
| Power Supply: | 12V DC, 5A | |
| Power Consumption | < 16W (without HDD) | |
| Operating Temperature | -10°C to +55°C | |
| Operating Humidity | 10%–90% (non-condensing) | |
| Cooling System | Passive Cooling | |
| Material | Metal Housing | |
| Dimensions | 375 × 289.6 × 53 mm | |
| Net Weight: | 1.90 kg | |
| Compliance & Warranty | ||
| Certifications: | CE-EMC, CE-LVD | |
| Warranty | 1 Year Standard Manufacturer Warranty | |

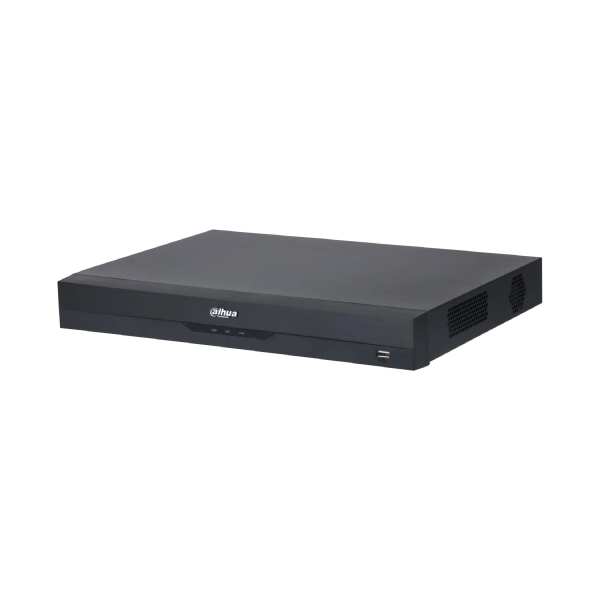

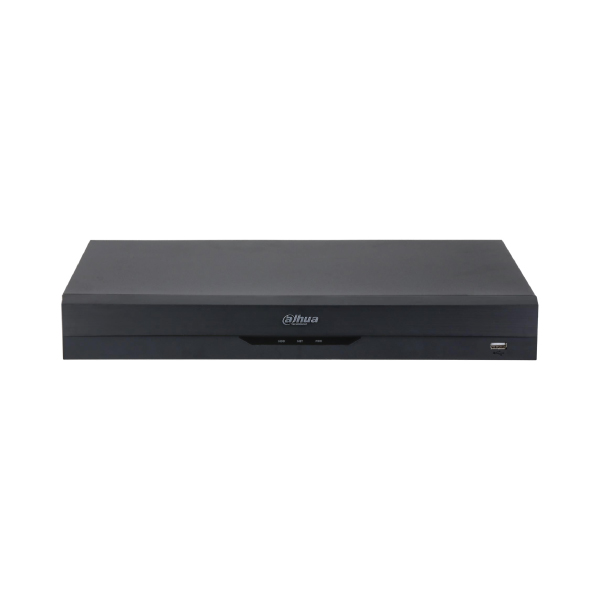

The DAHUA XVR5232AN-I3/T 32 Channel DVR is a powerful and intelligent solution designed for advanced CCTV Surveillance systems. As a high-performance Dahua DVR, it supports penta-brid technology, allowing seamless integration with HDCVI, AHD, TVI, CVBS, and IP formats. This makes it an ideal choice for upgrading or building flexible CC Camera networks using both analog and Dahua CCTV Camera systems. With its robust hardware architecture and embedded Linux operating system, this DVR ensures stable performance and continuous monitoring for commercial, industrial, and enterprise environments.
The DAHUA XVR5232AN-I3/T 32 Channel DVR is equipped with powerful WizSense AI technology that enhances accuracy and efficiency in CCTV Surveillance. It supports 32-channel SMD Plus for precise human and vehicle detection, minimizing false alarms caused by environmental factors. Additionally, it features 8-channel perimeter protection, 2-channel face recognition, and AcuPick technology for faster target search. These intelligent capabilities make this Dahua DVR a smart choice for modern CC Camera systems requiring advanced security analytics.
This Dahua DVR supports Smart H.265+ and H.264 compression technologies, significantly reducing bandwidth and storage usage without compromising video quality. It also features AI Coding, which optimizes storage while preserving important details. With support for up to 48-channel IP Camera input and resolutions up to 6MP, the DAHUA XVR5232AN-I3/T ensures smooth video recording and playback. The system supports dual HDD storage (up to 16TB each), providing ample capacity for long-term CCTV Surveillance data retention :contentReference[oaicite:0]{index=0}.
The DAHUA XVR5232AN-I3/T 32 Channel DVR offers excellent compatibility with various Dahua CCTV Camera and third-party IP Camera brands via ONVIF support. It can handle up to 32 analog channels and expand to 48 IP channels, making it highly scalable for growing CCTV Surveillance systems. It also supports Wi-Fi camera access, allowing flexible installation across different environments such as offices, factories, warehouses, and residential complexes.
Designed for ease of use, this Dahua DVR features an intuitive interface accessible via web and local GUI. It supports mobile applications (iOS and Android) for remote monitoring, playback, and system management. With multi-screen display options and smart playback features, users can efficiently monitor multiple CC Camera feeds in real-time. Two-way audio over coaxial cable further enhances communication between cameras and users, making it a complete CCTV Surveillance solution.
The DAHUA XVR5232AN-I3/T 32 Channel DVR is built with an industrial-grade processor and durable hardware to ensure long-term reliability. It operates efficiently in various environmental conditions and supports stable performance for 24/7 monitoring. Its compact 1U design allows easy desktop installation, making it suitable for both small and large-scale Dahua CCTV Camera deployments.
Touch IT is your trusted destination for purchasing the original DAHUA XVR5232AN-I3/T 32 Channel DVR in Bangladesh at the best price. If you are searching for the latest DAHUA XVR5232AN-I3/T 32 Channel DVR price in Bangladesh, Touch IT offers competitive pricing along with 100% genuine Dahua DVR products and official warranty. We provide expert consultation, professional installation, and system configuration to ensure your CCTV Surveillance system operates efficiently with Dahua CCTV Camera and IP Camera integration.
As a leading provider of Dahua CCTV solutions, Touch IT ensures fast delivery, reliable after-sales service, and dedicated technical support. Whether you are upgrading an existing CC Camera system or installing a new one, our team guarantees a seamless experience. Choose Touch IT for authentic products, expert service, and long-term reliability in building your advanced CCTV Surveillance infrastructure.
The latest price of DAHUA XVR5232AN-I3/T 32 Channel Digital Video Recorder in Bangladesh is 31,900৳. You can buy the DAHUA XVR5232AN-I3/T 32 Channel Digital Video Recorder at best price from our website or visit any of our showrooms.
