| System & AI Capabilities | ||
| Privacy Protection | Irregular Black Block Masking supported on 1 channel to protect sensitive areas | |
| Processor | Industrial-grade processor | |
| Operating System | Embedded Linux | |
| User Interface | Web Interface and Local GUI | |
| AI Analytics | AI-powered Perimeter Protection, Face Detection, Face Recognition, SMD Plus, Scene Change Detection, and Video Quality Analytics | |
| Smart Motion Detection (SMD+) | SMD Plus on 32 channels by recorder with human and motor vehicle filtering; up to 40 channels by camera | |
| Perimeter Protection: | Advanced Mode: 2 channels (10 IVS rules per channel) General Mode: 4 channels (10 IVS rules per channel) |
|
| Face Detection & Recognition | Face Detection: 2 channels (up to 12 face images/s per channel) Face Recognition: 2 channels with up to 10 face databases and 10,000 images |
|
| Video & Audio Performance | ||
| Video Input Channels | 32 Analog Channels (BNC) | |
| Supported Resolution | Up to 5MP, 4MP, 1080P, 720P | |
| Video Compression: | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 | |
| Decoding Performance: | Supports multi-resolution decoding with optimized frame rates based on stream mode | |
| Analog Video Support | HDCVI / AHD / TVI / CVBS auto-detect | |
| IP Camera Support | Up to 40 IP channels (8 default + 32 converted from analog) | |
| Video Output: | 1 × HDMI (up to 4K), 1 × VGA, 1 × TV Output | |
| Audio Support: | 1-channel RCA input, 1-channel RCA output, 32-channel coaxial audio, two-way talk supported | |
| Multi-Screen Display: | 1 / 4 / 8 / 9 / 16 / 25 / 36 | |
| Third-Party Camera Integration | ONVIF, Panasonic, Sony, Hanwha, Axis, Arecont | |
| Recording & Playback | ||
| Recording Modes | General, Alarm, Motion Detection, Intelligent, POS | |
| Playback Mode: | Instant Playback, General Playback, Event Playback, Tag Playback, Smart Playback | |
| Stream Type | Dual Stream (Main Stream + Sub Stream) | |
| Frame Rate: | Up to 25/30 fps depending on resolution and encoding mode | |
| Video Bit Rate | 32 kbps – 6144 kbps | |
| Audio Compression | G.711a, G.711u, PCM | |
| Backup Methods | USB Device and Network Backup | |
| Alarm Types: | Motion Detection, Video Loss, Tampering, Disk Error, Network Issues, PIR Alarm, Face Detection, Face Recognition, Perimeter Protection, SMD Plus | |
| Storage & Interfaces | ||
| Internal Storage | 2 × SATA HDD slots | |
| Maximum Storage Capacity | Up to 16 TB per HDD (32 TB total, environment dependent) | |
| USB Ports: | 2 × USB (Front USB 2.0, Rear USB 3.0) | |
| Alarm I/O | IPC External Alarm Output Supported | |
| Serial Communication | 1 × RS-485 | |
| Network Interface | 1 × RJ-45 (10/100/1000 Mbps Ethernet) | |
| Network & Remote Access | ||
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P | |
| Remote Access | Web Browser, CMS Software, P2P Cloud Access | |
| Mobile App Support | iOS and Android | |
| Bandwidth Management | 160 Mbps incoming, recording, and outgoing bandwidth | |
| Camera Access Protocos | ONVIF 23.12 (Profile T / S / G), CGI, SDK | |
| Physical Specifications | ||
| Power Supply: | 12 VDC, 5 A | |
| Power Consumption | Less than 17 W (without HDD) | |
| Operating Temperature | –10 °C to +55 °C | |
| Operating Humidity | 10%–90% RH (non-condensing) | |
| Cooling System | Passive Cooling (Fanless Design) | |
| Surge & Lightning Protection | Supported via system and network protection design | |
| Material | Metal Chassis | |
| Dimensions | 375.0 × 289.6 × 53.0 mm (W × D × H) | |
| Net Weight: | 1.98 kg | |
| Mounting Type | Desktop Installation | |
| Compliance & Warranty | ||
| Certifications: | CE (LVD & EMC), FCC Part 15 Subpart B | |
| Warranty | 1 Year | |

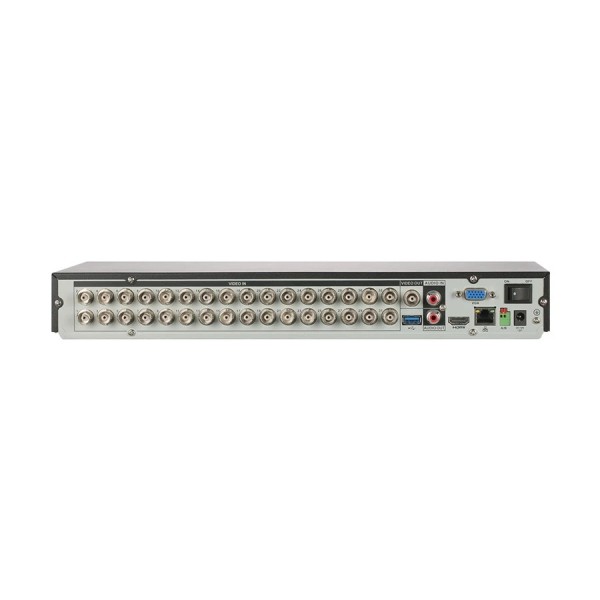

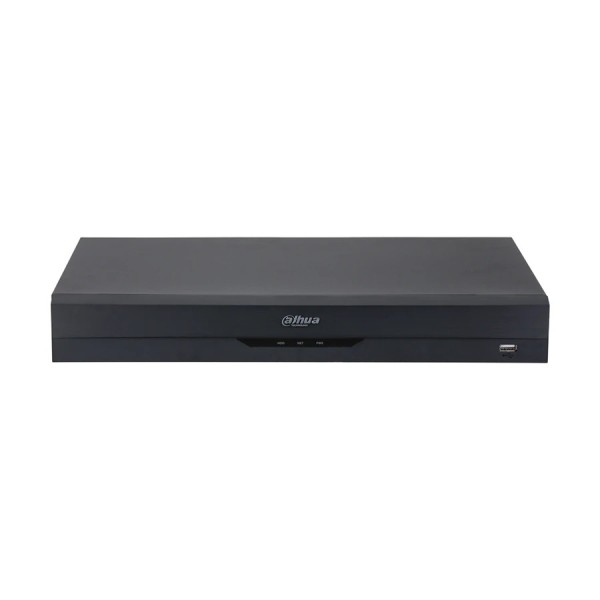

The DAHUA DH-XVR5232AN-I3 32 Channel Digital Video Recorder designed for professional surveillance systems that demand reliability, intelligence, and flexibility. Built with an industrial-grade processor and embedded Linux OS, this Penta-brid DVR supports 5MP and 1080P cameras while delivering advanced AI-based analytics for smarter, more accurate security monitoring.
This DAHUA DH-XVR5232AN-I3 32 Channel Digital Video Recorder comes equipped with WizSense technology, including SMD Plus, Perimeter Protection, Face Detection, and Face Recognition. With SMD Plus on all 32 channels, the recorder intelligently filters human and vehicle targets, dramatically reducing false alarms caused by rain, shadows, or moving leaves. Advanced AI analytics help you focus on real threats, not distractions.
The DAHUA DH-XVR5232AN-I3 32 Channel Digital Video Recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, making it ideal for new installations or upgrades. It handles up to 40 IP cameras with a massive 160 Mbps incoming, recording, and outgoing bandwidth. Dual-stream recording, Smart H.265+/H.265 compression, and AI Coding ensure crystal-clear video while saving storage space.
Designed for large-scale CCTV setups, this 1U DVR supports up to two SATA hard drives (up to 16TB each). It offers smooth multi-screen display options (up to 36 channels), intelligent playback modes, and multiple backup options via USB or network. HDMI output supports up to 4K resolution, ensuring sharp live view and playback on modern displays.
With full ONVIF compatibility, third-party camera support, and comprehensive network protocols, the DAHUA DH-XVR5232AN-I3 32 Channel Digital Video Recorder integrates seamlessly into existing security ecosystems. Users can access live view and playback anytime using iOS and Android devices, popular web browsers, or Dahua management software, making remote monitoring simple and secure.
At Touch IT, we deliver 100% genuine DAHUA DH-XVR5232AN-I3 32 Channel Digital Video Recorder with expert guidance, competitive pricing, and reliable after-sales support. Our team ensures you get the right DVR for your surveillance needs, backed by warranty, fast delivery, and trusted local service. Choose Touch IT for professional security solutions you can depend on.
The latest price of DAHUA DH-XVR5232AN-I3 32 Channel Digital Video Recorder in Bangladesh is 71,630৳. You can buy the DAHUA DH-XVR5232AN-I3 32 Channel Digital Video Recorder at best price from our website or visit any of our showrooms.
