| System & AI Capabilities | ||
| Privacy Protection | Configurable privacy masking for sensitive zones | |
| Processor | Embedded high-performance video processing chipset | |
| Operating System | Embedded Linux | |
| User Interface | Local GUI with mouse, remote, and web-based access | |
| AI Analytics | Deep learning–based video analytics | |
| Smart Motion Detection (SMD+) | Motion Detection 2.0 with human and vehicle classification and reduced false alarms | |
| Perimeter Protection: | Line crossing and intrusion detection (up to 4 channels) | |
| Face Detection & Recognition | Face detection, capture, and face image search | |
| Video & Audio Performance | ||
| Video Input Channels | IP: 2-ch (up to 18-ch), Enhanced IP mode up to 24-ch | |
| Supported Resolution | IP cameras: up to 6 MP Analog cameras: up to 5 MP / 3K |
|
| Video Compression: | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 | |
| Decoding Performance: | Multi-channel decoding with dual-stream support | |
| Analog Video Support | HDTVI, AHD, HDCVI, CVBS (PAL/NTSC) | |
| IP Camera Support | H.265+/H.265/H.264+/H.264 IP cameras | |
| Video Output: | HDMI: up to 4K (3840 × 2160 @ 30 Hz) VGA: up to 1920 × 1080 @ 60 Hz |
|
| Audio Support: | RCA audio input/output and coaxial audio | |
| Multi-Screen Display: | HDMI and VGA simultaneous output | |
| Third-Party Camera Integration | ONVIF-compliant cameras supported | |
| Recording & Playback | ||
| Recording Modes | Continuous, motion-based, AI event recording | |
| Playback Mode: | Synchronous playback up to 16 channel | |
| Stream Type | Video / Video & Audio | |
| Frame Rate: | Resolution-dependent, up to 30 f | |
| Video Bit Rate | 32 Kbps – 6 Mbps | |
| Audio Compression | 32 Kbps – 6 Mbps | |
| Backup Methods | USB backup and network backup | |
| Alarm Types: | Motion detection, perimeter intrusion, face detection | |
| Storage & Interfaces | ||
| Maximum Storage Capacity | 1 × SATA HDD, up to 10 TB | |
| USB Ports: | 2 × USB 2.0 | |
| Alarm I/O | Optional (model dependent) | |
| Network Interface | 1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet | |
| Network & Remote Access | ||
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP | |
| Remote Access | Up to 128 concurrent connections | |
| Mobile App Support | Hik-Connect mobile application | |
| Bandwidth Management | Total incoming bandwidth up to 128 Mbps | |
| Camera Access Protocos | ONVIF, ISUP | |
| Physical Specifications | ||
| Power Supply: | DC 12 V, 2 A | |
| Power Consumption | ≤ 24 W (without HDD) | |
| Operating Temperature | –10 °C to +55 °C | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Cooling System | Passive cooling (fanless design) | |
| Material | Metal chassis | |
| Dimensions | 285 × 210 × 48 mm (W × D × H) | |
| Net Weight: | ≤ 1 kg (without HDD) | |
| Mounting Type | Desktop / shelf installation | |
| Compliance & Warranty | ||
| Certifications: | CE, FCC (model dependent) | |
| Warranty | 1-Year manufacturer warranty | |

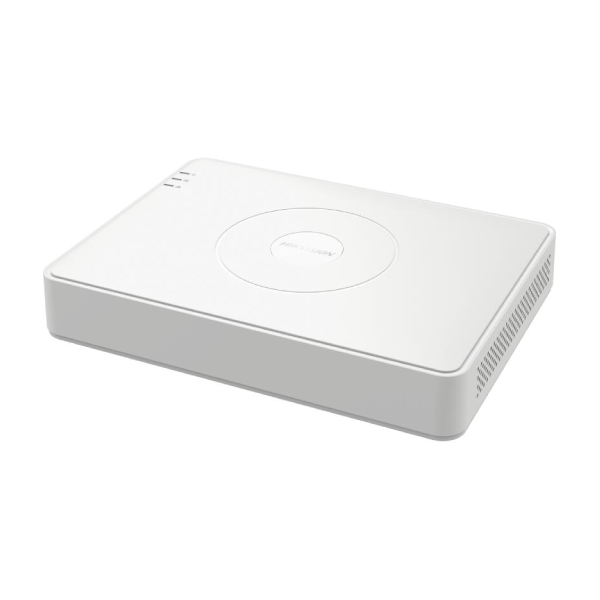

The Hikvision iDS-7116HQHI-M1/T 16 Channel Mini 1U H.265 AcuSense DVR is a high-performance AI-powered CCTV recording solution designed for large-scale surveillance systems in Bangladesh. Built with advanced AcuSense deep learning technology, this DVR intelligently identifies human and vehicle targets, minimizing false alarms while maximizing security efficiency. With support for up to 16 analog channels and 24 IP cameras, it is ideal for offices, shopping malls, factories, warehouses, educational institutions, and industrial facilities requiring reliable multi-camera monitoring.
Powered by Motion Detection 2.0, the iDS-7116HQHI-M1/T uses deep learning algorithms to accurately distinguish human and vehicle movement from irrelevant motion such as rain, lighting changes, insects, or moving leaves. Enabled by default on all analog channels, this intelligent detection greatly reduces false alerts and supports quick search by object or event type, allowing faster incident investigation and improved operational efficiency.
The DVR supports deep learning-based perimeter protection with line crossing and intrusion detection on up to 4 channels, ensuring accurate monitoring of restricted areas. It also includes facial detection and capture features that enable face picture detection and intelligent face search, making it suitable for high-security environments such as corporate buildings, retail entrances, and controlled access zones.

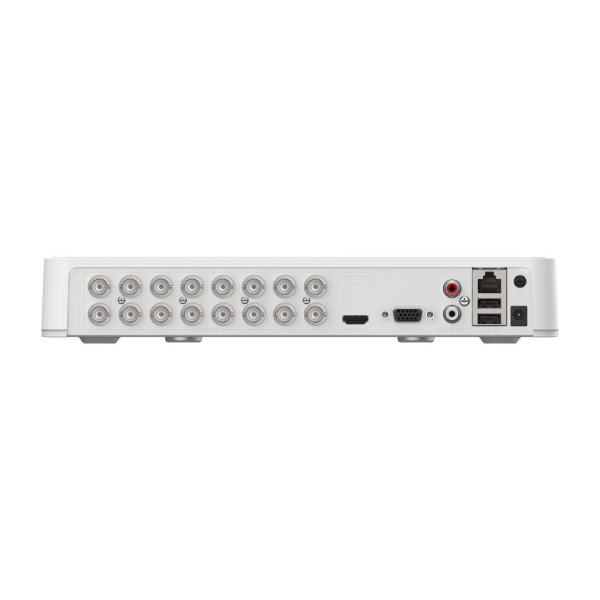

The Hikvision iDS-7116HQHI-M1/T offers 16 BNC analog video inputs and can be expanded up to 24 IP camera channels in enhanced IP mode, with each IP channel supporting up to 6 MP resolution. It is fully compatible with HDTVI, AHD, HDCVI, CVBS, and IP cameras, allowing seamless integration with both existing and new CCTV infrastructures.
Equipped with H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 compression, this AcuSense DVR significantly reduces storage requirements and network bandwidth while maintaining high image quality. It supports encoding up to 3K / 5MP Lite @ 12 fps and adaptive frame rates across multiple resolutions, making it ideal for long-term, high-definition recording across large camera networks.
For advanced monitoring and control rooms, the DVR features a 4K HDMI output (3840 × 2160) along with VGA support, delivering crystal-clear video on large displays. It supports 16-channel synchronous playback, enabling security teams to review multiple camera feeds simultaneously for faster and more accurate incident analysis.
The iDS-7116HQHI-M1/T supports audio transmission over coaxial cable, eliminating the need for additional audio wiring. It also offers two-way audio communication via RCA interface, allowing real-time interaction when used with compatible microphones and cameras.
With a total network bandwidth of 128 Mbps and support for up to 128 remote connections, this DVR ensures smooth live viewing and playback even in large surveillance deployments. It supports multiple network protocols including Hik-Connect, ONVIF, HTTPS, DDNS, NTP, ISUP, and iSCSI, providing secure and flexible remote access from anywhere in Bangladesh.
The DVR supports one SATA hard drive up to 10 TB, ensuring ample storage for high-resolution footage. Housed in a durable Mini 1U chassis measuring 285 × 210 × 48 mm, it consumes ≤ 24 W (without HDD) and operates reliably in temperatures from -10°C to +55°C. This makes it suitable for continuous 24/7 operation in demanding environments.
When you purchase the Hikvision iDS-7116HQHI-M1/T 16 Channel AcuSense DVR from Touch IT, you receive a 100% genuine Hikvision product backed by official warranty, expert technical consultation, and dependable after-sales support. Touch IT offers the best Hikvision AcuSense DVR price in Bangladesh along with nationwide delivery and professional installation services. Choose Touch IT for reliable, scalable, and future-ready CCTV surveillance solutions you can trust.
The latest price of Hikvision iDS-7116HQHI-M1/T 16 Channel AcuSense DVR in Bangladesh is 9,350৳. You can buy the Hikvision iDS-7116HQHI-M1/T 16 Channel AcuSense DVR at best price from our website or visit any of our showrooms.
