| General | ||
| Conveyor Speed | 0.20 m/s | |
| Conveyor Load | ≤180 kg (Adequate distribution) | |
| Conveyor Height | 700 mm | |
| Supported Software | ZKBio SIS | |
| Communication Interface | RJ45 (TCP/IP) | |
| Dimensions (L*W*H) | 2120 × 980 × 1381 mm | |
| Package Dimensions (L*W*H) | 2240 × 1170 × 1755 mm | |
| Gross Weight | 640 kg + 100 kg (Console Desk) | |
| Film Safety | ASA / ISO1600 standard film safety Certifications: |
|
| X-ray System | ||
| Wire Resolution | 38 AWG | |
| Steel Penetration | 10 mm steel board | |
| Spatial Resolution | Horizontal: Φ1.0 mm Vertical: Φ2.0 mm |
|
| Penetration Resolution | 34 AWG | |
| Generator Cool | Seal oil cooling / 100% duty cycle | |
| Computer Specification | ||
| Monitor | 21.5 inch LED | |
| Operating Environment | ||
| Power Consumption | 1 kVA | |
| Noise Level | 53.8 dB(A) | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

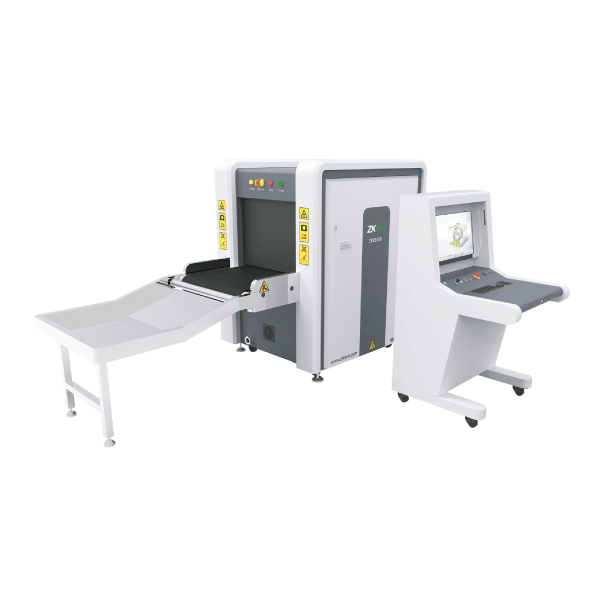

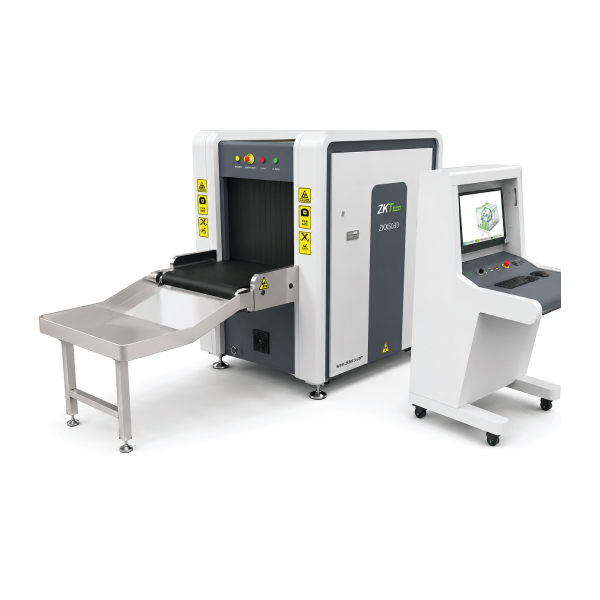

The ZKTeco ZKX6550A Single-Energy X-ray Baggage Scanner is a professional inspection system for briefcases, backpacks, carry-on luggage and small cargo packages. Its 650 × 500 mm tunnel, single-view imaging and movable console suit hotels, shopping centres, transport hubs, government offices and factories in Bangladesh.
Organizations searching for the ZKTeco ZKX6550A price in Bangladesh can request a current Touch IT quotation because the price is Call for price. Project cost may depend on availability, delivery, installation, training, software and support requirements. Contact the sales team for an updated proposal.
The ZKX6550A inspects medium-sized bags and parcels without opening them manually. Its generator, detector and image algorithm create a clear view for trained personnel. The larger opening accepts items that may not fit compact 500 × 300 mm scanners.
The wider tunnel accommodates carry-on luggage, backpacks and appropriately sized parcels. It suits entry points handling more than document bags or small briefcases. Compare alternative tunnel sizes in the X-ray Baggage Scanner category.
A single-energy detector and single-view layout support routine inspection without a multi-view platform. It suits buyers needing a dependable luggage scanner operated by trained personnel.
ZKTeco publishes 36 AWG wire resolution, 32 AWG penetration resolution and 8 mm steel penetration. Spatial resolution is horizontal Φ1.6 mm and vertical Φ1.3 mm. Interpretation also depends on item composition, positioning and operator competence.
The movable console supports flexible operator positioning. Its packaged dimensions are 890 × 840 × 1502 mm, so the console, scanner, queuing path and maintenance clearance must be included in the site layout.
RJ45 TCP/IP and ZKBio SIS compatibility support approved centralized deployments. Functions depend on the software licence and project configuration. Browse compatible equipment on the ZKTeco Products page.
The manufacturer specifies film safety to ASA/ISO 1600 and radiation leakage below 0.3 μSv/h at 10 cm from the surface. Power consumption is below 300 W and noise below 58 dB(A). Complement the scanner with suitable Security Inspection Solutions and broader Security System Solutions.
| Product Name | ZKTeco ZKX6550A X-ray Baggage Scanner |
|---|---|
| Inspection System | Single-energy detector, single-view imaging |
| Tunnel Size | 650 × 500 mm (W × H) |
| Conveyor Height | 650 mm |
| Supported Software | ZKBio SIS |
| Communication | RJ45 TCP/IP |
| Console Package Size | 890 × 840 × 1502 mm |
| Film Safety | ASA/ISO 1600 |
| Anode Voltage | 80 kV |
| Wire Resolution | 36 AWG |
| Steel Penetration | 8 mm |
| Spatial Resolution | Horizontal Φ1.6 mm; vertical Φ1.3 mm |
| Penetration Resolution | 32 AWG |
| Memory | 8 GB RAM |
| Operating Performance | <300 W; <58 dB(A); leakage <0.3 μSv/h at 10 cm |
Verification note: ZKTeco’s current December 2025 documentation specifies a 650 × 500 mm tunnel, 650 mm conveyor height, 36 AWG resolution, 8 mm steel penetration and consumption below 300 W. Older regional documentation and retailer listings show 655 × 505 mm, 700 mm, 38 AWG, 10 mm and 1 kVA. This page follows the current global specification. Confirm conveyor speed and load, full machine dimensions, monitor, operator authentication, accessories, installation, software and warranty for the supplied package.
This model suits facilities that need more loading space than a compact baggage scanner but do not require dual-energy imaging. It combines a medium-size tunnel, current safety certifications, network communication and centralized-software support. The equipment assists trained operators with visual inspection; it does not automatically guarantee identification of every restricted item.
| Model | Imaging | Tunnel | Recommended Use |
|---|---|---|---|
| ZKX6550A | Single-energy | 650 × 500 mm | Carry-on luggage and small cargo packages |
| ZKTeco ZKX5030A | Single-energy | 500 × 300 mm | Compact checkpoints and smaller parcels |
| ZKTeco ZKX5030C | Dual-energy | 500 × 300 mm | Compact screening with material-based imaging |
It is designed for briefcases, backpacks, carry-on luggage and small cargo packages that fit safely within its 650 × 500 mm tunnel.
No. The current manufacturer specification identifies it as a single-energy detector with single-view imaging.
ZKTeco publishes 36 AWG wire resolution, 32 AWG penetration resolution, 8 mm steel penetration and defined horizontal and vertical spatial resolution.
It supports RJ45 TCP/IP communication and ZKBio SIS, subject to compatible licensing, network design and project configuration.
The current global specification lists film safety to the ASA/ISO 1600 standard.
The current ZKTeco product description states that the system is equipped with a movable console for operator positioning and workflow efficiency.
Confirm floor space, delivery access, power, network connection, operator position, queuing, training, local compliance and maintenance clearance.
Touch IT supplies professional baggage scanners and security-inspection equipment in Bangladesh with product consultation, site-planning guidance, installation coordination, operator guidance and after-sales technical support. The team can verify tunnel suitability, software requirements and package contents before procurement.
