| General | ||
| Tunnel Size | 500 mm × 300 mm (W × H) | |
| Conveyor Speed | 0.20 m/s | |
| Conveyor Load | 120 kg (Adequate distribution) | |
| Conveyor Height | 650 mm | |
| Detector | Dual-energy Detector | |
| View | Single-view | |
| Supported Software | ZKBio SIS | |
| Communication Interface | RJ45 (TCP/IP) | |
| Dimensions (L*W*H) | 1701 mm × 796 mm × 1150 mm | |
| Package Dimensions (L*W*H) | 2000 mm × 1000 mm × 1500 mm | |
| Net Weight | 380 kg | |
| Gross Weight | 450 kg (with package) | |
| Film Safety | ASA / ISO1600 | |
| Certifications | CE-EMC, CE-MD, FCC sDOC, FDA | |
| X-ray System | ||
| Anode Voltage | 140 kV | |
| Tube Current | 0.3 mA | |
| Wire Resolution | 36 AWG | |
| Steel Penetration | 30 mm | |
| Spatial Resolution | Horizontal: Φ1.3 mm Vertical: Φ1.3 mm |
|
| Penetration Resolution | 30 AWG | |
| Generator Cool | Sealed Oil Bath with Forced Air Cooling | |
| Beam Direction | Vertically Upward | |
| X-ray converter type | L-shaped Detector Line | |
| Computer Specification | ||
| Operating System | Windows 10 | |
| Processor | Intel N100 | |
| RAM | 8 GB | |
| Hard Drive | 128 GB SSD + 2 TB HDD | |
| Max. Storage | Up to 200,000 scanned images | |
| Monitor | 21.5" Color LED Screen (1920 × 1080) | |
| Operating Environment | ||
| Power Supply | 220 VAC ±10% 50/60Hz 110 VAC ±10% 50/60Hz |
|
| Power Consumption | < 300 W | |
| Operating Temperature | -10°C to +45°C | |
| Storage Temperature | 20°C to +60°C | |
| Operating Humidity | 5% – 95% RH (Non-condensing) | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

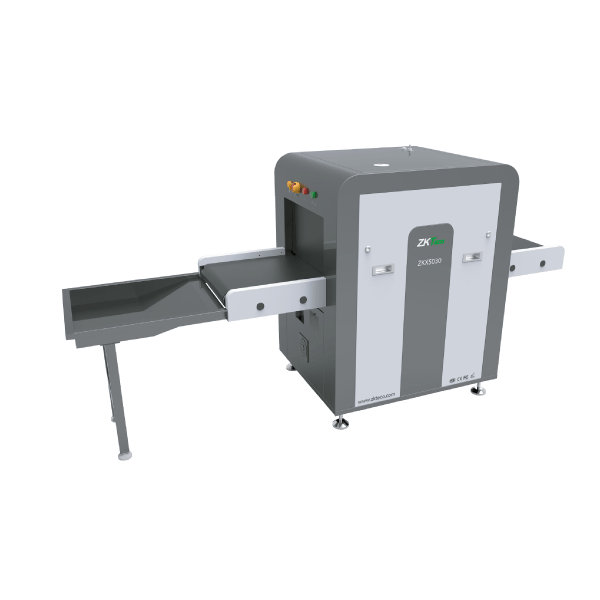

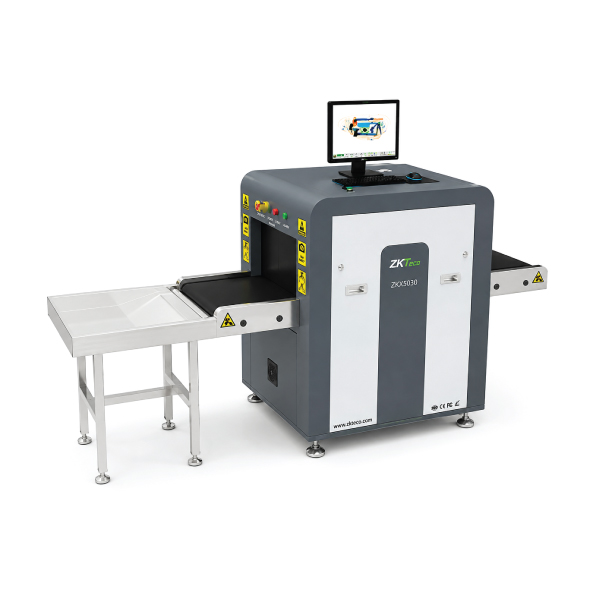

The ZKTeco ZKX5030C Dual-Energy X-ray Inspection System is a compact baggage and parcel scanner for hotels, shopping centres, stadiums, offices, factories and government facilities. Its 500 × 300mm tunnel handles briefcases, carry-on luggage and small packages, while dual-energy imaging helps trained operators interpret clear colour-based images.
For organizations researching the ZKTeco ZKX5030C price in Bangladesh, the current Touch IT listing is Call for price. Pricing may depend on stock, freight, installation, training, commissioning and software. The system combines a 120kg conveyor capacity, 140kV generator, 30mm steel penetration and TCP/IP communication.
The ZKX5030C moves baggage through an enclosed tunnel and produces a digital image for assessment by a trained operator. Its compact footprint suits limited spaces, while the tunnel accommodates common hand-carried bags and parcels. Browse other machines in the X-Ray Baggage Scanner category.
The dual-energy detector creates colour-differentiated images for interpreting organic, inorganic and mixed materials. It provides more visual information than basic single-energy imaging. Results still depend on training, image quality and site procedures.
The tunnel accommodates briefcases, backpacks, carry-on baggage and small packages. A 650mm conveyor height supports loading, while the 0.20m/s belt maintains a steady workflow.
The conveyor accepts up to 120kg when weight is adequately distributed, supporting dense parcels and routine baggage. Operators must follow loading and maintenance requirements. Explore related equipment on the ZKTeco Products page.
The current specification publishes 36AWG wire resolution, 30AWG penetration resolution, 30mm steel penetration and Φ1.3mm horizontal and vertical spatial resolution. Results vary with object arrangement and density.
Functions include colour, black-and-white, inverse, penetration and material-enhancement views, brightness adjustment and zoom up to 64×. Baggage counting, TIP, density alerts, training and image export support operator workflows. Visit Security Inspection Solutions.
RJ45 TCP/IP and ZKBio SIS compatibility support centralized management when licensed and configured. The computer uses Windows 10, 8GB RAM, a 128GB SSD and 2TB HDD, storing up to 200,000 images.
| Product Name | ZKTeco ZKX5030C X-ray Inspection System |
|---|---|
| Detector and View | Dual-energy detector, single view |
| Tunnel Size | 500 × 300mm |
| Conveyor | 0.20m/s speed; 650mm height |
| Maximum Conveyor Load | 120kg with adequate distribution |
| X-ray Generator | 140kV anode voltage; 0.3mA tube current |
| Image Performance | 36AWG wire resolution; 30AWG penetration resolution |
| Steel Penetration | 30mm |
| Spatial Resolution | Horizontal Φ1.3mm; vertical Φ1.3mm |
| Software and Network | ZKBio SIS support; RJ45 TCP/IP |
| Computer and Storage | Windows 10, 8GB RAM, 128GB SSD + 2TB HDD |
| Image Capacity | Up to 200,000 scanned images |
| Dimensions and Weight | 1701 × 796 × 1150mm; 380kg net |
| Power and Temperature | 110/220VAC, 50/60Hz; below 300W; -10°C to +45°C |
| Safety and Certifications | ASA/ISO1600 film safety; CE-EMC, CE-MD, FCC sDOC and FDA |
Verification note: Older listings publish a 507 × 305mm tunnel, 730mm conveyor height, 38AWG resolution, 32mm penetration and 1kVA consumption. ZKTeco’s 2025 page and datasheet publish the values above. Confirm the console, monitor, options, software, installation and training package.
This model provides dual-energy colour imaging for carry-on baggage and small parcels without a large cargo-scanner footprint. It combines detailed imaging, network connectivity, local storage and a 120kg conveyor. Explore integrated options under Security System Solutions.
| Model | Imaging and Tunnel | Best For |
|---|---|---|
| ZKX5030C | Dual-energy, 500 × 300mm | Detailed small-baggage and parcel screening |
| ZKTeco ZKX5030A | Single-energy, 500 × 300mm | Cost-focused compact screening projects |
| ZKTeco ZKX6550A | Single-energy, larger 665 × 505mm tunnel | Larger baggage and package inspection |
It is designed for briefcases, backpacks, carry-on baggage and small cargo packages that fit within its 500 × 300mm tunnel.
Dual-energy imaging provides colour differentiation between material categories, giving trained operators more information when evaluating an image.
The published maximum is 120kg when the load is adequately distributed across the conveyor.
Yes. It provides TCP/IP connectivity and supports ZKBio SIS, subject to compatible licensing, configuration and network infrastructure.
The current manufacturer specification lists storage for up to 200,000 scanned images.
Yes. Effective image interpretation and safe operation require trained personnel following the manufacturer’s instructions and the organization’s approved procedures.
Installation, commissioning, site preparation, operator training and software licensing depend on the quoted package and should be confirmed before ordering.
Touch IT supplies professional security inspection systems in Bangladesh with project consultation, site planning, installation coordination, commissioning guidance and after-sales technical support. The team can help verify access width, floor loading, electrical supply, operator workspace and software requirements before deployment.
Upgrade small-baggage screening with dual-energy imaging, detailed image processing, network management and a compact 500 × 300mm tunnel. Order the ZKTeco ZKX5030C Dual-Energy X-ray Inspection System from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
