| General | ||
| Tunnel Size | W507 mm × H305 mm | |
| Conveyor Speed | 0.20 m/sc | |
| Conveyor Load | ≤120 kg (adequate distribution) | |
| Conveyor Height | 1000 mm | |
| View | Single View X-ray Imaging | |
| Supported Software | High density alarm, TIP, Luggage counter, System running timer, X-ray emitting timer, System maintenance, Operator training, 64× continuous zoom | |
| Package Dimensions (L*W*H) | 1900 mm × 990 mm × 1320 mm | |
| Net Weight | 410 kg | |
| Film Safety | ASA/ISO1600 film safety standard | |
| X-ray System | ||
| Anode Voltage | 80 kV | |
| Wire Resolution | 34 AWG (0.16 mm metal wire) | |
| Steel Penetration | 8 mm steel board | |
| Spatial Resolution | Horizontal: Φ1.0 mm Vertical: Φ2.0 mm |
|
| Penetration Resolution | 32 AWG | |
| Generator Cool | Seal oil cooling / 100% duty cycle | |
| X-ray converter type | Single-energy detector (not explicitly named) | |
| Computer Specification | ||
| Monitor | 17-inch LED monitor | |
| Operating Environment | ||
| Power Supply | AC input 100V–120V or 200V–240V, 50/60 Hz | |
| Power Consumption | 1 kVA | |
| Noise Level | 53.8 dB(A) | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

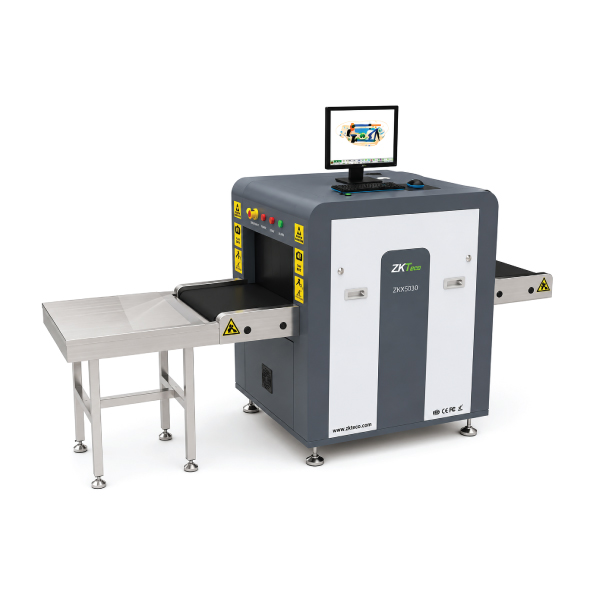

The ZKTeco ZKX5030A Single-Energy X-ray Baggage Scanner is a compact inspection system for briefcases, hand luggage, parcels and small cargo packages. Its 500 × 300 mm tunnel and operator-focused image tools suit offices, hotels, courts, factories, educational institutions and transport facilities in Bangladesh.
For organizations comparing the ZKTeco ZKX5030A price in Bangladesh, the current price at Touch IT is ৳1,180,000. It combines single-energy imaging, a 120 kg distributed conveyor-load rating and storage for up to 200,000 images. Confirm stock, site preparation, training and warranty before ordering.
The ZKX5030A provides efficient screening without the footprint of a cargo-class scanner. Items pass through the tunnel while the system creates an X-ray image for a trained operator to review. Its compact chassis suits reception areas, staff entrances and parcel checkpoints.
The tunnel accommodates carry-on belongings, document bags, briefcases and smaller parcels. It is practical where space is limited. Compare other tunnel sizes in the X-ray Baggage Scanner category.
The single-energy, single-view design displays the internal structure of scanned items for operator assessment. Colour or grayscale presentation, high- and low-penetration views, inverse display, brightness adjustment and zoom help users examine areas requiring closer attention.
The conveyor runs at 0.20 m/s and supports 120 kg when weight is adequately distributed. Its 650 mm height should be considered when planning tables, barriers and queuing equipment.
Published performance includes 36 AWG wire resolution, 30 AWG penetration resolution and 8 mm steel penetration. Spatial resolution is Φ1.3 mm horizontally and Φ1.0 mm vertically. Interpretation still depends on item composition, placement and operator training.
The Windows 10 platform uses 8 GB RAM, a 128 GB SSD and 2 TB HDD, storing up to 200,000 images. RJ45 TCP/IP and ZKBio SIS support approved centralized workflows. Explore compatible systems on the ZKTeco Products page.
The sealed oil-bath generator uses forced-air cooling, and film safety is rated to ASA/ISO 1600. Plan a coordinated entrance with Security Inspection Solutions and broader Security System Solutions.
| Product Name | ZKTeco ZKX5030A X-ray Baggage Scanner |
|---|---|
| Inspection System | Single-energy, single-view |
| Tunnel Size | 500 × 300 mm |
| Conveyor | 0.20 m/s; 120 kg maximum distributed load; 650 mm height |
| X-ray Generator | 80 kV, 0.6 mA; vertically upward beam |
| Wire Resolution | 36 AWG |
| Penetration | 8 mm steel; 30 AWG penetration resolution |
| Spatial Resolution | Horizontal Φ1.3 mm; vertical Φ1.0 mm |
| Operating Platform | Windows 10, 8 GB RAM |
| Storage | 128 GB SSD + 2 TB HDD; up to 200,000 images |
| Communication | RJ45 TCP/IP; ZKBio SIS support |
| Dimensions | 1701 × 796 × 1150 mm |
| Net / Gross Weight | 340 kg / 410 kg |
| Power | 110/220 VAC ±10%, 50/60 Hz; consumption under 300 W |
| Environment | -10°C to +45°C operating; noise below 58 dB(A) |
Verification note: Current ZKTeco documentation lists a 500 × 300 mm tunnel, 650 mm conveyor height, 36 AWG resolution and consumption below 300 W. Older regional pages show 507 × 305 mm, 730 mm, 34 AWG and 1 kVA. This page follows current documentation. Confirm accessories, software, installation and warranty with the supplier.
This model suits organizations needing a compact X-ray bag scanner for controlled entrances and small parcels. It balances a useful tunnel, 120 kg conveyor capacity, image tools and network-ready management. It is an operator-assisted inspection system, not an automatic guarantee that every restricted item will be identified.
| Model | Imaging | Tunnel | Best For |
|---|---|---|---|
| ZKX5030A | Single-energy | 500 × 300 mm | Compact routine baggage and parcel screening |
| ZKTeco ZKX5030C | Dual-energy | 500 × 300 mm | More detailed material-based colour imaging |
| ZKTeco ZKX6550A | Single-energy | 665 × 505 mm | Larger bags and higher-capacity checkpoints |
Its 500 × 300 mm tunnel accepts briefcases, carry-on bags, parcels and small cargo packages that fit within the stated limits.
It produces an image from one X-ray energy range. Operators assess density, shape, placement and enhanced image views.
The manufacturer specifies a maximum load of 120 kg, provided the weight is adequately distributed across the conveyor.
Yes. The published configuration stores up to 200,000 images using a 128 GB SSD and 2 TB hard drive.
Yes. It provides RJ45 TCP/IP and supports ZKBio SIS. Confirm licensing and server requirements with the supplier.
ZKTeco specifies film safety up to ASA/ISO 1600 under the manufacturer’s stated operating conditions.
Yes. Plan power, floor space, delivery access, queuing, operating procedures and trained personnel before commissioning.
Touch IT supplies professional security inspection equipment in Bangladesh with consultation, site-planning guidance, delivery coordination, installation support and after-sales assistance. The team can verify tunnel suitability, software requirements and package contents before procurement.
Improve baggage and parcel screening with a compact single-energy X-ray inspection system built for professional checkpoints. Order the ZKTeco ZKX5030A Single-Energy X-ray Baggage Scanner from Touch IT, visit the showroom at Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
