| General | ||
| Tunnel Size | 650 × 500 mm | |
| Conveyor Speed | 0.20 m/s | |
| Conveyor Load | 120 kg, Adequate Distributed Load | |
| Conveyor Height | 650 mm | |
| Detector | Dual-Energy Detector | |
| View | Single-View | |
| Supported Software | ZKBio SIS | |
| Communication Interface | RJ45 TCP/IP | |
| Dimensions (L*W*H) | Main Unit: 2120 × 980 × 1381 mm; Console: 747 × 706 × 1279 mm | |
| Package Dimensions (L*W*H) | Main Package: 2395 × 1195 × 1680 mm; Console Package: 890 × 840 × 1502 mm | |
| Net Weight | 560 kg + 100 kg Console | |
| Gross Weight | 680 kg + 140 kg Console, With Package | |
| Film Safety | ASA / ISO1600 | |
| Certifications | CE-EMC, CE-MD, FCC sDOC, FDA | |
| X-ray System | ||
| Anode Voltage | 140kV | |
| Tube Current | 0.5mA | |
| Wire Resolution | 36AWG | |
| Steel Penetration | 30 mm | |
| Spatial Resolution | Horizontal Φ1.6 mm / Vertical Φ1.3 mm | |
| Penetration Resolution | 32AWG | |
| Generator Cool | Sealed Oil Bath with Forced Air | |
| Beam Direction | Vertically Upward | |
| X-ray converter type | L-Shaped Detector Line | |
| Computer Specification | ||
| Operating System | Windows 10 | |
| RAM | 8GB | |
| Hard Drive | 128GB SSD + 2TB HDD | |
| Max. Storage | Up to 200,000 Scanned Images | |
| Operating Environment | ||
| Power Supply | 220 VAC ±10%, 50/60Hz; 110 VAC ±10%, 50/60Hz | |
| Power Consumption | <300W | |
| Operating Temperature | -10°C to +45°C | |
| Storage Temperature | -20°C to +60°C | |
| Operating Humidity | 5% to 95%, Non-Condensing | |
| Noise Level | <58dB(A) | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

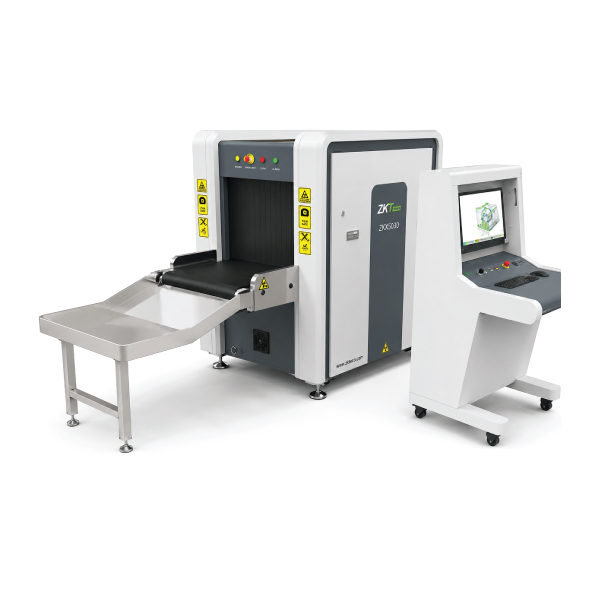

The ZKTeco ZKX6550 Dual-Energy X-ray Baggage Scanner is a professional inspection system for briefcases, carry-on luggage and small cargo parcels. Its 650 × 500 mm tunnel, dual-energy detection and operator console suit hotels, transport hubs, government offices, factories and logistics centres in Bangladesh.
Organizations comparing the ZKTeco ZKX6550 price in Bangladesh can request a Touch IT quotation because the current price is Call for price. Project cost may depend on availability, delivery, software, installation, training and support. Contact the sales team for a site-specific proposal.
The ZKX6550 creates a clear internal view of scanned bags for assessment by trained personnel. Its dual-energy generator provides more visual information than a single-energy system, while the tunnel handles common luggage and parcel formats.
The dual-energy detector and image algorithm improve differentiation within overlapping contents. Operators can assess shape, density and material characteristics, but correct interpretation still requires approved procedures and training.
The tunnel accommodates briefcases, backpacks, carry-on luggage and suitable cargo packages. Its conveyor runs at 0.20 m/s and supports 120 kg when adequately distributed. Compare other systems in the X-ray Baggage Scanner category.
ZKTeco publishes 36 AWG wire resolution, 32 AWG penetration resolution and 30 mm steel penetration. Spatial resolution is Φ1.6 mm horizontally and Φ1.3 mm vertically, providing useful comparison criteria.
The Windows 10 system includes 8 GB RAM, a 128 GB SSD and 2 TB hard drive. It stores up to 200,000 images for authorized review. Explore related equipment on the ZKTeco Products page.
RJ45 TCP/IP and ZKBio SIS support approved centralized projects. ZKTeco also describes biometric operator identification. Confirm authentication hardware, software licensing and integration scope before procurement.
The manufacturer lists ASA/ISO 1600 film safety, radiation leakage below 0.5 μSv/h at 10 cm, power consumption below 300 W and noise below 58 dB(A). Plan a coordinated checkpoint through Security Inspection Solutions and broader Security System Solutions.
| Product Name | ZKTeco ZKX6550 X-ray Baggage Scanner |
|---|---|
| Inspection System | Dual-energy detector, single-view imaging |
| Tunnel Size | 650 × 500 mm (W × H) |
| Conveyor | 0.20 m/s; 120 kg maximum distributed load; 650 mm height |
| X-ray Generator | 140 kV, 0.5 mA; vertically upward beam |
| Image Performance | 36 AWG wire resolution; 30 mm steel penetration |
| Spatial Resolution | Horizontal Φ1.6 mm; vertical Φ1.3 mm |
| Penetration Resolution | 32 AWG |
| Operating Platform | Windows 10; 8 GB RAM |
| Storage | 128 GB SSD + 2 TB HDD; up to 200,000 images |
| Communication | RJ45 TCP/IP; ZKBio SIS support |
| Machine Dimensions | 2120 × 980 × 1381 mm |
| Net Weight | 560 kg machine + 100 kg console |
| Power | 110/220 VAC ±10%, 50/60 Hz; consumption below 300 W |
| Environment | -10°C to +45°C; 5–95% RH, non-condensing |
Verification note: ZKTeco’s current global page lists a 650 × 500 mm tunnel, 120 kg conveyor load, 140 kV generator, 36 AWG resolution, 30 mm penetration and consumption below 300 W. Older regional documents and many retailers show 655 × 505 mm, 180 kg, 150 kV, 40 AWG, 38 mm and 1 kVA. This page follows the current specification. Confirm monitor, biometric console, accessories, software, installation and warranty for the supplied package.
This model combines dual-energy screening, a medium-size tunnel and substantial image storage. Its 140 kV generator and 30 mm published steel penetration outperform compact entry-level scanners. Operation requires trained personnel and applicable safety procedures.
| Model | Imaging | Tunnel | Best For |
|---|---|---|---|
| ZKX6550 | Dual-energy | 650 × 500 mm | Medium luggage and small cargo screening |
| ZKTeco ZKX6550A | Single-energy | 650 × 500 mm | Economical routine inspection |
| ZKTeco ZKX5030C | Dual-energy | 500 × 300 mm | Compact checkpoints and smaller parcels |
It is designed for briefcases, carry-on luggage and small cargo parcels that fit safely within its 650 × 500 mm tunnel.
Yes. ZKTeco specifies a dual-energy detector and generator with a single inspection view.
The current manufacturer specification lists a 120 kg maximum load when weight is adequately distributed.
The published configuration stores up to 200,000 images using a 128 GB SSD and 2 TB hard drive.
Yes. It supports ZKBio SIS and RJ45 TCP/IP communication, subject to compatible licensing and network configuration.
ZKTeco describes a biometric identification function. Confirm the included console hardware and authentication method for the supplied configuration.
Plan delivery access, floor loading, power, networking, operator position, queuing, training, safety compliance and maintenance clearance.
Touch IT supplies professional X-ray baggage scanners in Bangladesh with consultation, project planning, delivery coordination, installation support and after-sales assistance. The team can verify tunnel suitability, software requirements and package contents.
Strengthen baggage and parcel screening with dual-energy imaging and a spacious inspection tunnel. Order the ZKTeco ZKX6550 Dual-Energy X-ray Baggage Scanner from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
