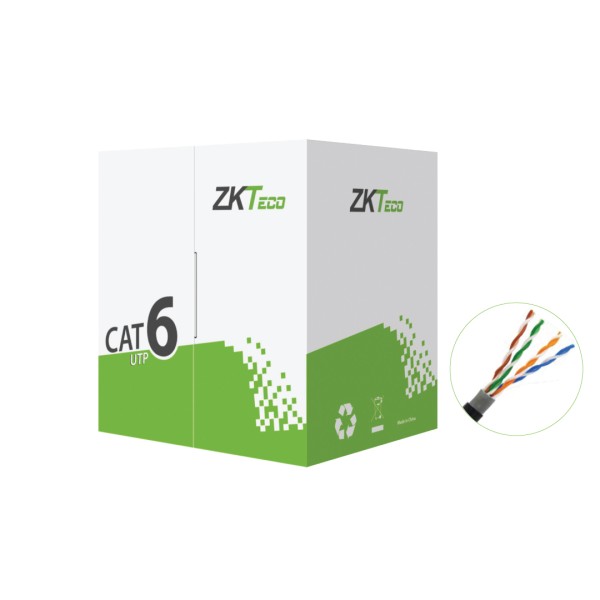

ZKTeco XL600-C-B-L CAT 6 UTP Outdoor Network Cables

ZKTeco XL600-C-B-L CAT 6 UTP Outdoor Network Cables

The ZKTeco XL600-C-B-L CAT 6 UTP Outdoor Network Cable is a high-performance data transmission solution designed to deliver exceptional speed, stability, and durability for demanding outdoor networking environments. Whether used for CCTV systems, IP cameras, PoE devices, or enterprise networking, this cable provides superior signal quality and reliability, making it ideal for both residential and commercial installations. Engineered with robust materials and advanced construction, it ensures stable network performance even in harsh weather conditions.

The XL600-C-B-L belongs to ZKTeco’s Lite Series, offering excellent value while maintaining the high quality required for modern networking infrastructure. It supports frequencies up to 250 MHz and delivers fast, uninterrupted data transfer speeds suitable for Gigabit Ethernet applications. Its outdoor-rated PE jacket provides strong resistance against moisture, UV rays, and temperature fluctuations, ensuring long-lasting performance in exposed installations.

Key Features & Technical Highlights

The ZKTeco XL600-C-B-L CAT 6 UTP Cable is built with 4 pairs of twisted copper-clad aluminum conductors (24 AWG), each with a diameter of 0.5 mm ± 0.015 mm. Its advanced insulation uses HDPE with an average thickness of 0.9 mm ± 0.05 mm, ensuring excellent electrical performance and signal integrity over long distances. The cable features a dual-layer construction with a PVC inner sheath and a PE outer jacket (6.4 mm ± 0.15 mm), giving it extra protection in outdoor installations.

Electrically, it provides low conductor resistance of ≤ 9.38 Ω / 100 M at 20°C and an impressive insulation resistance of ≥ 5000 mega ohms-km, ensuring minimal signal loss. The cable is tested to withstand 1000 VDC for 1 minute without breakdown, making it highly durable and safe. It also maintains a delay difference of ≤ 45 ns and operates reliably at 250 MHz, fully compliant with CAT 6 standards. With an impedance of 100 Ω ± 20 Ω, the XL600-C-B-L guarantees stable transmission for high-speed data networks.

The cable’s mechanical design includes a nylon filler and PE separator, providing superior structural integrity and reducing crosstalk between pairs. It has excellent tensile strength and elongation properties (jacket tensile strength ≥ 13.5 Mpa, elongation ≥ 300%), making it resistant to stretching and bending during installation. With an operational temperature range of -20°C to +60°C, it is ideal for use in outdoor and semi-industrial environments. The cable is available in standard 305-meter pull box packaging, ensuring convenience and flexibility during installation.

Why Buy the ZKTeco XL600-C-B-L CAT 6 UTP Cable from Touch IT?

When you purchase the ZKTeco XL600-C-B-L CAT 6 UTP Outdoor Network Cable from Touch IT, you’re choosing a trusted source for genuine, high-quality networking products in Bangladesh. As an authorized seller of ZKTeco solutions, Touch IT ensures you get original products with reliable performance, competitive pricing, and expert support. Whether you’re setting up a professional security system, expanding an enterprise network, or upgrading an existing infrastructure, this CAT 6 cable delivers the performance and durability you need.

Our team provides professional installation support, ensuring optimal performance for high-speed data transmission in outdoor environments. With its robust build, superior electrical properties, and compliance with industry standards, the ZKTeco XL600-C-B-L is the perfect choice for long-term, stable networking solutions. Choose Touch IT to get the best products, expert guidance, and trusted after-sales service for your networking and security projects.
