| Interface | ||
| Ethernet | 8 × Gigabit PoE Ethernet Ports, 2 × Gigabit RJ45 Uplink Ethernet Ports | |
| Power | AC Input 100–240 V, 50–60Hz | |
| Performance | ||
| Bandwidth | 20 Gbps | |
| MAC Address | 2K | |
| Packet Buffer | 14.88 Mpps | |
| Throughput | 448 K | |
| Transfer Mode | Store & Forward | |
| Standard | ||
| Network Protocol | IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-TX), IEEE 802.3x (Flow Control) | |
| PoE Protocol | IEEE 802.3af (15.4W), IEEE 802.3at (30W), PoE Output Voltage: DC 52V, Power Supply Core: 1/2+; 3/6 | |
| Network Medium | 10Base-T: Cat3/4/5 or above UTP (≤100m) 100Base-TX: Cat5 or above UTP (≤100m) 1000Base-TX: Cat5 or above UTP (≤100m) |
|
| Function | ||
| LED Indicators | PWR Indicator, 1–10 Green Light (Link & Data) | |
| POE LED Buttons | Dual-color LED: Green (Link/Data), Yellow (PoE Status) | |
| PWR | On: Powered On, Off: Powered Off | |
| DIP Switch | ||
| DIP Switch | VLAN Mode: Ports 1–8 isolated, communicate only with uplink ports (PoE Watchdog enabled) Default Mode: All ports communicate, 10/100/1000Mbps adaptive, PoE Watchdog disabled Extend Mode: Ports 7–8 forced 10Mbps, transmission distance up to 220m (PoE Watchdog enabled) |
|
| Physical Specifications | ||
| Dimension | Product Dimension: 220 × 161 × 44 mm Package Dimension: 315 × 215 × 85 mm |
|
| POE power | Maximum PoE Power Output: 110 W | |
| Power | Mainboard Power Consumption: ≤10 W | |
| Power Voltage | Input: AC 100–240 V, Supply Power: 52V / 2.3A | |
| Weight | Net Weight: 0.88 kg, Gross Weight: 1.38 kg | |
| Warranty | ||
| Warranty | 1-Year Brand Warranty | |

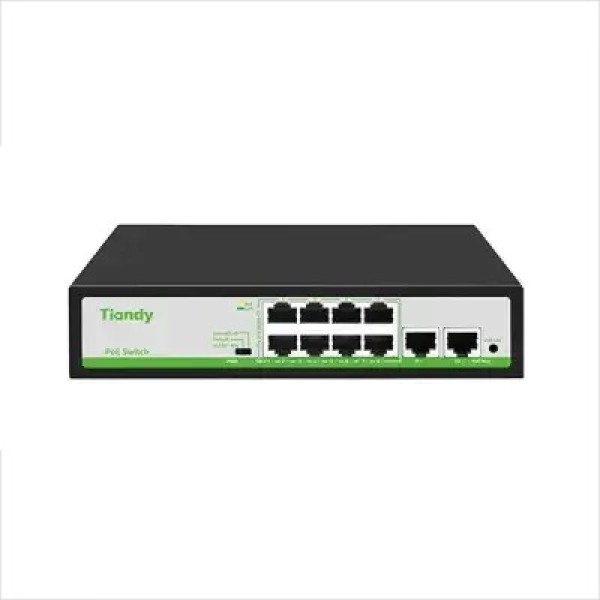

The Tiandy TC-P3S010 Giga PoE Switch is a reliable and cost-effective networking solution designed for IP cameras, NVRs, access points, and small to medium surveillance systems. Built for stability and efficiency, this PoE switch delivers smooth data transmission, smart power management, and flexible network control—making it a perfect fit for modern security and networking setups.
Designed to power multiple devices effortlessly, this Tiandy TC-P3S010 Giga PoE Switch supports both IEEE 802.3af and IEEE 802.3at standards, delivering up to 90W total PoE power. With a bandwidth of 2Gbps and store-and-forward transmission, it ensures stable data flow, reduced packet loss, and dependable performance for IP cameras and network devices.
The Tiandy TC-P3S010 Giga PoE Switch comes with an intelligent DIP switch that allows you to customize your network based on application needs. VLAN mode enhances security through port isolation, Extend mode supports long-distance transmission up to 220 meters, and Default mode enables smooth communication across all ports. The built-in PoE Watchdog (AI mode) automatically reboots unresponsive devices, ensuring uninterrupted operation.
Built to perform in demanding environments, this Tiandy TC-P3S010 Giga PoE Switch features industrial EMS protection against ESD and power surges. Its wide operating temperature range and durable construction make it suitable for continuous 24/7 use in offices, shops, warehouses, and surveillance installations.
User-friendly LED indicators display power status, network activity, and PoE usage at a glance. With plug-and-play installation and adaptive 10/100Mbps ports, the TC-P3S010 reduces setup time while maintaining professional-grade performance.
High-performance PoE switching, intelligent power delivery, long-distance transmission, and industrial-level protection—the Tiandy TC-P3S010 Giga PoE Switch combines all three to deliver a dependable networking solution optimized for security systems and business networks.
When you purchase the Tiandy TC-P3S010 Giga PoE Switch from Touch IT, you get genuine products, competitive pricing, expert support, and a 1-year brand warranty. Touch IT is your trusted source in Bangladesh for professional networking and surveillance solutions—ensuring quality, reliability, and peace of mind with every purchase.
The latest price of Tiandy TC-P3S010 Giga PoE Switch in Bangladesh is 6,200৳. You can buy the Tiandy TC-P3S010 Giga PoE Switch at best price from our website or visit any of our showrooms.
