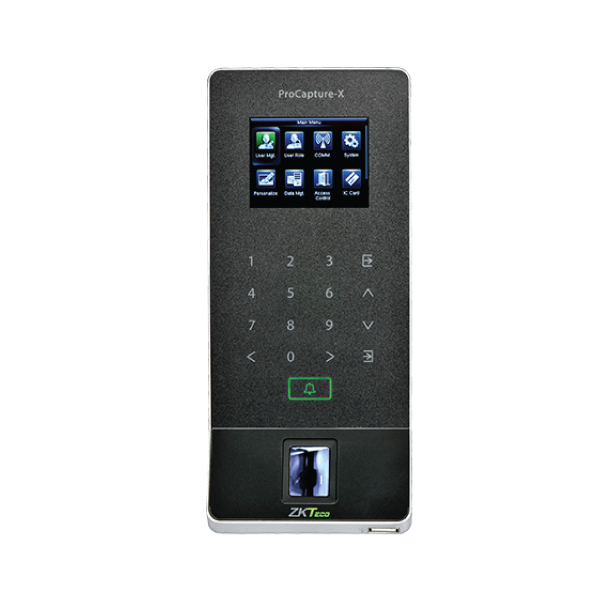

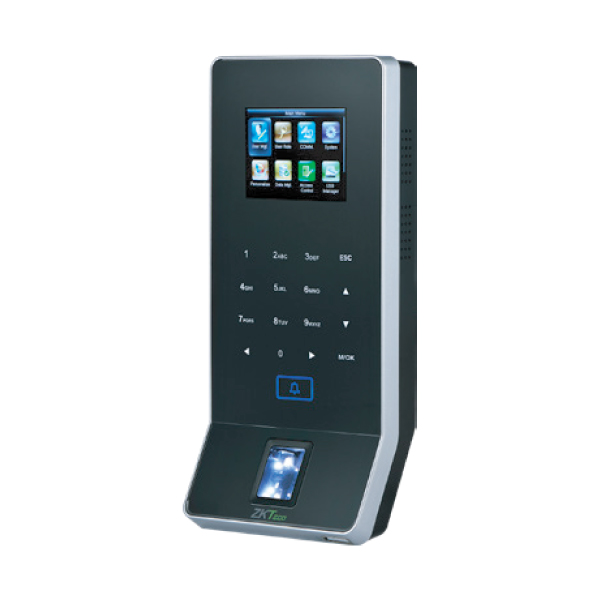

ZKTeco ProCapture-X Fingerprint Access Control Terminal

Call for Price
Product Highlights
  • Brand: ZKTeco
  • Model: ProCapture-X
  • Fingerprint, RFID Card & Password Access
  • 20K Prints, 50K Cards & 500K Records
  • Live Finger Detection & 2.4-Inch TFT
  • TCP/IP, PoE, RS485, Wiegand & Door Control

Call for Price

remove add
Display & Camera
Display Type & Size2.4-inch TFT LCD Screen
Main Features & System
Operating System / PlatformEmbedded Linux-Based Access Control System
Processor (CPU)1.2 GHz High-Speed Processor
System ArchitectureStandalone & Panel-Integrated Fingerprint Access Control Terminal
Storage Capacity128 MB RAM / 256 MB Flash Memory
Supported AlgorithmsZKFinger V10.0
Standard System FunctionsAccess Levels, Groups, Holidays, DST, Bell Schedule, Duress Mode, Anti-Passback, Record Query, Custom Wallpaper & Screen Saver
User & Credential Capacity
Fingerprint CapacityUp to 20,000 Fingerprints
Card (ID) CapacityUp to 50,000 Cards
Biometric & Authentication
Authentication MethodsFingerprint / Card / PIN (Touch Keypad)
Fingerprint Sensor TypeZ-ID Optical Fingerprint Sensor (Live Finger Detection)
Fingerprint Recognition Mode1:N Identification
Biometric AlgorithmZKFinger V10.0
Communication & Connectivity
Network Interface (Ethernet)TCP/IP (PoE Supported – IEEE 802.3at)
Wireless Connectivity (Wi-Fi)Optional
Communication ProtocolsTCP/IP, RS485 (Fingerprint & Card Reader), USB Host
Wiegand InterfaceWiegand Input & Output (Slave Reader Support)
Access Control Interfaces (Lock, Exit Button, Door Sensor)Lock Relay Output, Alarm Output, Auxiliary Input, Exit Button, Door Sensor, Security Relay Box
SDK & API SupportCompatible with ZKBioSecurity Software
Physical & Environmental Specifications
Installation Environment (Indoor / Outdoor)Indoor / Semi-Outdoor
Power SupplyDC 12V, 3A / PoE (IEEE 802.3at)
Power ConsumptionCurrent Draw < 500 mA
Operating Temperature0°C to 45°C
Dimensions (H × W × D)200.5 × 88.5 × 28.7 mm
Software & Firmware
API FunctionalitiesZKBioSecurity API Integration
Device & Cloud Management PlatformZKBioSecurity
Platform / Management SoftwareZKBioSecurity
Standard Firmware FeaturesMultiple Verification Modes, Alive Finger Detection, Anti-Passback, Duress Mode
Audio & Interface
Audio SupportHi-Fi Voice Prompt & Beeper Indicator
Built-in Microphone / SpeakerBuilt-in Speaker (Voice Prompt)
Compliance & Warranty
Manufacturer Warranty1-Year Manufacturer Warranty

ZKTeco ProCapture-X Fingerprint Access Control Terminal

At a busy staff entrance, a reader should recognize enrolled users and record each event. The ZKTeco ProCapture-X Fingerprint Access Control Terminal combines fingerprint, RFID card and password verification with a large database and door-control connections. It suits offices, factories and institutions managing many users.

Checking the ZKTeco ProCapture-X price in Bangladesh? Touch IT lists it as Call for Price. Request a quotation for the reader revision, card type, software and door hardware. Wi-Fi and some card options vary by configuration.

Quick Highlights

  • Verification: Fingerprint, compatible RFID card and password combinations
  • Capacity: 20,000 fingerprints, 50,000 cards and 500,000 transaction records
  • Fingerprint technology: Live finger detection and improved reading of dry, wet or rough fingers
  • Display: 2.4-inch TFT LCD with touch keypad and voice prompts
  • Network and power: TCP/IP with IEEE 802.3at PoE or suitable 12V DC supply
  • Integration: RS485, USB host, Wiegand input/output and door-control interfaces

Product Overview

ProCapture-X is an access control terminal for entrances requiring more than a card reader. Users present a finger, card or password according to configured rules. The terminal can control a suitable lock or work with compatible Wiegand panels. Administrators review events in supported software.

Its capacity suits multi-department businesses, campuses and factory administration areas in Bangladesh. Plan credentials carefully: 20,000 fingerprint templates do not mean 20,000 people if several fingers are enrolled per person.

Key Features and Benefits

Fingerprint Recognition for Everyday Use

ZKTeco describes reading dry, wet and rough fingers, with live finger detection to help resist simple spoof attempts. Newer regional material says Z-ID or Z-ID+; an older datasheet says SilkID. Confirm the hardware revision. Good enrollment, a clean sensor and a fallback method still matter.

PoE for a Cleaner Network Run

IEEE 802.3at Power over Ethernet carries device power and data from a compatible source. This helps where a separate terminal power run is inconvenient. Check the PoE budget and lock's electrical needs; terminal power does not necessarily cover every door accessory. A 12V DC, 3A supply is another documented method.

Door Policies Beyond a Basic Reader

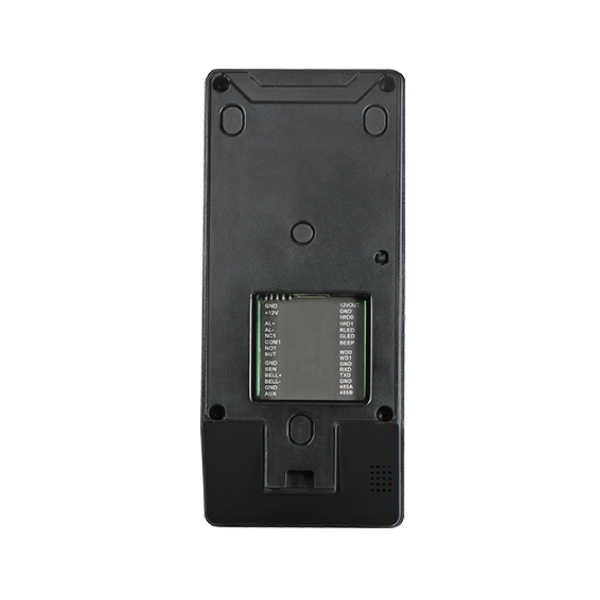

Access levels, groups, holidays, duress mode and anti-passback can support different rules for staff and restricted areas. Lock relay, exit button, door sensor, alarm and security relay box connections support professional installation. Wiegand input/output and RS485 provide options for compatible secondary readers and controllers. Configure each rule and test it against the actual door arrangement before going live.

Large Records and Software Planning

The documented 500,000 transaction capacity helps a multi-door or high-traffic site retain event history on the terminal. ZKTeco lists compatibility with ZKBioSecurity and provides TCP/IP and USB host communications. Confirm firmware, software licensing, data export and attendance reporting with your project team, especially if records must flow into HR or payroll software.

Recommended Applications

  • Corporate offices and restricted departmental doors
  • Factory administration and warehouse staff entrances
  • School, college and hospital staff-only areas
  • Buildings with existing Wiegand access-control panels

If users must verify when leaving, review the exit reader range. A complete security system may also need a lock, power supply, exit button, cabling and compatible software.

Technical Specifications

ModelZKTeco ProCapture-X
AuthenticationFingerprint, supported card and password
Credential capacity20,000 fingerprint templates; 50,000 cards
Transaction capacity500,000 records
Display2.4-inch TFT LCD with touch keypad
CommunicationTCP/IP, RS485, USB host, Wiegand input/output; Wi-Fi optional
Access interfacesLock relay, alarm/auxiliary input, exit button, door sensor, security relay box
PowerIEEE 802.3at PoE or 12V DC, 3A
Operating temperature0°C to 45°C

Configuration note: The manufacturer documents a standard 125 kHz EM reader and optional IC/MIFARE support. Verify the supplied card module, sensor revision, optional Wi-Fi and included power accessories. No outdoor ingress-protection rating was confirmed for this model.

ZKTeco ProCapture-X Product Comparison

ModelMain differenceSuitable project
ProCapture-X20,000 fingerprints, PoE and large transaction storageHigh-capacity fingerprint door access
ZKTeco F18Compact fingerprint terminal with a smaller listed capacitySmaller office doors
ZKTeco F35Fingerprint access with camera and intercom featuresDoors needing video communication
SpeedFace V5LAdds face verification to its biometric choicesEntrances seeking a touch-free option

Explore more ZKTeco access control devices before choosing the right authentication method and door hardware.

Frequently Asked Questions

Does ProCapture-X support PoE?

Yes. ZKTeco specifies IEEE 802.3at PoE for the terminal. Confirm the switch, cable and separate lock-power requirements with the installer.

How many fingerprints can it store?

It stores up to 20,000 fingerprint templates. The number of people served depends on how many fingers are enrolled for each user.

Can I use MIFARE cards?

IC/MIFARE support is an optional reader configuration. Check your existing cards and confirm the supplied module before ordering.

Is Wi-Fi built in?

Wi-Fi is listed as optional. Wired TCP/IP is documented; request a Wi-Fi-equipped configuration if wireless networking is essential.

Does it recognize faces?

No face-recognition feature is documented for ProCapture-X. Compare a compatible face terminal if contactless biometric entry is required.

Can it be installed outdoors?

No manufacturer IP rating was verified for this model. Use a protected location and confirm environmental requirements before installation.

Why Buy from Touch IT?

Touch IT serves buyers planning biometric access control in Dhaka and across Bangladesh. Share your door type, employee count, card technology and current software so the exact model and accessories can be checked. Browse other ZKTeco products for related equipment.

Request a ProCapture-X Quotation

Build a dependable fingerprint-controlled entrance with the ZKTeco ProCapture-X Access Control Terminal. Ask Touch IT to confirm stock, the reader version and the full installation scope for your site.

What is the price of ZKTeco ProCapture-X Access Control Terminal in Bangladesh?

The latest price of ZKTeco ProCapture-X Access Control Terminal in Bangladesh is 0৳. You can buy the ZKTeco ProCapture-X Access Control Terminal at best price from our website or visit any of our showrooms.
