In Stock
| Hardware | ||
| Product Type | OPS Slot-in PC Module | |
| Operating System | Windows 11 Enterprise, Not Activated | |
| Processor (CPU) | Intel Core i7-12650H; 10 Cores, 16 Threads; 2.3GHz Base, 4.7GHz Turbo | |
| RAM | 8GB DDR4, Expandable up to 32GB | |
| Internal Storage | 256GB SSD | |
| OPS Slot | Supported, Supplies Power via OPS Interface | |
| Display | ||
| Resolution | HDMI / DP Output Supports up to 3840 × 2160 @ 60Hz | |
| Refresh Rate | Up to 60Hz Output | |
| Connectivity | ||
| Wi-Fi | Wi-Fi 6E Supported via M.2 2230 WLAN Module | |
| Bluetooth | Bluetooth 5.2 | |
| Ethernet (LAN) | 1 × RJ45, 10/100/1000 Mbps | |
| Ports & Interfaces | ||
| HDMI Output | 1 × HDMI, Max. 3840 × 2160 @ 60Hz | |
| USB Type-A | 4 × USB 3.0; 2 × USB 2.0 | |
| USB Type-C | 1 × USB 3.0 Type-C | |
| RJ45 | 1 × RJ45, 10/100/1000 Mbps | |
| Audio Output | 1 × Line Out | |
| Power & Physical | ||
| Power Supply | DC 19V, Supplies Power via OPS Interface | |
| Power Consumption | Overall: ≤85W; Standby: ≤35W | |
| Product Dimensions | 195 × 180 × 30 mm | |
| Net Weight | 0.9 kg | |
| Operating Temperature | -10°C to 50°C | |
| Warranty | ||
| Warranty | 3 Years | |

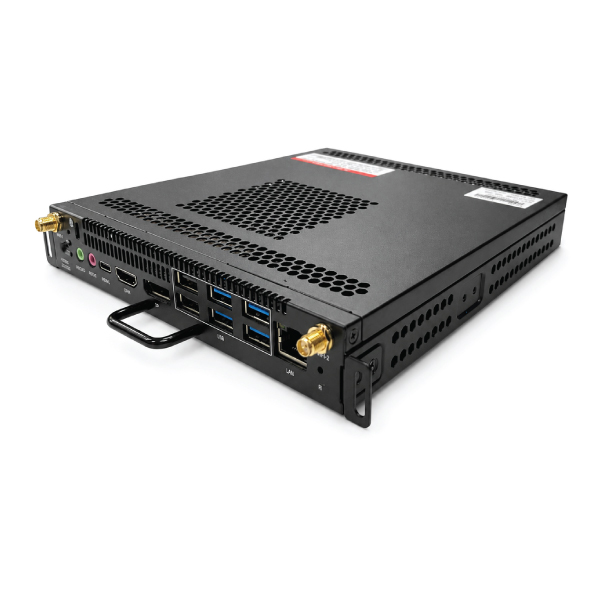

The Uniview HB-7099-SW Core i7 12th Gen OPS Module for Interactive Flat Panel is a compact, OPS-compliant computer that adds Windows to a compatible smart display. Designed for classrooms, conference rooms and training centres, it provides desktop computing without a separate tower PC.
For buyers comparing the Uniview HB-7099-SW price in Bangladesh, the current Touch IT price is ৳80,000. The module combines an Intel Core i7-12650H processor, 8GB DDR4 memory, a 256GB SSD, 4K output, Gigabit Ethernet and wireless expansion support. Confirm display compatibility, Windows activation and installation requirements before ordering.
The HB-7099-SW converts a compatible OPS-ready display into a self-contained Windows workstation. Users can run supported teaching software, office applications, browsers and conferencing tools on the touchscreen. This modular approach reduces desk clutter and integrates the computer with the display. Buyers can explore Touch IT’s interactive flat panel collection before selecting a screen and module combination.
The Intel Core i7-12650H provides 10 cores, 16 threads, a 2.3GHz base clock and up to 4.7GHz turbo frequency. It supports multitasking across presentations, documents, web applications and compatible communication software—useful when an Android-only workflow is insufficient.
The module includes 8GB DDR4 RAM, expandable to 32GB. Its 256GB SSD supports fast startup and local files. Confirm software memory requirements and approved upgrade components before installation. Browse other Uniview products for a coordinated display solution.
HDMI and DisplayPort support up to 3840 × 2160 at 60Hz for clear text, detailed images and smooth motion. The interfaces support synchronous and asynchronous display, offering flexibility for presentation or extended-screen workflows.
Four USB 3.0, two USB 2.0 and one USB 3.0 Type-C port connect supported accessories. Microphone and line-out ports handle audio, while Gigabit RJ45 provides wired networking. These connections suit modern office equipment deployments.
An M.2 2230 slot supports CNVi, Wi-Fi 6E and Bluetooth 5.2, with two dual-band antennas specified. The 195 × 180 × 30mm module receives DC 19V through the OPS interface. Intelligent fan control supports its compact design.
| Brand | Uniview |
|---|---|
| Model | HB-7099-SW; BOM 9801C2SA |
| Product Type | OPS-compliant pluggable PC module |
| Processor | Intel Core i7-12650H |
| Cores and Threads | 10 cores; 16 threads |
| Processor Frequency | 2.3GHz; up to 4.7GHz turbo |
| Memory | 8GB DDR4; expandable up to 32GB |
| Storage | 256GB SSD |
| Operating System | Windows 11 Enterprise, not activated |
| USB | 4 × USB 3.0; 2 × USB 2.0; 1 × USB 3.0 Type-C |
| Video Output | HDMI and DisplayPort; up to 3840 × 2160 at 60Hz |
| Network and Wireless | Gigabit RJ45; M.2 2230 supporting Wi-Fi 6E and Bluetooth 5.2 |
| Audio | 1 × microphone input; 1 × line output |
| Dimensions and Weight | 195 × 180 × 30mm; 0.9kg net |
| Power and Environment | DC 19V through OPS; ≤85W; -10°C to 50°C operation |
Windows 11 Enterprise is supplied but not activated, so a valid licence may be required. Confirm whether the wireless card is included locally. Although the module follows OPS standards, verify the connector, firmware and mechanical compatibility of the exact display revision. Installation should be handled by a qualified technician.
This space-saving Core i7 module provides expandable memory, SSD storage, USB connectivity, dual 4K outputs and modern networking. It suits users who need Windows applications without an external PC beside the screen.
Before purchasing an OPS PC for an interactive flat panel, confirm the display’s OPS connector, available installation space, firmware requirements and supported power rating. Decide whether 8GB RAM is sufficient for the intended applications or whether an approved memory upgrade is needed. Organizations should also plan Windows licensing, user accounts, security updates, endpoint protection and network access. Checking these points before deployment helps prevent compatibility problems and gives teachers or business users a more reliable Windows touchscreen experience.
It adds an integrated Windows computing environment for compatible OPS-ready displays.
It uses the Intel Core i7-12650H processor with 10 cores and 16 threads.
Yes. Uniview specifies 8GB DDR4 memory with expansion support up to 32GB.
No. The listed Windows 11 Enterprise installation is not activated.
Yes. HDMI and DisplayPort can each output up to 3840 × 2160 at 60Hz.
The M.2 2230 interface supports Wi-Fi 6E and Bluetooth 5.2, subject to the installed wireless card.
No. OPS compliance alone does not guarantee every panel revision is compatible; verify the exact display before ordering.
Touch IT supplies professional display and workplace technology with product consultation and after-sales technical support. The team can help confirm panel compatibility, Windows licensing, memory requirements and installation planning before deployment.
Add Core i7 Windows computing to a compatible interactive display with a clean OPS installation. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
