| Hardware | ||
| Product Type | OPS Module | |
| Operating System | Windows 11 Enterprise | |
| Processor (CPU) | Intel Core i5-12450H, 12th Gen; 8 Cores, 12 Threads; 2.0GHz Base, 4.4GHz Turbo | |
| RAM | 8GB | |
| Internal Storage | 256GB | |
| Connectivity | ||
| Wi-Fi | Wi-Fi 6 | |
| Bluetooth | Bluetooth 5.2 | |
| Ethernet (LAN) | RJ45 10/100/1000 Mbps × 1 | |
| Ports & Interfaces | ||
| HDMI Output | HDMI 1.4 × 1; DP 1.2 × 1 | |
| USB Type-A | USB 3.0 × 4; USB 2.0 × 2 | |
| USB Type-C | Type-C × 1 | |
| RJ45 | RJ45 10/100/1000 Mbps × 1 | |
| Audio Output | Audio Out × 1 | |
| Power & Physical | ||
| Power Supply | 12V to 19V DC | |
| Power Consumption | Max: 95W; Standby: 0.5W | |
| Product Dimensions | 195 × 30 × 180 mm | |
| Net Weight | About 1.22 kg | |
| Operating Temperature | 0°C to 40°C | |
| Warranty | ||
| Warranty | 3 Years | |

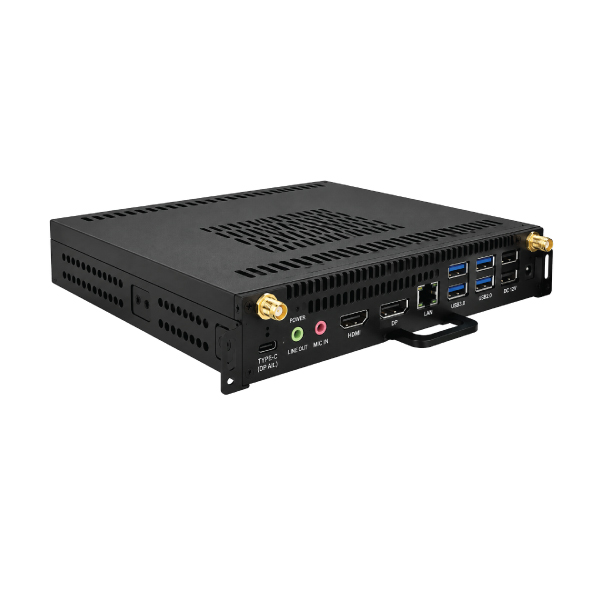

The Hikvision DS-D5AC12T5-8S2 is a compact OPS computer module that adds Windows to a compatible Hikvision interactive flat panel. Powered by a 12th Gen Intel Core i5 processor, it suits smart classrooms, conference rooms and workplaces that need desktop applications directly on the display.
For buyers comparing the Hikvision DS-D5AC12T5-8S2 price in Bangladesh, the official configuration combines an Intel Core i5-12450H processor, 8GB memory, 256GB storage and Windows 11 Enterprise. The current price at Touch IT is ৳70,000. Confirm compatibility, supplied configuration and warranty before ordering.
This Hikvision OPS module converts a supported interactive display into an integrated Windows workstation. Users can run presentation tools, office applications, conferencing platforms, learning software and browser-based services from the panel. Its slot-in design reduces visible cables and removes the need for an external desktop beside the display.
The Intel Core i5-12450H uses eight cores and twelve threads, with a 2.0GHz base frequency and turbo speed up to 4.4GHz. It supports everyday multitasking, presentations, document editing, video meetings and teaching applications. A single-brass and single-fan cooling system manages heat inside the module.
Windows 11 Enterprise provides a familiar environment for business and education software. The 8GB memory and 256GB storage support routine productivity. When installed in a compatible interactive flat panel, users can switch between the display's built-in system and Windows workflow.
Intel UHD Graphics for 12th Gen Intel processors supports 4K output for sharp documents, dashboards and multimedia. HDMI 1.4 and DisplayPort 1.2 outputs offer useful connection options for supported external displays or AV equipment, while separate audio input and output ports support compatible sound devices.
Wi-Fi 6 enables efficient wireless networking, while the Gigabit RJ45 port provides stable wired communication. Bluetooth 5.2 supports compatible wireless peripherals. Explore other commercial display and collaboration products on the Hikvision products page.
Four USB 3.0 ports, two USB 2.0 ports and one USB Type-C port connect supported peripherals. TPM 2.0 provides a hardware-based foundation for compatible Windows security functions in managed business and education deployments. Browse related technology under office equipment solutions.
| Brand | Hikvision |
|---|---|
| Model | DS-D5AC12T5-8S2 |
| Product Type | OPS Module |
| Operating System | Windows 11 Enterprise |
| Processor | 12th Gen Intel Core i5-12450H |
| CPU Configuration | 8 cores, 12 threads |
| CPU Frequency | 2.0GHz base, up to 4.4GHz turbo |
| Memory | 8GB |
| Storage | 256GB |
| Graphics | Intel UHD Graphics for 12th Gen Intel processors; 4K support |
| Network | Gigabit RJ45 and Wi-Fi 6 |
| Wireless | Bluetooth 5.2; two antennas |
| Video Outputs | 1 × HDMI 1.4 and 1 × DisplayPort 1.2 |
| USB Interfaces | 4 × USB 3.0, 2 × USB 2.0 and 1 × USB Type-C |
| Audio Interfaces | 1 × audio input and 1 × audio output |
| Security | TPM 2.0 support |
| Power | 12–19V DC input; 95W maximum consumption |
| Operating Environment | 0°C–40°C; 10%–90% humidity |
| Dimensions and Weight | 195 × 30 × 180mm; approximately 1.22kg |
Verification note: Hikvision lists 8GB memory and 256GB storage as the official configuration. Some retailer listings show different storage or OPS connector descriptions. Compatibility is not universal; confirm the panel model, OPS interface, supplied configuration and installation method before purchase.
This module suits organizations that want Windows computing integrated neatly into a compatible Hikvision display. It combines Core i5 performance, modern wireless connectivity, 4K graphics and useful ports in a compact format. The integrated approach simplifies room design for presentation, teaching and collaboration.
| Option | Best For | Main Consideration |
|---|---|---|
| DS-D5AC12T5-8S2 OPS Module | Integrated Windows use | Core i5, 8GB RAM and 256GB storage |
| Built-in panel operating system | Whiteboarding and basic apps | No separate Windows environment |
| External desktop or mini PC | Custom hardware requirements | Requires external mounting and cabling |
It is a slot-in OPS computer module designed to provide Windows computing on compatible interactive flat panels.
It uses a 12th Gen Intel Core i5-12450H processor with eight cores, twelve threads and turbo frequency up to 4.4GHz.
Yes. Hikvision specifies Windows 11 Enterprise for this model.
The official configuration provides 8GB memory and 256GB storage.
Yes. Its Intel UHD Graphics supports 4K resolution, with HDMI 1.4 and DisplayPort 1.2 outputs available.
Yes. It supports Wi-Fi 6 and Bluetooth 5.2, alongside a Gigabit Ethernet connection.
No universal compatibility should be assumed. Check the display model, OPS slot specification and power requirements before installation.
Touch IT supplies Hikvision interactive display solutions in Bangladesh with product consultation, compatibility checking, installation planning and after-sales technical support. The team can help confirm whether this OPS module matches the selected panel and workplace requirements.
Add Windows 11 performance to a compatible interactive display with 12th Gen Core i5 processing, 4K graphics and modern connectivity. Order from Touch IT, visit ECS Computer City Center, Level 3, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
