| Hardware | ||
| Product Type | OPS Module | |
| Operating System | Windows 11 Enterprise | |
| Processor (CPU) | Intel Core i7-12650H, 12th Gen; 10 Cores, 16 Threads; 2.3GHz Base, 4.7GHz Turbo | |
| RAM | 16GB, 8GB × 2 | |
| Internal Storage | 512GB | |
| Connectivity | ||
| Wi-Fi | Wi-Fi 6 | |
| Bluetooth | Bluetooth 5.2 | |
| Ethernet (LAN) | RJ45 10/100/1000 Mbps × 1 | |
| Ports & Interfaces | ||
| HDMI Output | HDMI 1.4 × 1; DP 1.2 × 1 | |
| USB Type-A | USB 3.0 × 4; USB 2.0 × 2 | |
| USB Type-C | Type-C × 1 | |
| RJ45 | RJ45 10/100/1000 Mbps × 1 | |
| Audio Output | Audio Out × 1 | |
| Power & Physical | ||
| Power Supply | 12V to 19V DC | |
| Power Consumption | Max: 95W; Standby: 0.5W | |
| Product Dimensions | 195 × 30 × 180 mm | |
| Net Weight | About 1.22 kg | |
| Operating Temperature | 0°C to 40°C | |
| Warranty | ||
| Warranty | 3 Years | |

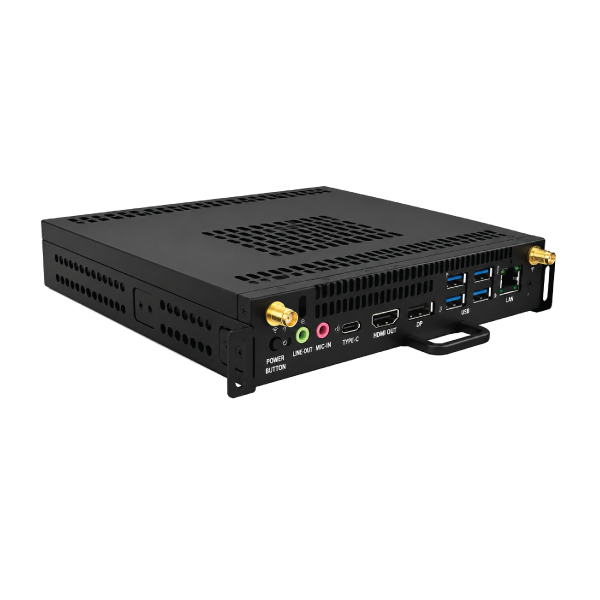

The Hikvision DS-D5AC12T7-16S5 is a high-performance OPS computer module for compatible Hikvision interactive flat panels. It integrates Windows directly into the display, helping classrooms, conference rooms and workplaces run desktop applications without a separate computer beside the screen.
For organizations comparing the Hikvision DS-D5AC12T7-16S5 price in Bangladesh, this model combines a 12th Gen Intel Core i7 processor, 16GB memory, 512GB storage and Windows 11 Enterprise. The current price at Touch IT is ৳80,000. Confirm panel compatibility, supplied configuration and warranty before ordering.
An OPS module is a slot-in computer for a supported commercial display. Once installed, the DS-D5AC12T7-16S5 provides a Windows workspace for presentations, office applications, video conferencing and learning platforms. The integrated arrangement reduces external cabling and keeps meeting-room or smart-classroom installations tidy.
The Intel Core i7-12650H features ten cores and sixteen threads, running at 2.3GHz with turbo performance up to 4.7GHz. It supports responsive multitasking, presentations, multiple browser tabs, business software and communication tools. Hikvision uses the Intel Alder Lake H platform with single-brass and single-fan cooling.
Two 8GB modules provide 16GB of RAM, offering more multitasking headroom than entry-level OPS configurations. The 512GB storage provides space for Windows, applications, presentations and files. Hikvision also publishes M.2 NVMe system-disk support for quick startup.
Windows 11 Enterprise supports familiar productivity, education and collaboration software directly from the touch display. Paired with a compatible interactive flat panel, the module creates an integrated workstation for meetings, digital lessons and professional training.
Intel UHD Graphics for 12th Gen Intel processors supports 4K resolution for detailed documents, dashboards and multimedia. HDMI 1.4 and DisplayPort 1.2 outputs support compatible display equipment, while dedicated audio input and output connections provide additional options for approved AV devices.
Wi-Fi 6 supports modern wireless networks, while the RJ45 port provides 10/100/1000Mbps Ethernet. Bluetooth 5.2 connects compatible peripherals, and two antennas support wireless operation. Browse more collaboration and display products on the Hikvision products page.
The module includes four USB 3.0 ports, two USB 2.0 ports and one USB Type-C port for compatible keyboards, mice, storage and accessories. TPM 2.0 provides a hardware foundation for supported Windows security features in managed environments. Explore complementary technology under office equipment solutions.
| Brand | Hikvision |
|---|---|
| Model | DS-D5AC12T7-16S5 |
| Product Type | OPS Module |
| Operating System | Windows 11 Enterprise |
| Processor | 12th Gen Intel Core i7-12650H |
| CPU Configuration | 10 cores and 16 threads |
| CPU Frequency | 2.3GHz base; up to 4.7GHz turbo |
| Memory | 16GB total, 8GB × 2 |
| Storage | 512GB |
| Graphics | Intel UHD Graphics for 12th Gen Intel processors; 4K support |
| Platform | Intel Alder Lake H |
| Network | Gigabit RJ45 and Wi-Fi 6 |
| Wireless | Bluetooth 5.2 with two antennas |
| Video Outputs | 1 × HDMI 1.4 and 1 × DisplayPort 1.2 |
| USB Ports | 4 × USB 3.0, 2 × USB 2.0 and 1 × USB Type-C |
| Audio | 1 × audio input and 1 × audio output |
| Security | TPM 2.0 support |
| Power | 12–19V DC; 95W maximum; 0.5W standby |
| Operating Environment | 0°C–40°C; 10%–90% humidity |
| Dimensions and Weight | 195 × 30 × 180mm; approximately 1.22kg |
Verification note: Hikvision officially specifies 16GB memory as 8GB × 2 and 512GB storage. The manufacturer describes the graphics as Intel UHD Graphics for 12th Gen Intel processors. Panel compatibility is not universal, so the OPS interface, power requirements, supplied configuration and installation method must be confirmed before purchase.
This Core i7 OPS module suits users needing stronger multitasking and more storage than a basic display computer. Its Windows environment, 4K graphics, Wi-Fi 6, Gigabit LAN and extensive ports support business presentations, interactive education and collaboration.
| Model | Processor | Memory and Storage | Best For |
|---|---|---|---|
| DS-D5AC12T7-16S5 | Core i7-12650H | 16GB / 512GB | Advanced multitasking |
| Hikvision DS-D5AC12T5-8S2 | Core i5-12450H | 8GB / 256GB | Standard office and classroom use |
It adds an integrated Windows computer to a compatible interactive flat panel, reducing the need for a separate desktop PC.
It uses a 12th Gen Intel Core i7-12650H processor with ten cores, sixteen threads and turbo speed up to 4.7GHz.
The official configuration includes 16GB RAM, arranged as two 8GB modules, and 512GB storage.
Yes. Hikvision lists Windows 11 Enterprise as the supplied operating system.
Yes. The integrated Intel UHD Graphics supports 4K resolution.
The module provides Wi-Fi 6, Bluetooth 5.2 and a Gigabit RJ45 Ethernet port.
No. Compatibility depends on the panel's OPS slot, interface design and power specification. Verify the exact panel model before ordering.
Touch IT supplies Hikvision interactive display and office technology solutions in Bangladesh with product consultation, compatibility checking, installation planning and after-sales technical assistance. The team can help verify the correct OPS configuration for your selected panel.
Upgrade a compatible interactive display with Core i7 Windows performance, 16GB RAM, 512GB storage and modern connectivity. Order from Touch IT, visit ECS Computer City Center, Level 3, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Hikvision DS-D5AC12T7-16S5 OPS Module in Bangladesh is 80,000৳. You can buy the Hikvision DS-D5AC12T7-16S5 OPS Module at best price from our website or visit any of our showrooms.
