| Camera System | ||
| Image Sensor | 1/3" CMOS | |
| Maximum Resolution | 2MP, 1920 × 1080 @ 30fps | |
| Electronic Shutter Speed | 1s to 1/100,000s | |
| Day / Night Mode | IR-Cut Filter with Auto Switch, ICR | |
| Minimum Illumination | Color: 0.02 Lux @ F2.0, AGC On; B/W: 0 Lux with IR | |
| Signal-to-Noise Ratio (S/N) | >52dB | |
| Wide Dynamic Range (WDR) | DWDR | |
| Digital Noise Reduction (2D/3D DNR) | 3D DNR | |
| Digital Defog | Supported | |
| Pan / Tilt / Rotation | Pan: 0°–360°; Tilt: 0°–80°; Rotation: 0°–360° | |
| Infrared & Illumination | ||
| IR Type | IR LED, Smart IR | |
| IR Distance | Up to 30 m | |
| IR Control (Auto / Manual) | Smart IR Supported | |
| IR Wavelength | 850nm | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Fixed Focal Lens | |
| Focal Length & Field of View (FOV) | 4mm; H 73.5°, V 40.8°, D 84.2° | |
| Lens Mount | M12 | |
| Iris Type | Fixed | |
| Aperture (F-number) | F2.0 | |
| DORI Distance | Detect: 59.26 m; Observe: 23.52 m; Recognize: 11.85 m; Identify: 5.93 m | |
| Video & Image Processing | ||
| Video Compression | S+265, H.265, H.264B, H.264M, H.264H | |
| Smart Codec | S+265 | |
| Main Stream / Sub Stream | Main Stream: PAL 25fps / NTSC 30fps at 1920 × 1080, 1280 × 720; Sub Stream: PAL 25fps at 704 × 576, 704 × 288, 640 × 360, 352 × 288; NTSC 30fps at 704 × 480, 704 × 240, 640 × 360, 352 × 240 |
|
| Frame Rate | PAL: Up to 25fps; NTSC: Up to 30fps | |
| Supported Resolution | 1920 × 1080, 1280 × 720, 704 × 576, 704 × 480, 704 × 288, 704 × 240, 640 × 360, 352 × 288, 352 × 240 | |
| On-Screen Display (OSD) | 1 Region, 1 Line, Max 48 Characters; 16×16 / 32×32 / 48×48 Lattice | |
| Image Enhancement (BLC / HLC) | BLC, HLC Supported | |
| White Balance | Auto, Semi-Auto, Manual, Sunshine, Nature Light, Warm Light Lamp, Daylight Lamp, Filament Lamp, Lock White Balance | |
| Gain Control | AGC Supported | |
| Privacy Masking | 4 Black Static Areas | |
| Smart & AI Features | ||
| Motion Detection | Supported | |
| Basic Event Detection | Motion Detection, IP Address Conflict | |
| Audio & I/O | ||
| Audio Interface | Built-in Microphone | |
| Built-in Microphone | 1 × Built-in Mic | |
| Audio Compression | G.711A, G.711U | |
| Audio Sampling Rate | 8kHz | |
| Alarm Events | Motion Detection, IP Address Conflict | |
| Network & Storage | ||
| Network Interface (RJ45) | 1 × RJ45 10/100 Base-T | |
| Network Protocols | RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast | |
| ONVIF / Interoperability | ONVIF Profile S/T, SDK, CGI, Milestone | |
| SDK & API Support | SDK, CGI | |
| Maximum User Access | Remote Connection: ≤2 | |
| Software & Access | ||
| Web Browser Support | IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+ | |
| Management Software | Easy7 VMS | |
| Power & Physical Specifications | ||
| Power Supply | PoE IEEE 802.3af | |
| Power Consumption | Max. 2W | |
| Operating Temperature | -30°C to 60°C | |
| Operating Humidity | ≤95% RH | |
| Storage Temperature | -30°C to 60°C | |
| Ingress Protection (IP Rating) | IP67; Surge 4000V; ESD 6000V | |
| Dimensions (L × W × H) | 140 × 60 × 60 mm | |
| Compliance & Warranty | ||
| Manufacturer Warranty | 1 Year | |

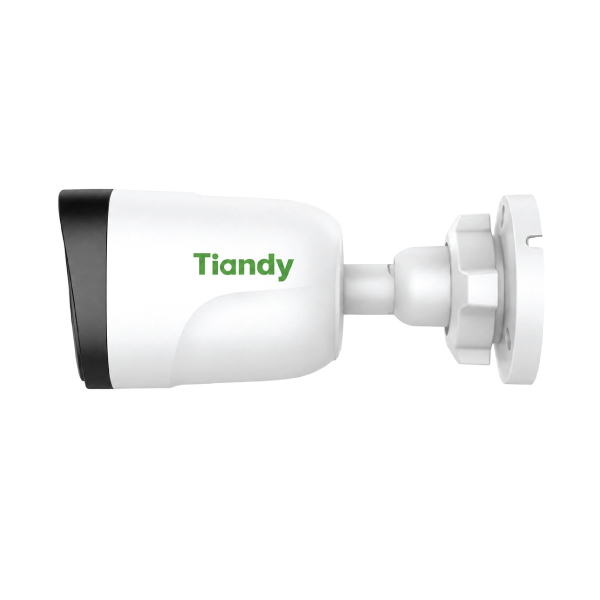

The Tiandy TC-C321N 1CNB-4 is a compact bullet network camera for economical security monitoring. It combines Full HD video, a 4mm lens, infrared night vision, audio recording, PoE and weather-resistant protection.
For buyers searching for the Tiandy TC-C321N 1CNB-4 price in Bangladesh, the Touch IT price is ৳2,450. This 2MP IP camera records 1920 × 1080 video at up to 30fps and includes 30m Smart IR, a microphone, S+265, ONVIF and IP67 protection. Confirm availability and compatibility before ordering.
This fixed bullet IP camera provides essential image, audio and outdoor features. Its 4mm view suits gates, corridors and shop fronts where focused coverage is preferable to an ultra-wide scene.
The 1/3-inch CMOS sensor delivers 1920 × 1080 video. The main stream reaches 25fps in PAL or 30fps in NTSC at 1080p and 720p. A separate sub-stream can reduce remote-viewing bandwidth.
The M12-mounted 4mm F2.0 lens provides a 73.5° horizontal, 40.8° vertical and 84.2° diagonal field of view. Tiandy lists DORI distances of 59.26m detection, 23.52m observation, 11.85m recognition and 5.93m identification under suitable conditions. Explore the Tiandy IP camera range for wider lenses or higher resolutions.

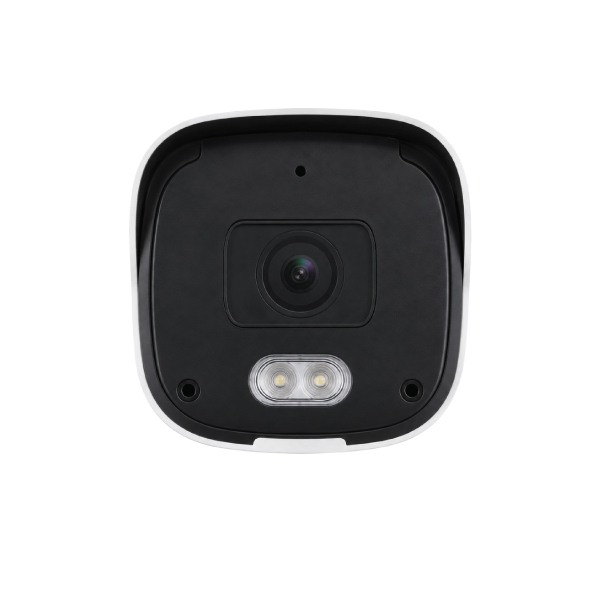

Two 850nm infrared LEDs illuminate scenes up to 30 metres. Smart IR helps control illumination on nearby subjects, while the automatic IR-cut filter changes between colour daytime and black-and-white night modes. Minimum illumination is 0.02 lux in colour and 0 lux with IR operating.
The integrated microphone adds sound to footage around entrances, counters and loading points. G.711A and G.711U are supported. No speaker is listed, so the camera does not provide two-way talk by itself.
Tiandy S+265, H.265 and H.264 options help manage network bandwidth and NVR storage. DWDR, BLC, HLC, 3D digital noise reduction, defog, automatic gain and adjustable white balance improve visibility in varied conditions. Motion detection and four privacy-mask areas support practical monitoring within a configured CCTV surveillance system.
IEEE 802.3af PoE carries power and data through one Ethernet cable, helping simplify installation. ONVIF Profiles S and T, SDK, CGI and Milestone compatibility support integration with suitable recorders or software. IP67 sealing, 4kV surge protection and operation from -30°C to 60°C suit exposed locations when properly installed.
| Brand and Model | Tiandy TC-C321N 1CNB-4 |
|---|---|
| Camera Type | 2MP fixed IR bullet network camera |
| Image Sensor | 1/3-inch CMOS |
| Maximum Resolution | 1920 × 1080 at up to 30fps |
| Lens and View | 4mm F2.0; H 73.5°, V 40.8°, D 84.2° |
| Minimum Illumination | Colour 0.02 lux; black and white 0 lux with IR |
| Night Vision | Two 850nm IR LEDs; up to 30m |
| Video Compression | S+265, H.265, H.264B, H.264M and H.264H |
| Image Functions | DWDR, BLC, HLC, 3D DNR, defog and privacy masking |
| Audio | Built-in microphone; G.711A/G.711U |
| Events | Motion detection and IP-address conflict alarm |
| Network | RJ45 10/100 Base-T; ONVIF Profiles S/T |
| Power | IEEE 802.3af PoE; maximum 2W |
| Protection | IP67, 4kV surge and 6kV ESD |
| Dimensions and Weight | 140 × 60 × 60mm; 0.2kg gross |
This content applies specifically to the TC-C321N 1CNB-4 with a 4mm lens; 1CNB-28 and other TC-C321N variants differ. The manufacturer lists PoE power but no 12V DC input, memory-card slot, Wi-Fi, speaker, alarm I/O or human/vehicle analytics. Verify the exact revision and recorder firmware before installation.
Choose this model for low-cost Full HD PoE surveillance with focused 4mm coverage, night monitoring and recorded audio.
| Model | Resolution | Key Difference | Recommended Use |
|---|---|---|---|
| TC-C321N 1CNB-4 | 2MP | 4mm lens, 30m IR, microphone and PoE | Budget focused outdoor monitoring |
| Tiandy TC-C320N | 2MP | Turret body with wider 2.8mm lens | Wide entrances and indoor ceilings |
| Tiandy TC-C32QN | 2MP | Longer 50m IR and stronger feature set | Larger outdoor areas |
| Tiandy TC-C34QN | 4MP | Higher detail with Color Maker capability | Projects needing more detail |
It records Full HD 1920 × 1080 video at up to 30fps in NTSC mode or 25fps in PAL mode.
Its Smart IR system has a manufacturer-rated maximum distance of 30 metres.
Yes. A built-in microphone captures audio, but no speaker or two-way talk is listed.
Yes. IEEE 802.3af PoE supplies data and power through a compatible network connection.
ONVIF Profiles S and T support interoperability, although NVR model and firmware compatibility should be confirmed.
Yes. Its IP67-rated enclosure resists dust and water when correctly mounted and weather-sealed.
Touch IT supplies genuine Tiandy products and security equipment in Bangladesh. The team can help confirm lens coverage, NVR support, PoE capacity, storage, cabling and accessories for your project.
Protect your property with affordable Full HD video, 30m IR, audio capture and PoE convenience. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
