| Camera System | ||
| Image Sensor | 1/3.2" CMOS | |
| Maximum Resolution | 1920 (H) × 1080 (V) – Full HD 2MP | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | Auto / Manual, 1/3 s – 1/100,000 s | |
| Day / Night Mode | Auto (ICR) / Color / Black & White | |
| Minimum Illumination | 0.01 lux @ F2.0 (Color, 30 IRE) 0.001 lux @ F2.0 (B/W, 30 IRE) 0 lux (IR On) |
|
| Signal-to-Noise Ratio (S/N) | 56 dB | |
| Wide Dynamic Range (WDR) | DWDR | |
| Digital Noise Reduction (2D/3D DNR) | 3D DNR | |
| Pan / Tilt / Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
|
| Infrared & Illumination | ||
| IR Type | Infrared (IR LED) | |
| IR Distance | Up to 30 m (98.43 ft) | |
| IR Control (Auto / Manual) | Auto / Manual | |
| IR Wavelength | 850 nm (Typical IR LED) | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Fixed Lens | |
| Focal Length & Field of View (FOV) | 3.6 mm H: 79° | V: 43° | D: 94° |
|
| Lens Mount | M12 | |
| Iris Type | Fixed Iris | |
| Aperture (F-number) | F2.0 | |
| DORI Distance | Detect: 55.0 m Observe: 22.0 m Recognize: 11.0 m Identify: 5.5 m |
|
| Video & Image Processing | ||
| Video Compression | H.265 / H.264 / H.264B / MJPEG (Sub-stream only) | |
| Smart Codec | Smart H.265+ / Smart H.264+ | |
| Main Stream / Sub Stream | Dual Stream Support | |
| Frame Rate | Main Stream: 1920 × 1080 @ 1–25/30 fps Sub Stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps |
|
| Supported Resolution | 1080p, 1.3M, 720p, D1, CIF | |
| Bit Rate Control (CBR / VBR) | CBR / VBR | |
| Region of Interest (ROI) | On / Off (4 Areas) | |
| On-Screen Display (OSD) | Supported | |
| Image Enhancement (BLC / HLC) | BLC / HLC / DWDR | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom | |
| Gain Control | Auto | |
| Privacy Masking | Supported | |
| Image Rotation / Flip | 0° / 180°, Mirror Supported | |
| Smart & AI Features | ||
| Motion Detection | On / Off (4 Configurable Areas) | |
| Basic Event Detection | Motion Detection, Video Tampering, Network Disconnection, IP Conflict, Illegal Access, Security Exception | |
| Audio & I/O | ||
| Alarm Events | Motion Detection, Video Tampering, Network Exception | |
| Network & Storage | ||
| Network Interface (RJ45) | RJ-45 (10/100 Base-T) | |
| Network Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, P2P | |
| ONVIF / Interoperability | ONVIF Profile S / Profile T, CGI | |
| SDK & API Support | Supported | |
| Maximum User Access | 6 Users (Total Bandwidth: 24 Mbps) | |
| Software & Access | ||
| Web Browser Support | Internet Explorer, Chrome, Firefox | |
| Management Software | Dahua CMS / NVR Interface | |
| Mobile App Support | iOS & Android | |
| Security Features | HTTPS, Video Encryption, Configuration Encryption, Trusted Boot, Trusted Execution, WSSE, Security Logs, Account Lockout, X.509 Certificate Support | |
| Power & Physical Specifications | ||
| Power Supply | 12 V DC / PoE | |
| Power Consumption | Basic: 1.2 W (12V DC) / 2.1 W (PoE) Max: 2.8 W (12V DC) / 4 W (PoE) |
|
| Operating Temperature | –40 °C to +50 °C | |
| Operating Humidity | Less than 95% RH | |
| Storage Temperature | –40 °C to +60 °C | |
| Ingress Protection (IP Rating) | IP67 | |
| Material | Plastic | |
| Dimensions (L × W × H) | 103.2 mm × Φ109.9 mm | |
| Net Weight | 0.24 kg | |
| Installation Type | Ceiling / Wall Mount (Eyeball Camera) | |
| Compliance & Warranty | ||
| Certifications | CE, FCC (Model Dependent) | |
| Manufacturer Warranty | 1 Year | |

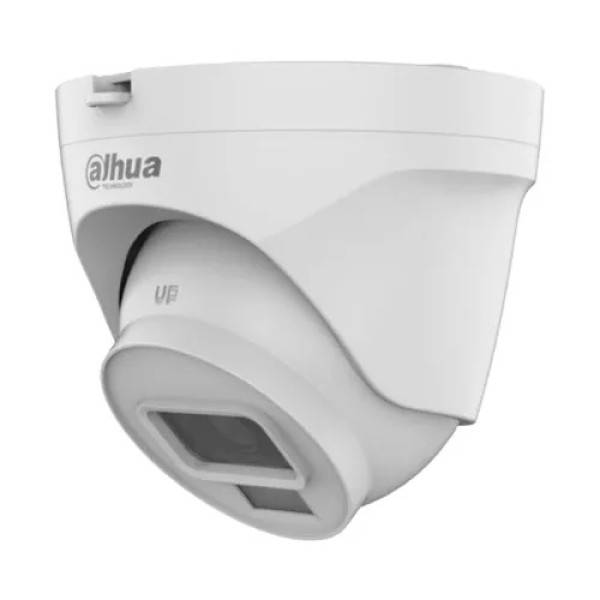

The DAHUA DH-IPC-HDW1230T2P-S5 Eyeball IP Camera is a compact yet powerful 2MP Full HD IP surveillance solution built for reliable indoor and outdoor security. Designed with a high-quality 1/3.2” CMOS sensor, smart video compression, and strong infrared night vision, this camera delivers consistent performance for homes, offices, shops, and commercial premises.Clear 1080p monitoring, dependable IR night vision, and smart bandwidth-saving technology—this Dahua eyeball IP camera is engineered for everyday security with professional results.
With a resolution of 1920 × 1080 (Full HD), the DAHUA DH-IPC-HDW1230T2P-S5 Eyeball IP Camera captures sharp and detailed video throughout the day and night. Advanced IR LEDs provide up to 30 meters of infrared illumination, ensuring visibility even in complete darkness. Features like automatic ICR day/night switching, DWDR, and 3D DNR help maintain balanced images in low-light and high-contrast environments.
The fixed 3.6mm lens offers a wide horizontal viewing angle of 79°, making it ideal for entrances, corridors, rooms, and open areas. Flexible pan (360°), tilt (0°–78°), and rotation (360°) adjustment allows precise positioning during installation. DORI distance support ensures effective detection, observation, recognition, and identification for enhanced situational awareness.
Supporting Smart H.265+ and H.264+ compression, the DAHUA DH-IPC-HDW1230T2P-S5 Eyeball IP Camera significantly reduces storage usage and network bandwidth without sacrificing image quality. Dual-stream technology enables smooth live viewing and efficient recording. The camera also includes motion detection, ROI, privacy masking, ONVIF compatibility, and advanced cybersecurity features for secure and seamless IP surveillance integration.
Built with an IP67-rated weatherproof casing, this DAHUA DH-IPC-HDW1230T2P-S5 Eyeball IP Camera is resistant to dust, rain, and harsh weather conditions, making it suitable for long-term outdoor use. Power over Ethernet (PoE) support simplifies installation by delivering power and data through a single cable, reducing wiring complexity and installation costs.
At Touch IT , we provide 100% genuine DAHUA DH-IPC-HDW1230T2P-S5 Eyeball IP Camera, competitive pricing, and dependable after-sales support. Our expert team helps you choose the right surveillance solution, with fast delivery across Bangladesh and trusted service you can rely on. Buying from Touch IT means investing in authentic products, professional guidance, and long-term peace of mind.
The latest price of DAHUA DH-IPC-HDW1230T2P-S5 Eyeball IP Camera in Bangladesh is 6,050৳. You can buy the DAHUA DH-IPC-HDW1230T2P-S5 Eyeball IP Camera at best price from our website or visit any of our showrooms.
