| System & AI Capabilities | ||
| Privacy Protection | Privacy masking with configurable regions | |
| Processor | Embedded AI video processing chipset | |
| Operating System | Embedded Linux | |
| User Interface | Local GUI with mouse and remote control support | |
| AI Analytics | Deep learning–based video analytics | |
| Smart Motion Detection (SMD+) | Motion Detection 2.0 with human & vehicle classification and reduced false alarms | |
| Perimeter Protection: | Line crossing and intrusion detection (model dependent) | |
| Face Detection & Recognition | Face detection, capture, and face image search | |
| Video & Audio Performance | ||
| Video Input Channels | IP: 1-ch (up to 5-ch), Enhanced mode up to 6-ch, Analog: 4-ch | |
| Supported Resolution | Up to 6 MP (IP), up to 5 MP (analog) | |
| Video Compression: | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 | |
| Decoding Performance: | Multi-resolution decoding with dual-stream support | |
| Analog Video Support | HDTVI, AHD, HDCVI, CVBS | |
| IP Camera Support | H.265+/H.265/H.264+/H.264 IP cameras | |
| Video Output: | HDMI: up to 1920 × 1080 @ 60 Hz VGA: up to 1920 × 1080 @ 60 Hz |
|
| Audio Support: | RCA audio input/output and coaxial audio | |
| Multi-Screen Display: | HDMI and VGA simultaneous output | |
| Third-Party Camera Integration | ONVIF compliant | |
| Recording & Playback | ||
| Recording Modes | Continuous, event-based, and manual recording | |
| Playback Mode: | Synchronous playback up to 4 channels | |
| Stream Type | Video / Video & Audio | |
| Frame Rate: | Resolution-dependent, up to 30 fps (sub-stream) | |
| Video Bit Rate | 32 Kbps – 6 Mbps | |
| Audio Compression | G.711u | |
| Backup Methods | USB backup and network backup | |
| Alarm Types: | Motion detection, face detection, video tampering | |
| Storage & Interfaces | ||
| Internal Storage | Not built-in | |
| Maximum Storage Capacity | 1 × SATA HDD, up to 10 TB | |
| USB Ports: | 2 × USB 2.0 | |
| Alarm I/O | Optional | |
| Network Interface | 1 × RJ45 10/100 Mbps self-adaptive Ethernet | |
| Network & Remote Access | ||
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP | |
| Remote Access | Up to 32 simultaneous connections | |
| Mobile App Support | Hik-Connect | |
| Bandwidth Management | Total incoming bandwidth up to 72 Mbps | |
| Camera Access Protocos | ONVIF, ISUP | |
| Physical Specifications | ||
| Power Supply: | DC 12 V, 1.5 A | |
| Power Consumption | 8 W (without HDD) | |
| Operating Temperature | –10 °C to +55 °C | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Cooling System | Passive cooling (fanless design) | |
| Material | Metal chassis | |
| Dimensions | 200 × 200 × 48 mm (W × D × H) | |
| Net Weight: | 1 kg (without HDD) | |
| Mounting Type | Desktop / shelf mount | |
| Compliance & Warranty | ||
| Certifications: | CE, FCC (model dependent) | |
| Warranty | 1 Year | |

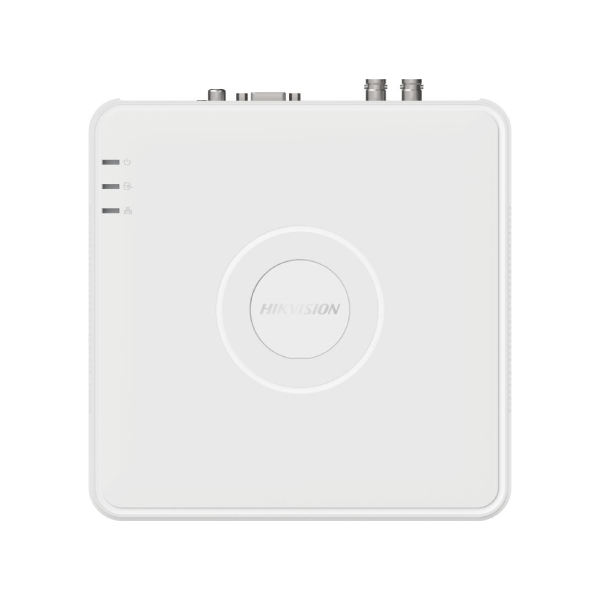

The Hikvision iDS-7104HQHI-M1/T 4 Channel Mini 1U H.265 AcuSense DVR is an advanced AI-powered video recording solution designed for professional CCTV surveillance in homes, offices, shops, and commercial facilities in Bangladesh. Powered by AcuSense deep learning technology, this DVR significantly improves security efficiency by intelligently identifying human and vehicle targets while reducing false alarms caused by rain, shadows, leaves, or lighting changes. With support for HDTVI, AHD, CVI, CVBS, and IP cameras, it offers flexible system expansion and reliable performance in a compact Mini 1U design.
The iDS-7104HQHI-M1/T features Motion Detection 2.0 enabled by default on all analog channels, using deep learning algorithms to accurately classify human and vehicle movement. This intelligent detection drastically reduces unnecessary alerts and allows users to perform quick searches by object or event type, making surveillance review faster and more efficient for real-world security applications.
Equipped with deep learning-based perimeter protection, the DVR enhances intrusion detection accuracy for restricted areas. It also supports facial detection and capture, enabling face picture detection and face-based search for improved monitoring in high-security environments such as offices, retail outlets, and entry points.
This 4-channel AcuSense DVR supports a wide range of camera technologies including HDTVI, AHD, HDCVI, CVBS, and IP cameras. It can connect up to 6 IP cameras (up to 6 MP each) in enhanced IP mode, while analog channels support resolutions up to 3K, 5MP Lite, 4MP, 3MP, 2K, and 1080p. This versatility ensures seamless integration with existing and future surveillance systems.
The Hikvision iDS-7104HQHI-M1/T utilizes H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression to significantly reduce bandwidth usage and storage costs without compromising image quality. With encoding support up to 3K/5MP Lite at 12 fps and adaptive frame rates, this DVR is optimized for long-term, high-quality video recording.

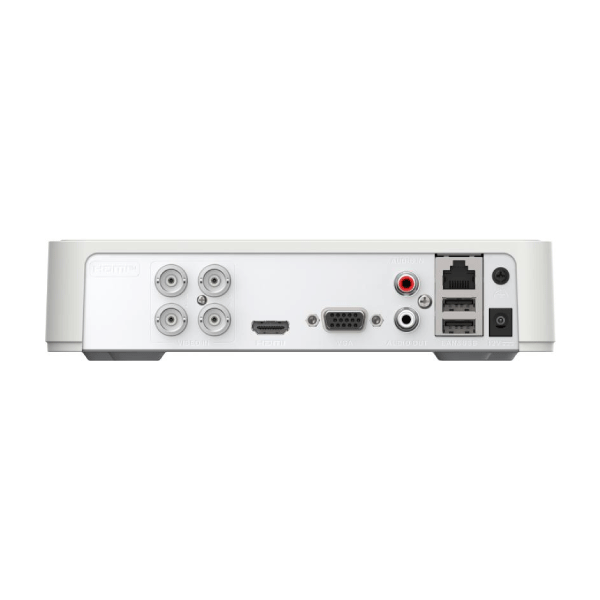

For flexible monitoring, the DVR provides simultaneous HDMI and VGA output with resolutions up to 1920 × 1080. Users can enjoy 4-channel synchronous playback, making it easy to review multiple camera feeds at once—ideal for control rooms and security offices.
The iDS-7104HQHI-M1/T supports audio transmission over coaxial cable, eliminating the need for extra wiring. It also offers two-way audio functionality through RCA interfaces, enabling real-time communication when paired with compatible cameras and microphones.
Designed for stable 24/7 operation, this DVR supports one SATA hard drive up to 10 TB for extended video storage. With a total network bandwidth of 72 Mbps and support for up to 32 remote connections, users can securely access live view and playback through Hik-Connect and ONVIF-compatible platforms.

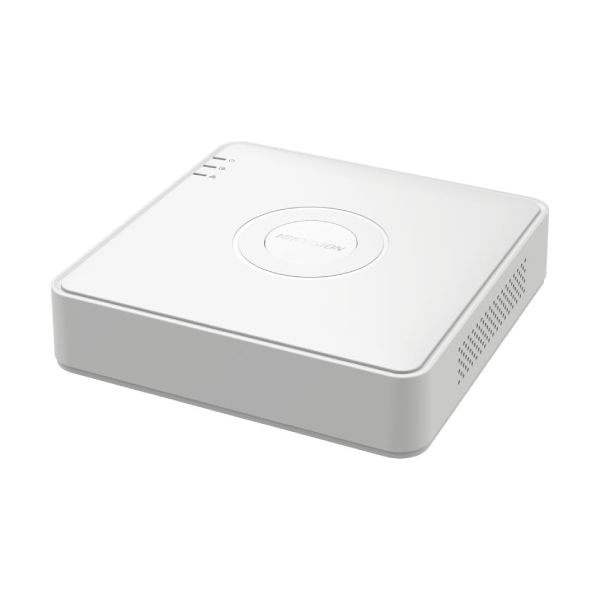

Housed in a Mini 1U compact chassis, the DVR measures only 200 × 200 × 48 mm and consumes ≤ 8 W (without HDD), making it ideal for installations with limited space. It operates reliably in temperatures from -10°C to +55°C, ensuring consistent performance in Bangladesh’s varied environments.
When you purchase the Hikvision iDS-7104HQHI-M1/T 4 Channel AcuSense DVR from Touch IT, you receive a 100% genuine Hikvision product with official warranty, expert technical guidance, and dependable after-sales support. Touch IT offers the best Hikvision AcuSense DVR price in Bangladesh along with nationwide delivery and professional installation services. Upgrade your CCTV system with confidence by choosing Touch IT—your trusted Hikvision surveillance solution provider in Bangladesh.
The latest price of Hikvision iDS-7104HQHI-M1/T 4 Channel AcuSense DVR in Bangladesh is 4,200৳. You can buy the Hikvision iDS-7104HQHI-M1/T 4 Channel AcuSense DVR at best price from our website or visit any of our showrooms.
