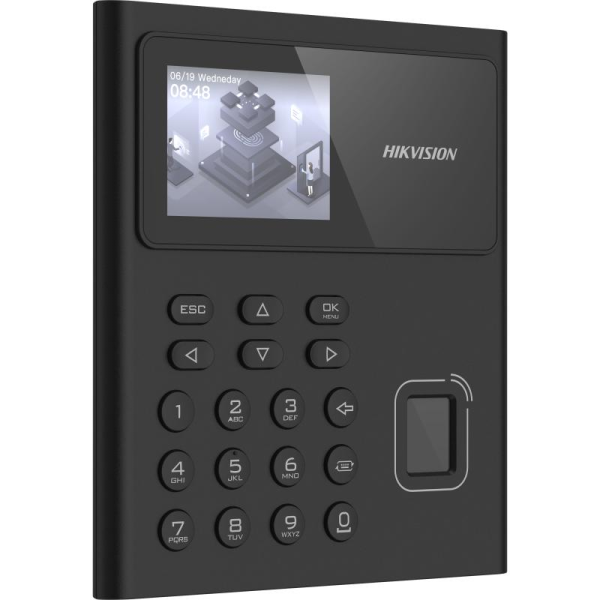

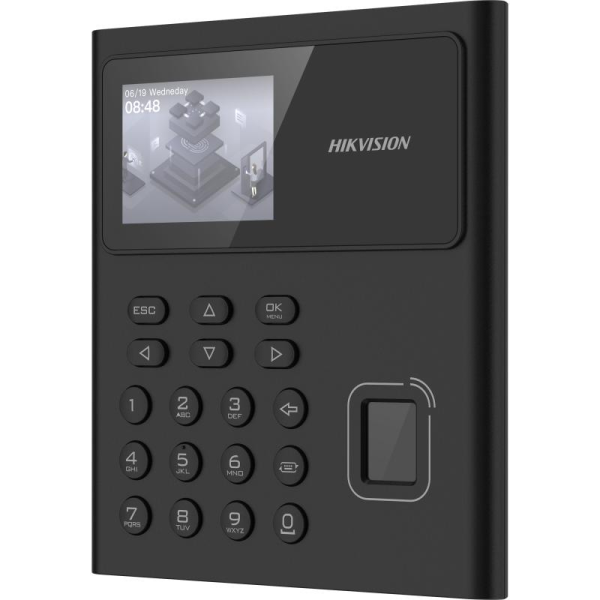

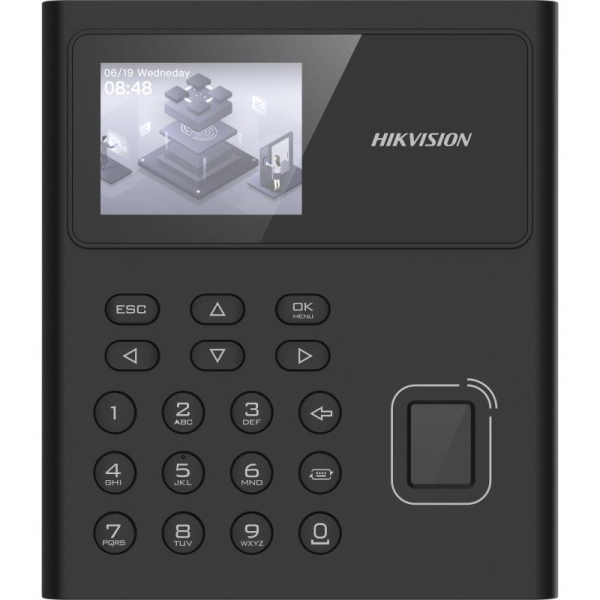

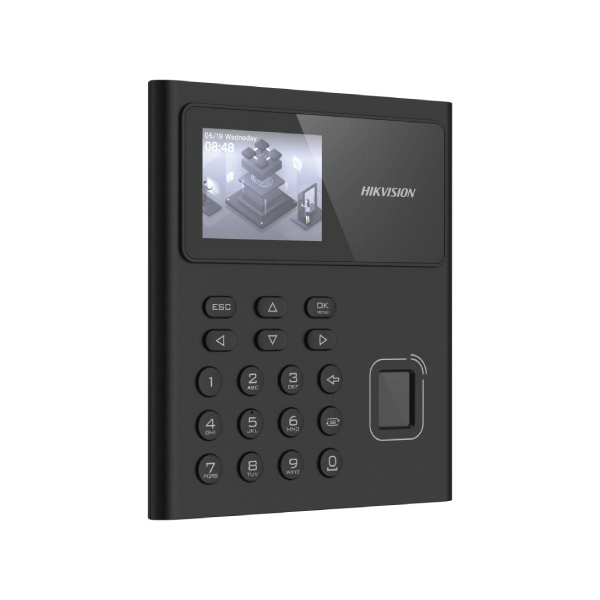

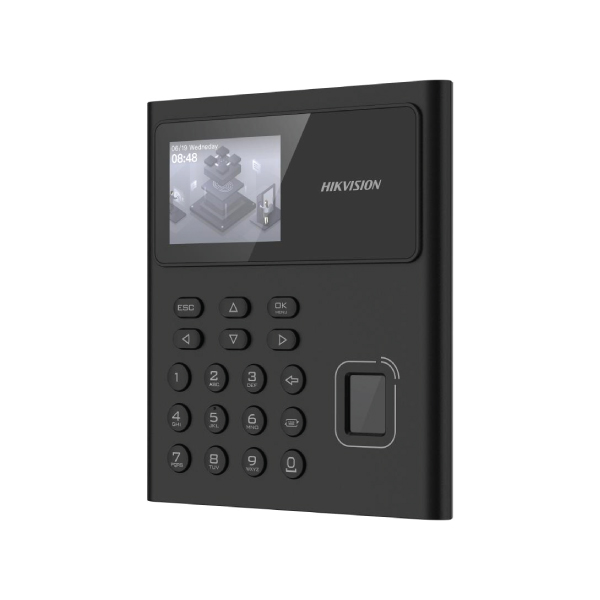

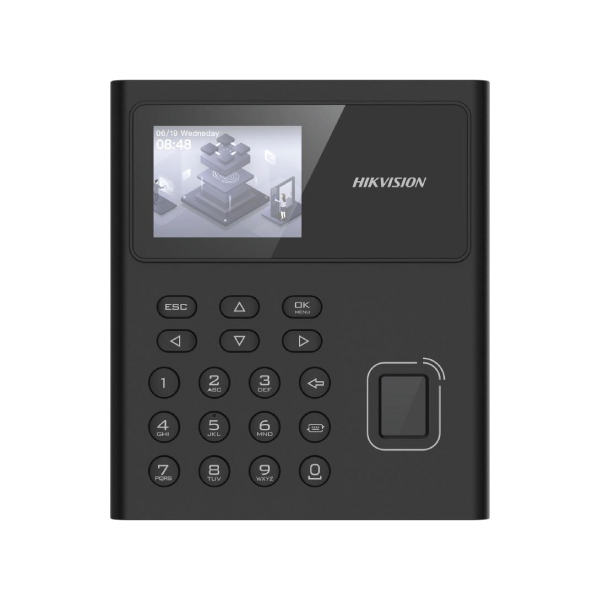

Hikvision DS-K1T8005EFX Pro Fingerprint Access Control

Hikvision DS-K1T8005EFX Pro Fingerprint Access Control

The Hikvision DS-K1T8005EFX Pro Fingerprint Access Control is a biometric terminal for attendance and secure door entry. Suitable for offices, factories, schools, banks, warehouses and restricted rooms, it supports fingerprint, EM card and PIN authentication in a compact wall-mounted unit.

For businesses comparing the Hikvision DS-K1T8005EFX price in Bangladesh, this terminal provides a 2.4-inch LCD, 3,000 fingerprints, 3,000 EM cards and 100,000 access events. The current Hikvision DS-K1T8005EFX price at Touch IT is ৳9,500. Confirm stock, adapter, battery bracket, software, installation and warranty before ordering.

Quick Highlights

• Model: Hikvision DS-K1T8005EFX
• Product Type: Fingerprint access control and local attendance terminal
• Authentication: Fingerprint, 125kHz EM card and PIN
• Display: 2.4-inch LCD, 320 × 240
• Fingerprint Capacity: Up to 3,000 templates
• Card Capacity: Up to 3,000 EM cards
• Event Storage: Up to 100,000 events
• Network: RJ-45 10/100M wired Ethernet
• Integration: RS-485, USB, lock control, exit button and door contact

Hikvision DS-K1T8005EFX Overview Summary

The DS-K1T8005EFX combines biometric verification, card access, PIN entry, local attendance and door control. It communicates over a wired network, while web-client configuration gives administrators convenient access to supported settings.

Key Features & Benefits

Flexible Fingerprint, Card and PIN Authentication

Organizations can assign fingerprint, EM card or PIN credentials according to access policies. Fingerprints reduce reliance on shared cards, while card and PIN provide alternatives. Browse more options under Hikvision Access Control.

Optical Fingerprint Recognition

The optical fingerprint module supports both 1:1 and 1:N comparison modes. It can store up to 3,000 fingerprint templates, making the device suitable for small and medium organizations managing regular staff attendance and controlled entry.

Large Event Storage for Daily Operations

Support for 100,000 events retains a substantial history of access and attendance activity before records are exported or synchronized.

Clear Display and Web-Based Configuration

The 2.4-inch LCD presents operating information at 320 × 240 resolution, while the built-in buzzer provides audible feedback. Hikvision supports configuration through PC and mobile web clients, helping authorized administrators access supported device settings more conveniently.

Professional Door Access Integration

Dedicated connections for lock control, an exit button, door contact and tamper input support a complete single-door installation. RS-485 can connect a compatible secure door-control unit or card reader. Explore compatible locks, buttons and accessories in the Access Control and Time Attendance category.

Wired Network and Integration Protocols

The RJ-45 interface supports 10/100M self-adaptive Ethernet for stable wired communication. ISAPI and ISUP 5.0 provide verified protocol support for approved Hikvision integrations, while the terminal also supports local time-attendance functions.

Business & Industry Applications

• Corporate offices and staff-only departments
• Factories, garment facilities and warehouses
• Schools, colleges and training centres
• Banks, financial institutions and record rooms
• Retail shops, showrooms and commercial buildings
• Server rooms, storage areas and administrative offices

Technical Specifications

Verification note: Wi-Fi is not a standard function of the DS-K1T8005EFX; wireless connectivity is associated with models containing “W” in the model number. Hikvision lists battery power support through a separate bracket, so bracket and battery inclusion must be confirmed. Adapter, management software, installation and warranty terms depend on the supplied package. Recognition speed, FAR, FRR, dimensions and an IP protection rating were not consistently verified and are therefore not claimed.

Why Choose the Hikvision DS-K1T8005EFX?

This terminal is a practical choice for organizations needing fingerprint, card and PIN authentication with wired networking and professional door-control interfaces. Its 100,000-event capacity, web configuration and local attendance support provide more operational value than a basic standalone attendance recorder. Explore wider workplace protection under Security System Solutions.

Product Comparison

Frequently Asked Questions

Which authentication methods does DS-K1T8005EFX support?

It supports optical fingerprint verification, 125kHz EM cards and PIN authentication.

How many fingerprints and cards can it store?

The terminal stores up to 3,000 fingerprint templates and 3,000 EM cards.

Can it record employee attendance?

Yes. Hikvision officially lists local time-attendance functionality alongside access control.

Does the DS-K1T8005EFX support Wi-Fi?

No. This model uses wired Ethernet. Choose a DS-K1T8005 model containing “W” if Wi-Fi is required.

Can it control an electronic door lock?

Yes. It provides lock control, exit-button, door-contact and tamper connections for compatible equipment.

How can administrators configure the terminal?

Supported settings can be configured through a PC web client or mobile web client.

Is it suitable for outdoor installation?

No verified IP rating was found. Install it in a protected indoor location unless suitable environmental protection is provided.

Why Buy from Touch IT?

Touch IT supplies professional Hikvision attendance and access-control products in Bangladesh with consultation, installation planning, configuration assistance and after-sales support. The team can confirm the adapter, battery bracket, management platform and door-hardware requirements before deployment.

Order the Hikvision DS-K1T8005EFX Today

Improve employee attendance and restricted-area security with fingerprint, EM card and PIN verification. Order the Hikvision DS-K1T8005EFX Pro Fingerprint Access Control from Touch IT, visit the showroom at ECS Computer City Center, New Elephant Road, Dhaka, or call 01711664030.
