In Stock
| Hardware | ||
| Display | 2.4-inch LCD Screen | |
| Resolution | 320 × 240 | |
| Operating System | Linux | |
| User & Storage Capacity | ||
| User Capacity | 5,000 Users | |
| Fingerprint Capacity | 5,000 Fingerprints | |
| Card Capacity | 5,000 Cards | |
| Transaction Capacity | 150,000 Events | |
| Authentication & Features | ||
| Verification Modes | Fingerprint, EM Card, PIN | |
| Card Type | EM Card | |
| Multi-Factor Authentication | Supported | |
| Finger Sensor Type | Optical Fingerprint Module | |
| Communication & Interface | ||
| Network | Wired Network, Wi-Fi 2.4GHz 802.11b/g/n, AP Mode, PoE | |
| Interface | 1 × RJ-45 10/100M Self-Adaptive, 1 × RS-485, 1 × Wiegand, 1 × USB | |
| Optional Network Protocols | ISAPI, ISUP 5.0, Wiegand W26/W34, Web Client Configuration | |
| Access Control | 1 × Lock Control, 1 × Exit Button, 1 × Door Contact Input, 2 × Alarm Inputs, 1 × Alarm Output, 1 × Tamper; Supports Secure Door Control Unit or Card Reader via RS-485 | |
| Software & Smart Features | ||
| Software Compatibility | Web Client, ISAPI, ISUP 5.0 | |
| Voice Prompt | Audio Output Supported | |
| Additional Features | Access Control Function, Local Time Attendance Function, AP Mode, Web Client Configuration | |
| Physical Specifications | ||
| Power Supply | 12 VDC; PoE Supported | |
| Power Consumption | ≤ 6W | |
| Installation | Wall Mounting | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Operating Humidity | 0% to 90% RH, Non-Condensing | |
| Dimensions | 172 × 76 × 27.5 mm | |
| Weight | Net: 0.377 kg; Gross: 0.562 kg | |
| Warranty | ||
| Warranty | 1 Year | |

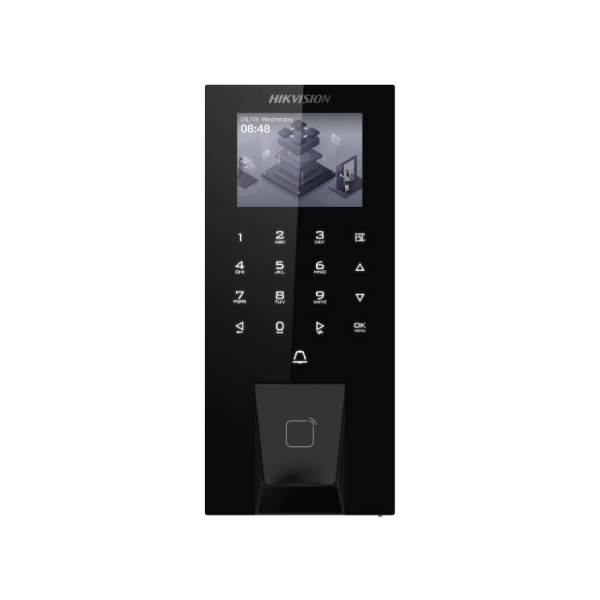

The Hikvision DS-K1T807EBFWX-E1 Fingerprint Access Control Terminal is a professional biometric entry device for offices, factories, educational institutions, hospitals, warehouses and retail operations. It combines fingerprint, EM card, Bluetooth and PIN authentication with door-control interfaces and IP65 protection.
For buyers comparing the Hikvision DS-K1T807EBFWX-E1 price in Bangladesh, this model offers 5,000-fingerprint and 5,000-card capacity, Wi-Fi, Ethernet and PoE. The current price at Touch IT is ৳17,000. Confirm stock, accessories, installation and warranty before ordering.
The DS-K1T807EBFWX-E1 provides flexible user verification and entrance control from one terminal. Its optical fingerprint module performs 1:1 and 1:N matching, while EM card, Bluetooth and PIN provide alternative credentials. Wired and wireless networking suit both new installations and upgrades.
Users can verify by fingerprint, EM proximity card, Bluetooth or PIN, allowing credentials to match operational needs. In the model code, “E” identifies EM card support and “B” indicates Bluetooth.
The optical sensor verifies a registered fingerprint in less than one second and supports one-to-one and one-to-many matching. It stores 5,000 fingerprints, 5,000 cards and 150,000 events. Hikvision specifies FAR ≤0.001% and FRR ≤0.01% under stated conditions.
A 10/100Mbps RJ45 port and 2.4GHz 802.11b/g/n Wi-Fi provide flexible networking, while Bluetooth supports compatible mobile credentials. Browse the Hikvision Access Control collection for models with different biometric methods and capacities.
Lock control, exit-button and door-contact inputs, tamper protection, alarm I/O, RS-485 and Wiegand W26/W34 support compatible locks, readers and security equipment. Visit the Access Control category to plan a complete entrance solution.
The “E1” version supports PoE and 12V DC. Compatible PoE can carry power and data through one cable, reducing separate cabling. Check the electrical design against the lock load and complete system requirements.
An IP65 enclosure and operating range of -30°C to 60°C support demanding locations. Correct mounting, sealed cable entry and suitable power protection remain essential.
| Product Name | Hikvision DS-K1T807EBFWX-E1 Fingerprint Access Control Terminal |
|---|---|
| Model and Series | DS-K1T807EBFWX-E1, Pro Fingerprint Terminal |
| System | Linux; 640MHz CPU; 64MB RAM and 64MB ROM |
| Display | 2.4-inch LCD, 320 × 240 resolution |
| Authentication | Fingerprint, EM card, Bluetooth and PIN |
| Fingerprint Capacity | 5,000 |
| Card Capacity | 5,000 EM cards; reading distance 0–5cm |
| Event Capacity | 150,000 events |
| Biometric Performance | Optical module; <1 second; 1:1 and 1:N matching; FAR ≤0.001%, FRR ≤0.01% |
| Network | RJ45 10/100Mbps, 2.4GHz Wi-Fi 802.11b/g/n and Bluetooth |
| Reader and System Interfaces | RS-485, Wiegand W26/W34 and USB |
| Door and Alarm Interfaces | Lock, exit button, door contact, tamper, 2 alarm inputs and 1 alarm output |
| Protocols and Management | ISAPI, ISUP 5.0 and web-client support |
| Power | 12V DC or PoE; maximum consumption ≤6W |
| Protection and Physical Details | IP65; -30°C to 60°C; 0–90% RH; 172 × 76 × 27.5mm; wall mounting |
Verification note: These specifications apply to the exact DS-K1T807EBFWX-E1. A QR-code reader is not listed and is not claimed. IP65 does not replace weatherproof installation. Adapters, PoE equipment, locks, software, installation and warranty may vary by package.
This terminal balances multi-method authentication, 5,000-user biometric capacity, PoE, Wi-Fi and professional door interfaces. It suits organizations wanting fingerprint access with card, mobile and PIN alternatives. For broader site protection, explore Security System Solutions.
| Model | Published Capacity | Best For |
|---|---|---|
| DS-K1T807EBFWX-E1 | 5,000 fingerprints, 5,000 cards, 150,000 events | PoE, Bluetooth and higher-capacity fingerprint access |
| Hikvision DS-K1T808EFWX | 3,000 fingerprints, 3,000 cards, 100,000 events | Standard Wi-Fi fingerprint access control |
| Hikvision DS-K1T8005EFWX-B | 3,000 fingerprints, 3,000 cards, 100,000 events | Sites requiring battery-bracket compatibility |
| Hikvision DS-K1T321EFX | 500 faces, 3,000 fingerprints/cards, 150,000 events | Entry points requiring face recognition |
It supports fingerprint, EM card, Bluetooth and PIN authentication.
The terminal stores up to 5,000 fingerprints and 5,000 EM cards, with capacity for 150,000 events.
Yes. The E1 configuration supports PoE and can also operate from a suitable 12V DC supply.
It has an IP65 rating, but outdoor reliability still depends on correct mounting, protected cable entry, drainage and suitable electrical protection.
Yes. It supports 2.4GHz Wi-Fi and Bluetooth in addition to wired Ethernet.
Yes. It includes lock, exit-button, door-contact, RS-485 and Wiegand connections for compatible equipment.
No face-recognition camera or QR-code reader is listed for the DS-K1T807EBFWX-E1. Its verified methods are fingerprint, EM card, Bluetooth and PIN.
Touch IT supplies professional access control products in Bangladesh with consultation, installation planning, configuration assistance and after-sales support. The team can confirm credentials, PoE requirements and compatible door hardware before deployment.
Secure your workplace with fast fingerprint verification, flexible credentials and professional door-control connectivity. Order the Hikvision DS-K1T807EBFWX-E1 Fingerprint Access Control Terminal from Touch IT, visit the showroom at 312 (3rd Floor), ECS Computer City Center, Multiplan Center, 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Hikvision DS-K1T807EBFWX-E1 Access Control Terminal in Bangladesh is 17,000৳. You can buy the Hikvision DS-K1T807EBFWX-E1 Access Control Terminal at best price from our website or visit any of our showrooms.
