In Stock
| System & AI Capabilities | ||
| Privacy Protection | Irregular Black Block Masking supported (1 channel by recorder) | |
| Processor | Industrial-grade processor | |
| Operating System | Embedded Linux | |
| User Interface | Web Interface and Local GUI | |
| AI Analytics | AI-powered analytics with SMD Plus technology | |
| Smart Motion Detection (SMD+) | Supported (16 channels by recorder, 24 channels by camera) | |
| Video & Audio Performance | ||
| Video Input Channels | 16-channel analog video input | |
| Supported Resolution | Up to 5MP, 4M-N, 1080P, 720P | |
| Video Compression: | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 | |
| Decoding Performance: | 5MP Mode: 4-channel 5MP @ 1–6 fps 5M-N Mode: Up to 15 fps (4M-N/1080P), up to 30 fps (lower resolutions) |
|
| Analog Video Support | HDCVI, AHD, TVI, CVBS (auto-detect) | |
| IP Camera Support | Up to 24 IP channels (8 default + 16 via analog conversion) | |
| Video Output: | 1 × HDMI (up to 4K), 1 × VGA (up to 1080P) | |
| Audio Support: | 1-channel RCA input, 16-channel coaxial audio, 1-channel RCA output, two-way talk supported | |
| Multi-Screen Display: | 1/4/8/9/16 (up to 25 screens in IP extension mode) | |
| Third-Party Camera Integration | Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF compatible | |
| Recording & Playback | ||
| Recording Modes | General, Motion Detection, Alarm | |
| Playback Mode: | Instant playback, General playback, Event playback, Smart playback, Tag playback | |
| Stream Type | Dual-stream supported | |
| Frame Rate: | Up to 25/30 fps depending on resolution | |
| Video Bit Rate | 32 kbps – 6144 kbps | |
| Audio Compression | G.711a, G.711u, PCM | |
| Backup Methods | USB device and network backup | |
| Alarm Types: | Motion detection, PIR, video loss, video tampering, network alarm, disk error, camera offline | |
| Storage & Interfaces | ||
| Internal Storage | 1 × SATA HDD | |
| Maximum Storage Capacity | Up to 16 TB (environment dependent) | |
| USB Ports: | 2 × USB 2.0 (rear) | |
| Alarm I/O | IPC external alarm output supported via alarm linkage | |
| Network Interface | 1 × RJ-45 (10/100/1000 Mbps Ethernet) | |
| Network & Remote Access | ||
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P | |
| Remote Access | Web browser and mobile remote monitoring | |
| Mobile App Support | iOS and Android | |
| Bandwidth Management | 128 Mbps incoming / 128 Mbps recording / 128 Mbps outgoing | |
| Camera Access Protocos | ONVIF 24.06 (Profile T, S, G), CGI, SDK | |
| Physical Specifications | ||
| Power Supply: | 12 VDC, 2 A | |
| Power Consumption | Less than 12 W (without HDD) | |
| Operating Temperature | –10 °C to +45 °C | |
| Operating Humidity | 10%–90% RH (non-condensing) | |
| Cooling System | Passive cooling (fanless design) | |
| Surge & Lightning Protection | Basic protection via certified power design | |
| Material | Metal and high-quality industrial-grade casing | |
| Dimensions | 260.0 × 231.4 × 47.6 mm (W × D × H) | |
| Net Weight: | 0.93 kg | |
| Mounting Type | Desktop installation | |
| Compliance & Warranty | ||
| Certifications: | CE (LVD & EMC), FCC Part 15 Subpart B | |
| Warranty | 1 Year Warranty | |

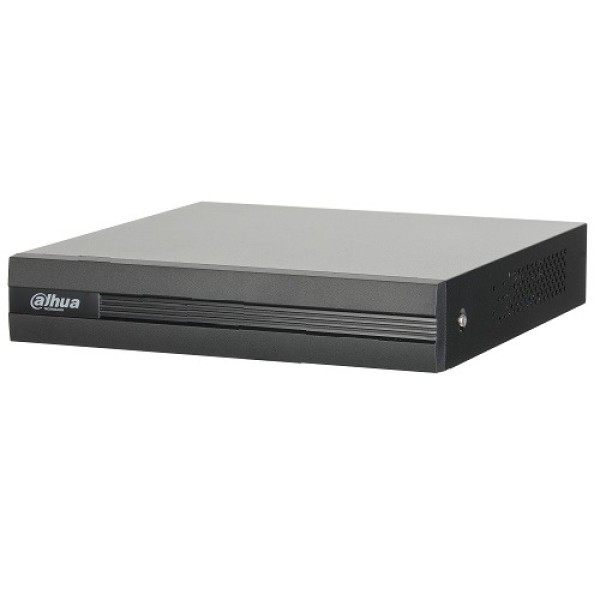

The DAHUA DH-XVR1B16H-I 16 Channel Digital Video Recorder is a powerful, AI-enabled video recording solution designed for modern CCTV surveillance systems. Built with an industrial-grade processor and running on a stable Embedded Linux OS, this DVR delivers reliable performance, smart motion detection, and crystal-clear video recording up to 5MP. It’s an ideal choice for homes, offices, retail stores, and commercial security setups looking for accuracy, flexibility, and future-ready technology.
This DAHUA DH-XVR1B16H-I 16 Channel Digital Video Recorder features advanced SMD Plus by Recorder, intelligently filtering humans and motor vehicles to drastically reduce false alarms caused by rain, leaves, shadows, or lighting changes. With support for SMD Plus by camera on up to 24 channels, your security system becomes smarter, more accurate, and far more dependable—perfect for 24/7 monitoring with peace of mind.
The DAHUA DH-XVR1B16H-I 16 Channel Digital Video Recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, making it one of the most flexible 16-channel DVRs in its class. It allows up to 24 IP cameras (8 IP by default + 16 via analog conversion) with a high bandwidth of 128 Mbps for smooth live view, recording, and playback. Whether you’re upgrading an existing CCTV system or building a new one, this DVR adapts effortlessly.
Enjoy sharp and efficient recording with support for 5MP, 4M-N, and 1080P resolutions. Powered by AI Coding, Smart H.265+, and H.265, this DVR significantly reduces storage and bandwidth usage while maintaining excellent image quality. Dual-stream encoding ensures smooth remote viewing without compromising recording performance.
Equipped with HDMI (up to 4K) and VGA output, the DVR delivers clear multi-screen display options up to 16 or 25 channels. It supports a single SATA HDD up to 16TB, making it suitable for long-term video storage. With mobile access on iOS and Android, plus compatibility with major browsers, you can monitor your property anytime, anywhere.
At Touch IT, we provide 100% genuine DAHUA DH-XVR1B16H-I 16 Channel Digital Video Recorder, competitive pricing in Bangladesh, and expert guidance to help you choose the right CCTV solution. Our commitment to after-sales support, authentic warranty, and customer satisfaction makes Touch IT a trusted destination for professional surveillance equipment. When you buy from Touch IT, you invest in reliability, performance, and long-term security.
The latest price of DAHUA DH-XVR1B16H-I 16 Channel Digital Video Recorder in Bangladesh is 22,770৳. You can buy the DAHUA DH-XVR1B16H-I 16 Channel Digital Video Recorder at best price from our website or visit any of our showrooms.
