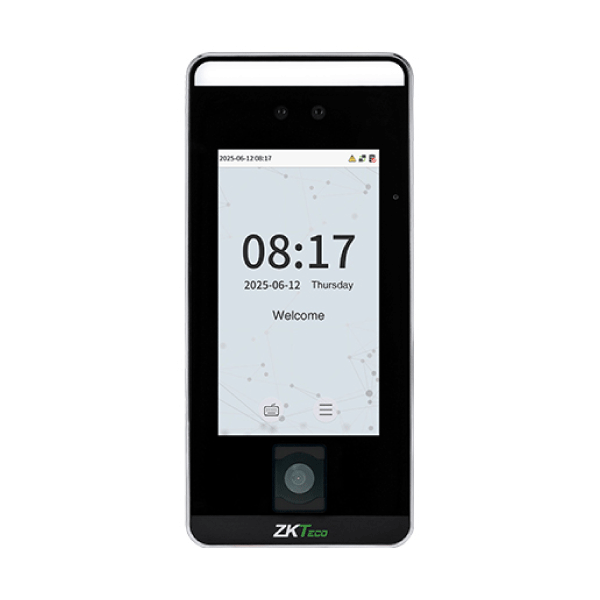

ZKTeco SpeedFace V5L[QR] QR Code and Face & Palm Verification Access Control Terminal

Call for Price
Product Highlights
  • Brand: ZKTeco
  • Model: SpeedFace V5L[QR]
  • Face, QR, Palm, Card & Password Access
  • 6,000 Faces, 3,000 Palms & 10,000 Cards
  • 5-Inch Touchscreen & 200,000 Transactions
  • 2MP WDR, TCP/IP, RS485 & Door Control

Call for Price

remove add
Main Features
SystemLinux-Based Operating System
Face Capacity6,000 Face
Fingerprint Capacity6,000 Finger
ID Card Capacity10,000 cards
Palm Capacity3,000 templates
Record / Log Capacity200,000 log data
CPUQuad-Core A55 @ 1.2GHz
Storage1GB RAM
8GB ROM
Display5-inch ISP Color LCD Screen (720 × 1280)
Camera2MP Binocular WDR Camera
Authentication MethodFace / Card / Password (Virtual Keypad)
CardID Card 125 kHz (Standard or Optional depending on model)
IC Card 13.56 MHz (Optional)
Fingerprint Sensor ZK Optical Sensor
QR Code ScannerSpeedFace-V5L[QR]: Supports Dynamic QR codes via ZKBio CVAccess App
Standard FunctionsADMS, DST, Photo Capture, Event Photo Capture, 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Multiple Verification Methods, T9 Input, Tamper Alarm, Mask Detection, AC Push/TA Push, HTTPS/SSH, Automatic Status Switch
CommunicationTCP/IP, USB Host, RS485, Wiegand In/Out, Aux Input, Aux Output, Door Sensor, Exit Button, Alarm, Electric Lock
Wired networkSupported (TCP/IP)
AlgorithmsZKFace V3.6
ZKFingerprint V13.0 / V10.0 (Only on SpeedFace-V5L)
Wiegand SignalInput & Output supported
Access Control InterfaceRS485, Wiegand In/Out, Lock Relay Output, Door Sensor, Exit Button, Alarm Output, Auxiliary Input, External Bell
Facial Recognition Speed≤ 0.35 sec
Facial Recognition Distance30 cm to 170 cm
Face anti-spoofingAdvanced anti-spoofing (visible light detection)
OthersMask detection, tamper alarm, multiple schedule modes
Physical Specification
EnvironmentIndoor Installation
Power SupplyDC 12V, 3A
Working temperature-10°C to 45°C (14°F to 113°F)
Working humidity10% to 90% RH (Non-condensing)
Built-in access controllerSupported via RS485 (DM10 Controller)
Supplement light Yes (for facial illumination)
Platform/ Software• ZKBio CVAccess (Access Control)
• ZKBio Time (Time & Attendance)
• ZKBio Zlink Cloud Platform
Dimension202.93 mm × 91.93 mm × 21.5 mm (L × W × H)
WeightNet Weight: 0.6 kg
Standard Firmware FunctionsPush Communication, Schedule Bell, Access Rules, Event Photo, Anti-Passback, Password/Fingerprint/Card Verification, T9 Input, Record Query
SDK• ZKTeco Android LCDP
• Push SDK
CertificationsISO14001, ISO9001, CE, FCC
API FunctionalitiesSupported via ZKTeco AC/TA Push protocols, HTTPS API
Device & API Management Cloud Platform ZKBio Zlink (Web & Mobile App)
Manufacture Warranty
Warranty1 Year

ZKTeco SpeedFace V5L[QR] QR Code and Face & Palm Verification Access Control Terminal

An entrance may serve employees with biometrics and visitors with temporary credentials. The ZKTeco SpeedFace V5L[QR] brings visible-light face recognition, a dedicated QR scanner and palm verification to one access-control terminal. It suits offices, factories and institutions needing more than a card-only reader.

Looking for the ZKTeco SpeedFace V5L QR price in Bangladesh? The Touch IT listing is Call for Price. Request a quotation for the exact revision, palm configuration, software and door accessories. The V5L family has several configurations.

Quick Highlights

  • Access methods: Face, dedicated QR scanner, palm on the specified configuration, card and password
  • Display: 5-inch color touchscreen
  • Camera: 2MP WDR camera with supplementary illumination
  • Listed capacity: 6,000 faces, 3,000 palms, 10,000 cards and 200,000 transactions for the older documented variant
  • Connections: TCP/IP, RS485, Wiegand input/output and door-control interfaces
  • Wireless: Wi-Fi is an option, not a standard feature of every unit

Product Overview

Staff can use enrolled face or palm credentials, while an approved mobile QR credential supports another workflow. The scanner reads QR Code, PDF417, Data Matrix, MicroPDF417 and Aztec. An administrator defines who may enter and when a credential is valid.

It can form part of an access control system with an electric lock, sensor and exit button. Confirm the firmware, mobile app and software license; scanning a generic printed code does not automatically grant access.

Key Features and Benefits

Dedicated QR Scanning for Visitor Workflows

The QR scanner supports dynamic credentials from a suitable ZKTeco mobile platform. Organizations can issue managed access without enrolling every visitor's face or handing out permanent cards. Test code presentation, validity rules and the app with the actual unit. A standard SpeedFace V5L does not necessarily include this scanner.

Touchless Face and Palm Options

Visible-light recognition avoids a shared keypad. ZKTeco describes palm matching and masked-face operation for its QR model. The older datasheet lists 3,000 palms; the newer series makes palm hardware configuration dependent. Confirm the quoted unit includes palm capability. Lighting, mounting height and enrollment affect performance.

Connections for a Complete Door

TCP/IP supports wired networking. RS485 and Wiegand input/output support compatible readers or controllers; lock, sensor, exit button and alarm connections serve a managed door. Plan power, cabling and lock behavior with the installer. A separate exit reader may be needed for verified departures.

Records and Management

The older QR model stores up to 200,000 transactions and supports groups, holidays and anti-passback. Current ZKTeco literature names ZKBio CVAccess for access, ZKBio Time for attendance and ZKBio Zlink for supported cloud deployments. Licensing and compatibility depend on the project.

Recommended Applications

  • Employee and approved visitor entry at corporate offices in Dhaka
  • Managed entrances at factories, garment facilities and warehouses
  • Campus, clinic and commercial-building access points
  • Sites replacing manual visitor passes with controlled QR credentials

Browse security system solutions for locks, controllers and power supplies.

Technical Specifications

ModelZKTeco SpeedFace V5L[QR]; confirm supplied revision
AuthenticationFace, QR, palm on compatible configuration, card and password
Display and camera5-inch touchscreen; 2MP WDR imaging
Older QR variant capacity6,000 faces, 3,000 palms, 10,000 cards, 200,000 transactions
QR formatsQR Code, PDF417, Data Matrix, MicroPDF417, Aztec
CommunicationTCP/IP, RS485, Wiegand input/output; Wi-Fi optional
Door connectionsElectric lock, door sensor, exit button, alarm and auxiliary I/O
Power12V DC, 3A

Revision check: The newer V5L series lists up to 10,000 faces and optional palm hardware. ZKTeco's QR-model comparison does not specify a fingerprint sensor. Match the order ID and datasheet to the supplied unit before quoting capacities or choosing authentication methods.

SpeedFace V5L Product Comparison

ModelKey distinctionChoose it when
SpeedFace V5L[QR]Dedicated QR scanning, face and configuration-dependent palmMobile QR credentials are central to entry
SpeedFace V5LFace and fingerprint; QR module is not the defaultFingerprint enrollment matters more than a dedicated scanner
SpeedFace V5L Wi-FiWi-Fi-equipped listing with fingerprint verificationWireless data networking is a requirement

See the ZKTeco access control range to compare more terminal and reader configurations.

Frequently Asked Questions

What does the QR scanner do?

It reads supported two-dimensional codes. Managed dynamic access credentials require compatible ZKTeco software, a configured device and valid permissions.

Does SpeedFace V5L[QR] include fingerprint verification?

ZKTeco's QR-model comparison does not list a fingerprint sensor. The standard SpeedFace V5L is the fingerprint alternative; confirm the exact order ID.

Is palm recognition included?

The older QR datasheet lists 3,000 palm templates, while newer series documentation makes palm configuration dependent. Ask which version is included in the quotation.

How many face templates and logs can it hold?

Touch IT's 6,000-face listing aligns with the older QR datasheet, which specifies 200,000 transactions. Newer series capacities differ, so verify the supplied hardware.

Does it have Wi-Fi?

Wi-Fi is optional in ZKTeco's documentation. TCP/IP is documented for wired networking; confirm whether wireless hardware is included.

Can it control an electric door lock?

Yes, with compatible lock, exit button, sensor, power supply and proper wiring. Confirm the complete door design and software setup with an installer.

Why Buy from Touch IT?

Touch IT helps Bangladesh buyers compare biometric attendance and door-access equipment. Share your planned user count, visitor process, existing cards and management platform when requesting a quote. Browse related ZKTeco products for a complete project.

Request a Quote for SpeedFace V5L[QR]

Ask Touch IT about the ZKTeco SpeedFace V5L[QR] Access Control Terminal and specify the QR workflow, palm option, software and door hardware you need. Confirm the exact revision and availability before ordering.

What is the price of ZKTeco SpeedFace V5L QR Access Control Terminal in Bangladesh?

The latest price of ZKTeco SpeedFace V5L QR Access Control Terminal in Bangladesh is 0৳. You can buy the ZKTeco SpeedFace V5L QR Access Control Terminal at best price from our website or visit any of our showrooms.
