In Stock
| Camera System | ||
| Image Sensor | 1/3.0" CMOS image sensor | |
| Maximum Resolution | 4 Megapixel (2560 × 1440) | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | Auto / Manual, 1 ~ 1/100000 second | |
| Day / Night Mode | IR-cut filter with automatic switching (ICR) | |
| Minimum Illumination | Color: 0.01 Lux (F2.1, AGC ON); 0 Lux with IR enabled | |
| Signal-to-Noise Ratio (S/N) | Greater than 52 dB | |
| Wide Dynamic Range (WDR) | DWDR (Digital Wide Dynamic Range) | |
| Digital Noise Reduction (2D/3D DNR) | Supported (2D & 3D DNR) | |
| Digital Defog | Supported (Digital Defog) | |
| Pan / Tilt / Rotation | Pan: 0°–360°, Tilt: 0°–80°, Rotation: 0°–360° | |
| Infrared & Illumination | ||
| IR Type | Infrared (IR) | |
| IR Distance | Up to 30 m (98 ft) | |
| IR Control (Auto / Manual) | Auto / Manual | |
| IR Wavelength | 850 nm | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Fixed lens | |
| Focal Length & Field of View (FOV) | 2.8 mm: 97.0° (H) / 52.2° (V) / 107.5° (D) 4.0 mm: 79.0° (H) / 42.3° (V) / 85.1° (D) |
|
| Lens Mount | M12 mount | |
| Iris Type | Fixed iris | |
| Aperture (F-number) | F2.1 | |
| DORI Distance | 2.8 mm: Detect 63 m / Observe 25.2 m / Recognize 12.6 m / Identify 6.3 m 4.0 mm: Detect 90 m / Observe 36 m / Recognize 18 m / Identify 9 m |
|
| Video & Image Processing | ||
| Video Compression | Ultra 265, H.265, H.264 | |
| Smart Codec | Ultra 265 supported (Main Stream) | |
| Main Stream / Sub Stream | Dual streams supported | |
| Frame Rate | Main Stream: 4MP (2560×1440) @ 25 fps 3MP (2304×1296) @ 25 fps 1080p @ 30 fps Sub Stream: Up to 30 fps |
|
| Supported Resolution | 4MP, 3MP, 1080p, D1, 640×360, CIF, 2CIF | |
| Bit Rate Control (CBR / VBR) | 128 Kbps – 6144 Kbps | |
| Region of Interest (ROI) | Supported | |
| On-Screen Display (OSD) | Up to 4 OSD overlays | |
| Image Enhancement (BLC / HLC) | BLC and HLC supported | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |
| Gain Control | Automatic Gain Control (AGC) | |
| Privacy Masking | Up to 4 configurable areas | |
| Image Rotation / Flip | Normal, Vertical Flip, Horizontal Flip, 180° | |
| Smart & AI Features | ||
| Motion Detection | Supported | |
| Basic Event Detection | Motion detection | |
| Network & Storage | ||
| Network Interface (RJ45) | 1 × RJ45 10/100 Mbps Ethernet | |
| Network Protocols | IPv4, TCP/IP, UDP, DHCP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL/TLS, DNS, DDNS, NTP, UPnP, QoS, ARP, ICMP | |
| ONVIF / Interoperability | ONVIF Profile S & Profile T supported | |
| SDK & API Support | SDK and API supported | |
| Maximum User Access | Up to 32 users (Administrator & Common user) | |
| Network Storage (NAS / NVR) | ANR, NAS (NFS) supported | |
| Software & Access | ||
| Web Browser Support | IE 10+, Chrome, Firefox, Edge (plugin & plugin-free modes) | |
| Management Software | EZStation | |
| Mobile App Support | Supported via mobile app | |
| Security Features | Password protection, HTTPS encryption, user authentication, IP filtering, RTSP/HTTP authentication, operation log export | |
| Power & Physical Specifications | ||
| Power Supply | DC 12V ±25%, PoE (IEEE 802.3af) | |
| Power Consumption | Maximum 5.0 W | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Operating Humidity | ≤ 95% RH (non-condensing) | |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Ingress Protection (IP Rating) | IP67 | |
| Material | Metal + Plastic | |
| Dimensions (L × W × H) | Ø118 × 95 mm (Ø4.6" × 3.8") | |
| Net Weight | 0.28 kg (0.62 lb) | |
| Installation Type | Ceiling or wall mount | |
| Compliance & Warranty | ||
| Certifications | CE, FCC, UL, CB, RoHS, WEEE | |
| Manufacturer Warranty | 1 Year Warranty | |

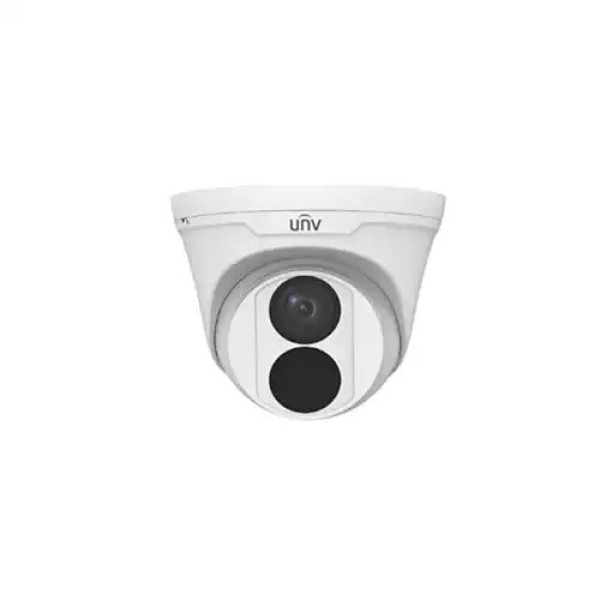

The Uniview IPC3614LB-SF28-A 4MP Fixed IR Eyeball Dome IP Camera is a reliable and high-performance surveillance solution designed for clear, secure, and continuous monitoring. Built with a powerful 4MP CMOS sensor and Smart IR technology, this camera delivers sharp images day and night, making it ideal for homes, offices, retail stores, and commercial spaces. Available a Touch IT , this model combines durability, advanced imaging, and easy installation.
Equipped with a 1/3.0" 4.0 megapixel CMOS image sensor, this Uniview IP camera captures detailed and smooth video footage. The high resolution ensures better identification of people and objects, even in challenging lighting conditions.
The built-in Smart IR technology provides up to 30 meters (98ft) of infrared illumination, ensuring clear visibility even in complete darkness. With a minimum illumination of 0 Lux with IR on, this dome camera guarantees dependable night-time security.
The camera features a fixed-focal lens option of 2.8mm or 4.0mm @ F2.0, offering a wide angle of view up to 97.0° (H), 52.2° (V), and 107.5° (D). This wide coverage reduces blind spots and enhances overall monitoring efficiency.
With support for 2D/3D Digital Noise Reduction and Digital Defog, the Uniview IPC3614LB-SF28-A delivers cleaner, clearer images by minimizing noise and improving visibility in foggy or hazy environments. Flexible image flip options allow easy installation in various mounting positions.
Designed with a strong metal and plastic body, this eyeball dome IP camera is rated IP67 for water and dust protection. It operates reliably in extreme temperatures from -30°C to 60°C, making it suitable for both indoor and outdoor installations.
The camera supports DC 12V power and PoE (IEEE 802.3af), simplifying installation and reducing cable clutter. With a standard RJ45 Ethernet interface and support for ANR and NAS (NFS) network storage, it ensures stable and secure data handling.
When you choose Touch IT, you get genuine Uniview products backed by expert support and a 1-year warranty. The Uniview IPC3614LB-SF28-A 4MP Fixed IR Eyeball Dome IP Camera is a smart investment for anyone looking for reliable, high-quality IP surveillance at a competitive price.
The latest price of Uniview IPC3614LB-SF28-A IP Camera in Bangladesh is 5,200৳. You can buy the Uniview IPC3614LB-SF28-A IP Camera at best price from our website or visit any of our showrooms.
