| Camera System | ||
| Image Sensor | 1/3" 4.0 Megapixel Progressive Scan CMOS | |
| Maximum Resolution | 2688 × 1520 (4MP) | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | Auto / Manual, 1 ~ 1/100000 s | |
| Day / Night Mode | IR-cut filter with automatic switch (ICR) | |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON) 0 Lux with IR ON |
|
| Signal-to-Noise Ratio (S/N) | 52 dB | |
| Wide Dynamic Range (WDR) | 120 dB True WDR | |
| Digital Noise Reduction (2D/3D DNR) | Supported (2D / 3D DNR) | |
| Digital Defog | Supported | |
| Pan / Tilt / Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|
| Infrared & Illumination | ||
| IR Type | Built-in Infrared LEDs | |
| IR Distance | Up to 50 m (164 ft) | |
| IR Control (Auto / Manual) | Auto / Manual | |
| IR Wavelength | 850 nm | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Fixed Lens | |
| Focal Length & Field of View (FOV) | 4.0 mm: • H: 79.7° | V: 41.6° | O: 98.0° |
|
| Lens Mount | Board Lens (Fixed) | |
| Iris Type | Fixed Iris | |
| Aperture (F-number) | F1.6 | |
| DORI Distance | 4.0 mm: Detect 90 m / Observe 36 m / Recognize 18 m / Identify 9 m | |
| Video & Image Processing | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| Smart Codec | Ultra 265 Smart Compression | |
| Main Stream / Sub Stream | Main Stream: 4MP (2688×1520) Sub Stream: 720P (1280×720) |
|
| Frame Rate | Up to 25 fps | |
| Supported Resolution | 4MP, 720P | |
| Bit Rate Control (CBR / VBR) | CBR / VBR Supported | |
| Region of Interest (ROI) | Up to 4 Regions | |
| On-Screen Display (OSD) | Up to 4 OSDs | |
| Image Enhancement (BLC / HLC) | BLC and HLC Supported | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | |
| Gain Control | Automatic | |
| Privacy Masking | Up to 4 Areas | |
| Image Rotation / Flip | Normal / Vertical / Horizontal / 180° | |
| Smart & AI Features | ||
| Motion Detection | Supported (Up to 4 Areas) | |
| Basic Event Detection | Motion Detection | |
| Network & Storage | ||
| Network Interface (RJ45) | 10/100M Base-TX Ethernet | |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
|
| ONVIF / Interoperability | ONVIF Profile S, Profile T | |
| SDK & API Support | Supported (NVR via ONVIF / RTSP) | |
| Software & Access | ||
| Web Browser Support | Plug-in Required: IE9+, Chrome ≤41, Firefox ≤52 Plug-in Free: Chrome 57+, Firefox 58+, Edge 16+, Safari 11+ |
|
| Management Software | EZStation | |
| Mobile App Support | EZView, EZLive | |
| Security Features | HTTPS, SSL, User Authentication | |
| Power & Physical Specifications | ||
| Power Supply | DC 12V ±25%, PoE (IEEE 802.3af) | |
| Power Consumption | Maximum 6 W | |
| Operating Temperature | -30°C to 60°C | |
| Operating Humidity | ≤95% RH (Non-condensing) | |
| Storage Temperature | -30°C to 60°C | |
| Ingress Protection (IP Rating) | IP67 | |
| Material | Metal | |
| Dimensions (L × W × H) | 191.3 × 72.6 × 70.9 mm | |
| Net Weight | 0.5 kg | |
| Installation Type | Wall / Ceiling Mount (Bullet Type) | |
| Compliance & Warranty | ||
| Certifications | CE (EN 60950-1), UL (UL60950-1), FCC Part 15 | |
| Manufacturer Warranty | 1 Year | |

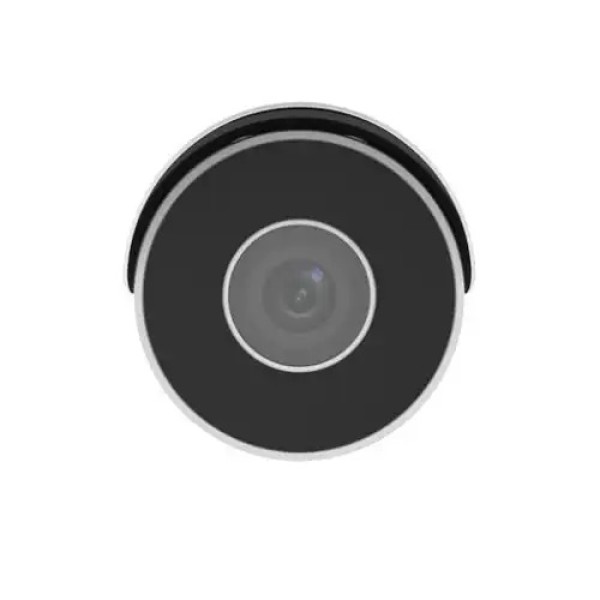

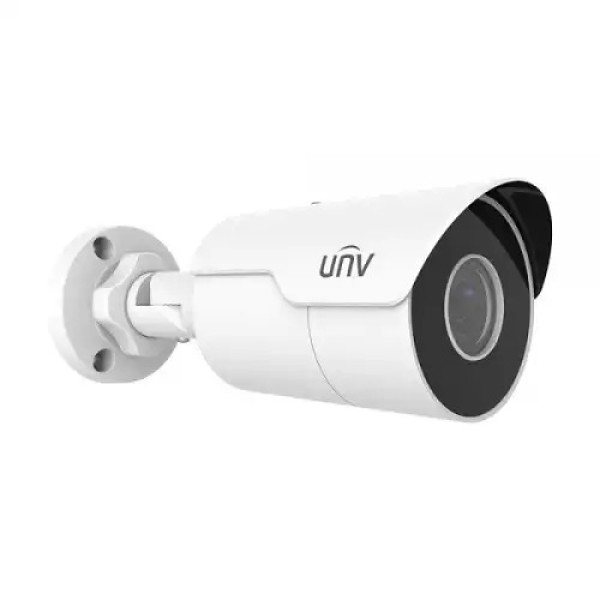

The Uniview IPC2124LR5-DUPF40M-F IP Camera is a compact yet high-performance security solution designed for reliable indoor and outdoor surveillance. Equipped with a 1/3” 4MP progressive scan CMOS sensor and a 4.0mm F1.6 lens, this camera delivers sharp, detailed video with excellent low-light performance, making it ideal for homes, offices, shops, and industrial environments.
This Uniview IPC2124LR5-DUPF40M-F IP Camera records at up to 2688×1520 resolution at 25fps, ensuring clear and smooth footage. With Ultra 265, H.265, and H.264 video compression, it significantly reduces bandwidth and storage costs without compromising image quality. The powerful IR night vision up to 50 meters with Smart IR ensures consistent clarity even in complete darkness.
The 4.0mm fixed lens provides an optimal balance between coverage and detail, offering a 79.7° horizontal field of view. According to DORI standards, the Uniview IPC2124LR5-DUPF40M-F IP Camera can detect up to 90m, observe at 36m, recognize at 18m, and identify subjects at 9m. Flexible pan, tilt, and rotation adjustment allows precise positioning for any installation scenario.
With 120dB True WDR, Digital Defog, HLC, BLC, and 2D/3D Digital Noise Reduction, the camera delivers balanced images in challenging lighting conditions. Intelligent functions such as motion detection, privacy masking, ROI, Smart IR, image flip, and dewarping enhance monitoring accuracy and usability for professional CCTV systems.
The Uniview IPC2124LR5-DUPF40M-F IP Camera supports a wide range of network protocols and integrates easily with ONVIF Profile S and T compliant systems. It works smoothly with Uniview EZStation, EZView, and EZLive software and supports plug-in-free live view on modern browsers. Power options include DC 12V or PoE (IEEE 802.3af), ensuring a clean and flexible installation.
Designed with a robust metal housing and rated IP67, this Uniview IPC2124LR5-DUPF40M-F IP Camera is resistant to dust, rain, and harsh weather conditions. It operates reliably in temperatures from -30°C to 60°C and includes 2KV surge protection, making it suitable for long-term outdoor use.
At Touch IT, we provide 100% genuine Uniview CCTV products with competitive pricing and trusted local support. Our expert team helps you choose the right surveillance solution, backed by authentic warranty and after-sales service. Buying the Uniview IPC2124LR5-DUPF40M-F IP Camera from Touch IT means investing in dependable security, expert guidance, and complete peace of mind.
The latest price of Uniview IPC2124LR5-DUPF40M-F IP Camera in Bangladesh is 7,200৳. You can buy the Uniview IPC2124LR5-DUPF40M-F IP Camera at best price from our website or visit any of our showrooms.
