In Stock

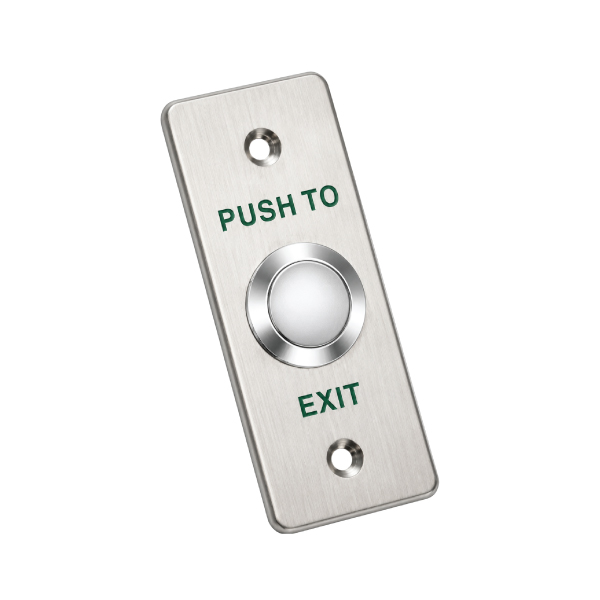

The Hikvision DS-K7P02 Aluminum Alloy Exit & Emergency Push Button is a compact wired door-release switch. Designed for hollow doorframes and embedded electrical boxes, it lets users request exit from offices, shops, apartments, clinics, schools and warehouses. Its aluminum-alloy panel and metal button provide a durable touchpoint.
For buyers comparing the Hikvision DS-K7P02 price in Bangladesh, the current price at Touch IT is ৳800. It offers NO, NC and COM contacts, a maximum rating of 3 A at 36 V DC and endurance verified through a 500,000-press test. Confirm mounting, controller and lock compatibility before ordering.
The DS-K7P02 is a mechanical exit button, not an authentication terminal. When connected to a compatible controller, relay or lock circuit, pressing it changes the contact state and sends a release request. Normally open and normally closed options support different approved system designs. It has no card reader, keypad, network connection or management software.
Hikvision specifies a sandblasted aluminum-alloy panel and metal button. The sturdy construction suits frequently used exits while maintaining a clean appearance beside office doors and controlled passages. Browse compatible locks and accessories in the Door Lock and Access Control Accessories category.
The DS-K7P02 provides normally open, normally closed and common terminals. An installer can select the signal arrangement required by the controller or release circuit. This supports new and replacement projects within the published contact rating.
Measuring 90 × 35 × 28.9 mm, the slim panel fits a hollow doorframe or embedded electrical box. Its narrow format is useful where mounting space is limited. Check the mounting surface and back-box depth before installation.
Hikvision states that the switch passed a 500,000-press aging test. This published endurance suits busy indoor access points where staff or visitors operate the button repeatedly. Service life also depends on installation quality, environment and handling.
The DS-K7P02 can join a wider door-entry solution without user enrollment or standalone software. Explore compatible readers and controllers on the Hikvision Access Control brand page. A trained installer should handle wiring, relay selection and code compliance.
| Brand | Hikvision |
|---|---|
| Model | DS-K7P02 |
| Product Type | Exit and emergency push button |
| Operating Method | Mechanical push button |
| Signal Output | NO, NC and COM contacts |
| Contact Rating | Maximum 3 A at 36 V DC |
| Panel Material | Aluminum alloy with sandblasted finish |
| Button Material | Metal |
| Dimensions | 90 × 35 × 28.9 mm |
| Product Weight | 0.20 kg |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 0% to 95% RH |
| Specified Installation | Hollow doorframe and embedded electrical box |
| Mechanical Endurance | Passed 500,000-press aging test |
| Authentication | None; external access control system required |
Verification note: Hikvision publishes the electrical value as a maximum contact rating, not normal power consumption. The reviewed documentation does not list an LED, IP rating, fire certification, included back box or outdoor approval. “Emergency” in the name does not establish compliance with local fire or exit codes. Confirm project requirements and box contents before purchase.
This model suits projects needing a compact metal release button with flexible contact output. Its slim body, published environmental range and verified endurance meet everyday indoor access-control needs. It works best with a compatible controller and electric lock. Explore complete entrance protection under Security System Solutions.
| Product | Best For | Main Difference |
|---|---|---|
| Hikvision DS-K7P02 | Narrow frames and compact mounting areas | Slim 90 × 35 mm aluminum-alloy panel |
| Hikvision DS-K7P01 Exit Push Button | Standard wall-box style installations | Wider square-panel format |
| Hikvision DS-K4H255S Magnetic Lock | Single-door electromagnetic locking | Locking hardware rather than a release switch |
It provides a wired contact signal that can request door release from a compatible access controller, relay or lock circuit.
The button provides NO, NC and COM contacts, allowing the installer to use the arrangement required by the approved system design.
No. It has no built-in fingerprint, face, card or PIN authentication. It is a mechanical exit-request device.
An LED indicator is not listed in the reviewed Hikvision specifications, so illuminated operation should not be assumed.
Hikvision does not publish an IP rating in the reviewed documentation. Use in exposed outdoor locations should therefore be avoided unless a qualified designer provides suitable protection.
Yes. Hikvision specifically lists hollow doorframes and embedded electrical boxes as installation applications.
It can provide the exit-request contact within a properly designed system. A qualified installer should confirm controller, relay, power supply and lock compatibility before connection.
