In Stock
| General Information | ||
| Product Type | Exit Push Button | |
| Compatible Model | Access Control System / Door Lock System | |
| Lock or Bracket Type | Exit Push Button | |
| Operating Method | Press to Exit | |
| Mechanical Endurance | Passed 500,000 Times Aging Test | |
| Door Compatibility and Construction | ||
| Suitable Door Type | Hollow Doorframe and Embedded Electrical Box | |
| Installation Type | Surface / Embedded Installation | |
| Installation Position | Doorframe / Electrical Box | |
| Main Material | Aluminum Alloy Panel with Metal Button | |
| Surface Finish | Sandblast Finish | |
| Product Dimensions | 86 × 86 × 28.9 mm | |
| Electrical & Environmental Conditions | ||
| Input Voltage | Max. 36 VDC | |
| Operating Current | Max. 3A | |
| Contact Output | NO / NC / COM | |
| Contact Rating | 36 VDC, 3A Max | |
| Operating Temperature | -10°C to 55°C | |
| Operating Humidity | 0% to 95% RH | |
| Warranty | ||
| Warranty | 1 Year | |

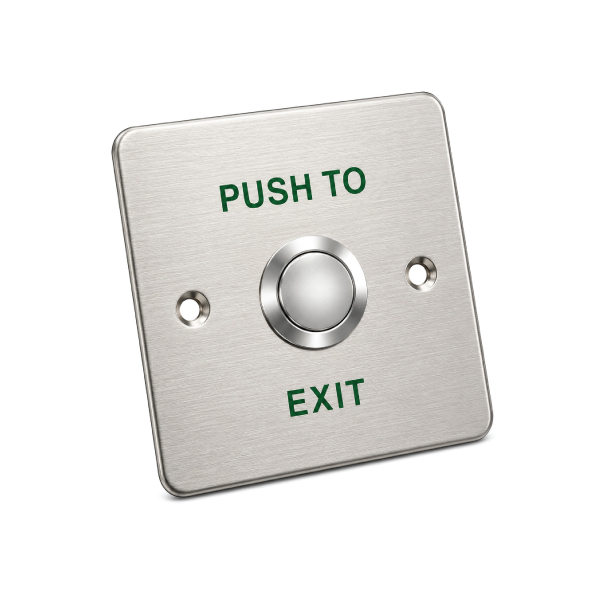

The Hikvision DS-K7P01 Aluminum Alloy Exit Push Button is a durable wired door-release switch. Its square sandblasted aluminum-alloy panel and metal button provide a practical exit point for offices, shops, apartments, schools, hospitals and warehouses. It is designed for hollow doorframes and embedded electrical boxes.
For customers comparing the Hikvision DS-K7P01 price in Bangladesh, the current price at Touch IT is ৳800. The button provides normally open, normally closed and common contacts, supports a maximum contact load of 3A at 36V DC and has passed a 500,000-press aging test. Confirm the mounting box, controller, lock circuit and installation requirements before ordering.
The DS-K7P01 works as a request-to-exit switch. Pressing it changes the selected contact state, allowing a controller, relay or lock circuit to process the release request. It does not authenticate users, communicate over a network or manage attendance. Its value lies in simple operation and tested durability.
Hikvision uses a sandblasted aluminum-alloy panel with a metal button. The robust surface suits frequently operated indoor exits while maintaining a clean appearance beside office doors, reception areas and secure internal rooms. Browse compatible locks and mounting accessories in the Door Lock category.
The DS-K7P01 provides normally open, normally closed and common contact terminals. These options allow a qualified installer to choose the signaling arrangement required by the access controller or release circuit. The configuration must follow the connected equipment requirements and remain within the manufacturer’s maximum contact rating.
The button passed a 500,000-cycle aging test, making it practical where users regularly request door release. Service life also depends on installation quality, environment, handling and electrical load.
The 86 × 86mm square panel is designed for hollow doorframes and embedded electrical boxes. This format suits many conventional wall-mounted access control layouts and offers a larger faceplate than the narrow DS-K7P02 model. The available box depth and mounting surface should be checked before installation.
As a mechanical contact device, the button can work with compatible door controllers, relay modules and electromagnetic or electric locks. It does not need user enrollment or management software. Explore matching terminals and controllers through the Hikvision Access Control collection.
| Brand | Hikvision |
|---|---|
| Model | DS-K7P01 |
| Product Type | Wired exit push button |
| Operating Method | Mechanical push-to-exit operation |
| Signal Output | NO, NC and COM contacts |
| Contact Rating | Maximum 3A at 36V DC |
| Panel Material | Sandblasted aluminum alloy |
| Button Material | Metal |
| Published Dimensions | 86 × 86 × 28.9mm in the technical datasheet |
| Product Weight | 0.25kg |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 0% to 95% relative humidity |
| Installation Type | Hollow doorframe or embedded electrical box |
| Mechanical Endurance | Passed 500,000-press aging test |
| Built-in Authentication | None; external access control equipment required |
Verification note: Hikvision’s current product summary displays dimensions of 86 × 86 × 20mm, while the detailed technical datasheet specifies 86 × 86 × 28.9mm. Confirm the supplied version and mounting depth before installation. The 3A at 36V DC value is a maximum contact rating, not normal power consumption. No LED indicator, IP rating, fire certification, network function or included back box is published.
The DS-K7P01 is suitable for projects needing a robust square-panel exit button with flexible changeover contacts. Its metal construction, broad environmental range and verified pressing endurance address the needs of routine indoor door-release operation. For complete entrance protection and related workplace technology, explore Security System Solutions.
| Product | Primary Purpose | Main Difference |
|---|---|---|
| Hikvision DS-K7P01 | Standard exit-request operation | Square 86 × 86mm aluminum-alloy panel |
| Hikvision DS-K7P02 Exit Button | Door-release request in narrow areas | Slim 90 × 35mm panel format |
| Hikvision DS-K4H255S Magnetic Lock | Single-door electromagnetic locking | 272kg locking hardware rather than a release switch |
It sends a wired request-to-exit signal to a compatible access controller, relay or approved electric-lock circuit.
It provides normally open, normally closed and common contacts for compatible system configurations.
It is a passive mechanical contact device. The connected access control or lock system has its own correctly specified power arrangement.
No LED indicator is listed in the reviewed Hikvision documentation, so illuminated operation should not be assumed.
Yes. Hikvision lists embedded electrical boxes and hollow doorframes as supported installation applications.
No IP protection rating is published. Use it in a protected location unless the project designer provides suitable environmental protection.
It can provide the release-request contact within a correctly designed system. Controller, relay, lock and power compatibility should be checked by an installer.
Touch IT supplies professional access control and door-lock products in Bangladesh with product consultation, installation planning and after-sales technical support. The team can help verify the controller, electric lock, cable route, mounting box and power requirements for a dependable installation.
Add a durable and easy-to-operate door-release point to your access control system. Order the Hikvision DS-K7P01 Aluminum Alloy Exit Push Button from Touch IT, visit the showroom at 312 (3rd Floor), Multiplan Center, 69–71 New Elephant Road, Dhaka-1205, or call 01711664030 for product and installation guidance.
