In Stock
| Hardware | ||
| Display | 7-inch IPS Capacitive Touch Screen | |
| Camera | 2MP Wide-Angle Lens | |
| Resolution | Display: 600 × 1024; Camera: 2MP | |
| Operating System | Linux | |
| User & Storage Capacity | ||
| Face Capacity | 10,000 Faces | |
| Fingerprint Capacity | 10,000 Fingerprints with Fingerprint Module | |
| Card Capacity | 50,000 Cards | |
| Transaction Capacity | 150,000 Events | |
| Authentication & Features | ||
| Verification Modes | Face, Fingerprint with Module, Card | |
| Card Type | M1 Card, DESFire Card, Felica Card | |
| Multi-Factor Authentication | Supported | |
| Face Recognition Speed | < 0.2 Seconds per Person | |
| Face Algorithm | Face Anti-Spoofing, Face Duplicate Check, Single & Multiple People Recognition | |
| Face Recognition Accuracy | ≥ 99% | |
| Face Recognition Distance | 0.3 m to 3 m | |
| Finger Sensor Type | Fingerprint Module Supported | |
| Liveness Detection | Supported | |
| Mask Detection | Supported | |
| Communication & Interface | ||
| Network | TCP/IP, IPv4, IPv6, Wired Network, PoE IEEE802.3at | |
| Interface | 1 × RJ-45 10/100/1000M, 1 × RS-485, 1 × Wiegand, 1 × USB for Module, 1 × 3.5mm Audio Output | |
| Optional Network Protocols | ISAPI, ISUP 5.0, OSDP V2.1.7, SIP Server Support, Custom Wiegand Parameters | |
| Access Control | 1 × Lock Control, 1 × Exit Button, 1 × Door Contact Input, 2 × Alarm Inputs, 1 × Alarm Output, 1 × Tamper | |
| Software & Smart Features | ||
| Software Compatibility | ISAPI, ISUP 5.0, SIP Server Support | |
| SDK | Push SDK Supported | |
| Voice Prompt | Built-in Omnidirectional Microphone, Audio Output Interface | |
| Schedule Bell | Attendance-Only Function, Face Duplicate Check, Multiple People Recognition up to 5 People | |
| Physical Specifications | ||
| Power Supply | 12 VDC to 24 VDC, 2A | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Operating Humidity | 0% to 90% RH, Non-Condensing | |
| Protection Level | IP65 | |
| Dimensions | 110.5 × 209.2 × 24 mm | |
| Weight | Net: 0.57 kg; Gross: 1.06 kg | |
| Warranty | ||
| Warranty | 1 Year | |

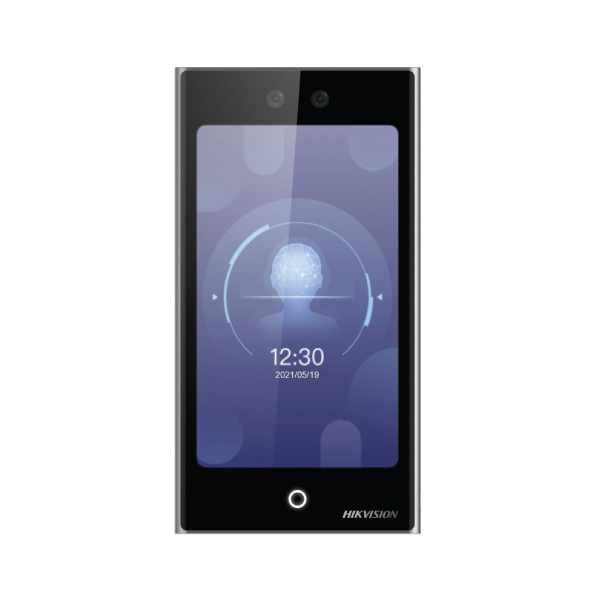

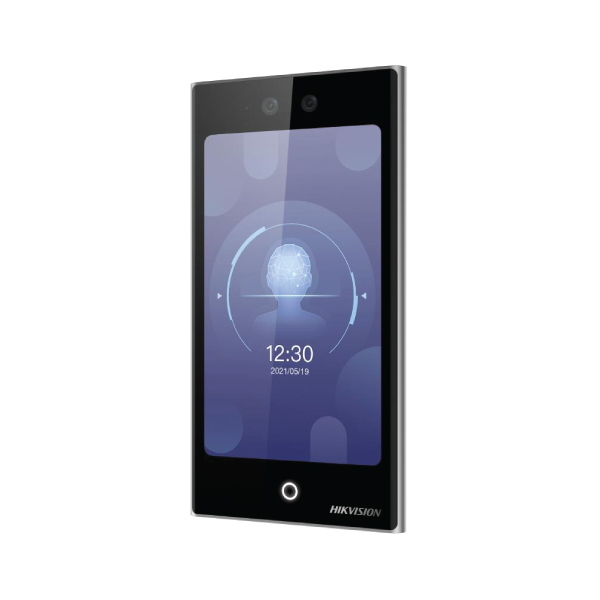

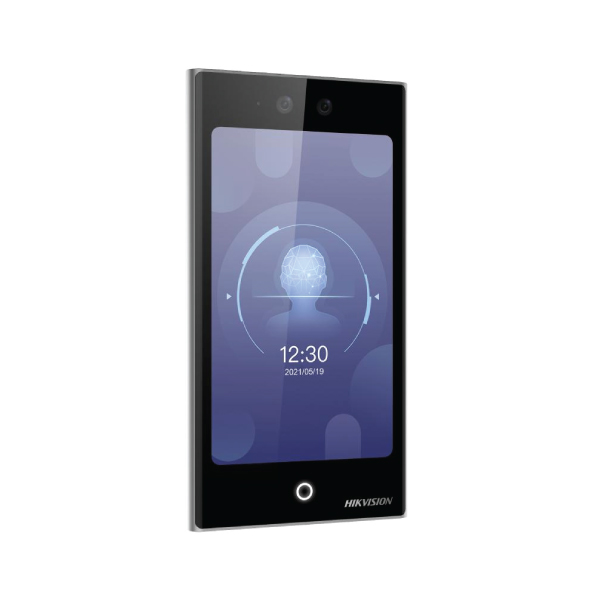

The Hikvision DS-K1T673DX-E1 Access Control Terminal is a premium Pro Series face recognition access control device designed for offices, factories, schools, stations, apartments, hospitals, banks, corporate buildings, and high-security workplace entrances. It supports face recognition, card authentication, and fingerprint verification with supported fingerprint module, making it a powerful solution for secure door access and employee attendance management.
For businesses looking for a professional Hikvision face recognition access control terminal in Bangladesh, the DS-K1T673DX-E1 offers a 7-inch IPS touch screen, 2MP wide-angle lens, mask detection, face anti-spoofing, PoE support, IP65 protection, and high user capacity. At Touch IT, the current price of the Hikvision DS-K1T673DX-E1 is ৳84,500. Please confirm price, stock, installation support, and fingerprint module availability before ordering.
Hikvision DS-K1T673DX-E1 is a Pro Face Recognition Access Control Terminal for secure entry management. It supports 10,000 face templates, 50,000 cards, 150,000 events, mask detection, face anti-spoofing, multiple people recognition up to 5 people, ISAPI, ISUP 5.0, TCP/IP, PoE, Wiegand, RS-485, lock control, exit button, door contact, alarm input, and tamper protection.
The DS-K1T673DX-E1 provides face recognition in less than 0.2 seconds per person with an accuracy rate of ≥99%. Its 0.3m to 3m recognition distance makes entry faster and more convenient for busy office entrances, factory gates, campus buildings, and corporate reception areas.
With 10,000 face capacity, 50,000 card capacity, and 150,000 event records, this terminal is suitable for medium to large organizations. The fingerprint capacity reaches 10,000 when used with a compatible fingerprint module, making it flexible for multi-credential access control projects.
The device includes built-in M1, DESFire, and Felica card reading support. Users can present the card on the screen to authenticate, helping businesses manage employee access, visitor entry, and restricted-area permissions with stronger security.
Hikvision DS-K1T673DX-E1 supports face mask detection and face anti-spoofing. These features help improve workplace hygiene, reduce fake face attempts, and strengthen access security for offices, banks, factories, schools, and sensitive business areas.
The terminal supports lock control, exit button, door contact input, alarm input/output, tamper protection, RS-485, Wiegand, and network interface. For complete door security, explore Touch IT’s Access Control solutions.
With PoE IEEE802.3at support, RJ45 gigabit network interface, Linux operating system, ISAPI, ISUP 5.0, and IP65 protection, the DS-K1T673DX-E1 is suitable for professional access control installations where reliability, integration, and durability matter.
| Product Name | Hikvision DS-K1T673DX-E1 Access Control Terminal |
|---|---|
| Model | DS-K1T673DX-E1 |
| Display | 7-inch IPS Capacitive Touch Screen, 600 × 1024 |
| Camera | 2MP Dual-Lens / Wide-Angle Lens |
| Authentication | Face, M1 Card, DESFire Card, Felica Card, Fingerprint with Module |
| Capacity | 10,000 faces, 50,000 cards, 150,000 events |
| Fingerprint Capacity | 10,000 with fingerprint module |
| Recognition | 0.3m to 3m, <0.2 sec/person, ≥99% accuracy |
| Network & Protocol | RJ45 10/100/1000M, TCP/IP IPv4/IPv6, ISAPI, ISUP 5.0 |
| Interface | Lock, Exit Button, Door Contact, Alarm I/O, Tamper, RS-485, Wiegand, USB |
| Power | 12VDC to 24VDC, 2A; PoE IEEE802.3at |
| Protection Level | IP65 |
| Operating Condition | -30°C to 60°C; 0% to 90% RH, non-condensing |
| Dimensions | 110.5 × 209.2 × 24mm |
| Warranty | 1 Year |
Verification note: Fingerprint capacity requires a compatible fingerprint module. Wireless Wi-Fi is not confirmed in the official datasheet for this model, so please confirm the exact supplied version before purchase if wireless connectivity is required.
The DS-K1T673DX-E1 is ideal for businesses that need a high-capacity face recognition terminal with fast authentication, strong card support, PoE, IP65 protection, anti-spoofing, mask detection, and professional access control interfaces. For genuine Hikvision Access Control products and complete Security System solutions, Touch IT provides expert consultation and installation support.
| Model | Best For | Main Difference |
|---|---|---|
| Hikvision DS-K1T673DX-E1 | High-capacity face access control | 7-inch screen, IP65, PoE, 10,000 faces, and 50,000 cards |
| Hikvision DS-K1T671MF | Face recognition attendance and access | Good option for professional face access projects |
| Hikvision DS-K1T981MF | High-security iris access control | Adds iris recognition for stronger identity verification |
| Hikvision DS-K1T343EFWX | Value face access control | More budget-friendly option with lower capacity |
The Hikvision DS-K1T673DX-E1 price at Touch IT is ৳84,500. Price and stock may change, so please confirm before ordering.
It supports up to 10,000 face templates for face recognition access control.
Yes, it supports up to 10,000 fingerprints when used with a compatible fingerprint module.
Yes, it supports lock control, exit button, door contact, alarm input/output, RS-485, Wiegand, and tamper input.
Yes, the device supports PoE IEEE802.3at along with 12VDC to 24VDC power input.
The terminal has IP65 protection, but installation location, weather exposure, mounting accessories, and project requirements should be checked before deployment.
Touch IT Solutions provides genuine Hikvision biometric time attendance, access control, CCTV surveillance, and security system products in Bangladesh with competitive pricing, expert consultation, professional installation support, nationwide delivery, and dependable after-sales service.
Upgrade your workplace security with the Hikvision DS-K1T673DX-E1 Access Control Terminal. Order from Touch IT for the latest price, stock confirmation, installation support, and project consultation. Visit Touch IT Solutions at ECS Computer City Center, Multiplan Center, New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Hikvision DS-K1T673DX-E1 Access Control Terminal in Bangladesh is 84,500৳. You can buy the Hikvision DS-K1T673DX-E1 Access Control Terminal at best price from our website or visit any of our showrooms.
