In Stock
| Hardware | ||
| Display | 7-inch LCD Touch Screen | |
| Camera | Dual-Lens 2MP Wide-Angle Camera | |
| Resolution | Display: 600 × 1024; Camera: 2MP | |
| Operating System | Linux | |
| User & Storage Capacity | ||
| User Capacity | 6,000 Users | |
| Face Capacity | 6,000 Faces | |
| Fingerprint Capacity | 10,000 Fingerprints | |
| Card Capacity | 50,000 Cards | |
| Transaction Capacity | 150,000 Events | |
| Authentication & Features | ||
| Verification Modes | Face, Fingerprint, M1 Card | |
| Card Type | M1 Card | |
| Multi-Factor Authentication | Supported | |
| Face Recognition Speed | < 0.2 Seconds per Person | |
| Face Algorithm | Face Anti-Spoofing, Face Duplicate Check, Single & Multiple People Recognition up to 5 People | |
| Face Recognition Accuracy | ≥ 99% | |
| Face Recognition Distance | 0.3 m to 3 m | |
| Liveness Detection | Supported | |
| Mask Detection | Supported | |
| Communication & Interface | ||
| Network | TCP/IP IPv4/IPv6, Wi-Fi 2.4GHz 802.11b/g/n, Wired 10/100/1000 Mbps Self-Adaptive | |
| Interface | 1 × Network Interface, 1 × RS-485, 1 × Wiegand, 1 × USB Type-A for Module | |
| Optional Network Protocols | ISAPI, ISUP 5.0, SIP Server Support, Push SDK, Custom Wiegand Parameters, Web Browser Configuration | |
| Access Control | 1 × Lock Output, 1 × Exit Button, 1 × Door Contact Input, 2 × Alarm Inputs, 1 × Alarm Output, 1 × Tamper; Supports Secure Door Control Unit for 2-Door Control | |
| Software & Smart Features | ||
| Software Compatibility | Hik-Connect, Web Browser Configuration, SIP Server Platforms | |
| SDK | Push SDK Supported | |
| Mobile App Integration | Hik-Connect Supported | |
| Voice Prompt | Audio Prompt and Two-Way Audio Supported | |
| Physical Specifications | ||
| Power Supply | 12 VDC / 2A | |
| Power Consumption | ≤ 10W | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Operating Humidity | 10% to 90% RH, Non-Condensing | |
| Protection Level | IP65 | |
| Dimensions | 110.5 × 209.2 × 24 mm | |
| Weight | Net: 0.57 kg; Gross: 1.06 kg | |
| Warranty | ||
| Warranty | 1 Year | |

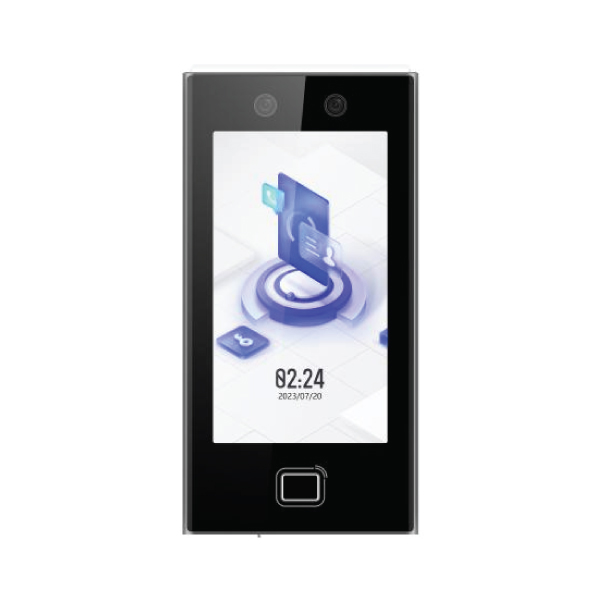

The Hikvision DS-K1T670MFWX Face Recognition Access Control Terminal is a professional multi-biometric device for secure entry and attendance management. Designed for offices, factories, educational institutions, hospitals and other busy facilities, it combines rapid facial recognition, fingerprint verification and M1 card authentication with practical door-control functions.
For organizations comparing the Hikvision DS-K1T670MFWX price in Bangladesh, the current price at Touch IT is ৳40,000. This model provides a 7-inch touchscreen, a 2MP dual-lens camera, Wi-Fi, Gigabit Ethernet and IP65 protection. Confirm stock, adapter inclusion, warranty, software compatibility and installation requirements before ordering.
The DS-K1T670MFWX is built for medium and large installations needing several authentication choices and substantial credential storage. It recognizes faces from 0.3 to 3 metres, supports anti-spoofing and mask detection, and can identify up to five people simultaneously. Web configuration, Hik-Connect, live view and two-way audio simplify entrance management.
Face verification takes less than 0.2 second per person, with a published accuracy rate of at least 99%. The 2MP dual-lens camera, WDR and anti-spoofing technology support dependable recognition across changing light conditions while helping resist presentation attempts using photographs or video.
The terminal accommodates 6,000 users and face templates, 10,000 fingerprints, 50,000 M1 cards and 150,000 event records. Administrators can assign suitable credentials to employees, contractors or visitors, supporting high-traffic workplaces with varied access policies.
Built-in 2.4GHz Wi-Fi and 10/100/1000Mbps Ethernet offer flexible deployment. TCP/IP, IPv4, IPv6, ISAPI and ISUP 5.0 assist integration with compatible Hikvision platforms. Explore other network-ready terminals on the Hikvision Access Control brand page.
Lock output, exit-button input, door-contact input, tamper detection, alarm input/output, RS-485 and Wiegand help installers build a complete entrance solution. When paired with a compatible secure door-control unit, the system can support two-door projects. Browse related locks, readers and accessories in the Access Control and Time Attendance category.
The device supports face-mask recognition and can process up to five people in the recognition view. These functions help manage busy entrances without sacrificing verification speed. Actual access rules and mask-related responses should be configured to match the organization’s security policy.
Web-browser configuration, Hik-Connect support, live view, audio prompts and two-way audio improve day-to-day administration. These capabilities make the terminal useful in connected reception, attendance and building-entry projects within a broader Security System deployment.
| Product Name | Hikvision DS-K1T670MFWX Face Recognition Access Control Terminal |
|---|---|
| Operating System | Linux |
| Display | 7-inch LCD touchscreen, 600 × 1024 resolution |
| Camera | 2MP dual-lens; HFOV 88°, VFOV 44°; WDR |
| Authentication | Face, fingerprint and M1 card |
| User and Face Capacity | 6,000 users and 6,000 faces |
| Fingerprint Capacity | 10,000 fingerprints |
| Card and Event Capacity | 50,000 cards and 150,000 events |
| Face Recognition | 0.3–3m; <0.2 second/person; ≥99% accuracy |
| Card Standard | M1 card; 0–5cm reading distance; <1 second |
| Network | 2.4GHz Wi-Fi and 10/100/1000Mbps Ethernet |
| Interfaces | RS-485, Wiegand, USB Type-A, lock, exit, door contact, alarm I/O and tamper |
| Smart Functions | Anti-spoofing, mask recognition, web configuration, Hik-Connect, live view and two-way audio |
| Power and Environment | 12V DC/2A; ≤10W; -30°C to 60°C; 10%–90% RH |
| Dimensions and Protection | 110.5 × 209.2 × 24mm; 0.57kg net; IP65 |
Verification note: Manufacturer-aligned specifications list 6,000 faces and dimensions of 110.5 × 209.2 × 24mm, although some reseller pages publish different face capacities or enclosure dimensions. PIN, QR, SIP, software licensing, adapter inclusion, warranty and two-door operation may vary by firmware, region or supplied package; confirm these requirements before purchase.
This terminal suits organizations needing more capacity and integration options than an entry-level face attendance machine. Face, fingerprint and card verification, fast recognition, IP65 protection, wireless networking, anti-spoofing, two-way audio and door-control interfaces support demanding workplace entrances.
| Model | Best For | Main Difference |
|---|---|---|
| DS-K1T670MFWX | High-capacity biometric entry | 10,000 fingerprints, 50,000 cards, Wi-Fi and IP65 |
| Hikvision DS-K1T671MF | Attendance-heavy installations | 7-inch alternative with 300,000-event storage |
| Hikvision DS-K1T642EFW | Compact multi-method access | Smaller 4.3-inch display and lower card capacity |
| Hikvision DS-K1T981MF | High-security environments | Adds iris authentication and larger face capacity |
It supports up to 6,000 users and 6,000 face templates.
Yes. The published fingerprint capacity is up to 10,000 templates.
It supports M1 cards with a published reading distance of 0 to 5cm.
Face recognition takes less than 0.2 second per person, with at least 99% published accuracy.
Yes. It supports 2.4GHz 802.11b/g/n Wi-Fi and Gigabit wired Ethernet.
Yes. It provides lock output, exit-button input, door contact, alarm, RS-485 and Wiegand interfaces for compatible equipment.
Its enclosure is IP65-rated. A protected mounting position and installation assessment are still recommended for long-term reliability.
Touch IT supplies genuine Hikvision attendance and access control products in Bangladesh with consultation, installation planning, configuration assistance, nationwide delivery and after-sales support. The team can verify suitable credentials, door hardware, software and network design.
Upgrade your entry management with fast multi-biometric authentication and professional access-control connectivity. Order the Hikvision DS-K1T670MFWX Face Recognition Access Control Terminal from Touch IT, visit 312 (3rd Floor), Multiplan Center, 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Hikvision DS-K1T670MFWX Access Control Terminal in Bangladesh is 40,000৳. You can buy the Hikvision DS-K1T670MFWX Access Control Terminal at best price from our website or visit any of our showrooms.
