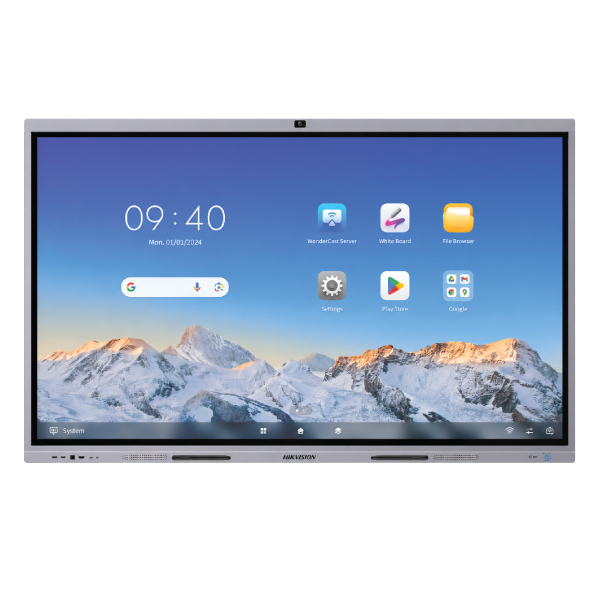

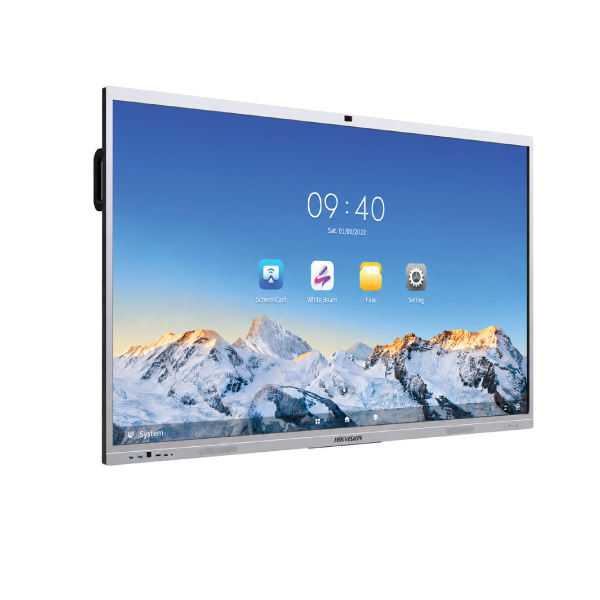

Hikvision DS-D5C86RB/B 86-inch 4K Interactive Flat Panel

Hikvision DS-D5C86RB/B 86-inch 4K Interactive Flat Panel

The Hikvision DS-D5C86RB/B 86-inch 4K Interactive Flat Panel is an all-in-one collaboration display designed for large classrooms, university lecture rooms, boardrooms, training centres and conference facilities. It combines a 4K UHD touchscreen, Android computing, an integrated camera, an eight-array microphone and powerful speakers in one professional presentation system.

For organizations comparing the Hikvision DS-D5C86RB/B price in Bangladesh, this Ultra Series interactive panel provides a practical alternative to separate projectors, whiteboards and video-conferencing equipment. The current price at Touch IT is ৳400,000. Confirm availability, installation requirements, supplied accessories and warranty terms before ordering.

Quick Highlights

• Model: Hikvision DS-D5C86RB/B
• Display: 86-inch DLED-backlit VA panel
• Resolution: 3840 × 2160 4K UHD at 60Hz
• Brightness: 400 cd/m² typical
• Touch: Up to 45 simultaneous touch points
• System: Android 13 with 8GB RAM and 128GB storage
• Camera: Integrated camera supporting 48MP photos and 8MP video
• Microphone: Eight-array microphone with up to 12-metre pickup
• Audio: Integrated stereo speakers and 25W subwoofer

Hikvision DS-D5C86RB/B Overview Summary

The DS-D5C86RB/B works as a digital whiteboard, presentation screen and video-conferencing display. Its large viewing area helps participants read detailed content from across a room, while the embedded Android platform supports common teaching, annotation, file-sharing and meeting workflows without requiring a permanently connected computer.

Key Features & Benefits

Large 86-inch 4K UHD Display

The 3840 × 2160 resolution presents documents, diagrams, dashboards and video with four times the pixel count of Full HD. A 5000:1 static contrast ratio, 1.07-billion-colour capability and 178-degree viewing angle help maintain clear images for participants seated at different positions.

Responsive 45-Point Multi-Touch

Up to 45 touch points let multiple users write, draw or interact with on-screen material. Touch response below 5ms and approximately ±1mm accuracy support natural annotation. The anti-glare, anti-fingerprint glass reduces distracting reflections during lessons and presentations. Browse the complete Interactive Flat Panel collection for other screen sizes and configurations.

Android 13 with Powerful Processing

The embedded system uses four Cortex-A76 cores, four Cortex-A55 cores and Mali-G610 MC4 graphics. Combined with 8GB RAM and 128GB internal storage, this hardware supports responsive whiteboarding, multimedia playback, document viewing and multitasking through the compatible Android environment.

Integrated Camera and Microphone Array

The built-in camera supports 48MP still images, 8MP video and output up to 4K resolution. An omnidirectional eight-array microphone uses echo reduction and noise cancellation to capture speech from up to approximately 12 metres. Explore other professional displays and collaboration products on the Hikvision Products page.

Flexible Connectivity and Optional Windows

HDMI input and output, DisplayPort, VGA, USB, USB Type-C, LAN, Wi-Fi and Bluetooth provide flexible connections for computers, storage devices and meeting-room equipment. An optional OPS computer can add Windows functionality when required. Find compatible workplace technology under Office Equipment.

Business & Industry Applications

• Universities, colleges, schools and training institutes
• Corporate boardrooms and large conference rooms
• Government offices and command centres
• Healthcare training and administrative facilities
• Design reviews, workshops and hybrid meetings

Technical Specifications

Verification note: Detailed listings for the DS-D5C86RB/B specify up to 45 touch points, although some generic Ultra Series summaries mention a higher maximum. An OPS computer, mobile stand, wall-mount hardware, conferencing applications and extended warranty may be optional or package-dependent. Confirm the exact regional hardware revision and supplied accessories before purchase.

Why Choose the Hikvision DS-D5C86RB/B?

This model is well suited to organizations needing a large 4K smart board with strong Android hardware and integrated conferencing tools. Its 86-inch screen serves larger rooms, while the camera, microphone array, touch interface and multiple inputs reduce the number of separate devices needed for presentations and hybrid collaboration.

Product Comparison

Frequently Asked Questions

What is the screen resolution of the DS-D5C86RB/B?

It provides a native 3840 × 2160 4K UHD resolution with a 60Hz refresh rate.

How many users can write on the screen simultaneously?

The detailed specification supports up to 45 touch points, subject to the connected operating system and application.

Does the interactive panel have a built-in camera?

Yes. It includes a camera supporting 48MP still photos, 8MP video and output up to 4K.

Can it capture voices across a large meeting room?

Its eight-array microphone supports echo reduction, noise cancellation and a published pickup distance of approximately 12 metres.

Can the panel operate without a separate computer?

Yes. Android 13, 8GB RAM and 128GB storage allow many whiteboarding, presentation and media tasks to run directly on the display.

Can Windows be used on this interactive display?

Yes. Windows can be added through a compatible optional OPS computer or connected external PC. The OPS module is normally purchased separately.

Is this display suitable for large classrooms?

Yes. The 86-inch 4K screen, wide viewing angle, multi-touch input and integrated audio make it suitable for large classrooms, lecture rooms and boardrooms.
